High-Speed Wire Rope Electric Hoist – MD Series for Fast Material Handling
$1150.00 1 set
Qingdao Shanghai
L/C T/T
New
CD1/MD1
CE, ISO9001
Anlian
General manufacturing,Metal production industry,Renewable energy industry
Product Description

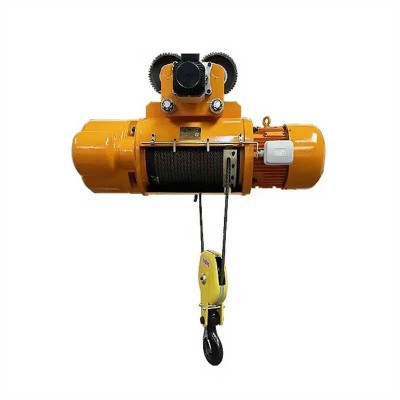

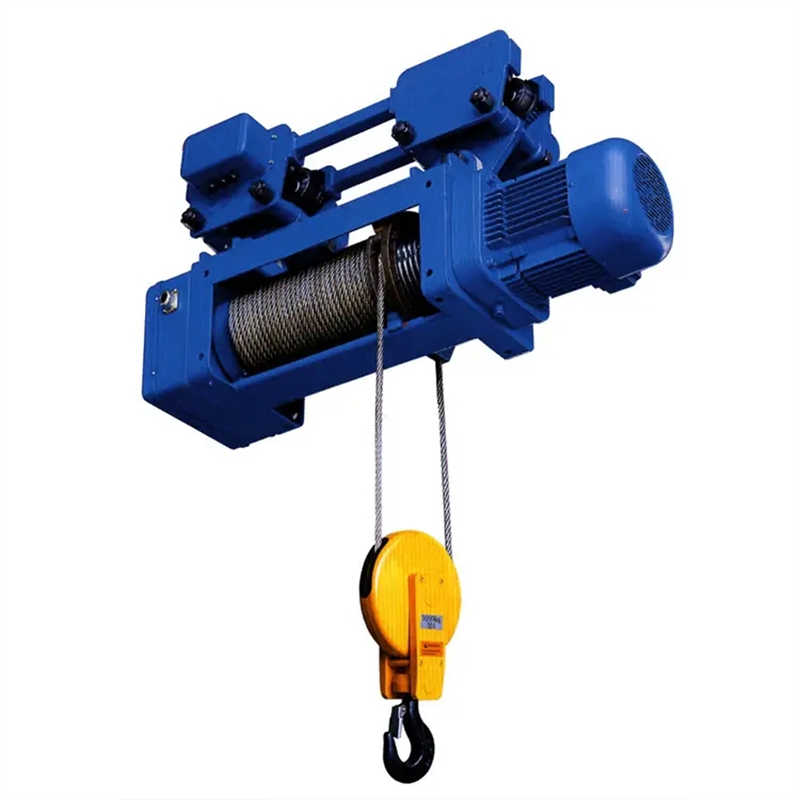

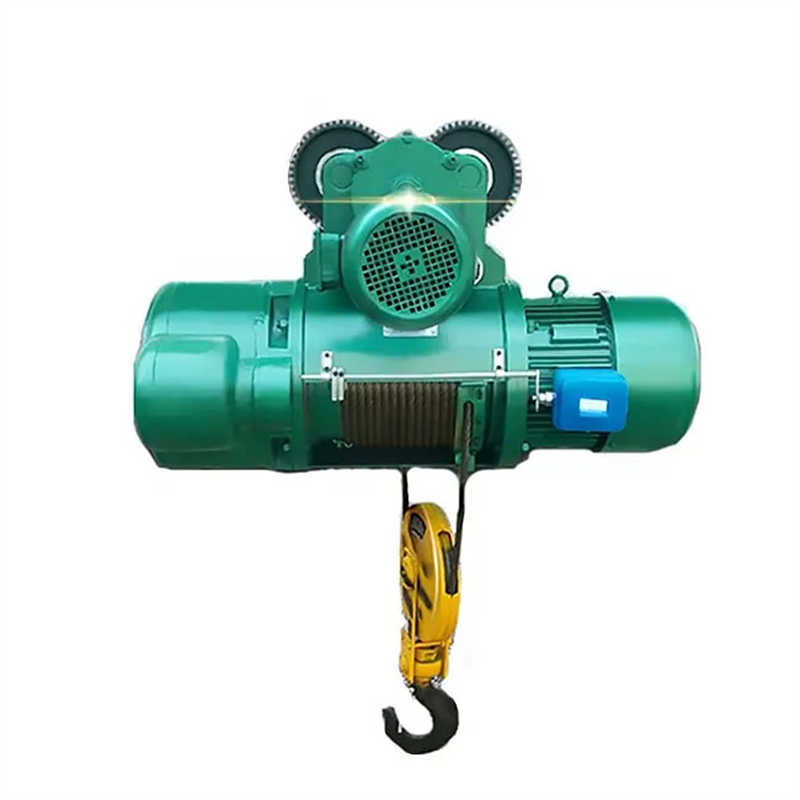

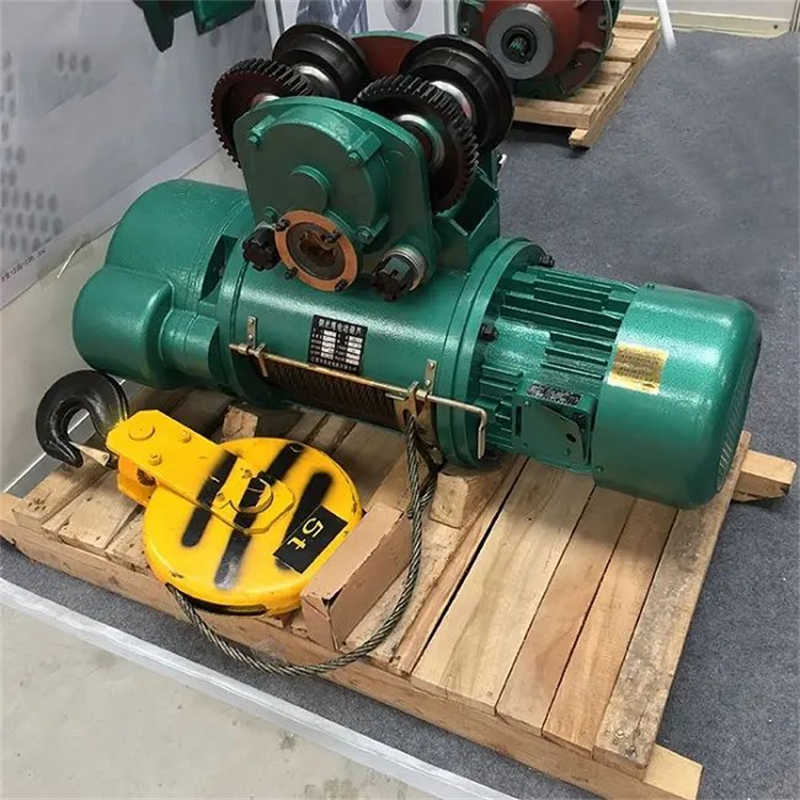

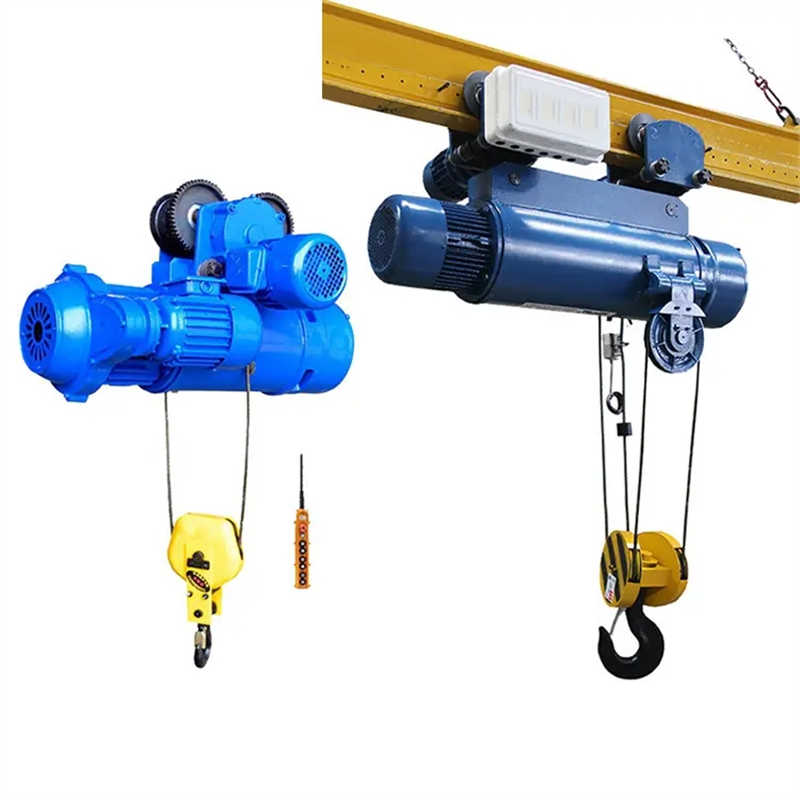

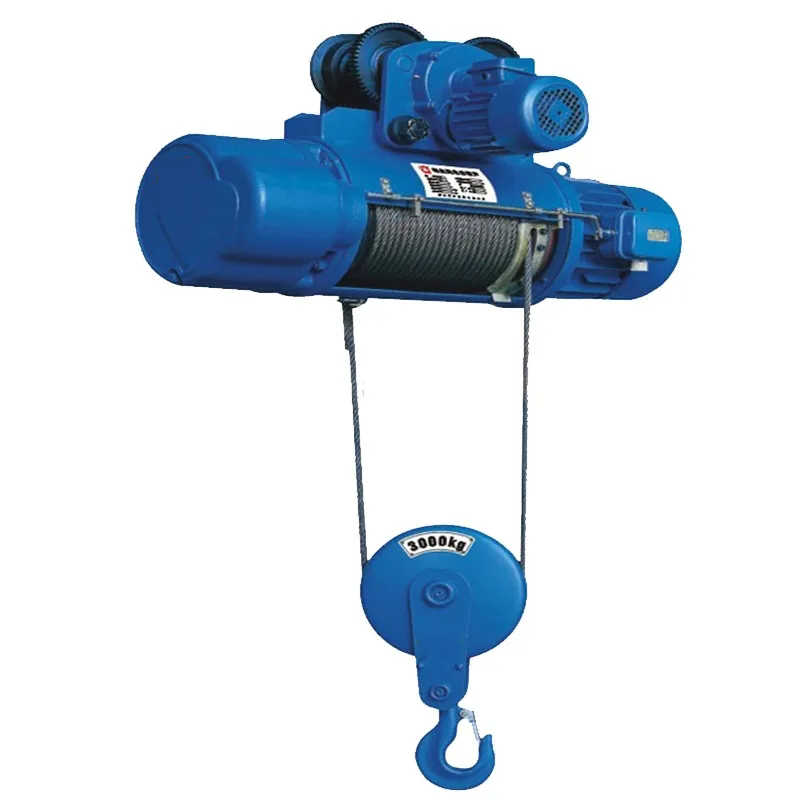

MD Series Double Speeds Wire Rope Electric Hoist
Brief Introduction
CD1/MD1: wire rope electric hoist is a kind of light duty lifting equipment with advantages of tight structure, light dead weight, small volume, wide common use and convenient operation etc.
CD1 MD1: wire rope electric hoists can be widely used to hoist heavy objects, or installed on the straight or curve I-section steel beam of single beam cranes. They can also be used together with Electric Hoist Double beam gantry cranes and jib cranes. All the above has made the electric hoists common in industrial and mining enterprises, railway, wharfs and warehouses etc.
| Introduction | a small-sized lifting equipment, which can be mounted on overhead crane, gantry crane and jib crane as lifting mechanism. |
| Application | widely used in various fields of materials handling, such as Machinery Manufacturing, iron and steel metallurgy, mine mining, water conservancy and hydropower, road and rail, port logistics, shipbuilding and so on. |
| Single Speed or Double Speed | Model CD1 electric hoist has only normal speed, which can s Widely used steel wire rope gear trolleys hoists atisfy normal application. Model MD1 electric hoist provides two speeds: normal speed and low speed. |
| Difference | The lifting speed of CD1 type is general speed, it can satisfy the requirements of general use; the lifting speed of MD1 type has two lifting speed: general speed and slow speed. When worked in slow speed, it can satisfy the requirement of precision loading and unloading, examine and repair machine tool etc precision work |
| Safty | 1. Brake and clutch ensure the safety under any circumstance,no slip under load 2. IP55 of hoist frame and brake ensures the optimal corrosion resistance under harsh environment. 3. Up and down limit switch ensures the safe operation of the hook on the top and bottom position. 4. Low voltage contactor ensures the safe and reliable operation |
| Features | 1) Compact structure and reasonable design 2) Easy to install and high efficiency 3) Widely used 4) Top quality with competitive and economic price Small size, beautiful appearance, reasonable structure, strong and durable, easy to store |
Technical Data
| Model | CD1 MD1 | |||||||||
| Capacity | Tons | 0.25 | 0.5 | 1 | 2 | 3 | 5 | 10 | 16 | |
| Hoisting height | M | 3,6,9 | 6,9,12 | 6,9,12,18,24,30 | 9,12,18,24,30 | |||||
| Hoisting speed | M/MIN | 8(0.8/8) | 8(0.8/8) | 8(0.8/8) | 7(0.7/7) | 3.5 (0.35/3.5) | ||||
| Travel speed | M/MIN | 20 | 20/30 | 20/30 | 20/30 | 20/30 | 20/30 | 20/30 | 18 | |
| Wirerope | Dia.(mm) | 3.6 | 4.8 | 7.4 | 11 | 13 | 15 | 15 | 17.5 | |
| Spec. | 6x39 | 6x37+FC | 6x37+FC | 6x37+FC | 6x37+FC | |||||
| Hoisting motor | Type | ZD112-4 | ZD121-4 | ZD122-4 | ZD131-4 | ZD132-4 | ZD141-4 | ZD151-4 | ZD151-4 | |
| ZDS1 0.2/0.8 | ZDS1 0.2/1.5 | ZDS1 0.4/3.0 | ZDS1 0.4/4.5 | ZDS1 0.8/7.5 | ZDS1 1.5/13 | ZDS1 1.5/13 | ||||
| Power (KW) | 0.4 | 0.8 (0.2/0.8) | 1.5 (0.2/1.5) | 3.0 (0.4/3.0) | 4.5 (0.4/4.5) | 7.5 (0.8/7.5) | 13(1.5/13) | 13(1.5/13) | ||
| speed (r/min) | 1380 | 1380 | 1380 | 1380 | 1380 | 1400 | 1400 | 1400 | ||
| Current (A) | 1.25 | 2.2 (0.72/2.4) | 4.3(0.72/4.3) | 7.6(1.25/7.6) | 11 (2.4/11) | 18 (2.4/18) | 30(5.2/30) | 30(5.2/30) | ||
| Travel motor | Type | ZDY110-4 | ZDY111-4 | ZDY111-4 | ZDY112-4 | ZDY112-4 | ZDY121-4 | ZDY121-4 | ZDY121-4 | |
| Power (KW) | 0.06 | 0.2 | 0.2 | 0.4 | 0.4 | 0.8 | 0.8x2 | 0.8x2 | ||
| speed (r/min) | 1400 | 1380 | 1380 | 1380 | 1380 | 1380 | 1380 | 1380 | ||
| Current (A) | 0.3 | 0.72 | 0.72 | 1.25 | 1.25 | 2.4 | 2.4 | 2.4 | ||
| Power | AC 380V,50HZ,3P (By your demand) | |||||||||
Product Components
Packaging & Shipment
An overview of our factory
Xinxiang Anlian Crane Construction Machinery Co., Ltd., the main business:
electric hoist, hoist, crane motors, conical motors, vibration motors, concrete vibrators and hoist accessories, Which widely used in various fields of materials handling, such as Machinery Manufacturing, iron and steel metallurgy, mine mining, water conservancy and hydropower, road and rail, port logistics, shipbuilding and so on. Founded in 1993, currently has a registered capital of 10 million yuan, more than 200 employees, 20 engineers and technicians, covers an area of 24,000 square meters, with all kinds of production equipment 90 (sets).
Ordering Information
about Product:
Please inform us the following data for the purpose of servicing you better!
1. Lifting capacity.
2. Lifting height.(hook center to ground)
3. Span(rail center to rail center)
4. Power supply: Voltage.
5. Working condition: material of this product and working temprature
6. Would be better if you have drawings of your plant.
about Delivery: 30days after receiving your deposit and after the order /confirm/ied.
about Payment: L/C, T/T, Western Union.
Hot-selling in these countries and regions
Our cranes are hot-selling in:
United Kingdom, India, Negeria, Pakistan, Egypt, Bangladesh, Philippines, Australia, Malaysia, Singapore, Malta, Turkmenistan, Saudi Arabia, Peru, Ethiopia, Malta, Albania, South Africa and so on, and get well feedback and many new orders again from them.
If you want to have any details of these projects, please TELL US!
Service we can provide
1. Payment terms is flexible.
2. Design the crane according to your technical request.
3. Delivery on time.
4. Our engineer can arriving to the installation site to help fixing the crane for you.
5. Diversity products.
6. Warranty: 12 months.
Warranty:
1.1 (one)year guarantee for main body.
2. we provide free maintenances for spare parts, but the new components replaced should be paid.
3. we arrange engineer to supervise installation, make the load test, do commissioning, train of the buyer's workers.
4. Technique support: Exclusive engineer support at any time .
