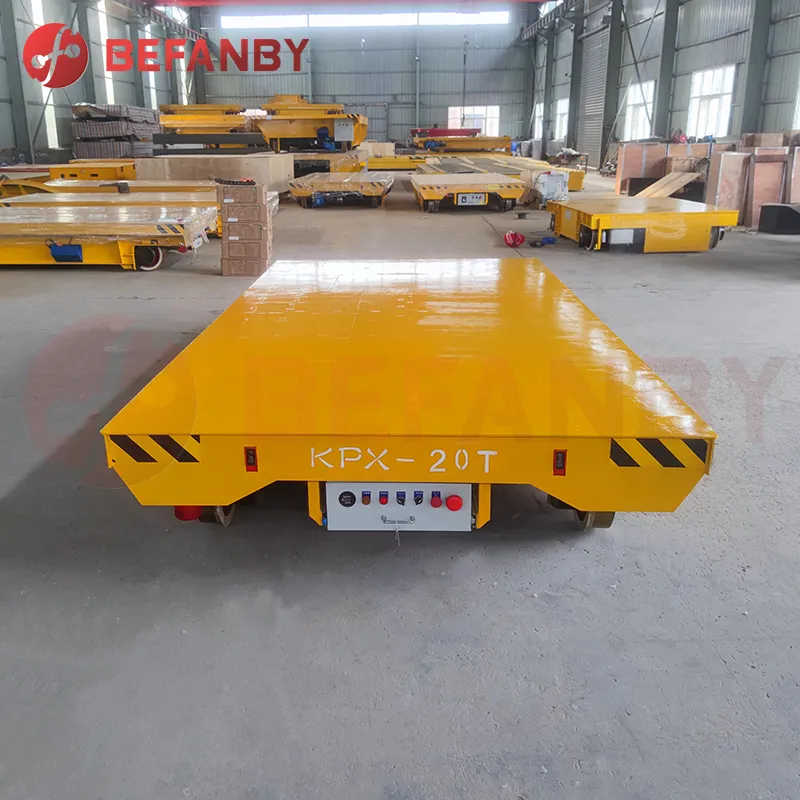

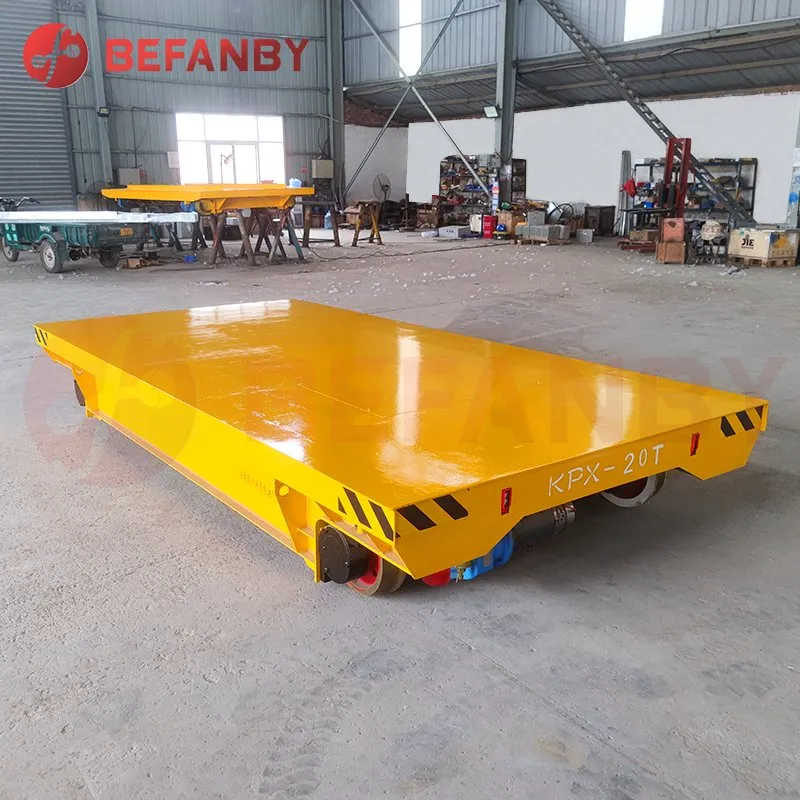

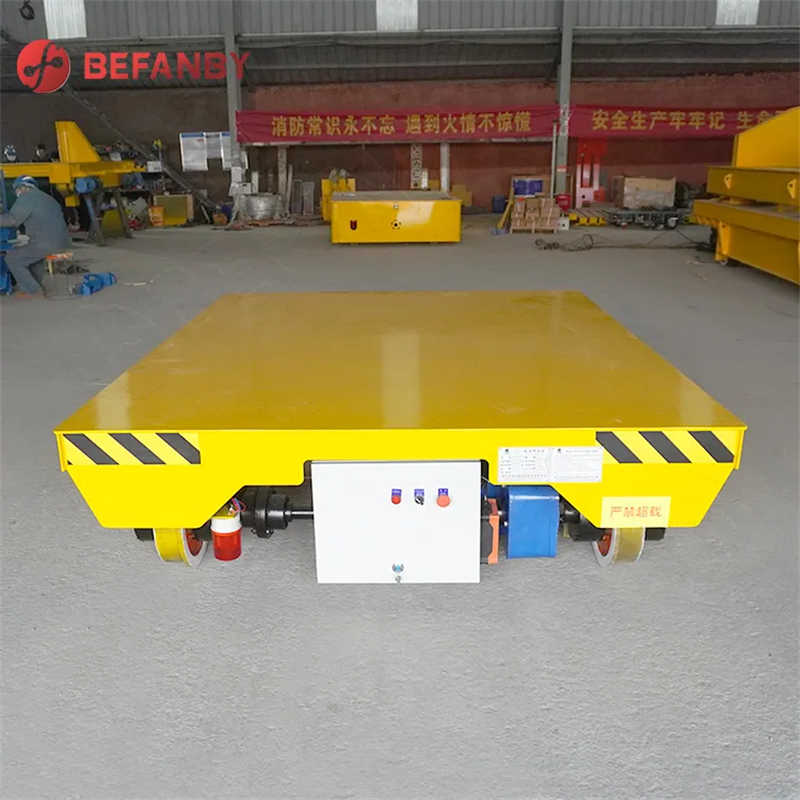

Motorized Material Rail Flat Trolley for Heavy Duty Cargo Transportation
$3500.00 1 set
Qingdao Shanghai
L/C T/T
New
KPJ
CE, ISO9001
BEFANBY
General manufacturing
Product Description1-500T Customized Manufacture Heavy Machinery Handling Flat Rail Transfer Trolley for SaleKPJ Series railway flat carts are powered by the cable reels. The flat carts get power AC 380V through the device of cable reel which is installed at the bottom of the cart. The motor is controlled by the power through the AC control system. We use this principle to operate the carts, for example, start, stop, go forward and backward and so on. The operation system is low voltage 36V. The hydraulic lifting device can be installed.
Features for transfer cart:
1. High frequency of use, unlimited running time.
2. Easy operation and low cost.
3. The operating distance is less than 200 meters.
4. Suitable for all kinds of environments.It can be used indoors or outdoors in high temperature explosion-proof and other environments.
5. Customized for you.Custom table size, operating speed,load,etc.Meet your requirements.
Details Images
Product Parameter
| Model | KPJ-2t | KPJ-20t | KPJ-50t | KPJ-100t | KPJ-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2000 | 2500 | 2800 | 3000 | |
| Heigth(H) | 450 | 550 | 650 | 850 | 1200 | |
| Wheel base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(mm) | 25 | 20 | 20 | 20 | 18 | |
| Motor Power(kw) | 0.8 | 2.5 | 5.5 | 11 | 15 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight(t) | 2.3 | 5.5 | 7.6 | 13.9 | 26 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
Our Advantage
Application
Our Company
How to choose the suitable transfer trolley?
All of our coil transfer trailer all customized as client's requirement, for choose the most suitable transfer trolley,please
kindly providing the following information:
Transfer or handling what material/cargo?
What capacity do you need?
This transfer trolley is running on rails or ground(floor)?
Your requirement for table size:length,width and height?
How about the running distance?
How many working hours in per day?
