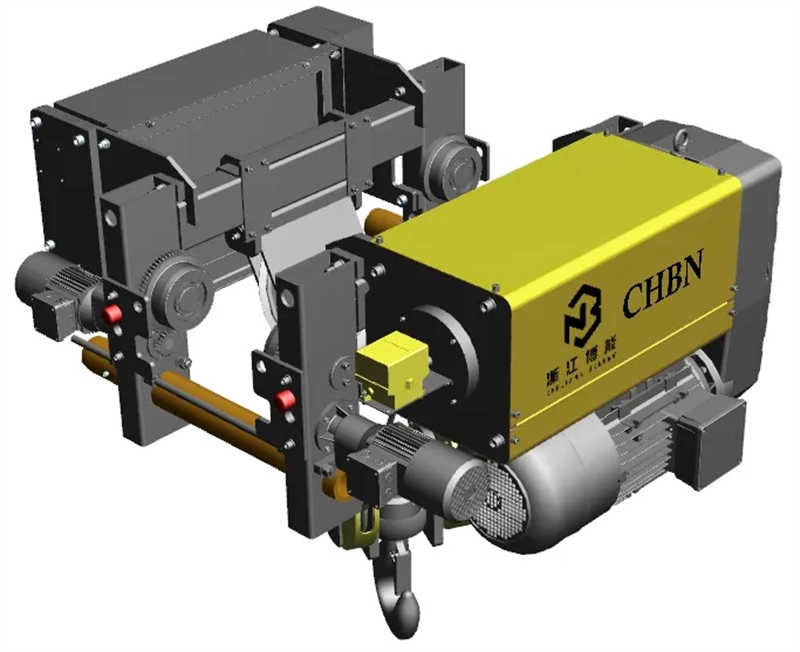

Space-Saving ECO Low Headroom Hoist for Compact Manufacturing Cells
$2450.00 1 set
Qingdao Shanghai
L/C T/T
New
ECO
CE, ISO9001
Boneng
General manufacturing
Product Description
Low headroom
Smart driving, higher efficiency
Stepless traveling control
Hardened gear,low noise design
IP55/For HInsulation
Heavy duty motor, 60%ED rating
Overheating, overloading protect
Electromagnetic disk brake,full sealing
Maintenance free
Dual speeds for hoisting

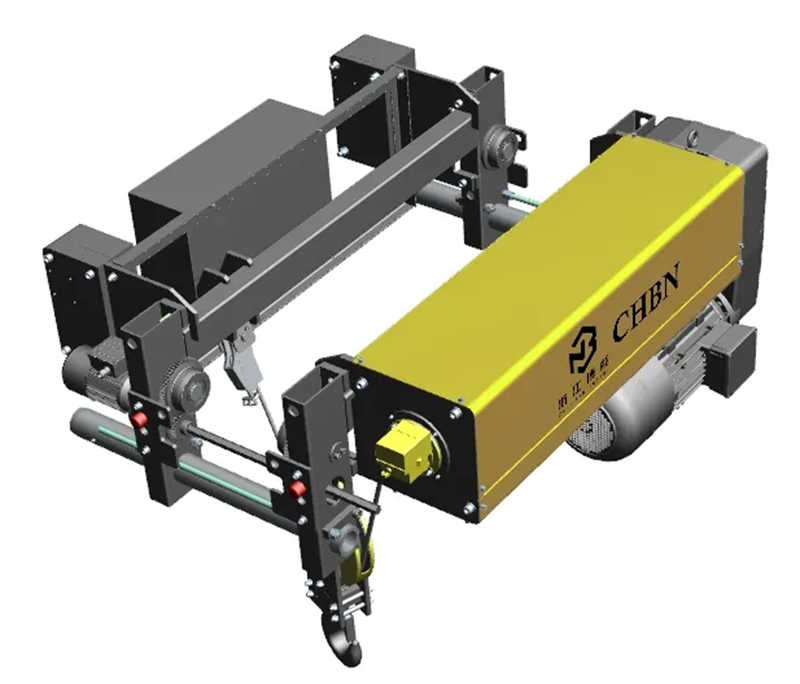

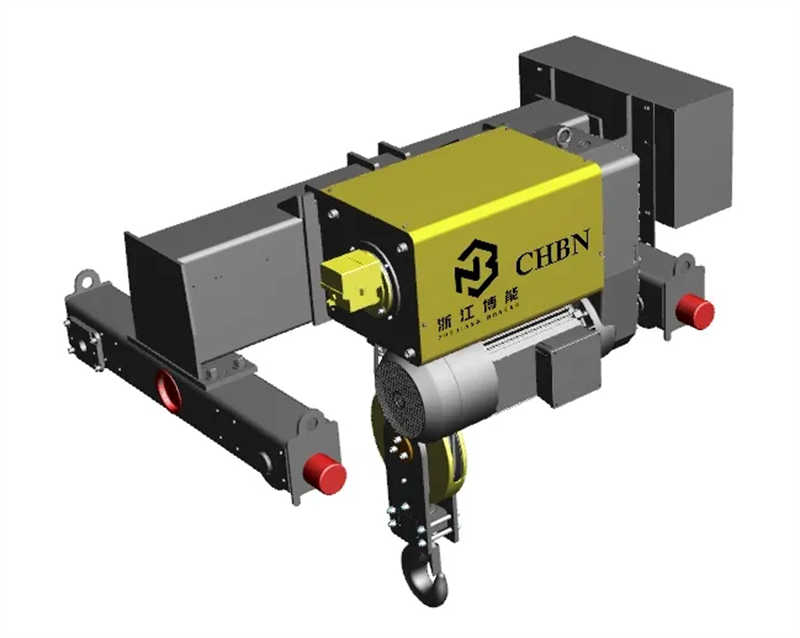

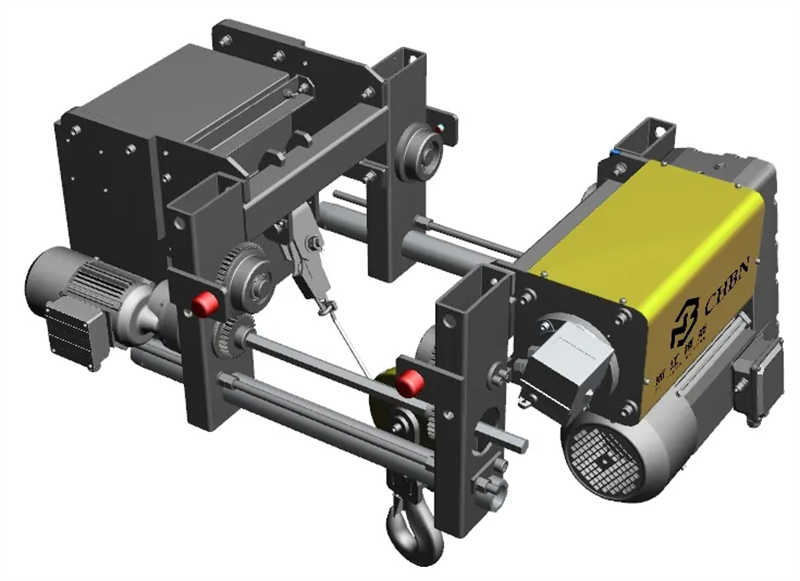

Detailed Photos
Product Parameters
| Rated lifting capacity(kg) | Level of Work (FEM/ISO) | Lifting height(m) | Magnification | Lifting speed(m/min) | Hoisting motor power(kw) | Running speed (m/min) | Travel motor power(kw) |
| 3000 | 1Am/M4 | 6 | 2/1 | 5 | 3.2 | 20 | 0.4 |
| 3000 | 1Am/M4 | 9 | 2/1 | 5 | 3.2 | 20 | 0.4 |
| 3000 | 1Am/M4 | 12 | 2/1 | 5 | 3.2 | 20 | 0.4 |
| 3000 | 1Am/M4 | 15 | 2/1 | 5 | 3.2 | 20 | 0.4 |
| 3000 | 1Am/M4 | 18 | 2/1 | 5 | 3.2 | 20 | 0.4 |
| 3000 | 2m/M5 | 6TVL | 4/2 | 5 | 3.2 | 20 | 0.4 |
| 3000 | 2m/M5 | 9TVL | 4/2 | 5 | 3.2 | 20 | 0.4 |
| 3000 | 2m/M5 | 12TVL | 4/2 | 5 | 3.2 | 20 | 0.4 |
| 3000 | 2m/M5 | 15TVL | 4/2 | 5 | 4.9 | 20 | 0.4 |
| 3000 | 2m/M5 | 18TVL | 4/2 | 5 | 4.9 | 20 | 0.4 |
| 3000 | 1Am/M4 | 6 | 2/1 | 8 | 4.5 | 20 | 0.4 |
| 3000 | 1Am/M4 | 9 | 2/1 | 8 | 4.5 | 20 | 0.4 |
| 3000 | 1Am/M4 | 12 | 2/1 | 8 | 4.5 | 20 | 0.4 |
| 3000 | 1Am/M4 | 15 | 2/1 | 8 | 4.5 | 20 | 0.4 |
| 3000 | 1Am/M4 | 18 | 2/1 | 8 | 4.5 | 20 | 0.4 |
| 3000 | 2m/M5 | 6TVL | 4/2 | 8 | 4.5 | 20 | 0.4 |
| 3000 | 2m/M5 | 9TVL | 4/2 | 8 | 4.5 | 20 | 0.4 |
| 3000 | 2m/M5 | 12TVL | 4/2 | 8 | 4.5 | 20 | 0.4 |
| 3000 | 2m/M5 | 15TVL | 4/2 | 8 | 4.9 | 20 | 0.4 |
| 3000 | 2m/M5 | 18TVL | 4/2 | 8 | 4.9 | 20 | 0.4 |
| 5000 | 1Am/M4 | 6 | 2/1 | 5 | 4.9 | 20 | 0.4 |
| 5000 | 1Am/M4 | 9 | 2/1 | 5 | 4.9 | 20 | 0.4 |
| 5000 | 1Am/M4 | 12 | 2/1 | 5 | 4.9 | 20 | 0.4 |
| 5000 | 1Am/M4 | 15 | 2/1 | 5 | 4.9 | 20 | 0.4 |
| 5000 | 1Am/M4 | 18 | 2/1 | 5 | 4.9 | 20 | 0.4 |
| 5000 | 2m/M5 | 6TVL | 4/2 | 5 | 4.9 | 20 | 0.4 |
| 5000 | 2m/M5 | 9TVL | 4/2 | 5 | 4.9 | 20 | 0.4 |
| 5000 | 2m/M5 | 12TVL | 4/2 | 5 | 4.9 | 20 | 0.4 |
| 5000 | 2m/M5 | 15TVL | 4/2 | 5 | 4.9 | 20 | 0.4 |
| 5000 | 2m/M5 | 18TVL | 4/2 | 5 | 4.9 | 20 | 0.4 |
| 5000 | 1Am/M4 | 6 | 2/1 | 8 | 7.5 | 20 | 0.4 |
| 5000 | 1Am/M4 | 9 | 2/1 | 8 | 7.5 | 20 | 0.4 |
| 5000 | 1Am/M4 | 12 | 2/1 | 8 | 7.5 | 20 | 0.4 |
| 5000 | 1Am/M4 | 15 | 2/1 | 8 | 7.5 | 20 | 0.4 |
| 5000 | 1Am/M4 | 18 | 2/1 | 8 | 7.5 | 20 | 0.4 |
| 5000 | 2m/M5 | 6TVL | 4/2 | 8 | 7.5 | 20 | 0.4 |
| 5000 | 2m/M5 | 9TVL | 4/2 | 8 | 7.5 | 20 | 0.4 |
| 5000 | 2m/M5 | 12TVL | 4/2 | 8 | 7.5 | 20 | 0.4 |
| 5000 | 2m/M5 | 15TVL | 4/2 | 8 | 7.5 | 20 | 0.4 |
| 5000 | 2m/M5 | 18TVL | 4/2 | 8 | 7.5 | 20 | 0.4 |
| 10000 | 2m/M5 | 6TVL | 4/2 | 5 | 9.5 | 20 | 2x0.4 |
| 10000 | 2m/M5 | 9TVL | 4/2 | 5 | 9.5 | 20 | 2x0.4 |
| 10000 | 2m/M5 | 12TVL | 4/2 | 5 | 9.5 | 20 | 2x0.4 |
| 10000 | 2m/M5 | 15TVL | 4/2 | 5 | 9.5 | 20 | 2x0.4 |
| 10000 | 2m/M5 | 18TVL | 4/2 | 5 | 9.5 | 20 | 2x0.4 |
| 10000 | 2m/M5 | 6TVL | 4/2 | 7 | 12.5 | 20 | 2x0.4 |
| 10000 | 2m/M5 | 9TVL | 4/2 | 7 | 12.5 | 20 | 2x0.4 |
| 10000 | 2m/M5 | 12TVL | 4/2 | 7 | 12.5 | 20 | 2x0.4 |
| 10000 | 2m/M5 | 15TVL | 4/2 | 7 | 12.5 | 20 | 2x0.4 |
| 10000 | 2m/M5 | 18TVL | 4/2 | 7 | 12.5 | 20 | 2x0.4 |
| 16000 | 2m/M5 | 6 | 4/1 | 3.5 | 12.5 | 20 | 2x0.8 |
| 16000 | 2m/M5 | 9 | 4/1 | 3.5 | 12.5 | 20 | 2x0.8 |
| 16000 | 2m/M5 | 12 | 4/1 | 3.5 | 12.5 | 20 | 2x0.8 |
| 16000 | 2m/M5 | 15 | 4/1 | 3.5 | 12.5 | 20 | 2x0.8 |
| 16000 | 2m/M5 | 18 | 4/1 | 3.5 | 12.5 | 20 | 2x0.8 |
| 16000 | 2m/M5 | 6 | 4/1 | 0~5 | 20 | 0~20 | 2x0.8 |
| 16000 | 2m/M5 | 9 | 4/1 | 0~5 | 20 | 0~20 | 2x0.8 |
| 16000 | 2m/M5 | 12 | 4/1 | 0~5 | 20 | 0~20 | 2x0.8 |
| 16000 | 2m/M5 | 15 | 4/1 | 0~5 | 20 | 0~20 | 2x0.8 |
| 16000 | 2m/M5 | 18 | 4/1 | 0~5 | 20 | 0~20 | 2x0.8 |
| 20000 | 1Am/M4 | 6 | 4/1 | 3.5 | 12.5 | 20 | 2x0.8 |
| 20000 | 1Am/M4 | 9 | 4/1 | 3.5 | 12.5 | 20 | 2x0.8 |
| 20000 | 1Am/M4 | 12 | 4/1 | 3.5 | 12.5 | 20 | 2x0.8 |
| 20000 | 1Am/M4 | 15 | 4/1 | 3.5 | 12.5 | 20 | 2x0.8 |
| 20000 | 1Am/M4 | 18 | 4/1 | 3.5 | 12.5 | 20 | 2x0.8 |
| 20000 | 1Am/M4 | 6 | 4/1 | 0~5 | 20 | 0~20 | 2x0.8 |
| 20000 | 1Am/M4 | 9 | 4/1 | 0~5 | 20 | 0~20 | 2x0.8 |
| 20000 | 1Am/M4 | 12 | 4/1 | 0~5 | 20 | 0~20 | 2x0.8 |
| 20000 | 1Am/M4 | 15 | 4/1 | 0~5 | 20 | 0~20 | 2x0.8 |
| 20000 | 1Am/M4 | 18 | 4/1 | 0~5 | 20 | 0~20 | 2x0.8 |
