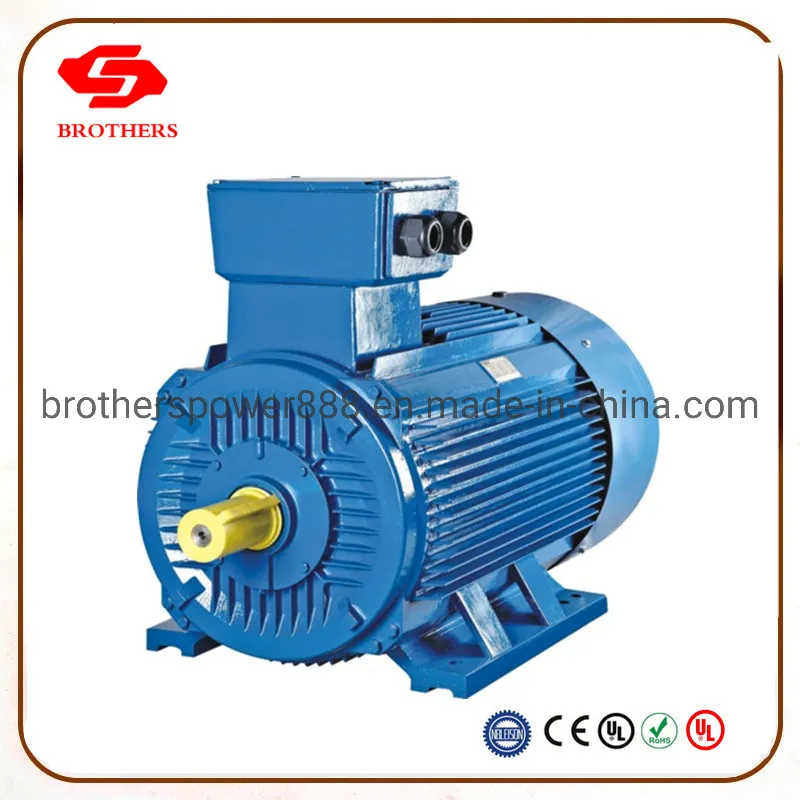

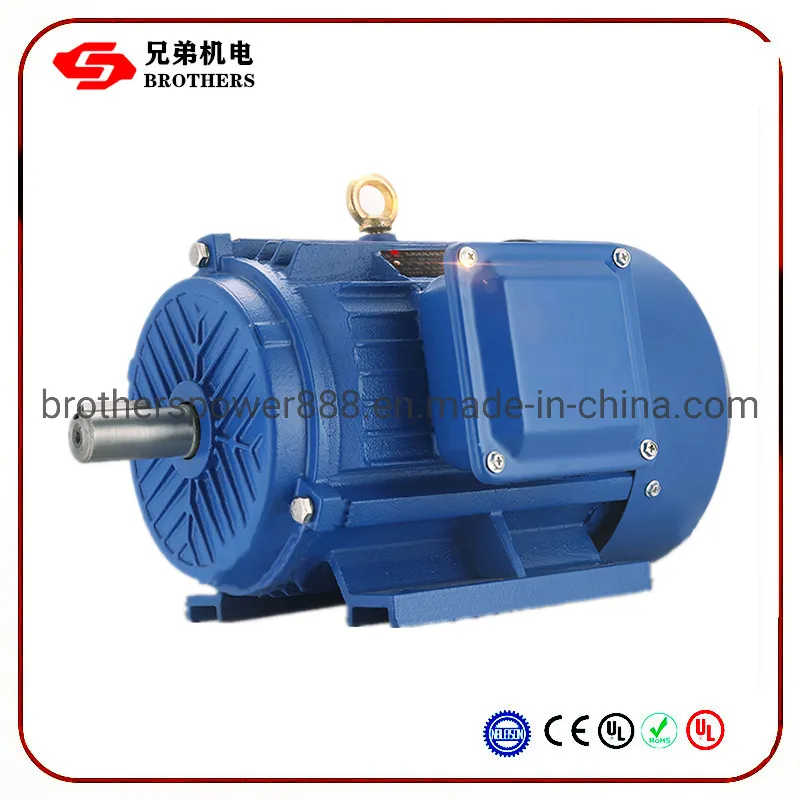

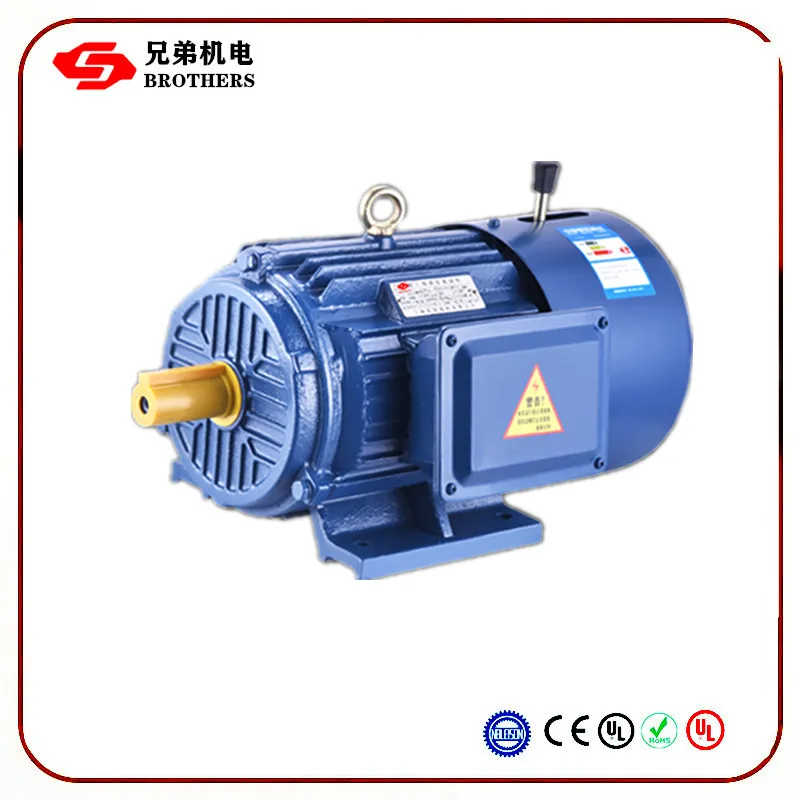

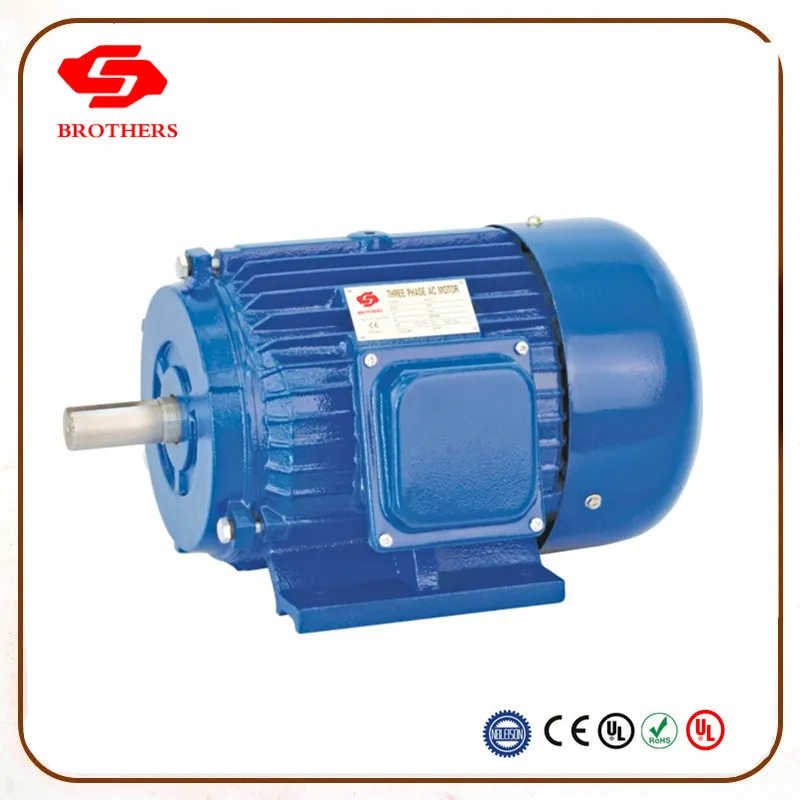

Y2 180-4 37kw Pump Engine

$555.00

Min. Order: 1 set

Port: Qingdao Shanghai

Payment Terms: L/C T/T

Transport Package:

Conditions: New

Model: Y2

Certifications: CE, ISO9001

Brand: Brothers

Application: General manufacturing

Contact Supplier

Add to Wish List

Max. Lifting Capacity: t

Max. Lifting Height:

Span:

Voltage:

Working Duty: M3-M5

Color: Yellow,Customized

Brand/Trademark: Brothers

Model: Y2

Origin: 中国

Warranty: 1 Years

Application

Y2 series electric motors are totally enclosed and fan cooled (TEFC),three-phase squire cage induction motor,,developed type of Y series electric motors with new technique.The mounting dimension is conformed with the relevant requirements of IEC standards.

Y2 series electric motors are with besutiful figure,compact structure,low noise,high efficiency,large starting torque,easy operation,etc,The motors are adopted with insulation class F and protection class ip54.These motors are up to the international standard .

Y2 series electric motors are widely used in many places,such as HVAC,drilling machines,pumps,fans winches,air compressors,floor cleaning machunes,transport machines,food machines,agriculture machines and equipment,etc.

Note:we can also produce customized motors accordig to clients special requirements.

Operating Conditions

Ambient temperature: -15ºC~40ºC
Altitude : not exceed 1000m
Rated voltage: 380v or any voltage
Rated frequency :50HZ ,60HZ
Protection class: H .F
Cooling method : IC0141
Duty: S1 (continuous)
Motor mounting type B3 (IM 1001), B35 (IM 2001), B5 (IM 3001), B14 (IM 3601), B34 (IM 2101)
Connection : Star-connection for up to 3KW, delta-connection for 4KW and above .
Remark: Motor can be equipped with PTC,for frame size 160 and above,also can be equipped with re-greasing aystem.Terminal box on top, right side or left side are available. Key-way can be closed type or opened type.side or left side are available. Key-way could be close type or open type.

Detailed Product Description

1.CE certificate
2.Copper wire
3.Cold-rolled silicon steel sheet

TECHNICAL DATA

Model	Output		Full load				75%load		Tstart/Tn	Ist/In	Tmax/Tn
	kW	HP	Current	Speed	Eff	Power	Eff	Power
	kW	HP	(A)	(r/min)	(%)	Factor	(%)	Factor
380V 50Hz Synchronous Speed 3000 r/min (2 poles)
Y2-631-2	0.18	0.25	0.53	2720	65	0.8	63.1	0.75	2.2	5.5	2.2
Y2-632-2	0.25	0.34	0.69	2720	68	0.81	65.1	0.76	2.2	5.5	2.2
Y2-711-2	0.37	0.5	0.99	2740	70	0.81	69	0.76	2.2	6.1	2.2
Y2-712-2	0.55	0.75	1.4	2740	73	0.82	71.2	0.7	2.2	6.1	2.3
Y2-801-2	0.75	1	1.83	2830	75	0.83	73	0.77	2.2	6.1	2.3
Y2-802-2	1.1	1.5	2.58	2830	77	0.84	75.1	0.78	2.2	7	2.3
Y2-90S-2	1.5	2	3.43	2840	79	0.84	77	0.78	2.2	7	2.3
Y2-90L-2	2.2	3	4.85	2840	81	0.85	80	0.79	2.2	7	2.3
Y2-100L-2	3	4	6.31	2870	83	0.87	82	0.8	2.2	7.5	2.3
Y2-112M-2	4	5.5	7.1	2890	85	0.88	83.9	0.83	2.2	7.5	2.3
Y2-132S1-2	5.5	7.5	11	2900	86	0.88	84.2	0.83	2.2	7.5	2.3
Y2-132S2-2	7.5	10	14.9	2900	87	0.88	85.8	0.84	2.2	7.5	2.3
Y2-160M1-2	11	15	28.8	2930	88	0.89	86.6	0.84	2.2	7.5	2.3
Y2-160M2-2	15	20	34.7	2930	89	0.89	87.9	0.84	2.2	7.5	2.3
Y2-160L-2	18.5	25	34.7	2930	90	0.9	89.8	0.86	2.2	7.5	2.3
Y2-180M-2	22	30	41	2940	90	0.9	88.9	0.86	2	7.5	2.3
Y2-200L1-2	30	40	55.5	2950	91.2	0.9	89.4	0.85	2	7.5	2.3
Y2-200L2-2	37	50	67.9	2950	92	0.9	91	0.86	2	7.5	2.3
Y2-225M-2	45	60	82.3	2970	92.3	0.9	90.5	0.85	2	7.5	2.3
Y2-250M-2	55	75	101	2970	92.5	0.9	91.3	0.85	2	7.5	2.3
Y2-280S-2	77	100	134	2970	93	0.9	91.9	0.86	2	7.5	2.3
Y2-280M-2	90	125	160	2970	93.8	0.91	92.6	0.87	2	7.5	2.3

380V 50Hz Synchronous Speed 1500 r/min (4 poles)
Y2-631-4	0.12	0.16	0.42	1310	57	0.72	56.1	0.69	2.1	5.2	2.2
Y2-632-4	0.18	0.25	0.63	1310	60	0.73	58.5	0.7	2.1	5.2	2.2
Y2-711-4	0.25	0.34	0.79	1330	65	0.74	62.4	0.73	2.1	5.2	2.2
Y2-712-4	0.37	0.5	1.12	1330	67	0.75	65.3	0.74	2.1	5.2	2.2
Y2-801-4	0.55	0.75	1.57	1390	71	0.75	69.2	0.74	2.4	5.2	2.3
Y2-802-4	0.75	1	2.03	1390	73	0.76	71.7	0.75	2.3	6	2.3
Y2-90S-4	1.1	1.5	2.89	1400	75	0.77	73.1	0.75	2.3	6	2.3
Y2-90L-4	1.5	2	3.7	1400	78	0.79	76.1	0.76	2.3	6	2.3
Y2-100L1-4	2.2	3	5.16	1430	80	0.81	78	0.79	2.3	7	2.3
Y2-100L2-4	3	4	6.78	1430	82	0.82	79.9	0.78	2.3	7	2.3
Y2-112M-4	4	5.5	8.8	1440	84	0.82	82.9	0.79	2.3	7	2.3
Y2-132S-4	5.5	7.5	11.7	1440	85	0.83	83.8	0.81	2.3	7	2.3
Y2-132M-4	7.5	10	15.6	1440	87	0.84	85.6	0.82	2.3	7	2.3
Y2-160M-4	11	15	22.3	1460	88	0.84	86.8	0.83	2.2	7	2.3
Y2-160L-4	15	20	30.1	1460	89	0.85	88.9	0.83	2.2	7.5	2.3
Y2-180M-4	18.5	25	36.5	1470	90.5	0.86	90	0.82	2.2	7.5	2.3
Y2-180L-4	22	30	43.2	1470	91	0.86	90.2	0.84	2.2	7.5	2.3
Y2-200L-4	30	40	57.6	1470	92	0.86	91.5	0.84	2.2	7.2	2.3
Y2-225S-4	37	50	69.3	1480	92.5	0.87	91.9	0.87	2.2	7.2	2.3
Y2-225M-4	45	60	84.7	1480	92.8	0.87	92.4	0.87	2.2	7.2	2.3
Y2-250M-4	55	75	103	1480	93	0.87	92.7	0.89	2.2	7.2	2.3
Y2-280S-4	75	100	140	1480	93.8	0.87	92.4	0.86	2.2	7.2	2.3
Y2-280M-4	90	125	167	1490	94.2	0.87	93	0.86	2.2	7.2	2.3

380V 50Hz Synchronous Speed 1000 r/min (6 poles)
Y2-711-6	0.18	0.25	0.74	850	56	0.66	53.1	0.66	0.9	4	2
Y2-712-6	0.25	0.34	0.95	850	59	0.68	56	0.68	1.9	4	2
Y2-801-6	0.37	0.5	1.3	890	62	0.7	60.5	0.69	1.9	4.7	2
Y2-802-6	0.55	0.75	1.79	890	65	0.72	63.3	0.72	1.9	4.7	2.1
Y2-90S-6	0.75	1	2.29	910	69	0.72	67.3	0.72	2	5.5	2.1
Y2-90L-6	1.1	1.5	3.18	910	72	0.73	70.2	0.72	2	5.5	2.1
Y2-100L-6	1.5	2	3.94	940	76	0.75	74	0.75	2	5.5	2.1
Y2-112M-6	2.2	3	5.6	940	79	0.76	77.1	0.77	2	6.5	2.1
Y2-132S-6	3	4	7.4	960	81	0.76	78.9	0.77	2.1	6.5	2.1
Y2-132M1-6	4	5.5	9.8	960	82	0.76	80	0.76	2.1	6.5	2.1
Y2-132M2-6	5.5	7.5	12.9	960	84	0.77	82.1	0.77	2.1	6.5	2.1
Y2-160M-6	7.5	10	17	970	86	0.77	83.4	0.77	2	6.5	2.1
Y2-160L-6	11	15	24.2	970	87.5	0.78	86.6	0.78	2	6.5	2.1
Y2-180L-6	15	20	31.6	970	89	0.81	88.1	0.82	2	7	2.1
Y2-200L1-6	18.5	25	38.6	970	90	0.81	89	0.82	2.1	7	2.1
Y2-200L2-6	22	30	44.7	970	90	0.83	89.8	0.83	2.1	7	2.1
Y2-225M-6	30	40	59.3	980	91.5	0.84	89.2	0.84	2	7	2.1
Y2-250M-6	37	50	71	980	92	0.86	90.5	0.86	2.1	7	2.1
Y2-280S-6	45	60	86	980	92.5	0.86	90.8	0.86	2.1	7	2
Y2-280M-6	55	75	105	980	92.8	0.86	90.5	0.86	2.1	7	2

380V 50Hz Synchronous Speed 750 r/min (8 poles)
Y2-801-8	0.18	0.25	0.88	630	51	0.61	46.4	0.52	1.8	4	1.9
Y2-802-8	0.25	0.34	1.15	640	54	0.61	48.5	0.54	1.8	4	1.9
Y2-90S-8	0.37	0.5	1.49	660	62	0.61	57.1	0.57	1.8	4	1.9
Y2-90L-8	0.55	0.75	2.18	660	63	0.61	58.5	0.58	1.8	4	2
Y2-100L1-8	0.75	1	2.53	690	71	0.67	67.2	0.63	1.8	4	2
Y2-100L2-8	1.1	1.5	3.32	690	73	0.69	71.5	0.61	1.8	5	2
Y2-112M-8	1.5	2	4.5	680	75	0.69	73.8	0.64	1.8	5	2
Y2-132S-8	2.2	3	6	710	78	0.71	77.1	0.61	1.8	6	2
Y2-132M-8	3	4	7.9	710	79	0.73	78.5	0.62	1.8	6	2
Y2-160M1-8	4	5.5	10.3	720	81	0.73	79.8	0.63	1.9	6	2
Y2-160M2-8	5.5	7.5	13.6	720	83	0.74	82.2	0.61	2	6	2
Y2-160L-8	7.5	10	17.8	720	85.5	0.75	85	0.63	2	6	2
Y2-180L-8	11	15	25.1	730	87.5	0.76	86.1	0.66	2	6.6	2
Y2-200L-8	15	20	34.1	730	88	0.76	87.2	0.66	2	6.6	2
Y2-225S-8	18.5	25	40.6	730	90	0.76	89.4	0.68	1.9	6.6	2
Y2-225M-8	22	30	47.4	740	90.5	0.78	89.6	0.69	1.9	6.6	2
Y2-250M-8	30	40	64	740	91	0.79	90	0.69	1.9	6.6	2
Y2-280S-8	37	50	78	740	91	0.79	91.2	0.71	1.9	6.6	2
Y2-280M-8	45	60	94	740	92	0.79	91.8	0.75	1.9	6.6	2
