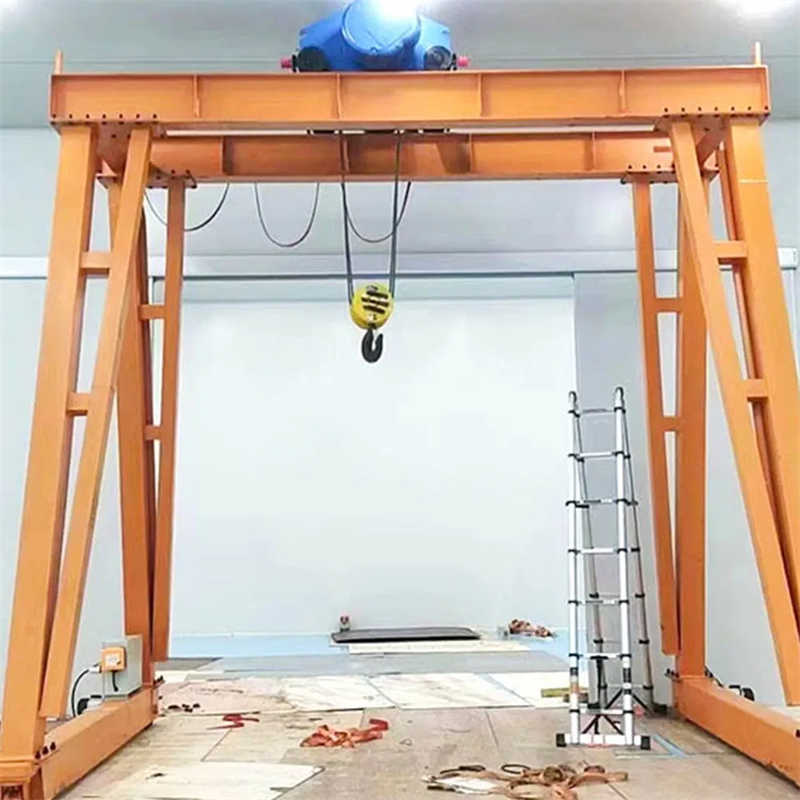

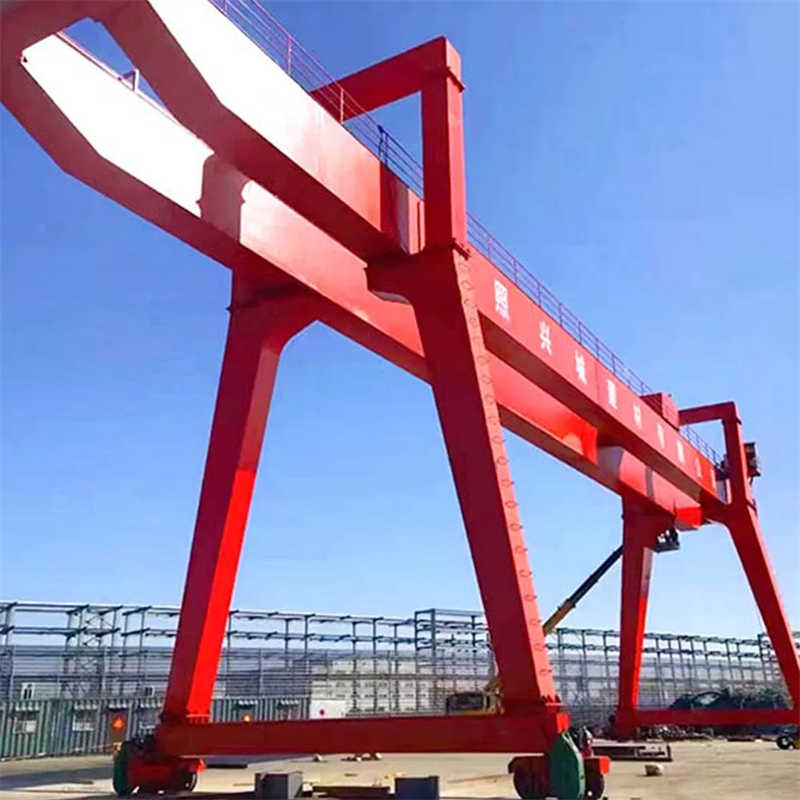

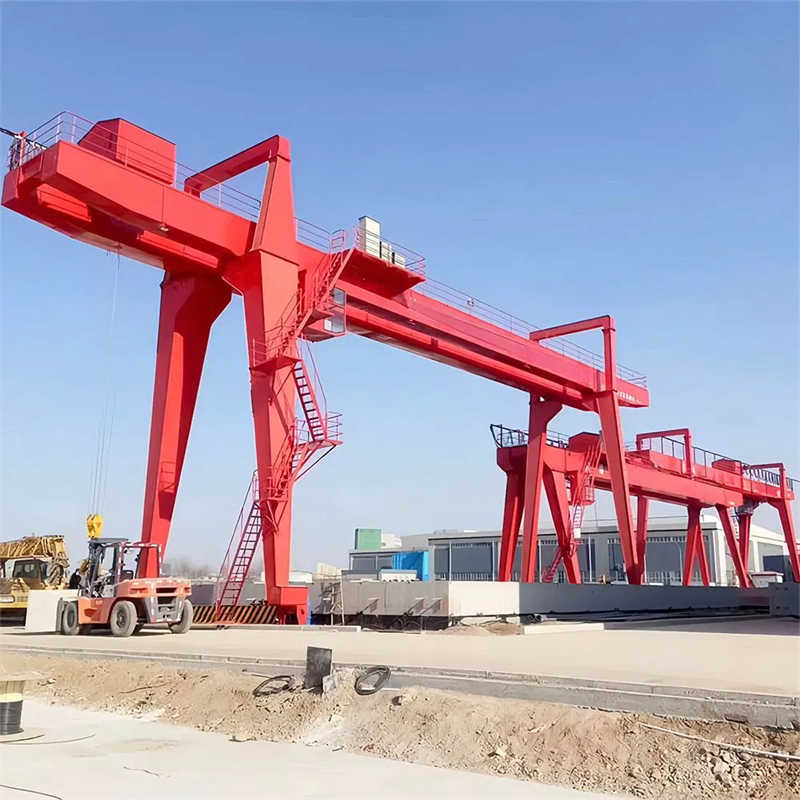

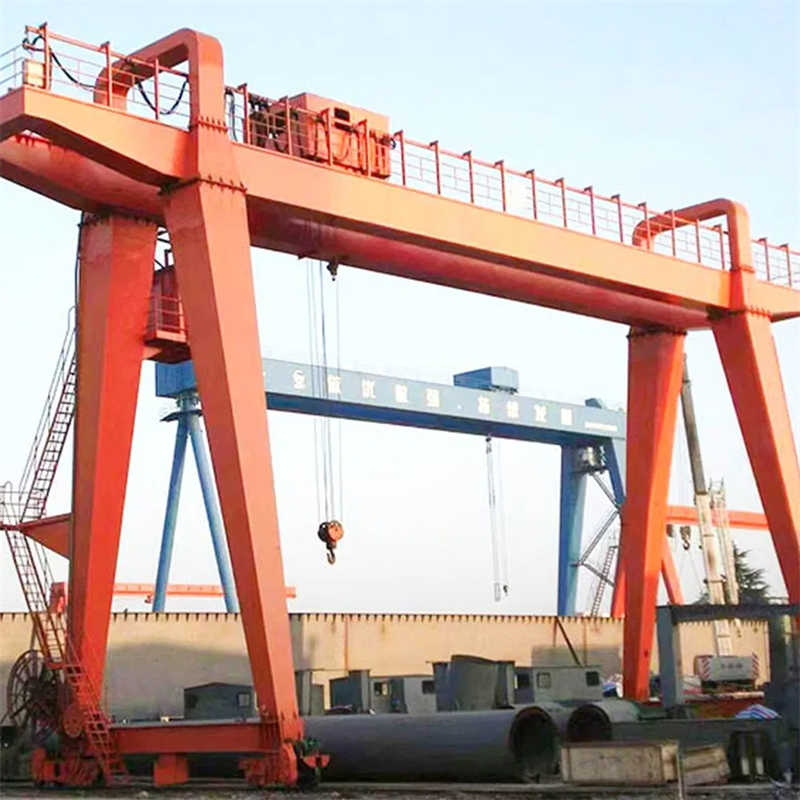

20-Ton Double Girder Gantry Crane | Wireless Remote | High Load Capacity
$100000.00 1 set
Qingdao Shanghai
L/C T/T
New
MG
CE, ISO9001
Changfeng
General manufacturing,Metal production industry,Renewable energy industry
Product Description
| Features |
| 1. Reasonable structure and favorable performance. 2. Smooth starting and stopping. 3. Safe and reliable traveling, long life. 4. Low noise, commodious cabin with good view. 5. Easy installation and convenient maintenance. 6. Excellent exchangeability for parts and components. |
Technical parameters
| Lifting weight | t | 5 | 10 | 16/3.2 | 20/5 | 32/5 | |||
| Working class | A5 | ||||||||
| Span | m | 18~35 | 18~35 | 18~35 | 18~35 | 18~35 | |||
| Lifting height | Primary | m | 10; 11 | 10; 11 | 10; 11 | 10; 11 | 10; 12 | ||
| Secondary | m | 10.725 ; 11.725 | 10.446; 11.446 | 10.73; 12.73 | |||||
| Speed | Lift | Primary | m/ min | 11.4 | 7.6 | 7.9 | 7.2 | 7.5 | |
| Secondary | 19.7 | 19.5 | 19.7 | ||||||
| Cart travel | 38.3 | 43.8 | 44.6 | 34 | |||||
| Handcart travel | 40.1; 47.1 | 40.1; 47.1 | 47.1; 34.5 | 47.1; 34.5 | 42.4 | ||||
| Motor total power | KW | 40.8; 51.8 | 41.5; 52.8 | 80; 77 | 84; 81 | 99.3; 117.3 | |||
| Max.wheel pressure | KN | 154~223 | 198~301 | 320~227 | 349~244 | 245~302 | |||
| Total weight | 48~72.9 | 52~89.7 | 70~115 | 73~125 | 87~140 | ||||
| Steel track | 43kg/m | 43kg/m QU70 | |||||||
| Power supply | Three-phrase A.C. 50Hz 380V | ||||||||
Packaging & Shipping
Electrical and other parts packed by high quality plywood crate, beams packed by plastic woven cloth for overhead crane kit
Our Services
Product Procedure
1. Once provide us the requirement, the details technical data and CAD drawing will provide you
at the first time.
2. Strict quality control system, supervision the work to ensure the best crane for you.
3. Strict production line, make sure manufacture the goods on time.
4. Best cooperate forwarder provide the soonest and reliable service for our goods.
5. If needed, senior engineers can be your side do the installation guid and training.
FAQ
Q:Do you have price list?
A:As we known, the products are customized.Different capacities, spans, lift heights make the price different. So in order to make a quotation for you, we need customers provide us more information.
Q:What's the information should customers provide in inquiry?
A:For instance, 1.Lift capacity
2.Lift height
3. The span of crane.
4. Power Source.
More drawings and details are very helpful for us.
Q:Payment terms?
A:FOB,CIF,CFR are common trade terms. We usually accept 30%TT in advance,the balance paid before shipment.
Q:What is the warranty?
A:We'll be responsible for maintenance if our product itself has quality problems during one year after receiving.
Q: How can we install the crane?
A:Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
