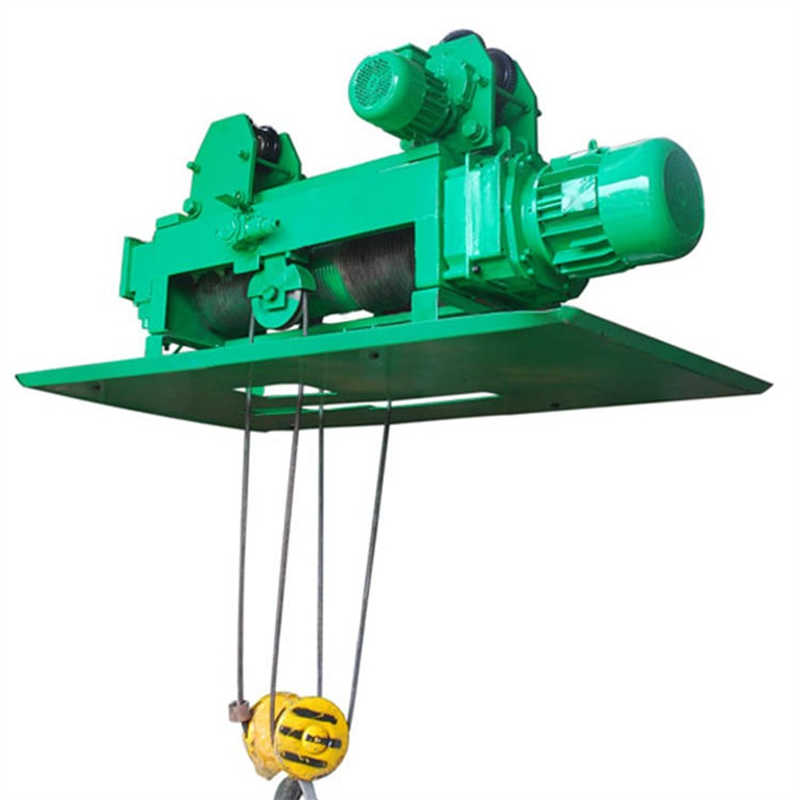

Electric Wire Rope Hoist, 2-32 Ton Capacity, Ideal for Single Girder Cranes
$699.00 1 set
Qingdao Shanghai
L/C T/T
New
CD1/MD1
CE, ISO9001
CD
General manufacturing
single speed double speed electric wire rope hoist for single girder overhead crane
TYPE | Electric Hoist |
| specification | CD1/MD1 |
Lifting weight | 0.25~16T |
Lifting Height | 3 meters to 30 meters |
Working Level | A3 | A4 | A5 | A6 | A7 |
Lifting Speed | 0.8/88 m/min |
Control Method | Remote control |
Industrial Voltage | 380V 50HZ 3P AC OR Customized |
Working temperature | -20~40ºC OR Customized |
Application area | Factory,workshop,warehouse,power station,logstic,etc. |
Wire Rope Electric Hoist is a small-sized lifting equipment, can be mounted on single girder overhead crane, bridge crane, gantry crane and jib crane. With slight modification, it can also be used as a winch.
Application: It is widely used in factories, mine, warehouse, port and so on.
Standard tonnage of electric wire rope hoist are: 0.25t 0.5t 1t 2t 3t 5t 10t 16t 20t
Standard wire rope lengths are: 6M 9M 12M 18M 24M 30M
Electric hoist is divided into single speed and double speed to meet different crane machine needs.
| Model | 0.25TON | 0.5TON | 1TON | 2TON | 3TON | 5TON | 10TON |
| Capacity ton | 0.25 | 0.5 | 1 | 2 | 3 | 5 | 10 |
Standard lift m | 3-9 | 6-12 | 6-30 | 6-30 | 6-30 | 6-30 | 6-30 |
Lifting Height m/min | 88/0.8 | 88/0.8 | 88/0.8 | 88/0.8 | 88/0.8 | 88/0.8 | 77/0.7 |
Running Speed m/min | 20/30 | ||||||
| Wire Rope type | 6*19-3.6 | 6*37-4.8-180 | 6*37-7.4-180 | 6*37-11-15 | 6*37-13-170 | 6*37-15-200 | 6*37-15-200 |
I beam track type | 16-22b | 16-28b | 16-28b | 20a-32c | 20a-32c | 25a-63c | 28a-63c |
Loop track minimum Radius m | 0.8 | 1.5 | 1.5-4 | 2-4 | 2-4 | 2.5-5 | 3.5-9 |
Voltage V | 380 | 380 | 380 | 380 | 380 | 380 | 380 |
Frequency HZ | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
Phase | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
Safety System
1. Weight overload protection device.
2. Top quality long time bearing polyurethane materials buffer.
3. Crane travelling limit switch.
4. Voltage lower protection function.
5. Emergency stop system.
6. Current overload protection system and so on!
Tai'an Chuangdong New Material Technology Co., Ltd. is located in Tai'an City, Shandong Province, China. The factory was established in 2008 and specializes in the research and development of planetary transmission technology products. The factory has complete equipment and strong processing capabilities, including boring machines, machining centers, gear shapers, CNC lathes, drilling machines, and other processing equipment. In addition, the inspection and testing equipment is complete, with main inspection methods such as metallographic and physicochemical examination, gear inspection, and finished product loading experiments.
FAQ
Q1: What are you? Trade Company or manufacturer?
We are both manufacturer & trading company
Q2: What's the advantage of your company?
We've experienced manufacturer and overseas dealer. Our products have been exported to over 110 countries.
An independent research team especially focusing on crane and hoist design upgrade. A professional service
team for customers will provide feedback within 24 hours.
Q3: What's the sample & MOQ to your company?
Sample order MOQ can be 1 set and the product you ordered will be sent in a week as long as inventory is available.
Q4: Can I customize the product according to my own willing?
Yes, OEM/ODM are available, we can customize as customer's request.
Q5: How is the package during transportation?
Composite wooden crate for the electrical parts, waterproof cloth for the steel structure, then packed in a metal crate.
