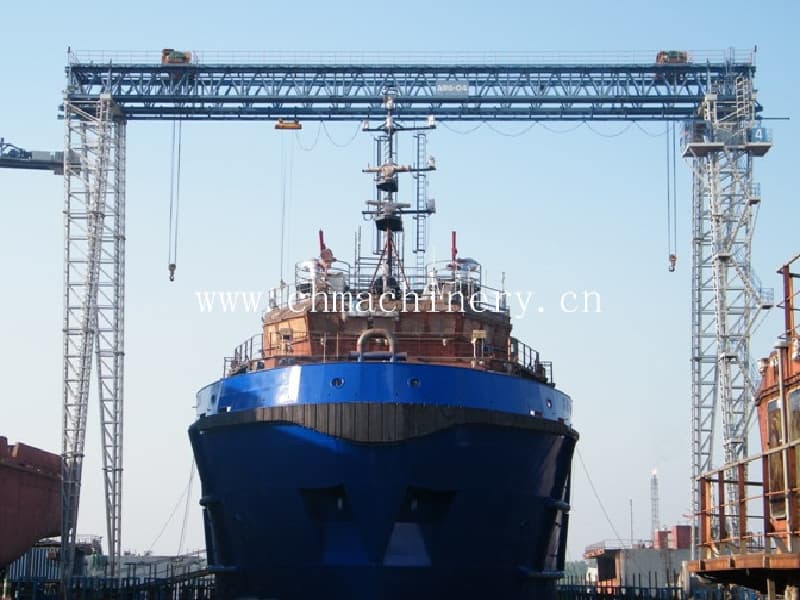

150 Ton Double Girder Gantry Crane with Windproof System for Exposed Sites

Industrial Heavy Duty Gantry Crane for Reliable Lifting Solutions

European Single Girder Gantry Crane is a cost-effective alternative where the installation of overhead cranes is impractical due to a need for a raised runway structure. They are also an ideal supplement to heavy-duty overhead cranes in workshop.

Crane Capacity 3 ton, 5 ton, 8 ton, 10 ton, 12.5 ton, 16 ton ,20 ton

Crane Span 7.5 m to 28.5 m

Lifting Height 6m to 18m

Working Class: A5, A6, A7

Applications

Due to international standards and lightweight design, single-girder portal cranes are suitable for the steel industry, oil and gas industry, energy industry, paper industry, power industry, automotive industry, manufacturing industry, and other sectors.

Key Specfication

Crane Capacity 3 ton, 5 ton, 8 ton, 10 ton, 12.5 ton, 16 ton ,20 ton
Crane Span 7.5 m to 28.5 m
Lifting Height 6m to 18m
Working Class: A5, A6, A7

Features

1. Simple structure, easy installation.

2. Produced in accordance with international standards, facilitating communication.

3. Overload protection device. When the lifting weight exceeds the rated lifting weight, it will issue a warning.

4. Buffer zone. Polyurethane buffer, installed on the side and end beam of the hoist to prevent collision and derailment.

5. Welding is carried out using gas protection or submerged arc welding, and the weld seam UT is for non-destructive testing.

6. Standard safety monitoring, sound and light alarm, infrared anti-collision, ensuring the safety of crane transportation.

7. Can be powered by cables or sliding contact lines.

right elevation

left elevation

front elevation

Technical Specifications

(Custom configurations available upon request.)

Drawings & Dimensions

Detailed CAD drawings and dimensional diagrams are available for download here or upon inquiry. Our engineering team can provide tailored designs to meet specific project requirements.
