CE Certified European Single Girder Crane - Low Noise & High Efficiency

Product Description

Specifications


1. With short production cycle
2. Cost-effective
3. Maturity

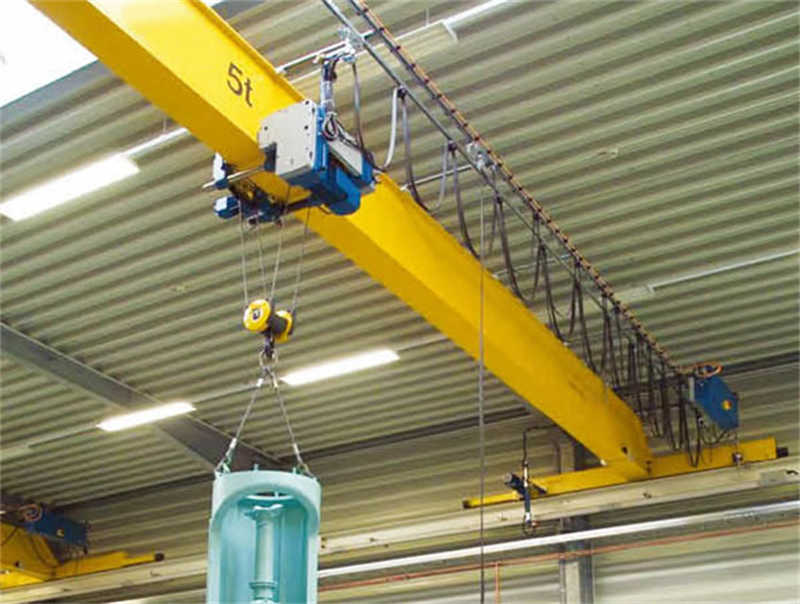

Single Girder Cranes with Bottom Rail (LD Type)

LD type single girder bridge crane is a small type general overhead crane, has reduced wheel loads, offering savings on new support structures and increased lifting capacities on existing structures.

Application Parameters:
Lifting capacity for 1~16 tonnes,
Span for 7.5~22.5 meters,
Working environment for -25ºC ~ 40ºC,
Classification group: A3~A5,
Hoists running on the bottom flange of the beam.
12 months Warranty

It is designed to cover a wide range of modern industrial demands, more used in machinery manufacturing, assembly, warehouse etc, providing excellent value for money and no compromise on performance. Hoist design ensures maximum cross bridge hook stroke, with minimum side clearances.

There are three controlling methods available , pendent control, cabin control, and remote control. Furthermore, the cabin with side door and front door.




How to determine the crane classification group(Duty)?

Average time the lifting unit will be in operation. By referring to table-1 the class of utilization "U" can be obtained against the average utilization time.
Type of duty on which the uplifting unit will be employed. From Table-2 select the most appropriate type of duty and determine the state of loading "Q". with the two factors from table 1and 2 the standard classification group "A" of the lifting unit can be determined.
