CD1 5 Ton Wire Rope Hoist – High-Performance Lifting for Mining & Logistics
$800.00 1 set
Qingdao Shanghai
L/C T/T
New
CD1/MD1
CE, ISO9001
FLK
General manufacturing,Metal production industry,Renewable energy industry

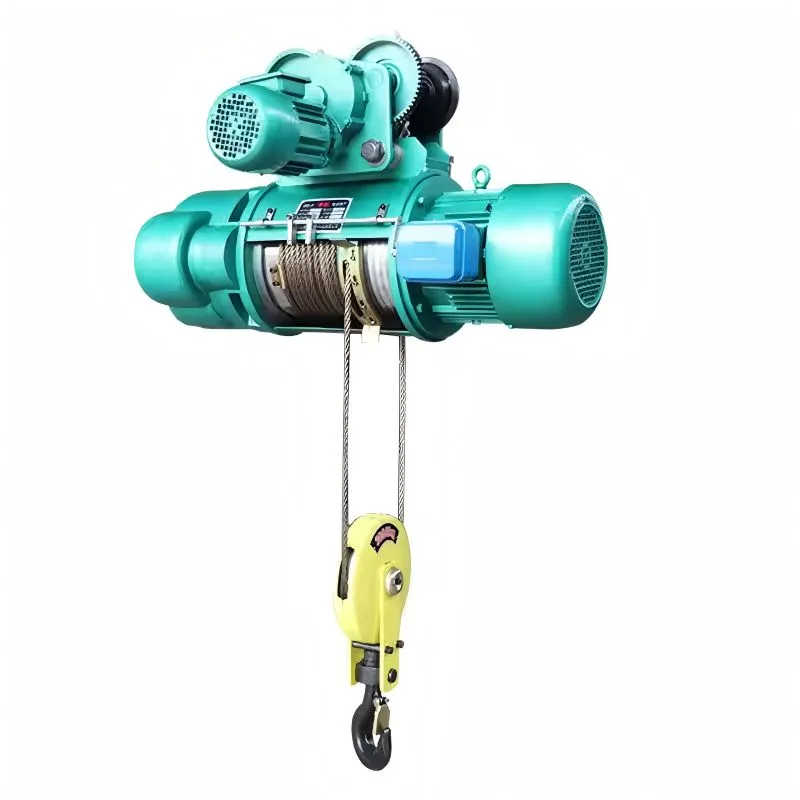

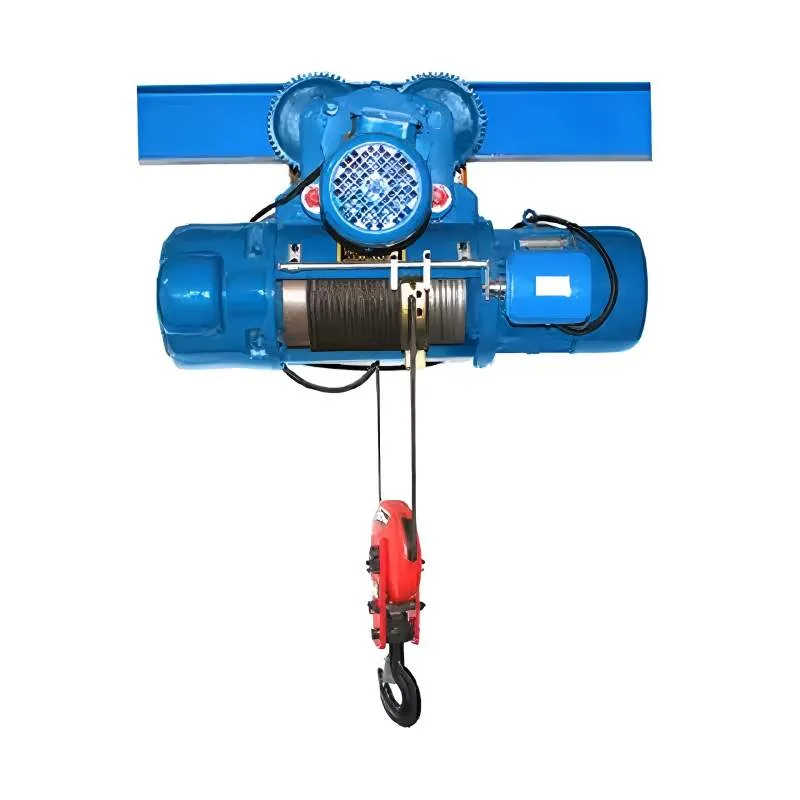

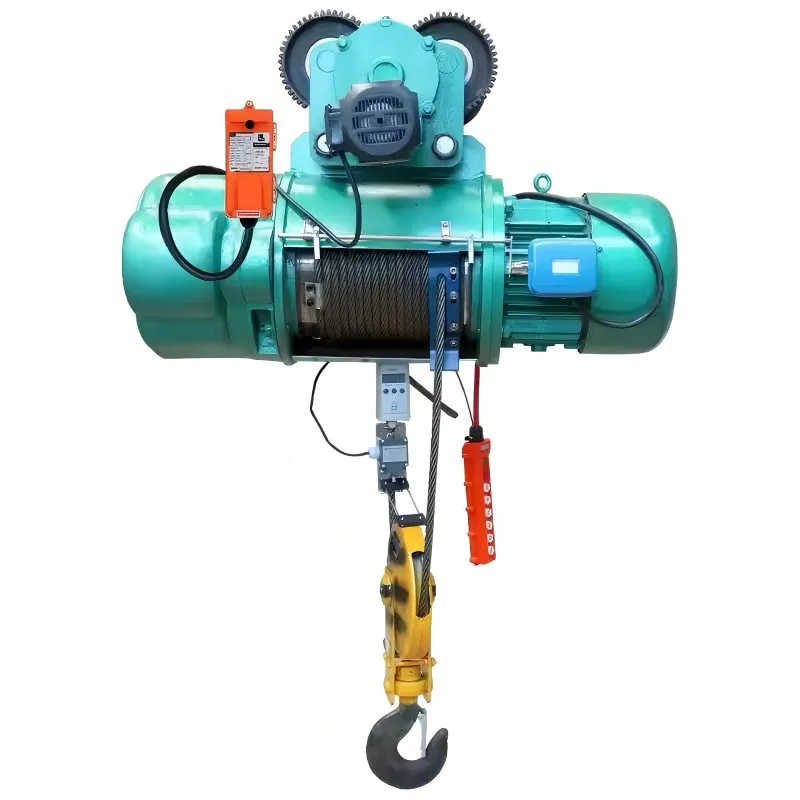

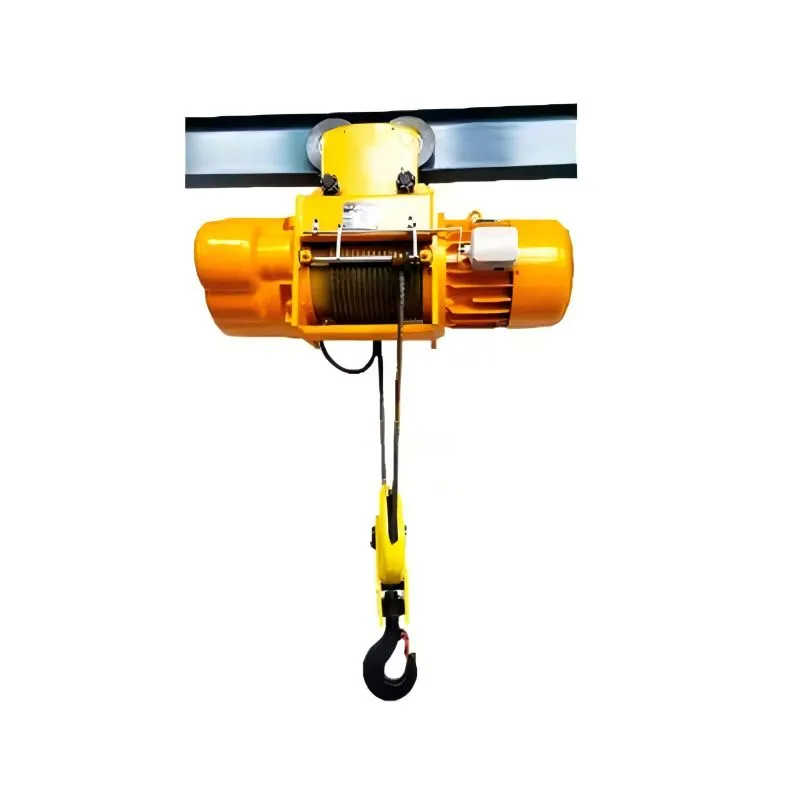

CD1 wire rope hoists have the features of compact, light, small-sized shape and smooth operation. It can be used not only in the overhead rails, but also in conjunction with many types of electric or manual cranes such as the single-girder crane, the double-girder crane the cantilever crane and the gantry crane. The electric hoist model Md1 with double lifting speeds should be used in cases where the hoist model Cd1 with single speed cannot meet the requirements for fine adjustments during precision operations.
Specification:
Type | 0.25TON | 0.5TON | 1TON | 2TON | 3TON | 5TON | 10TON |
Lifting weight T | 0.25 | 0.5 | 1 | 2 | 3 | 5 | 10 |
Standard lifting height M | 3-9 | 6-12 | 6-30 | 6-30 | 6-30 | 6-30 | 6-30 |
Hoisting speed | 8(8/0.8) | 8(8/0.8) | 8(8/0.8) | 8(8/0.8) | 8(8/0.8) | 8(8/0.8) | 7(7/0.7) |
m/min | |||||||
running speed m/min | 20(30) | ||||||
Wire rope type | 6×19-3.6 | 6×37-4.8-180 | 6×37-7.4-180 | 6×37-11-155 | 6×37-13-170 | 6×37-15-200 | 6×37-15-200 |
H beam orbit model | 16-22b | 16-28b | 16-28b | 20a-32c | 20a-32c | 25a-63c | 28a-63c |
Minimum radius of circular | 0.8 | 1.5 | 1.5-4 | 2-4 | 2-4 | 2.5-5 | 3.5-9 |
Voltage v | 380 | 380 | 380 | 380 | 380 | 380 | 380 |
Frequency Hz | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
Number of phase | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
Advantage:
-In accordance with international standard, safe, durable and reliable.
-Lift height can be customized such as 6m, 9m, 12m and 24m.
-European style hook, stronger and convenient.
-Protection grade is IP54, and work grade is M3.
-Over load limit is available.
-CE standard.
Package&Delivery
Package | Standard wooden cases |
Delivery | Normally 7-20 days depends on quantity |
Shipment | By sea |
Our Service and Warranty:
As a professional manufacturer, we provide follow services:
1. Lower price for sample, Competitive prices for distributors
2. ONE year warranty and life time maintenance
3. In time delivery.
4. High Quality assurance..
