1Ton-20Ton CD/MD Electric Wire Rope Hoist - Construction Grade - $1,200
$500.00 1 set
Qingdao Shanghai
L/C T/T
New
CD1/MD1
CE, ISO9001
DGcrane
General manufacturing,Metal production industry,Renewable energy industry
Product Description

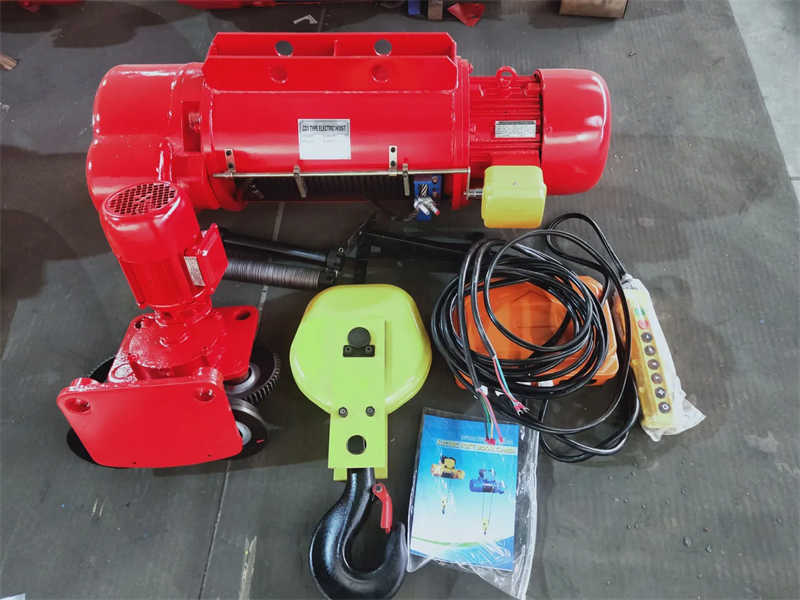

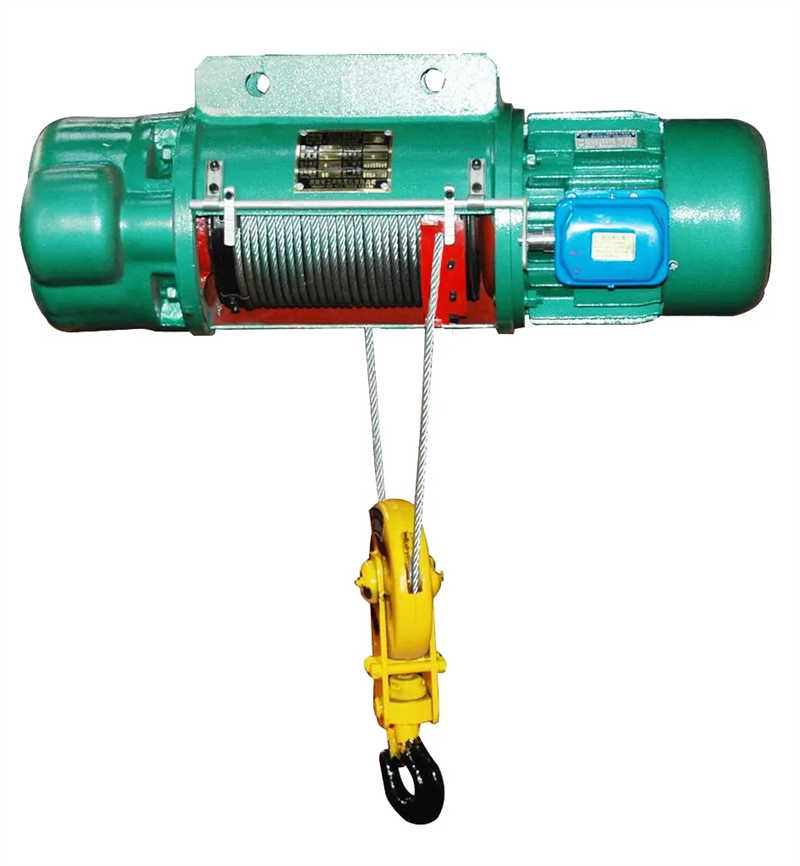

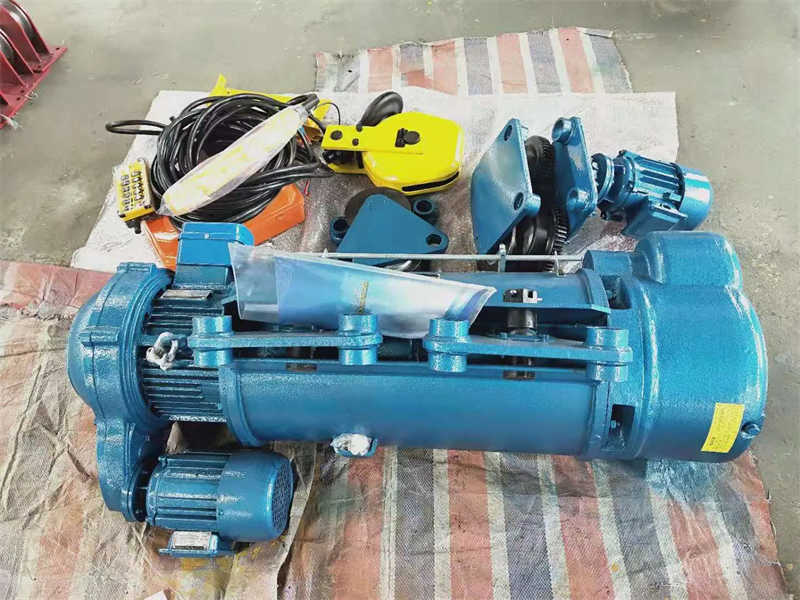

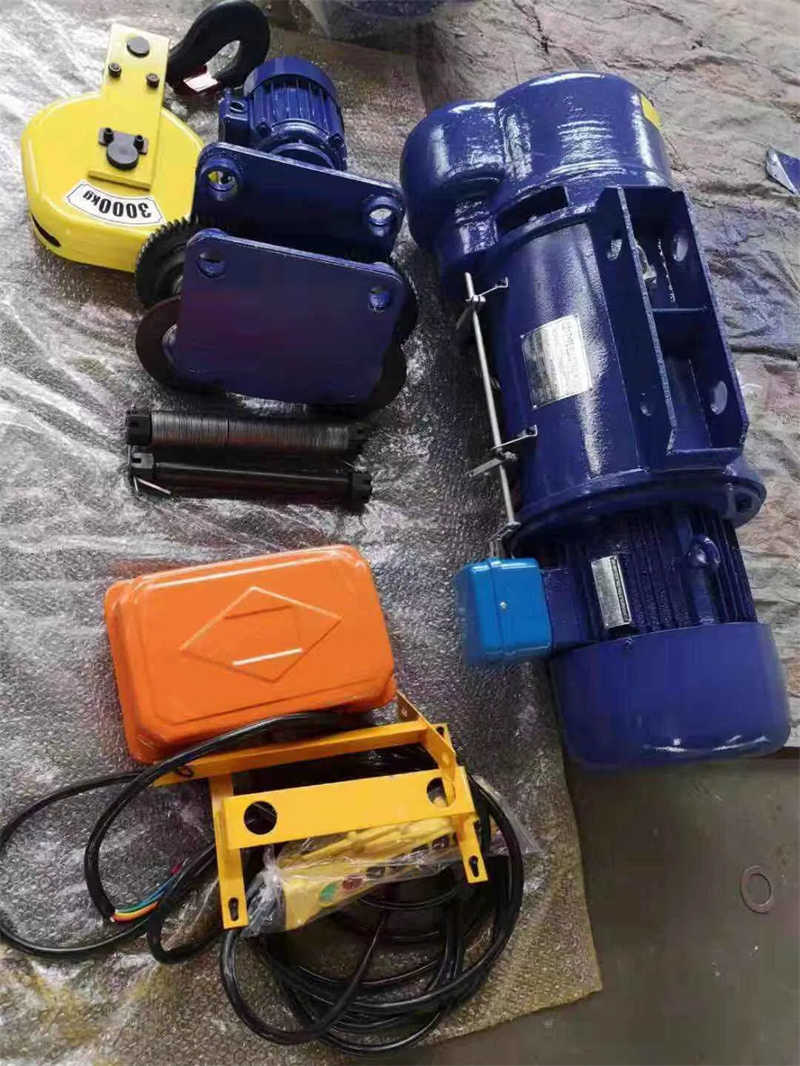

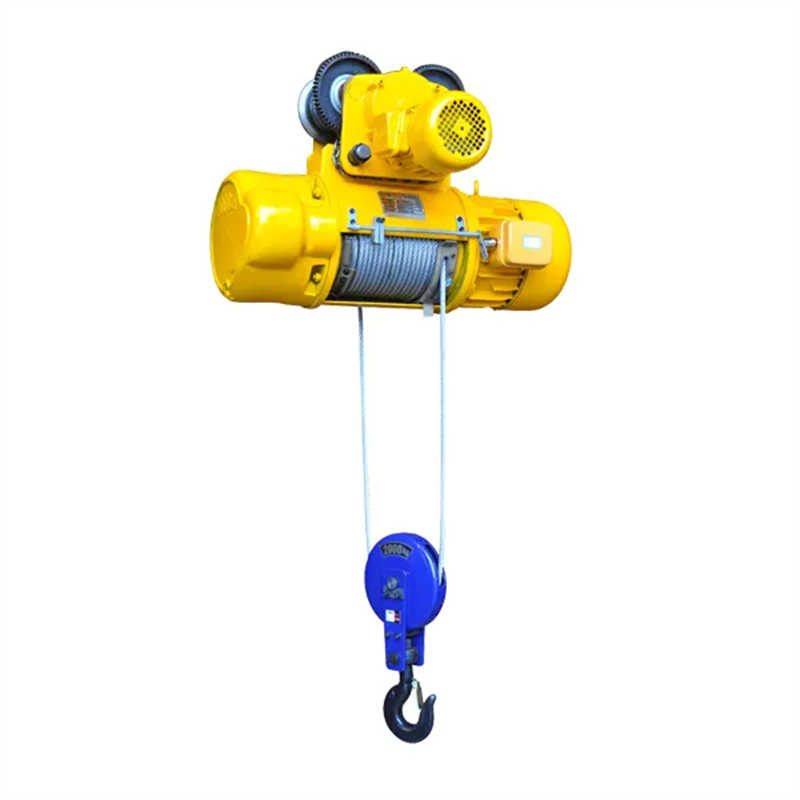

Electric Hoist
Features:
1. Newly design and mini stype
2. Good Quality
3. Save, more reliable and low fault rate
4. Ire rope electric hoist has Latest European Standard Attestation with up and clown position limit CE, GS, EMC, RoHS
Widely applied to: Mold, mechanical manufacture warehousing, , logistice\s, shipbuliding, bridge construction, and other industries as well as factories
Precaution:
1. Before you use the hoist, please do remember to check the hooks and bodies, the brake device and the lubrication of transmitting parts, and load chains in good condition as well as the die motions.
2. Dont use two or more hoists to lift one weight
3. Overload is strictly forbidden.
4. No hook tips loading. No direct binding of a load with one chain.
5. No over lifting, no over lowering.
6. Keep anybody out of the place undef the loading.
| Model | CD4-6D | CD4-9D | CD4-12D | CD4-18D | CD4-24D | CD4-30 | CD5-9D | CD5-12D | CD5-18D | CD5-24D | CD5-30D |
| Capacity t | 5 | 10 | |||||||||
| Hoisting height m | 6 | 9 | 12 | 18 | 24 | 30 | 9 | 12 | 18 | 24 | 30 |
| Lifting speed m/min | 8 | 7 | |||||||||
| Travel speed m/min | 20(30) | 20(30) | |||||||||
| Weight Kg | 445 | 470 | 555 | 590 | 630 | 670 | 1010 | 1063 | 1166 | 1263 | 1317 |
| Carton Size cm | 140× 51× 60 | 160× 72× 72 | |||||||||
