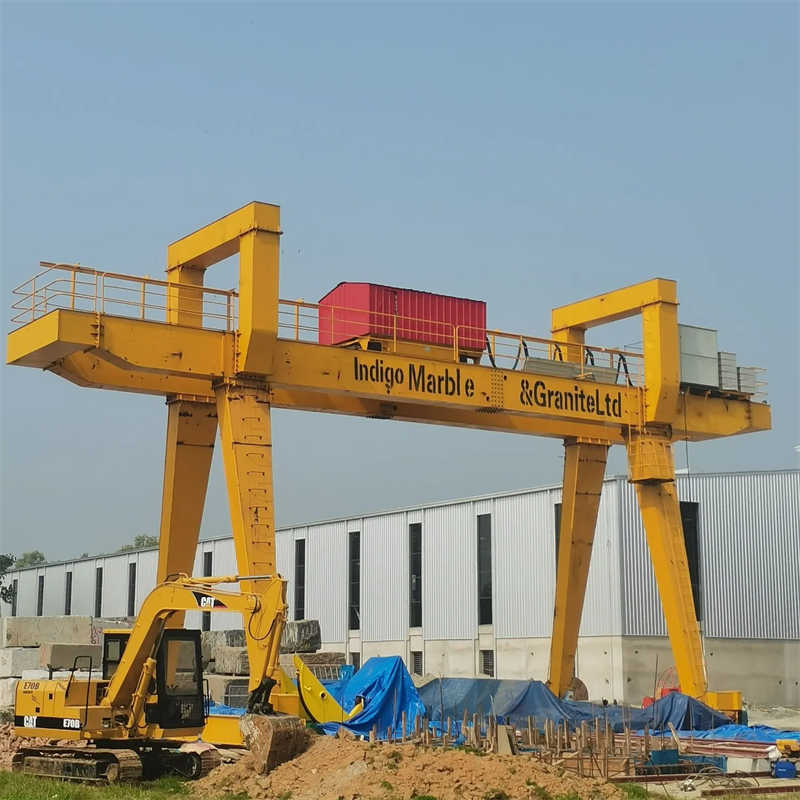

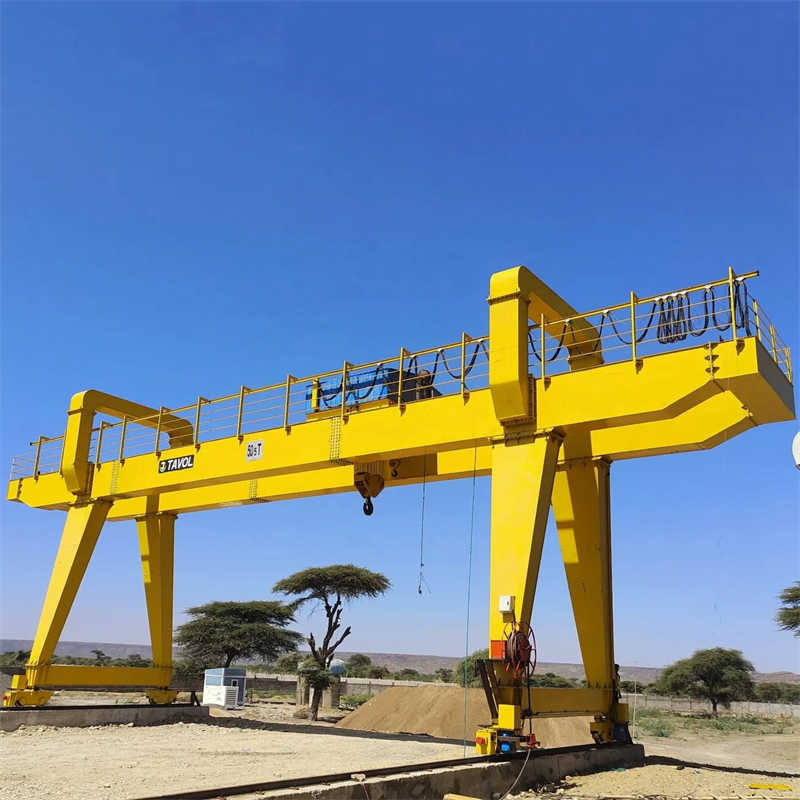

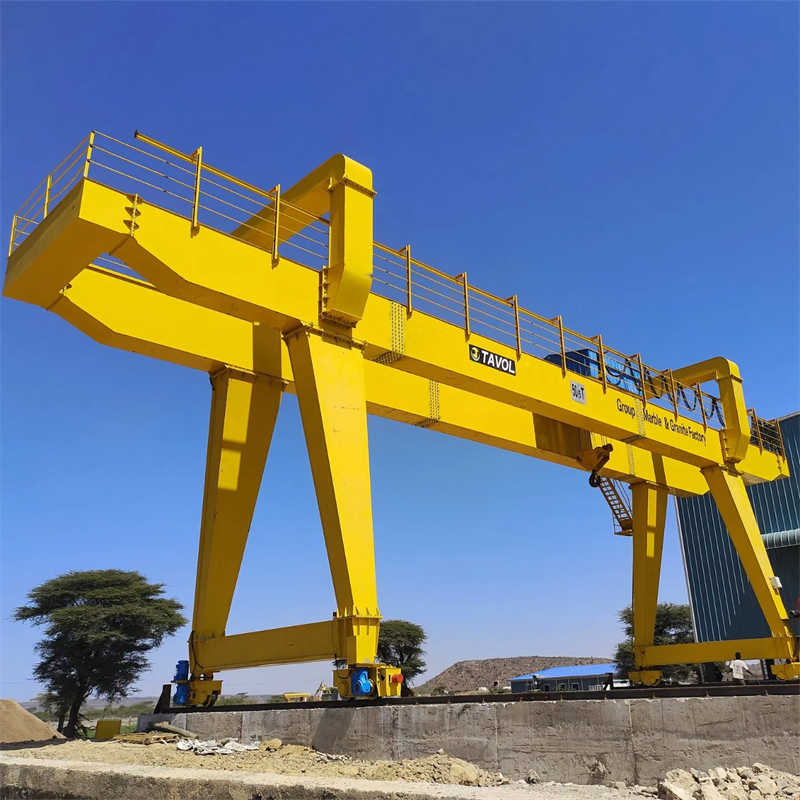

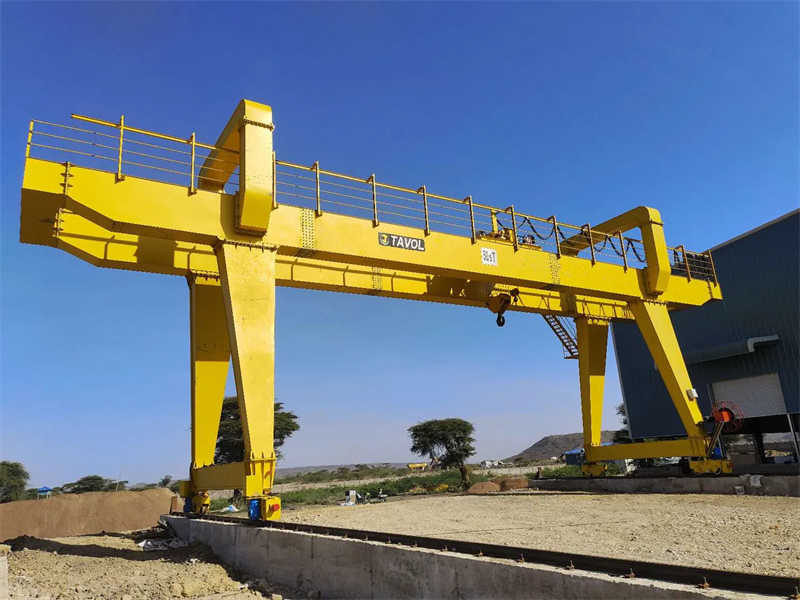

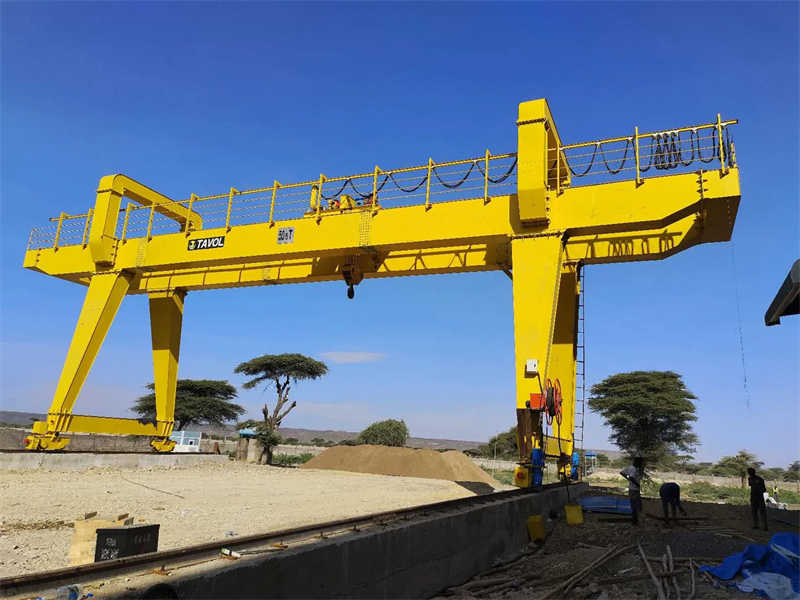

40 Ton Double Girder Gantry Crane for Heavy Material Handling in Factories

Product Description

Gantry Crane (MQ100T/25T-55M-32M).

MQ type Gantry Crane has the triangle truss to support the main beam, and connects with each other by using hinge pin and bolt. With self walking device and hoisting walking vehicle to realize the 3D motion of lifting, moving and landing.

This type crane is easy to install and uninstall, easy to transport and change the location. It has a good economy and is used in the moving project construction. Especially for the flyovers and some bridges with low pier, wide floor and making beam under the bridge, it is always the first choice.

Meanwhile, MQ type gantry crane is also used for subway shaft well construction. It mainly used to lift the tramcar, duct piece and other material, and also used to install and uninstall the other appliances.

MQ type crane contains rigid leg, flexible leg, crane travel mechanism, hanging beam small vehicle, electrical control system, security device, driver's room, rail, ladder and walking board.

Technical Parameters;
1). Rated lifting capacity: 100t/25t
2). Span: 55m
3). Lifting altitude: 32m
4). Gantry traveling speed: 0--12m/min(Heavy load); 0--26m/min(Unload)
5). Main hook lifting speed: 0--2.5m/min(Heavy load); 0--6m/min(Unload)
6). Trolley traveling speed: 0--5m/min(Heavy load); 0--10m/min(Unload)
7). Auxiliary trolley traveling speed: 10m/min
8). Auxiliary hook lifting speed: 0--6m/min(Heavy load); 0--10m/min(Unload)
9). Overall working class: A4
10). Overall dimension: 61m x 18.4m x 38m
11). Total weight 280t.
