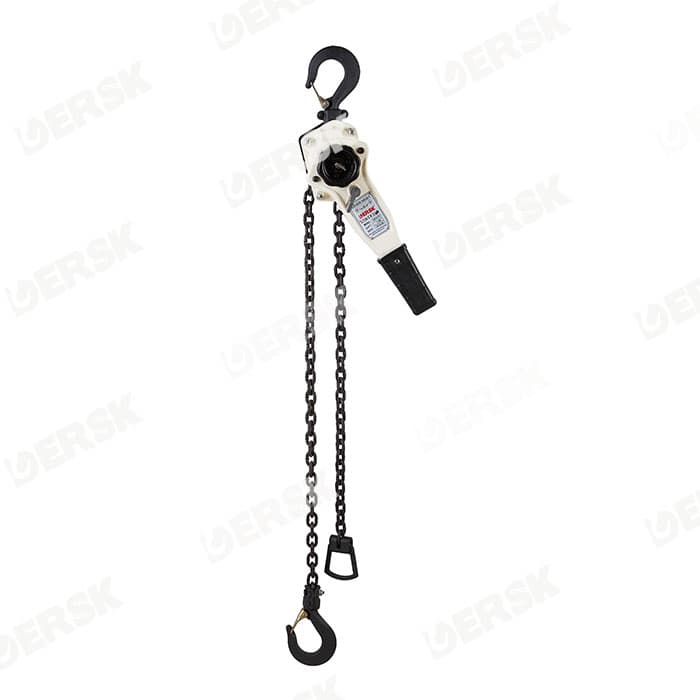

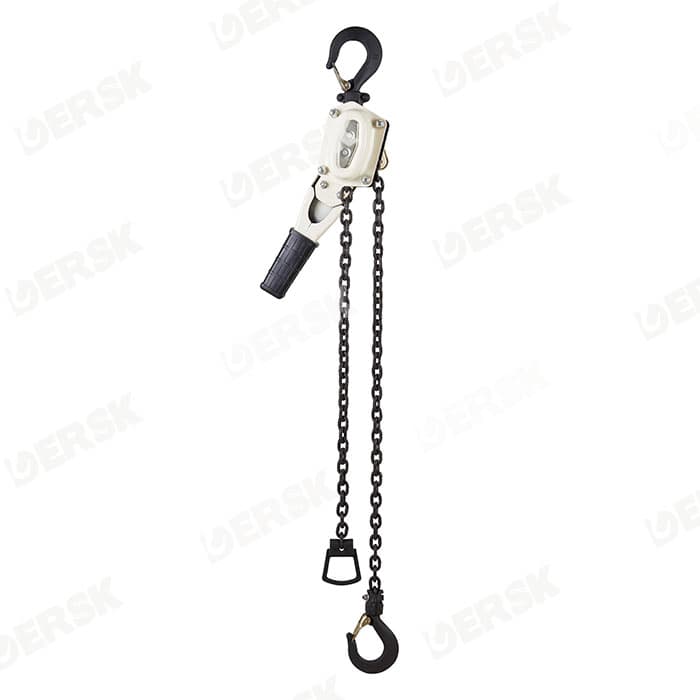

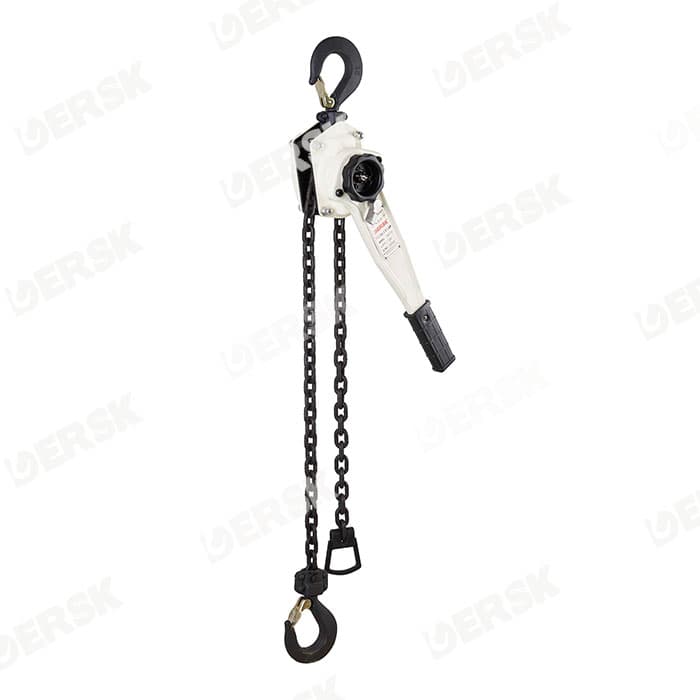

6 Ton HSH Steel Lever Block for Shipyard Rigging and Cable Tensioning

$45.00

Min. Order: 10 set

Port: Qingdao Shanghai

Payment Terms: L/C T/T

Transport Package:

Conditions: New

Model: HSH

Certifications: CE, ISO9001:2000

Brand: Desike

Application: General manufacturing

Max. Lifting Capacity: 32 t

Max. Lifting Height: 3m

Span:

Voltage:

Working Duty: M3

Color: Customized

Brand/Trademark: Desike

Model: HSH

Origin: 中国

Warranty: 1 year

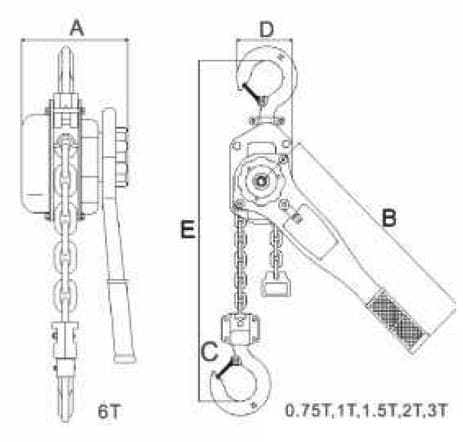

Model	Capacity(t)	StandardLift(M)	Test Load(t)	Effort to Rrquirde to Lift MAX.(n)	No. OF chain Fails	Load Chain Dia.(mm)	Dimension(mm)						Net Weight(kg)	Net Weight(kg)
Model	Capacity(t)	StandardLift(M)	Test Load(t)	Effort to Rrquirde to Lift MAX.(n)	No. OF chain Fails	Load Chain Dia.(mm)	A	B	C	D	L	H	Net Weight(kg)	Net Weight(kg)
HSH-0.75T	0.75	1.5	1.125	140	1	6	148	88	135	32	290	290	7	37x14x17
HSH-1.ST	1.5	1.5	2.25	240	1	8	176	102	155	36	415	415	11	52x14x18
HSH-3T	3	1.5	4.5	320	1	10	195	109	211	46	415	415	19	55x16x21
HSH-6T	6	1.5	7.5	340	1	10	195	109	254	46	415	415	32	55x16x21
HSH-9T	9	1.5	11.25	360	1	10	195	109	319	57	415	415	47	62x48.5x26
