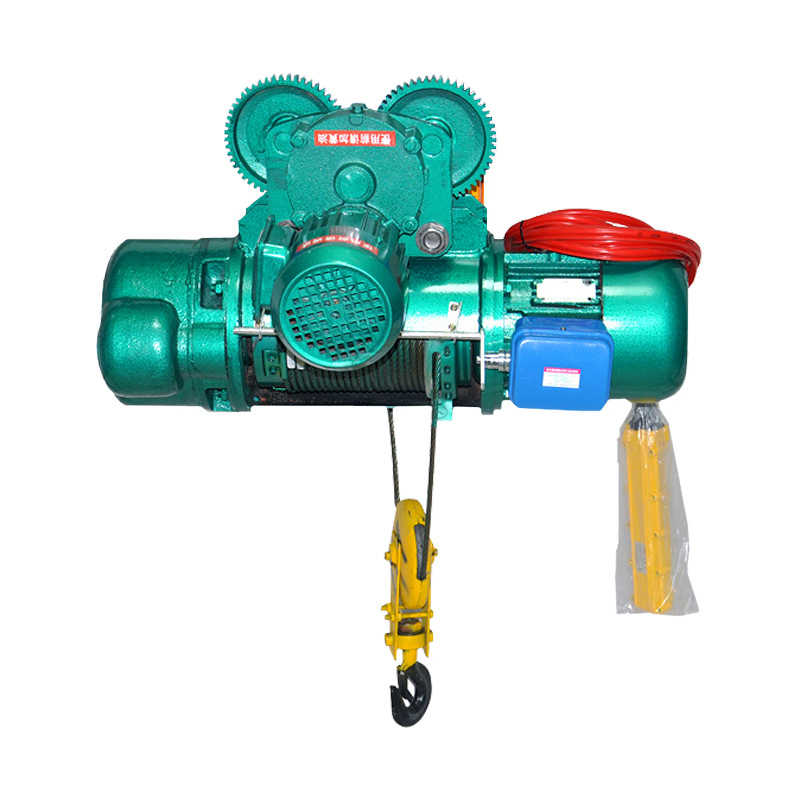

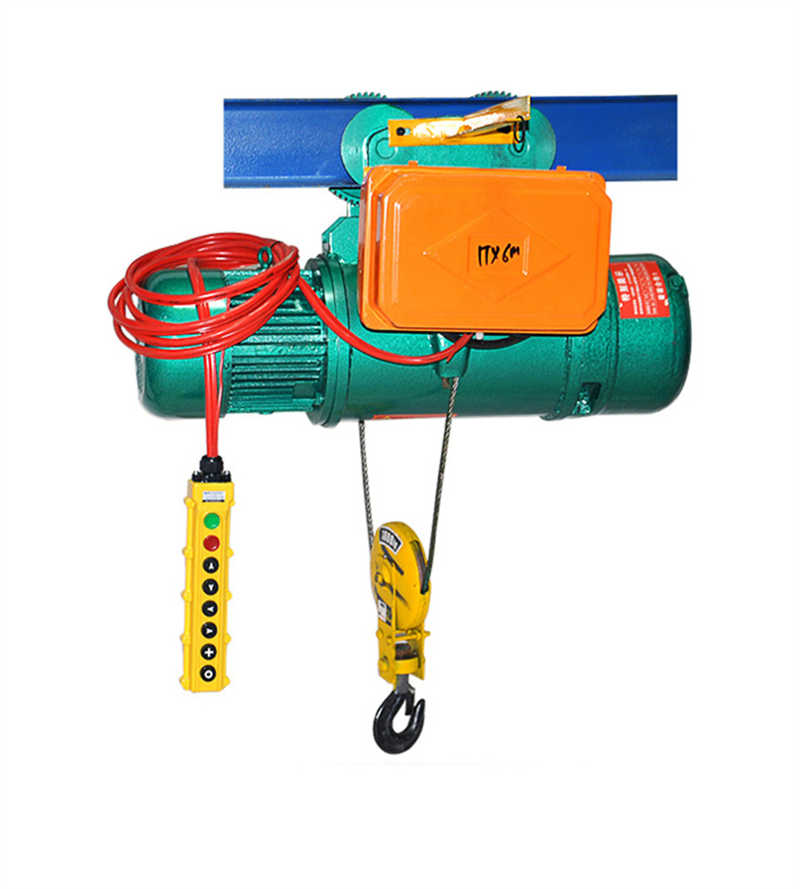

Electric Wire Rope Hoist 1-32 Ton, CE Certified, Export to Europe & Middle East

CD, MD Type Wirerope Electric Hoist is a kind of light duty lifting equipment with advantage of reasonable structure, light dead weight, small volume, wide common use and convenient operation etc.

They can be widely used to hoist heavy objects, or installed on the straight or curve I type steel beam of single beam cranes. They can also be used together with single girder eot crane, gantry crane or Jib crane, essential in raising working efficiency and improving working conditions.

Precaution:
1. Before you use the hoist, please do remember to check the hooks and bodies, the brake device and the lubrication of transmitting parts, and load chains in good condition as well as the die motions.
2. Dont use two or more hoists to lift one weight
3. Overload is strictly forbidden.
4. No hook tips loading. No direct binding of a load with one chain.
5. No over lifting, no over lowering.
6. Keep anybody out of the place undef the loading.

Design and construction rules:

All the standards which is required for the crane is the Chinese standard.

Painting:

Primer and finishing paint

Average thickness: about 100 microns.

Working conditions of wirerope electric hoist

1. Working environment temperature is between -20 ° C to +40 ° C

2. Relative humidity of air should within 85%, and within 1000 meters altitude.

3. Flammable, explosive and corrosive gases or dust must not be contained.
