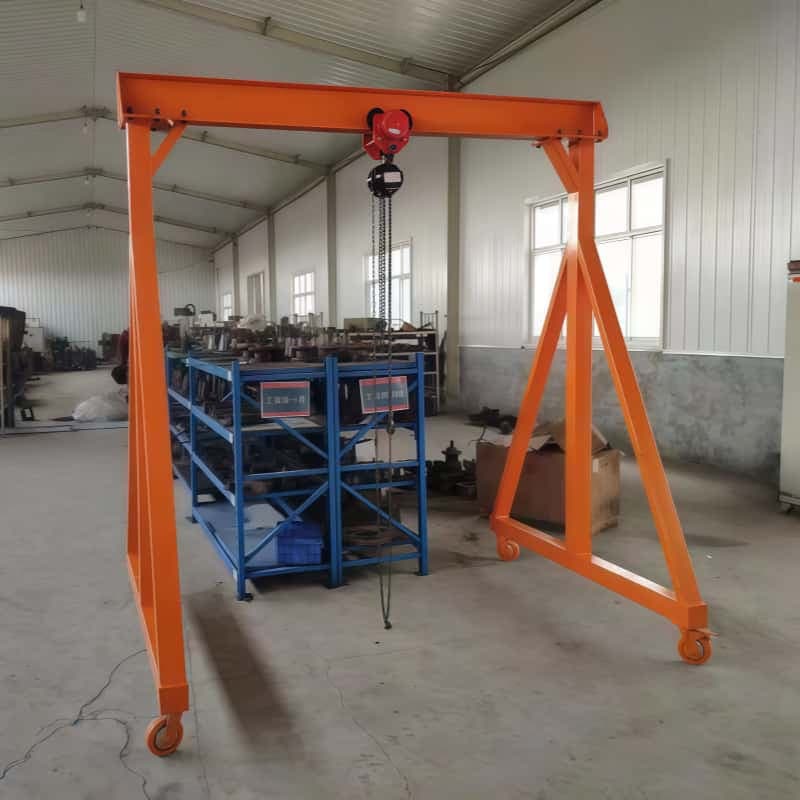

Dongqi 10t Manual Mobile Gantry Crane 3m Span 3m Lift Workshop Russia

Product Overview

Brand: Dongqi Crane
Product Name: Manual Mobile Gantry Crane with Manual Hoist
Product Type: Portable manual gantry crane system

Dongqi Crane Manual Mobile Gantry Crane with Manual Hoist is a light-duty lifting solution that requires no electrical power. It consists of a gantry frame, manual trolley, manual hoist, and mobile wheels with braking devices. The crane can be assembled, disassembled, and moved easily by bolts, making it suitable for workshops, warehouses, maintenance areas, outdoor sites, and temporary lifting operations.

Because it uses a manual hoist and manual travel, this crane is especially suitable for areas without power supply, explosion-proof environments, humid conditions, or temporary lifting jobs.

Key Features

• No power required: Manual hoist and manual movement, suitable for no-power or explosion-proof areas.

• Flexible mobility: Equipped with swivel and fixed wheels with brakes, can be pushed to different workstations.

• Adjustable height and span: Telescopic columns and adjustable beam can adapt to different sites and loads.

• Quick assembly and disassembly: Bolted structure for easy transport, relocation, and storage.

• Safe and reliable: Reliable braking, optional overload protection and anti-derail design.

• Economical and practical: Low cost, simple maintenance, ideal for low-frequency light and medium lifting.

• Surface treatment options: Powder coating, baking paint, galvanizing, etc.

Main Components

• Gantry frame: Main beam, columns, base, diagonal braces, connection plates.

• Travel mechanism: Swivel wheels / fixed wheels with brake devices.

• Lifting mechanism: Manual hoist (chain block or lever hoist).

• Trolley: Manual push trolley or manual single-girder trolley.

• Optional equipment: Adjustable height pins, telescopic legs, folding structure, rain cover, etc.

Typical Technical Specifications

Final specifications are subject to technical agreement and actual working conditions.

Applications

• Mold changing and equipment maintenance

• Warehouse loading, unloading, and transfer

• Workshop material lifting and workstation transfer

• Outdoor temporary lifting and construction

• Areas without power supply or with explosion-proof requirements

Optional Configurations

• Adjustable height and span

• Folding or telescopic legs

• PU / nylon / cast iron wheels

• Rain cover for outdoor use

• Anti-overload device

• Custom surface color

Ordering Information

To provide a suitable solution, please advise:

• Rated capacity

• Span

• Lifting height

• Hoist type (chain block / lever hoist)

• Wheel type and ground conditions

• Working environment (indoor / outdoor, explosion-proof, etc.)

• Special requirements such as adjustable, folding, or rain-proof design

Dongqi Crane can provide customized design and manufacturing according to customer requirements.

Brand and Service

Dongqi Crane provides design, manufacturing, installation guidance, commissioning, training, and after-sales service for the Manual Mobile Gantry Crane with Manual Hoist. Products can be customized to meet different lifting requirements and working conditions.
