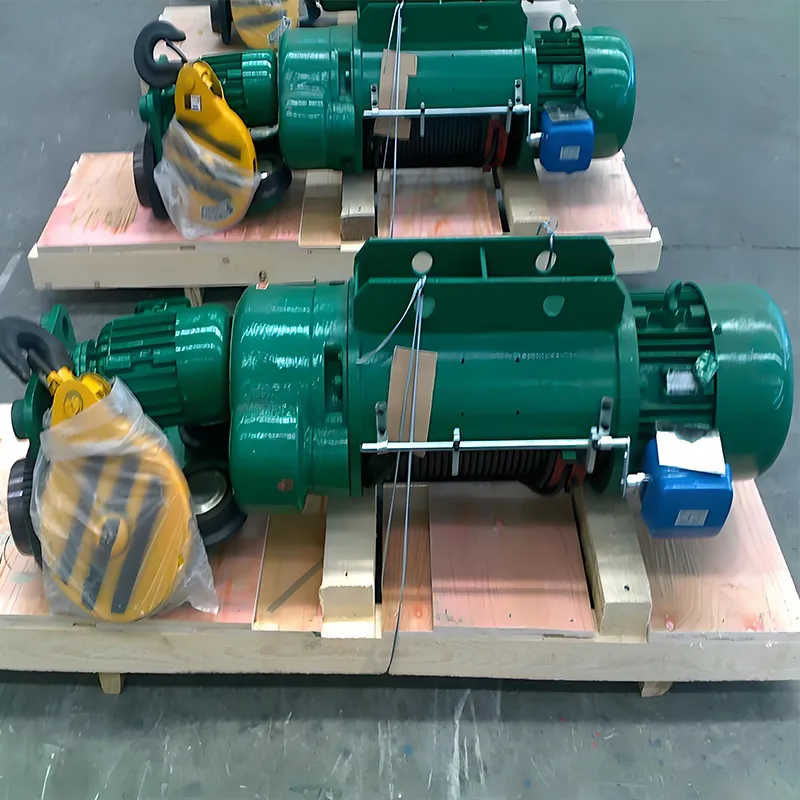

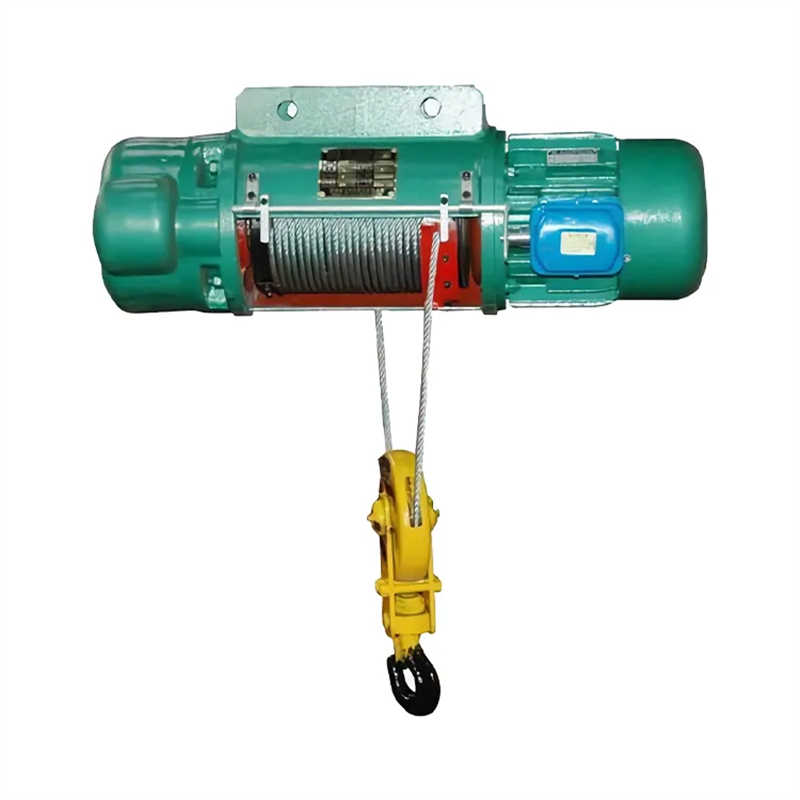

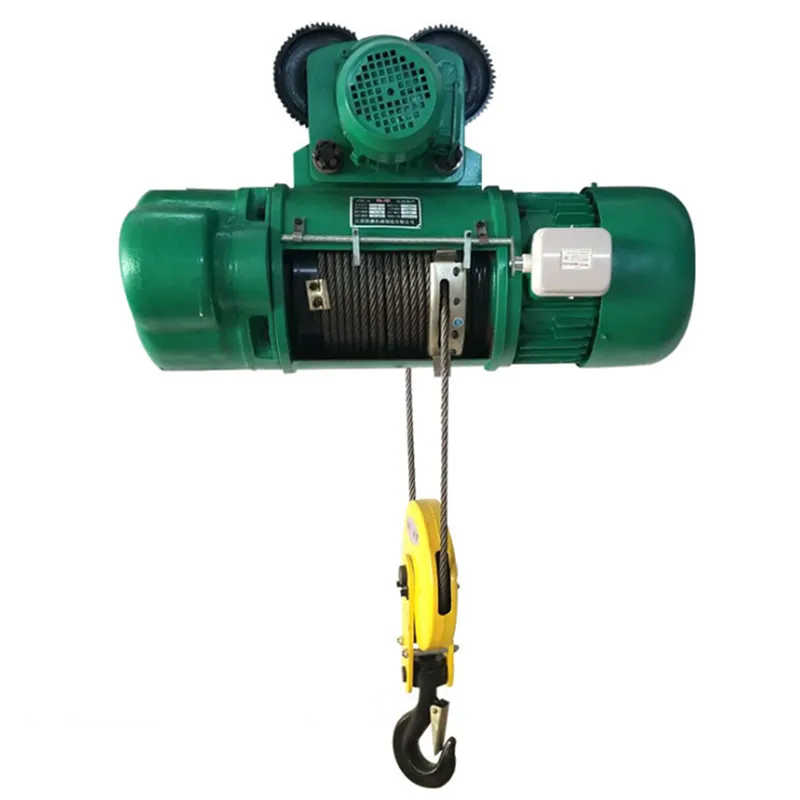

Remote Controlled Electric Wire Rope Hoist with 12 Ton Lifting Capacity

HY Model Foundry Type Electric Wire Rope Hoist for Steel Factory Use

Key Specifications/Special Features:
Model Number: HY-3t-H=9m

HY model foundry type electric hoist
Mainly used in steel factories
Capacity: 0.5 to 10T
Lifting height: 3 to 30m
Reducer: Adopts third-class dead axial helical gear transmission structure, gear and gear axial are made of heat treated alloy steel
Case and case cover with precise assembly and good seal are made of quality cast iron
Reducer is independent, so its easy to load and unload it
Control box: It has device with up an down stroke protection of break off limiter and can cut off main circuit in an emergency, which ensures safe operation of electric block
Long service lifespan and operational safety electric elements
Steel wire rope uses GB1102-74 (6 x 37 + 1) hoist steel wire rope which is durable in use
Conical motor: Hoist motor uses conical motors of relatively stronger starting torque to brake asynchronous motor and does not need extra arrester, motor S load duration factor is 25%, the motor uses B and F grade insulation and its grade of protection is IP44/IP54
Button switch: Hand-operated, easy to handle, and has two modes of cord operation and cordless remote control
Hooks: Load hooks are heat treated and fracture resistant, in case of dangerous overloading or abuse, the hook does not fracture but will slowly yield
Power:
Operating voltage: 220 to 440V, 50/60Hz, 1 to 3 phase
Low voltage control 36V is standard
High efficient energy-saving motor, asbestos free brake system
2-speed motor available
Sturdy pole change motors with cylindrical rotors and integrated safety brakes
Limit switch: Limit switch devices fitted at both top & bottom ends, switch off power automatically to prevent load chain from running out
Pushbutton switch: Rain-proof plastic for severe impact and corrosive atmosphere resistance and mechanically interlocked
Hoisting gear: Lightweight gear units with silent running flat bevelled gears deliver the torque required
