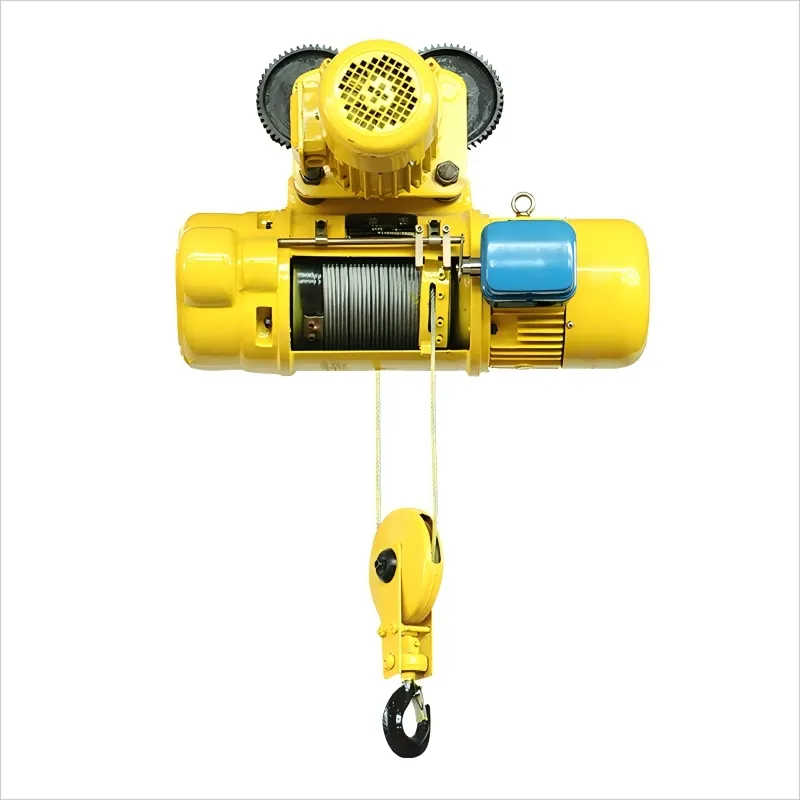

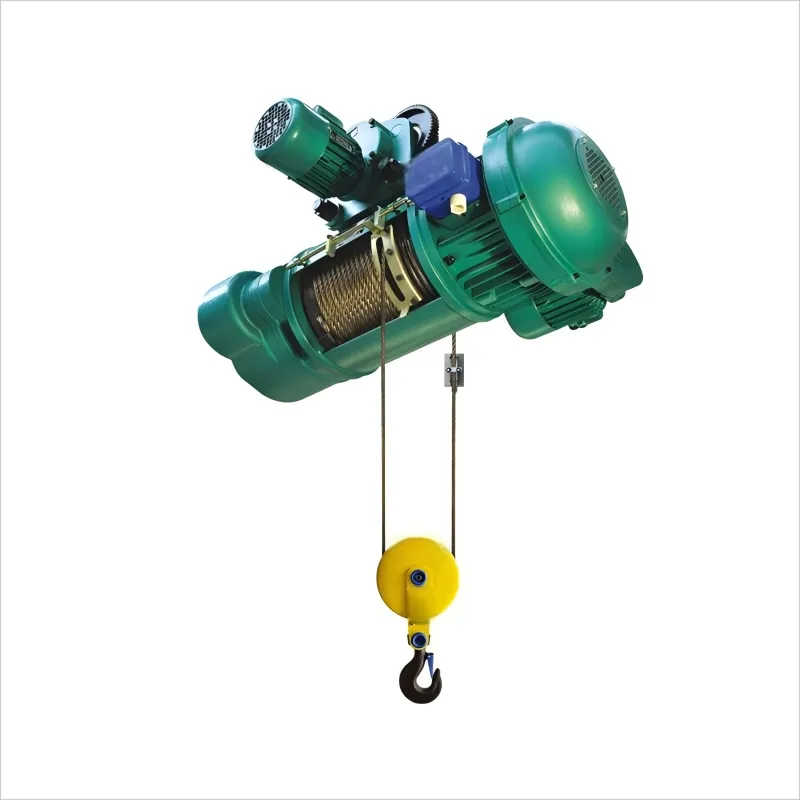

CD1 Wire Rope Electric Hoist
Capacity: 0.5ton, 1ton, 2ton, 3ton, 5ton, 10ton, 16ton
Lifting height: 6M, 9M, 12M, 18M, 24M, 30M
Color: Blue, green, yellow, red, etc. Can make as per customer's request

IApplicable scope

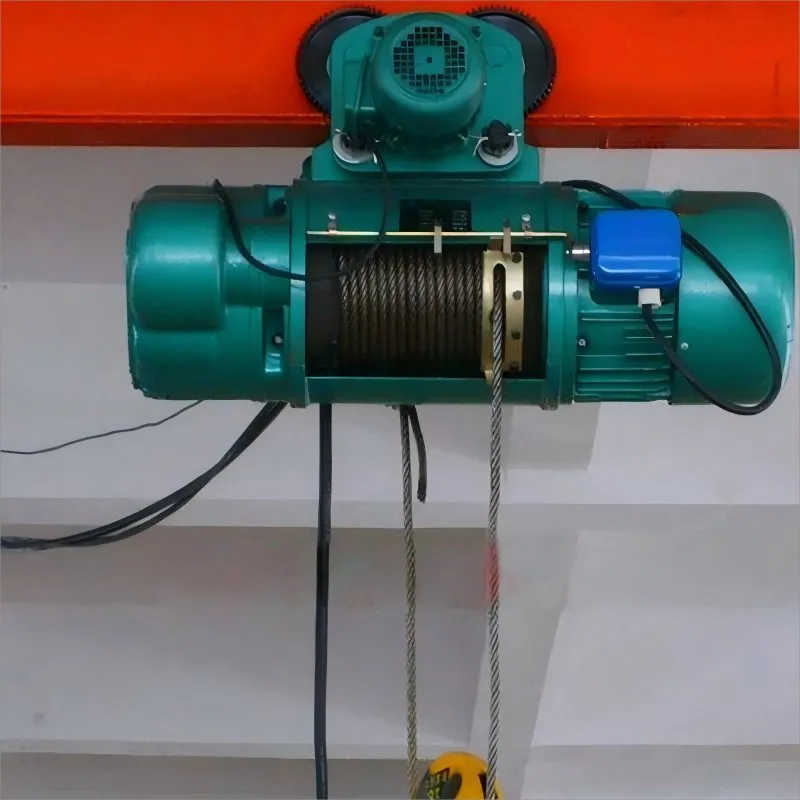

Model CD1 is a kind of electric rope hoist of light and mini type hoisting equipment. It can be used on single beam crane in I-shaped bridge type or straight/curved single rail I-beam bridge suspension for lifting heavy objects. The foot-mounted type of CD1 can be fixed on immovable under prop to lift vertically or with any angle rolling.

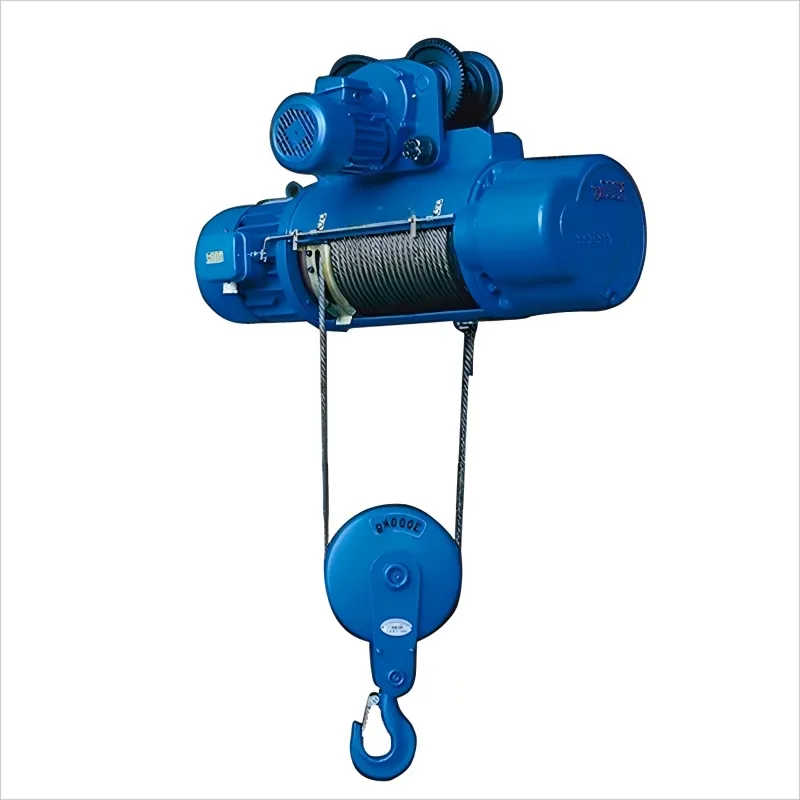

With its compact structure, legerity and convenient use/reparation, model CD1 is one of the daily used hoisting equipment in factories, mines, ports and warehouse. Its structure is shown in picture 1 and basic parameters are in Table 1.

Working environmental temperature: -20 degree to +40 degree
It is not used in places where the relative humidity is over 85% or where there is risk of fire and explosion or where there is much erosive gas.
Carrying human being is forbidden. Please operate it strictly in term of GB067 and ZBJ80013.7. When it's used outdoors, shelter is needed to keep away wetness.
Loading persisting rate: FC 25%.
Time of lifting in an hour: 120times/h
The name of this series of products can be expressed as below:
Model + lifting capacity + lifting height (m) + structure (type A=stationery type. According to the direction of rope outlet, it is subdivided into A1, A2, A3 and A4; Type D=electric trolley type)

II Structure and operating principle
The structure of Model CD1 includes lifting framework, travelling framework (not for stationery hoists) and electric apparatus control system.
1. Lifting framework

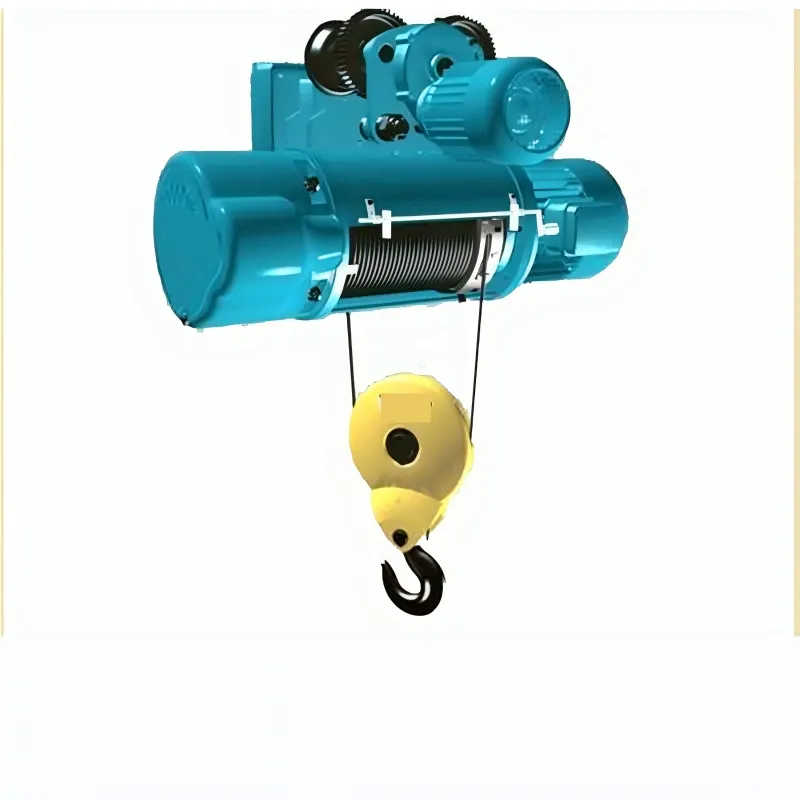

As shown in picture 2, when the hoist is energized, through the spring coupling (4), the lifting motor (1) drives directly the gear shaft in the reduction gear (1). To the quill shaft with conical brake. Then the quill shaft causes the rolling of the drum as to rotate and wind the rope, making the lift hook moves up and down. Hoists with the lifting height of 6m: It uses a spring coupling (4) to connect the motor gear shaft
(3). With the intake shaft of reduction gear (8). This kind of coupling is made up of a high strength rubber type loop and two half-coupling with spline in order to absorb the impact and reduce the fixing error. The rope guide
(5). Can prevent the rope winding randomly.
Hoists with the lifting height>9m, adding a jackshaft
(6). And solid coupling
(7). Hoists with the lifting height>18m: A holder (2) (combines with the right cover) is needed in order to keep the jackshaft steady and rolling reposefully.
