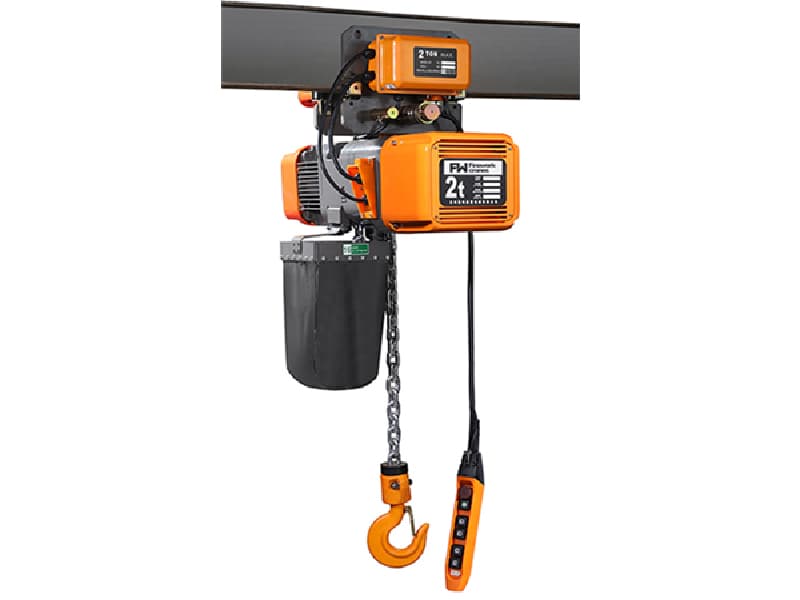

EQ Chain Hoist 2 Ton 9m for Malaysian Palm Oil Plant Maintenance
$690.00 1 set
Qingdao Shanghai
L/C T/T
New
EQ
CE, ISO9001:2000
Finework
General manufacturing
Technical Parameters
Single speed
| Model | FW | |||||||||
| 0.5-01s | 01-01s | 1.5-01s | 02-01s | 02-02s | 2.5-01s | 03-01s | 03-02s | 03-03s | 05-02s | |
| Lifting capacity (t) | 0.5 | 1 | 1.5 | 2 | 2.5 | 3 | 5 | |||
| Lifting speed (m/min) | 7.2 | 6.6 | 8.8 | 6.6 | 3.3 | 5.4 | 5.4 | 4.4 | 2.2 | 2.7 |
| Motor Ppower (Kw) | 0.8 | 1.5 | 3.0 | 3.0 | 1.5 | 3.0 | 3.0 | 3.0 | 1.5 | 3.0 |
| Rotation speed (r/min) | 1440 | |||||||||
| Insulation grade | F | |||||||||
| Power supply | 3P 220V-690V | |||||||||
| Control voltage | 24V/36V/48V | |||||||||
| No. of chain | 1 | 1 | 1 | 1 | 2 | 1 | 1 | 2 | 3 | 2 |
| Spec.of load chain | Φ6.3 | Φ7.1 | Φ10.0 | Φ10.0 | Φ7.1 | Φ11.2 | Φ11.2 | Φ10.0 | Φ7.1 | Φ11.2 |
Dual speed
| Model | FW | |||||||||
| 0.5-01D | 01-01D | 1.5-01D | 02-01D | 02-02D | 2.5-01D | 03-01D | 03-02D | 03-03D | 05-02D | |
| Lifting capacity (t) | 0.5 | 1 | 1.5 | 2 | 2.5 | 3 | 5 | |||
| Lifting speed (m/min) | 7.2/2.4 | 6.9/2.3 | 9.0/3.0 | 6.9/2.3 | 3.3/1.1 | 5.4/1.8 | 5.4/1.8 | 4.5/1.5 | 2.4/0.8 | 2.7/0.9 |
| Motor Ppower (Kw) | 0.8/0.27 | 1.8/0.6 | 3.0/1.0 | 3.0/1.0 | 1.8/0.6 | 3.0/1.0 | 3.0/1.0 | 3.0/1.0 | 1.8/0.6 | 3.0/1.0 |
| Rotation speed (r/min) | 2880/960 | |||||||||
| Insulation grade | F | |||||||||
| Power supply | 3P 220V-690V | |||||||||
| Control voltage | 24V/36V/48V | |||||||||
| No. of chain | 1 | 1 | 1 | 1 | 2 | 1 | 1 | 2 | 3 | 2 |
| Spec.of load chain | Φ6.3 | Φ7.1 | Φ10.0 | Φ10.0 | Φ7.1 | Φ11.2 | Φ11.2 | Φ10.0 | Φ7.1 | Φ11.2 |
Configuration
Henan FineWork Cranes Co.,Ltd is a professional manufacturer and service supplier of material handling equipment integrating R&D, design, manufacturing and marketing, all the cranes and electric hoists comply to FEM/DIN standard.Our company was founded in 1984, which is one of the most competitive enterprise with the largest production & sales turnover, it is also one of the most influential brand in Chinese crane industry.14px;">Henan FineWork Cranes Co.,Ltd is a professional manufacturer and service supplier of material handling equipment integrating R&D, design, manufacturing and marketing, all the cranes and electric hoists comply to FEM/DIN standard.Our company was founded in 1984, which is one of the most competitive enterprise with the largest production & sales turnover, it is also one of the most influential brand in Chinese crane industry.The company covers 820,000m2 and owns 570 millions of assets.More than 2600 people are working in our company, including 300 senior engineers and technical staffs. The company covers 820,000m2 and owns 570 millions of assets.

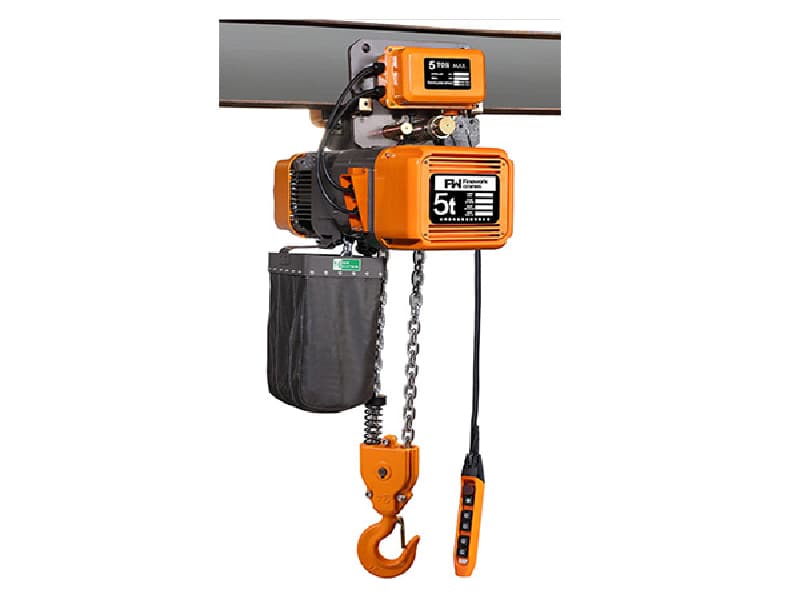

Electric trolley
Side guide rollers are promote the trolley motion smooth and minimize the wear of wheel and beam.
Inverse phase sequence protecting device
It is the special electrical installation which controls the circuit not to work in case of wiring error in the power supply.
Height limit switch
The limit switch is a safety device to make the motor stop automatically in order to prohibit the chain from exceeding.
Hoist motor
The cooling fin is especially designed to ensure quick heat dissipation with the rate up to 40% and continuous service.
Safe brake system
Electric brake allows instant brake as soon as the electric power is cut off. Thus the braking safety while loading is guaranteed.
Load chain
The material is G80 which has a high resistance to wear and corrosion.
Hooks
Load hook is forged carbon steel hook with a heavy-duty hook latch. Thrust bearing in hook allows 360 degree rotation to prevent twisting of load chain.
Push button control.
Ergonomic design for user, solid and durable, IP55 protection, emergency stop button is included.
