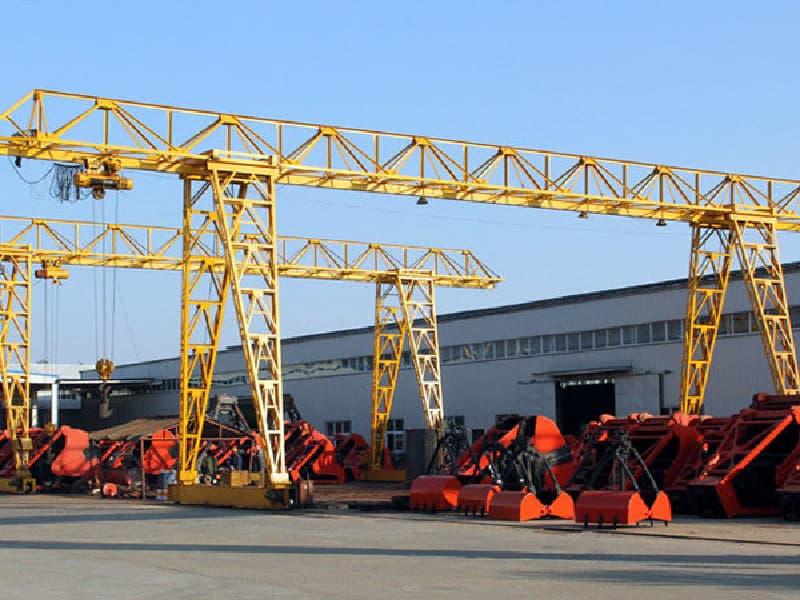

Single Beam Gantry Crane 3.2T with CD1 Hoist for Light Outdoor Tasks
$9000.00 1 set
Qingdao Shanghai
L/C T/T
New
MH
CE, ISO9001:2000
Finework
General manufacturing
Features
1
Simple and compact structure
2
The surface of the wind is very small
3
Light weight, strong lifting capacity
4
Steady performance
5
Reduce daily maintenance
6
Cut down your cost in building of plant and workshop
7
Ground-controlling and remote-controlling
Advantages
1
The best light crane,low cost & less wastage
2
Easy operation & installation
3
Strong wind resistance
4
Safety with high performance
5
Be suitable for different operating conditions and provide you One-stop Solutions
Technical Parameters
| Lifting capacity | t | 3.2 | 5 | 10 | 16 | 20 | 32 | |
| Lifting | 8,8/0.8 | 8,8/0.8 | 7,7/0.7 | 3.5 | 3.5 | 43625 | ||
| Speed m/min | Cross travel | 20 | 20 | 20 | 20 | 20 | 20 | |
| Long | Ground | 20 | 20 | 20 | 20 | 20 | 20 | |
| travel | Cabin | 20,30,45 | 20,30,40 | 30,40 | 30,40 | 30,40 | 30,45 | |
| Motor Type (KW) | Lifting | ZD41-4/4.5 | ZD141-4/7.5, ZDS10.8/4.5 | ZD151-4/13, ZDS11.5/4.5 | ZD151-4/13 | ZD152-4/18 | ZD*62-6/18, ZDX1-2.2/18 | |
| Cross travel | ZDY12-4/0.4 | ZDY121-4/0.8 | ZDY21-4/0.8×2 | ZDY21-4/0.8×2 | YZD-4/0.8×4 | |||
| Long Travel | Ground | ZDY21-4/0.8×2 | YZR132M1-6/2.2×2 | YZR160M1- | YZR160M1-6/6.3×2 | YZR160M2-6/8.5×2 | ||
| ZDY21-4/1.5×2 | YZR132M2-6/3.7×2 | 6/6.3×2 | YZR160M2-6/8.5×2 | YZR160L2-6/11×2 | ||||
| Cabin | ZDR22-4/1.5×2 | YZR132M2-6/3.7×2 | YZR160M2-6/8.5×2 | |||||
| ZDR24-4/2.2×2 | YZR160M1-6/5.5×2 | YZR160L2-6/11×2 | ||||||
| Electric Hoist | type | CD1/MD1 | CD1 | HC | ||||
| Power Supply | 380V 50HZ 3phase AC/220v 50Hz 1phase | |||||||
| Span | m | 12~30 | ||||||
| Lifting height | m | 6, 9 | ||||||
| Span | m | 12,16,20,24,30 | ||||||
| Controlling method | Cabin;Remote control | |||||||
