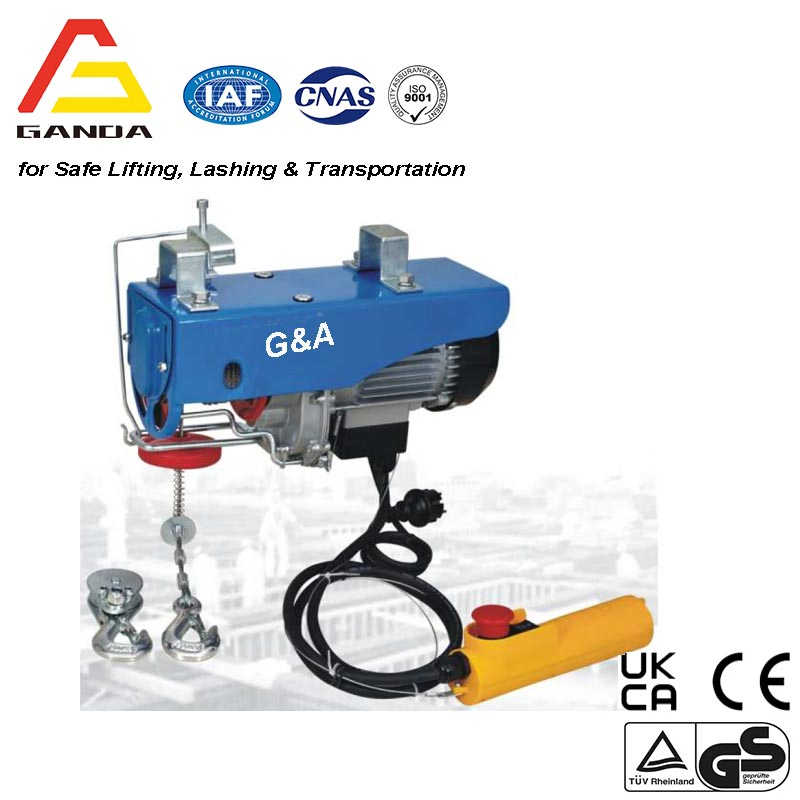

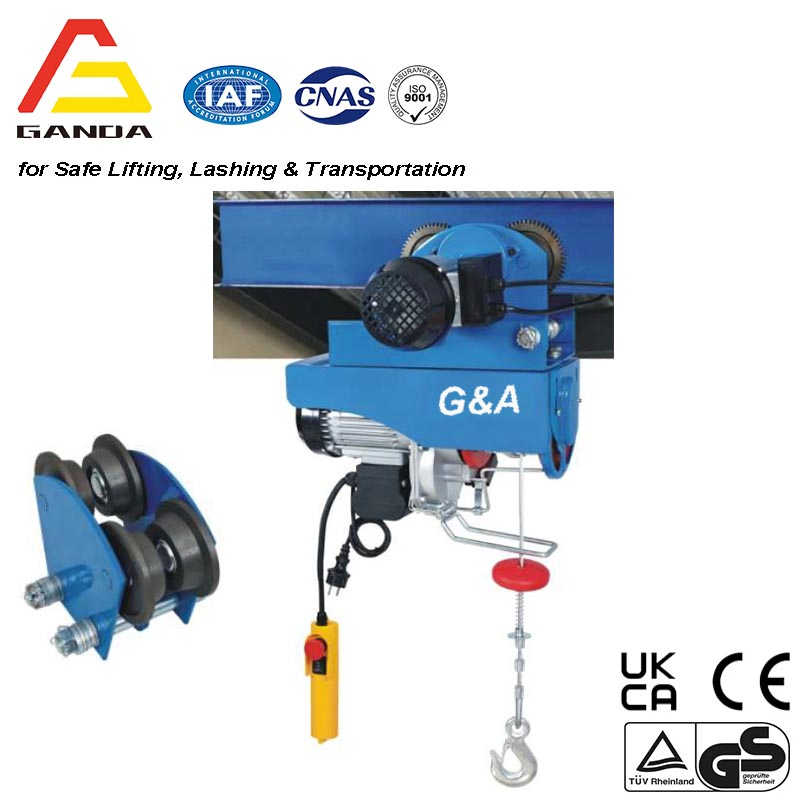

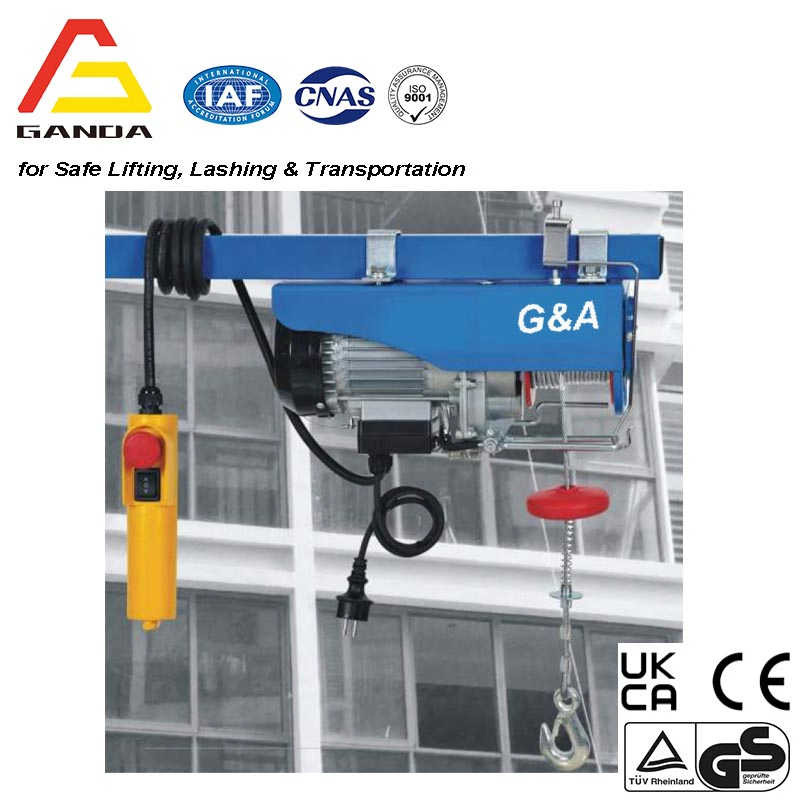

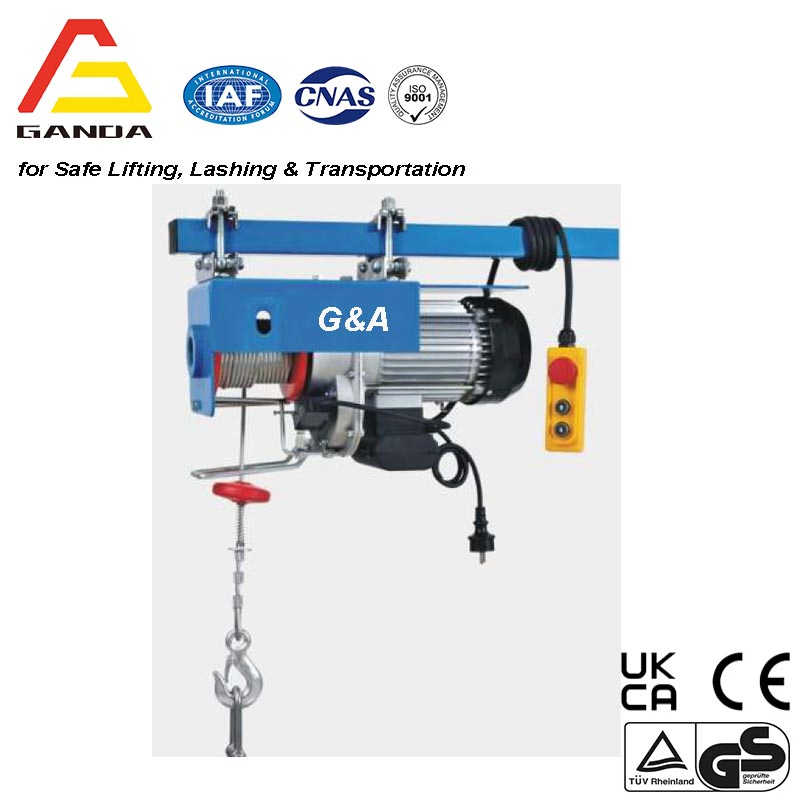

Remote Control Mini Electric Wire Rope Hoist for Solo Operation
$35.00 10 set
Qingdao Shanghai
L/C T/T
New
GA-EWH
CE, ISO9001
GANDA
General manufacturing
Main Features:
* Certifications: TUV/GS/CE/EMC/ROHS/PAHS, C/ETL; IP class: IP 54
* Single-phase Motor power supply: 220V / 50Hz; 120V / 60Hz
* Work duty: ED 20% - A1 8000 full load cycles
* Stronger brake performance, Longer continuous working time at first thermal protection.
* Load test: 110% Dynamic load test & 125% Static load test one by one before delivery.
* Durable test: 1000 cycles with 110% of the rated capacity under 3m per cycle
* Electrical Components: 100% meet VDE/TUV/UL Approval
* Up/down position limit device
* Safety control handle with Emergency stop button
* 12m, 18m TUV/GS/CE full certificated.
| Specification | GA-100/200 | GA-125/250 | GA-150/300 | GA-200/400 | GA-250/500 | GA-300/600 | GA-400/800 | GA-500/1000 | GA-600/1200 |
| Rated voit(v) | 230V/50Hz | 230V/50Hz | 230V/50Hz | 230V/50Hz | 230V/50Hz | 230V/50Hz | 230V/50Hz | 230V/50Hz | 230V/50Hz |
| Input power(w) | 450W | 450W | 500W | 800W | 800W | 1050W | 1300W | 1600W | 1600W |
| Rated lifting capacity(kg) | single line- 100kg double line- 200kg | single line- 125kg double line- 250kg | single line- 150kg double line- 300kg | single line- 200kg double line- 400kg | single line- 250kg double line- 500kg | single line- 300kg double line- 600kg | single line- 400kg double line- 800kg | single line- 500kg double line- 1000kg | single line- 600kg double line- 1200kg |
| Lifting speed(m/min) | single line- 8m/min double line- 4m/min | single line- 8m/min double line- 4m/min | single line- 8m/min double line- 4m/min | single line- 8m/min double line- 4m/min | single line- 8m/min double line- 4m/min | single line- 8m/min double line- 4m/min | single line- 8m/min double line- 4m/min | single line- 8m/min double line- 4m/min | single line- 8m/min double line- 4m/min |
| Lifting height(m) | single line- 12m double line- 6m | single line- 12m double line- 6m | single line- 12m double line- 6m | single line- 12m double line- 6m | single line- 12m double line- 6m | single line- 12m double line- 6m | single line- 12m double line- 6m | single line- 12m double line- 6m | single line- 12m double line- 6m |
| Rope diameter(mm) | 3.0mm | 3.0mm | 3.0mm | 4.0mm | 4.0mm | 4.5mm | 5.0mm | 6.0mm | 6.0mm |
| Qty/CNT(pcs) | 2pcs | 2pcs | 2pcs | 2pcs | 2pcs | 2pcs | 2pcs | 1pcs | 1pcs |
| Measurement(cm) | 36.8x30.5x25cm | 36.8x30.5x25cm | 36.8x30.5x25cm | 39.8x33x27cm | 39.8x33x27cm | 39.8x33x27cm | 41.5x33x27cm | 55.5x24.5x35.5cm | 55.5x24.5x35.5cm |
| G/N(kg) | 21.5kg | 21.5kg | 22.0kg | 34.5kg | 34.5kg | 38.0kg | 40.0kg | 33.0kg | 34.5kg |
