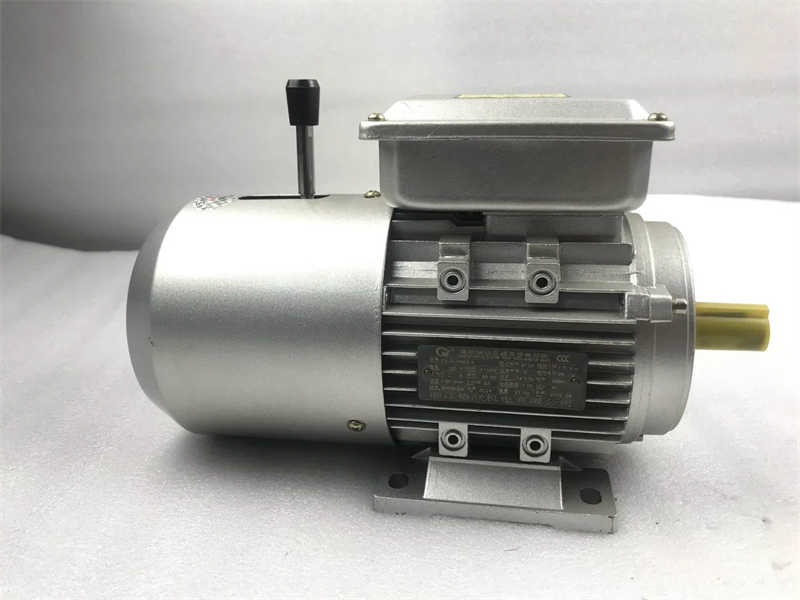

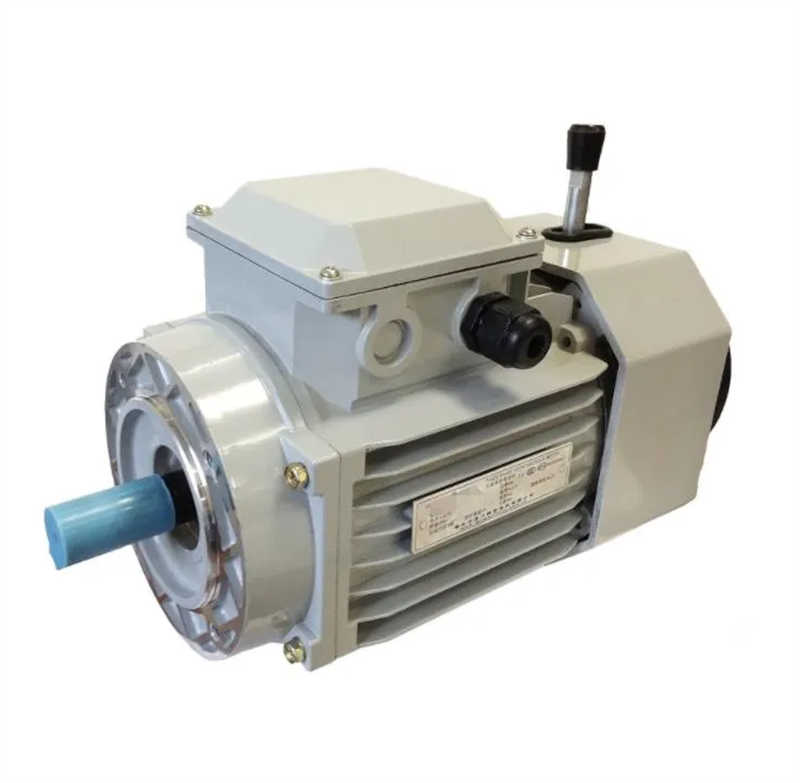

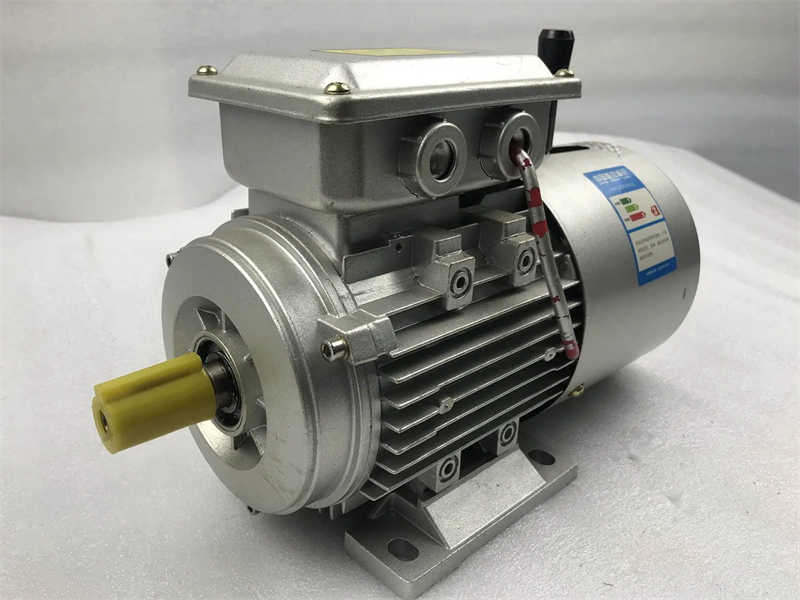

Ie2 Ie3 Ie4 380V, 50Hz. 3 Phase AC Electric Motors with Magnetic Brake Motor

YEJ series eleclromagnelic braking three-phase asynchronous motor are tolaly enclosed fan-cooled nd equipped with D.c.round brake.lhave advan tages:rapid braking,simple siruclre,high reliability and wide applicalion,fturther more,the brake can be controles by manual relrasing.The motors are widely used on mechanical equipent and driving machines where rapid stop and accurate braking are demanded.This series flanae contour mountina size and Y2 series are same.

The motor power range of this series :0.75KW-315KW; the center height of the base:H80-H355.

Motor Features:
1. Power: 0.75-315KW;
2. Voltage: 380V/415V/480V
3. Rated Frequency: 50 Hz/60Hz ;
4. Poles: 2/4/6/8/810
5. Speed: 590-2985rpm
6. Ambient Temperature: -15ºC≤ 0≤ 40ºC
7. Duty: continuous (S1);
8. Insulation Class:  B , F;
9. Protection Class: IP54, IP55
10. frame material: cast iron
11. Cooling Method: ICO141;
12. Altitude: Not exceeding 1000m;
13. Packing: 71-132 frame be packaged by carton&pallets
14. Certifications: CE, CCC, ISO9001: 2008

Exploded View

Product Parameters

Installation Instructions

Conventional mounting type and suitable frame size are given in following table(with "√")

If there is no other request in the order or agreement, terminal box standard position is at the right side of the frame; data above may be changed without prior notice.

Detailed Photos

Advantage

* 100% Copper wire,100%  Power Output;
* 100% test after each process and final test before packing.
* 20Years Manufacture Experience;
*  Single Phase Motors are with centrifugal switch ,which are suitable for high start torque application like     air compressor,fans,pumps and so on;
* Energy saving;
* Superior Life;
* Quiet Operation;
* Easy maintance;
* Be made of selected quality materals.latest design in entirety;
*OEM Service
*CE/ISO Approved
*20-30days lead time
Quality Assurance:
1 year quality warranty and fast after-sales service.







Gexin Electromechanical Co., Ltd.,
We have 150 employees, an annual output value of $1800w and an area of 26000sqm.




Foreign Exhibition

FAQ

1: Are you a factory or just a trading company?

A1: Manufacturer,and we focus on the development and production of electric motors for more than 20 years.

Q2: Is customized service available?

A2: Of course, OEM & ODM both are available.

Q3: How can I get the quotation?

A3: Leave us message with your purchase requirements and we will reply you within one hour on working time. And you may contact us directly by Trade Manager.

Q4:Can I buy one as sample?

A4: Yes, of course.

Q5: How about your quality control?

A5: Our professional QC will check the quality during the production and do the quality test before shipment.

Q6: What is your payment term?

A6: 30% T/T in advance, 70% balance when receiving B/L copy Or 100% irrevocable L/C at sight.


Q7: What is your lead time?

A7: about 20-30 days after receiving advance deposit or original L/C.


Q8: What certificates do you have?

A8: We have CE, ISO. And we can apply for specific certificate for different country such as SonCAP for Nigeria, COI for Iran, SASO for Saudi Arabia, etc.


Q9: What warranty do you provide?

A9: One year, during the guarantee period, we will supply freely of the easy damaged parts for the possible problems except for the incorrect operation. After expiration, we supply cost spare parts for alternator maintenance.
