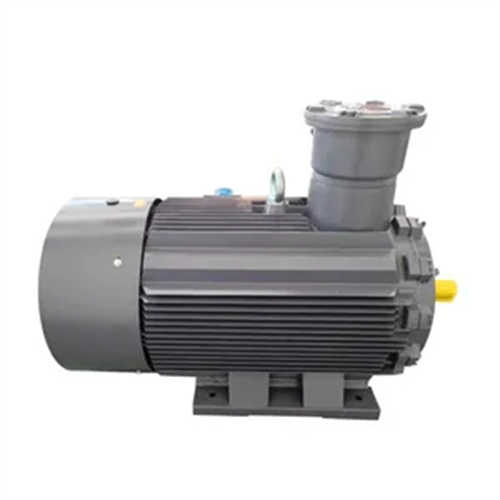

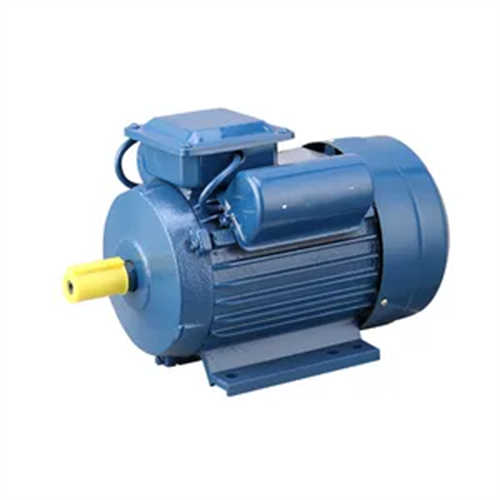

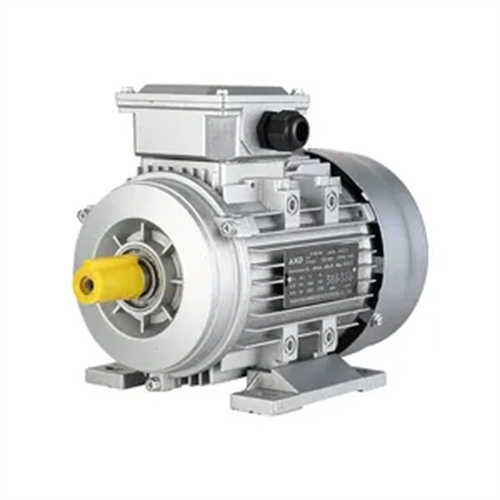

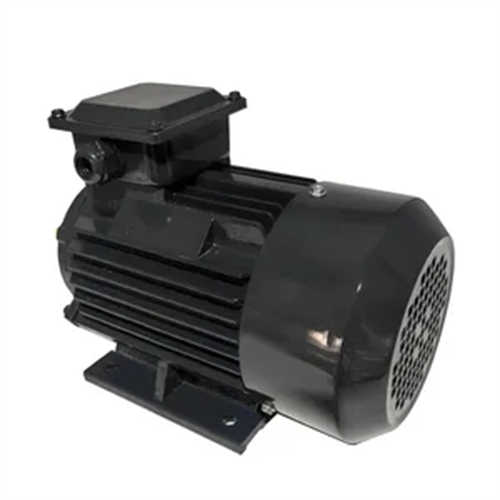

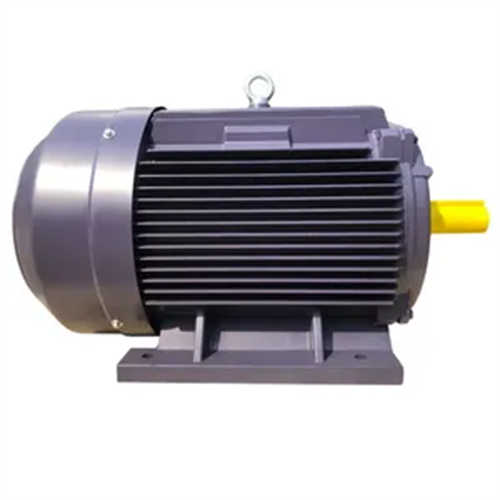

Y Three Phase 5.5kw 7.5kw Motor 380V 50Hz

Y2 Series Three Phase Electric Motor is our country summarizes the advanced experience of developed countries and the development of the design of the new generation of three phase asynchronous motor products. These motors have reached an international advanced level of 1990s. Implementation of the standard JB/T8680-2008"Y2 series three phase asynchronous motors rechnical conditions"

Y2 series three phase asynchronous motor frame size from 63 to 355 for a total of 15 frame sizes, pole number: 2, 4, 6, 8, 10 pole, power from 0.12kw to 315kw total of 117 specifications.

Apply to: General place and house special requirements, such as machinery, metal cutting machine tools, pumps, fans, blenders, transport machinery, agricultural machinery, foof machinery.

Product features:

High efficiency and energy saving, low noise and little vibration. The insulation class is IP54 or IP55

OPERATING CONDITIONS:
Ambient temperature: -15senti degree≤ 0≤ 40senti degree
Altitude: Not exceeding 1000 meters
Rated voltage: 380V, 220/380V, 380/660V, 400V, 415V
Rated frequency: 50Hz / 60 Hz

Connection:
Y2 Start-connection for 3KW and below
Delta-connection for 4KW or more
Duty / Rating: Continuous (S1)
Cooling type: IC411
