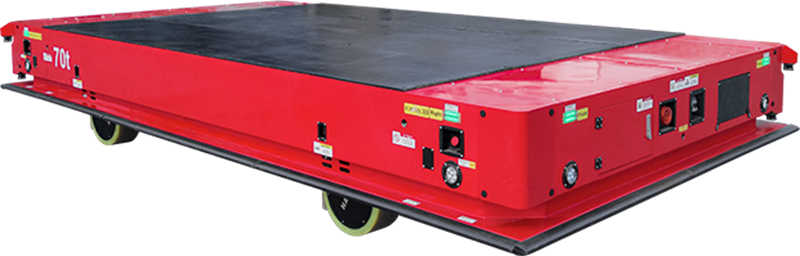

Robotic Transfer Cart Platform | 0-20T AGV with Intelligent Navigation
$6000.00 1 set
Qingdao Shanghai
L/C T/T
New
TA
CE, ISO9001
OmniTitan
General manufacturing

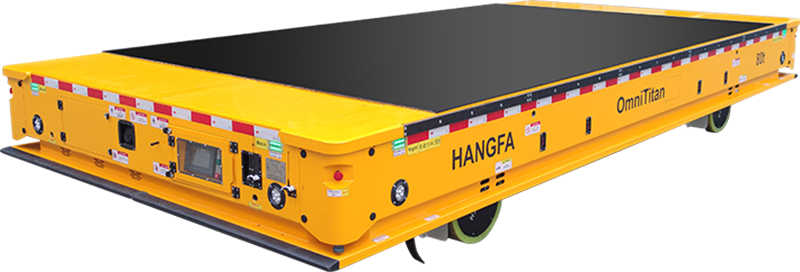

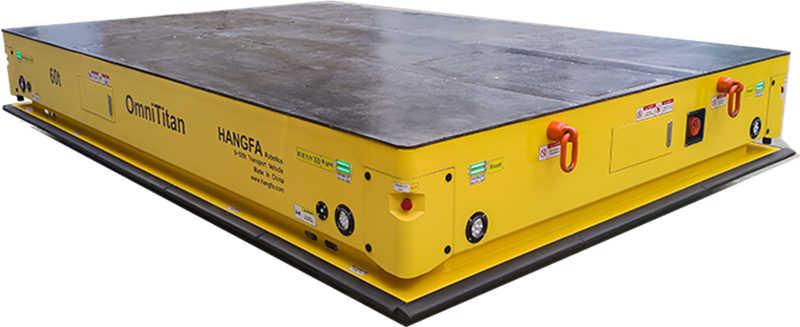

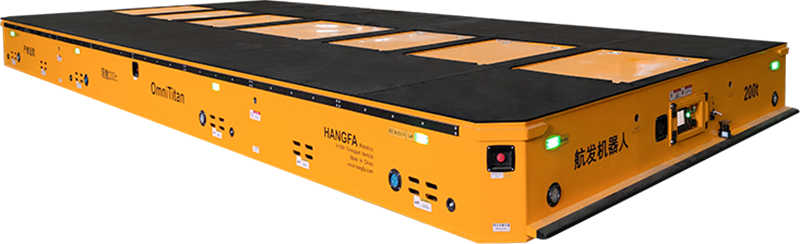

OmniTitan series robot platform has a load capacity of 0 to 500t per unit, with omnidirectional movement function, it's perfect for the transport of large size and large tonnage workpieces. In addition to directly carrying, it can also carry the workpiece by self-lifting after drilling into the tooling frame.
Specifications:
| Model No. | TA- |
| Payload | 0-500t Customized |
| Color | Customized |
| Dimension | Customized |
| Dimensions of Loading Platform | According to the Drawing |
| Self-lifting Stroke of Vehicle | 0-200mm |
| Battery | Lithium Battery |
| Time of Endurance | 12h (Customizable) |
| Charge Time | 8-10h (Customizable) |
| Charger | AC110V/AC220V/AC380V (Customizable) |
| Propulsion | AC Servo Motor |
| Suspension | Hydraumatic |
| Max. Pressure to Floor | 8Mpa |
| Min. Turning Radius | 0 |
| Empty Moving Speed | 0-0.5m/s |
| Loaded Moving Speed | 0-0.4m/s |
| Ramp Moving Speed with Full Load | 0-0.25m/s |
| Self-lifting Speed | 60-200mm/min |
| Floor | Hard Surface, Concrete, Self Leveling, Asphalt, Steel Plate |
| Gradeability with Full Load | 5% |
| Gradeability with No Load | >20% (Ground and frame interference needs to be considered) |
| IP Grade | IP54 |
| During Operation | Temperature: -10~+45ººC, humidity: 0~95%, no condensation |
| During Storage/Transportation | Temperature::-10~+50ºC, humidity: 0~95%, no condensation |
| Control Mode | Remote Control/Semi-automatic Line Patrol/AGV |
| Movement | Move in All Directions with Zero Turning Radius |
| Measuring Weight | Measuring Weight and CG Positon; Warning Overload and Partial Load |
| Navigate Mode (optional) | Laser/Magnet /Ribbon /Fluorescent Ribbon /QR Code /Inertial Navigation |
| Location Mode (optional) | RFID Tag /D Barcode Tag /QR Code Tag Location |
| Anti-collision (optional) | Laser Radar/Contact Edge Sensor/Rubber Protection Strip Anti-collision |
