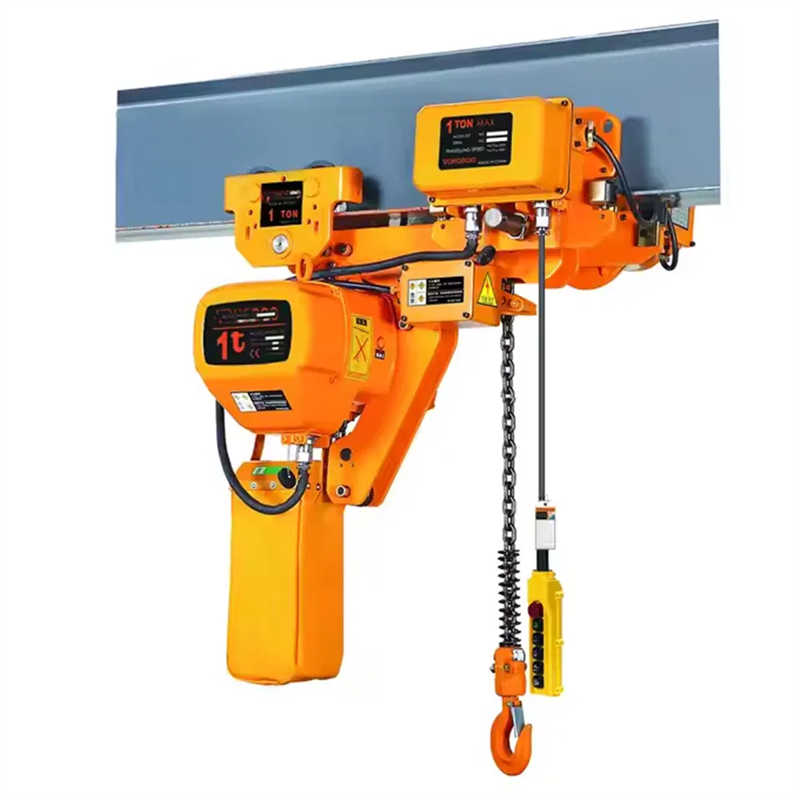

1 Ton Electric Chain Hoist 220V 9m Lift Heat-Resistant Chain
$880.00 1 set
Qingdao Shanghai
L/C T/T
New
HHBB
CE, ISO9001
Yuzhong
General manufacturing
Electric chain hoist features:
1. We are a professional supplier for electric chain hoist with rich production experience over 10 years.
2. All the electric chain hoist have CE certification.
3. Capacity is from 500kg to 50T.
4. Light aluminum alloy shell.
5. High strength heat treatment G80 chain.
6. Hook is hot forged with 360 degree rotation.
7. Pure cooper motor, work efficiently and has fast heat dissipation with longer lifespan.
8. It is equipped with Inverse phase sequence protecting device, Side magnetic braking device and limit switch.
9. Both Single speed and Dual speed are convenient.
10. Both Three phase and Single phase power supply are available , from 220v to 600v.
11. Double voltage are available to make, you can change it by manual operation
12. OEM is available
| TECHNICAL PARAMETERS | ||||||||||||
| Model | Capacity (Ton) | Lifting Height(m) | Lifting Speed(m/min) | control voltage (V) | Operating Voltage | Ins Class | Lifting motor | Operating motor | I-Beam (mm) | |||
| Power (Kw) | Rotation Speed (r/min) | Power (Kw) | Rotation Speed (r/min) | Operating Speed (m/min) | ||||||||
| HHBB 0.5-01 | 0.5 | 3/6/9/12/15 | 8 | 24/36/48 | 3-Phase 110v/220v/380V/525V 50Hz/60Hz | F | 0.75 | 1440 | / | / | / | / |
| HHBB 01-02 | 1 | 3/6/9/12/15 | 3.5 | 24/36/48 | 0.75 | 1440 | / | / | / | / | ||
| HHBB 01-01 | 1 | 3/6/9/12/15 | 7 | 24/36/48 | 1.5 | 1440 | / | / | / | / | ||
| HHBB 1.5-01 | 1.5 | 3/6/9/12/15 | 9 | 24/36/48 | 3 | 1440 | / | / | / | / | ||
| HHBB 02-01 | 2 | 3/6/9/12/15 | 7.2 | 24/36/48 | 3 | 1440 | / | / | / | / | ||
| HHBB 02-02 | 2 | 3/6/9/12/15 | 3.6 | 24/36/48 | 1.5 | 1440 | / | / | / | / | ||
| HHBB 2.5-01 | 2.5 | 3/6/9/12/15 | 6.6 | 24/36/48 | 3.3 | 1440 | / | / | / | / | ||
| HHBB 03-01 | 3 | 3/6/9/12/15 | 4.5 | 24/36/48 | 3.3 | 1440 | / | / | / | / | ||
| HHBB 03-02 | 3 | 3/6/9/12/15 | 4.5 | 24/36/48 | 3.3 | 1440 | / | / | / | / | ||
| HHBB 03-03 | 3 | 3/6/9/12/15 | 4.5 | 24/36/48 | 1.5 | 1440 | / | / | / | / | ||
| HHBB 05-02 | 5 | 3/6/9/12/15 | 3.3 | 24/36/48 | 3.3 | 1440 | / | / | / | / | ||
| HHBB 7.5-03 | 7.5 | 3/6/9/12/15 | 2.2 | 24/36/48 | 3.3 | 1440 | / | / | / | / | ||
| HHBB 10-03 | 10 | 3/6/9/12/15 | 3.3 | 24/36/48 | 3.3x2 | 1440 | / | / | / | / | ||
| HHBB 15-06 | 15 | 3/6/9/12/15 | 2.2 | 24/36/48 | 3.3x2 | 1440 | / | / | / | / | ||
| HHBB 20-08 | 20 | 3/6/9/12/15 | 1.6 | 24/36/48 | 3.3x2 | 1440 | / | / | / | / | ||
| HHBB 25-10 | 25 | 3/6/9/12/15 | 1.3 | 24/36/48 | 3.3x2 | 1440 | / | / | / | / | ||
| HHBB 30-12 | 30 | 3/6/9/12/15 | 1.1 | 24/36/48 | 3.3x2 | 1440 | / | / | / | / | ||
| SIZE SPECIFICATION | ||||||||||||
| Model | Capacity (Ton) | Unit(mm) | ||||||||||
| H | A | B | D | E | I | K | M | N | Chain | |||
| HHBB 0.5-01 | 0.5 | 540 | 455 | 240 | 285 | 165 | 34 | 34 | 19 | 19 | 6.3 | |
| HHBB 01-02 | 1 | 575 | 455 | 240 | 285 | 165 | 34 | 34 | 19 | 19 | 6.3 | |
| HHBB 01-01 | 1 | 650 | 520 | 260 | 300 | 176 | 42 | 42 | 24 | 24 | 7.1 | |
| HHBB 1.5-01 | 1.5 | 800 | 615 | 295 | 430 | 265 | 49 | 49 | 30 | 30 | 10 | |
| HHBB 02-01 | 2 | 800 | 615 | 295 | 430 | 265 | 49 | 49 | 30 | 30 | 10 | |
| HHBB 02-02 | 2 | 835 | 520 | 260 | 300 | 236 | 49 | 49 | 30 | 30 | 7.1 | |
| HHBB 2.5-01 | 2.5 | 845 | 615 | 295 | 430 | 265 | 59 | 59 | 35 | 35 | 11.2 | |
| HHBB 03-01 | 3 | 845 | 615 | 295 | 430 | 265 | 59 | 59 | 35 | 35 | 11.2 | |
| HHBB 03-02 | 3 | 950 | 615 | 295 | 430 | 320 | 59 | 59 | 35 | 35 | 10 | |
| HHBB 03-03 | 3 | 950 | 520 | 260 | 350 | 205 | 59 | 59 | 35 | 35 | 7.1 | |
| HHBB 05-02 | 5 | 1030 | 615 | 295 | 430 | 325 | 60 | 60 | 43 | 43 | 11.2 | |
| HHBB 7.5-03 | 7.5 | 1200 | 615 | 295 | 505 | 320 | 85 | 85 | 55 | 55 | 11.2 | |
