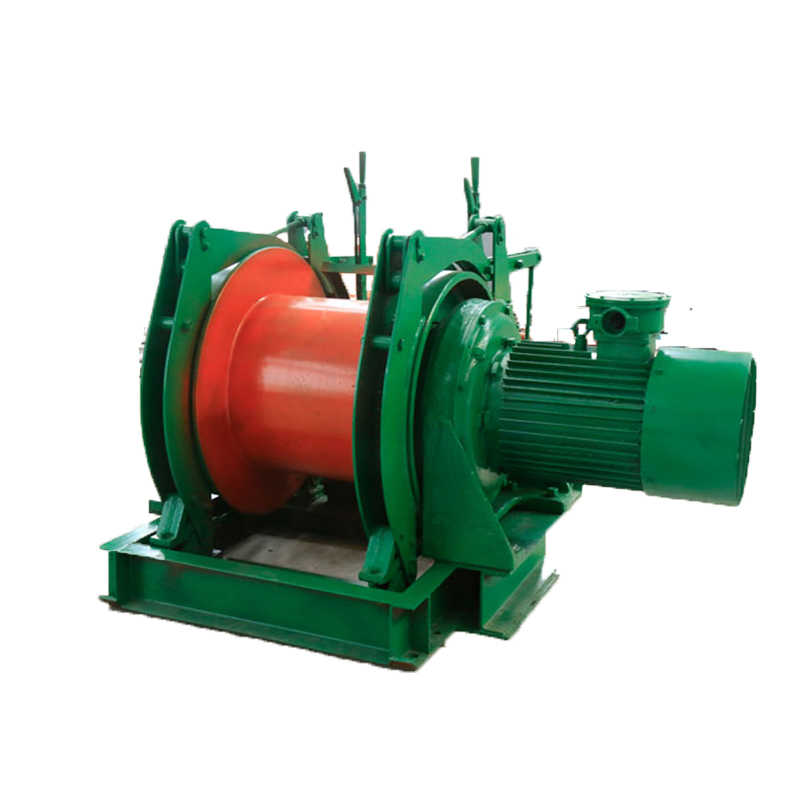

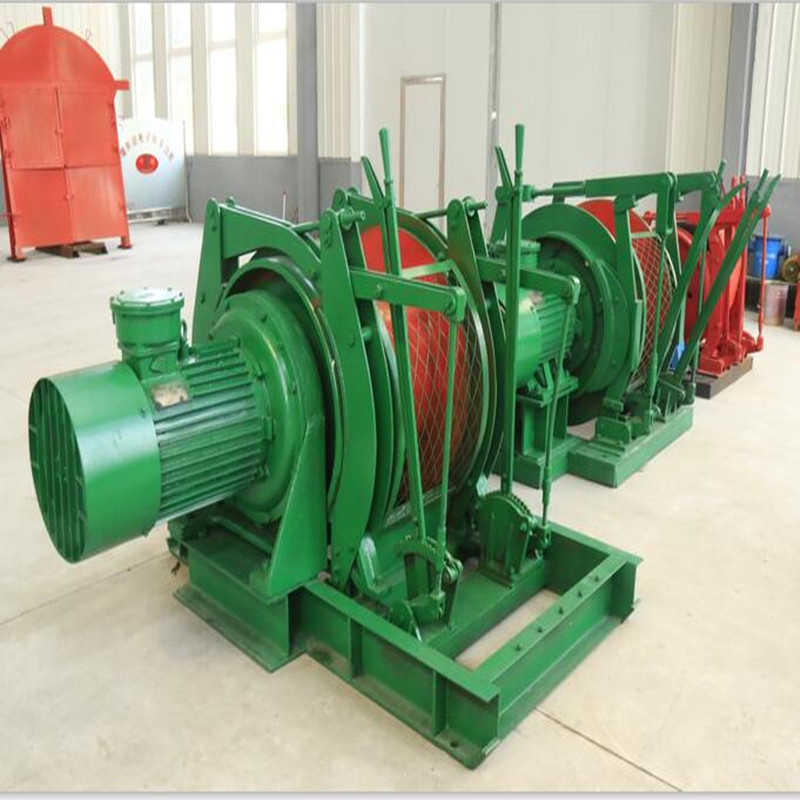

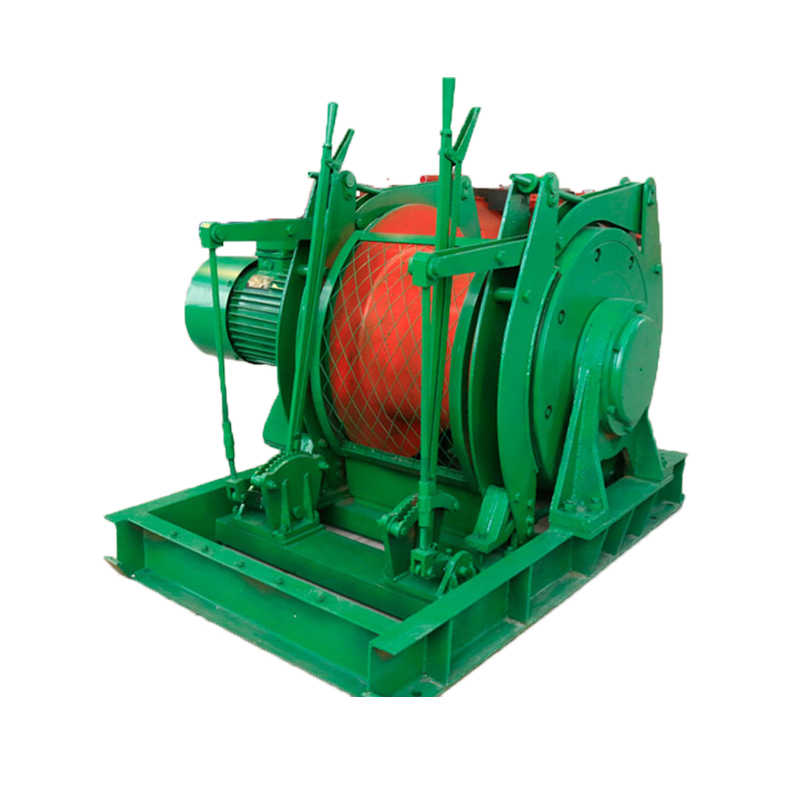

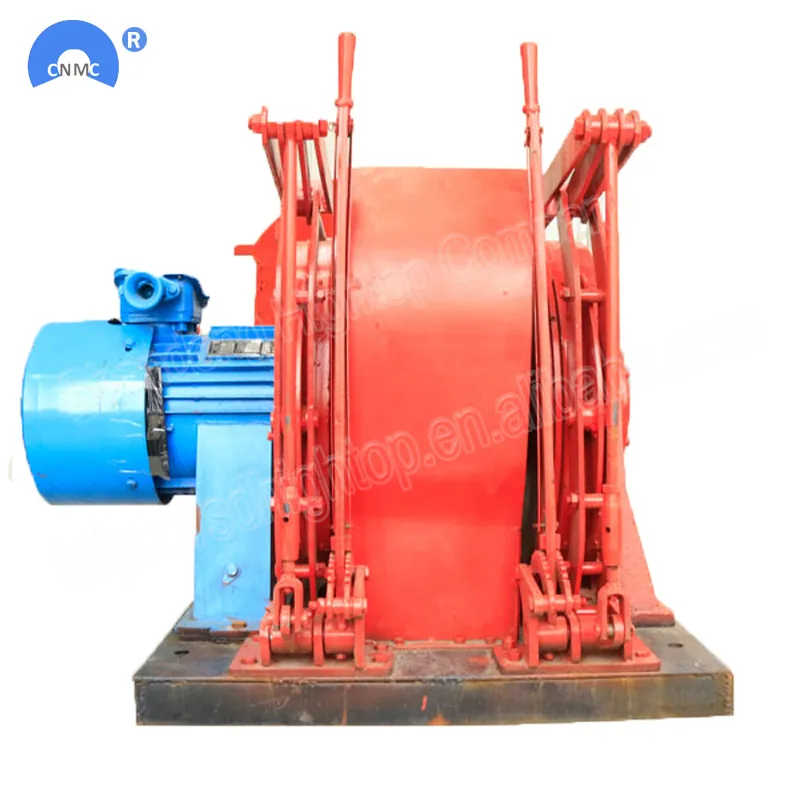

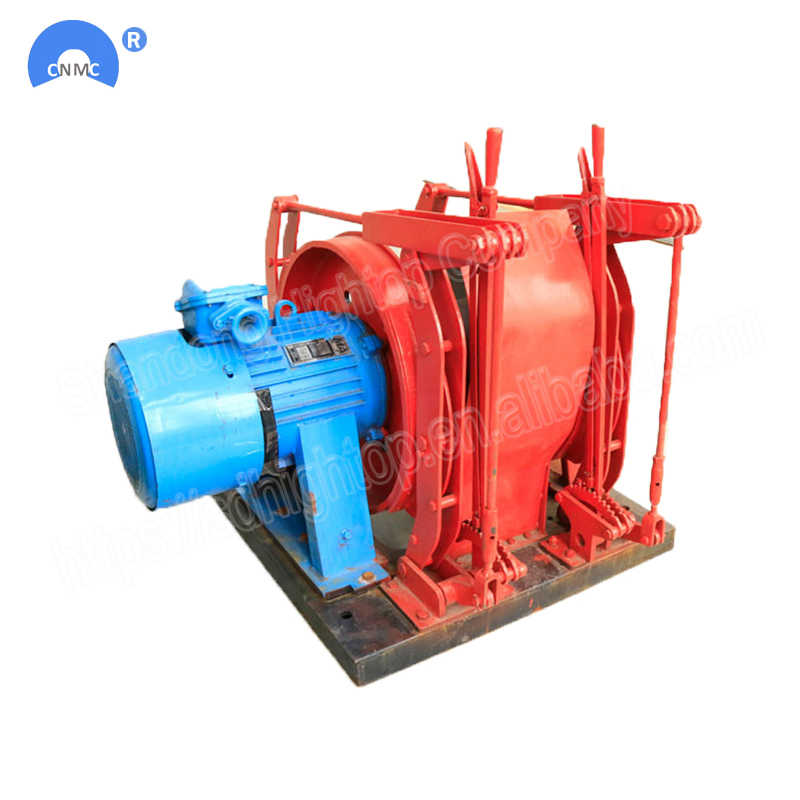

3T Underground Mining Dispatching Winch with Robust Hydraulic System
$1500.00 1 set
Qingdao Shanghai
L/C T/T
New
Winch
CE, ISO9001
Hightop
General manufacturing,Metal production industry,Renewable energy industry
Product Description
Hydraulic Winch for Oilfield/Mining/Construction Use
JD Series Shaft Sinking Winch/ Underground Mining Winch
Electric winch is drum winding wire rope, is one kinds of small lifting equipment. It can be vertical, horizontal and
inclined lifting or pulling heavy objects.Not only be used alone but be used for crane manufacturing as main hoisting
mechanism .Reasonable designed structure ,easy operation and excellent working performance
Electric winch is widely used in construction site, mine, factory, port pier, crane manufacturing ,etc material lifting
or traction.
Model | JD-0.5 | JD-0.75 | JD-1 | JD-1.6 | JD-4 |
Traction Force KN | 7.5 | 7.5 | 10 | 17.6 | 30 |
Average Speed m/s | 0.71 | 0.71 | 0.78 | 1.4 | 1.44 |
Dia of Wire Rope mm | 9.3 | 9.3 | 12.5 | 15 | 20 |
Drum Size mm | 200×300 | 200×300 | 224×304 | 310×400 | 620×580 |
Rope Capacity m | 250 | 250 | 400 | 440 | 480 |
Total Reduction Ratio | 34.81 | 34.81 | 41 | 32.5 | 31.8 |
Motor Type | YB132S-4-B5 | YBJ-11.4 | YBJ45-4 | YBJ40-4 | YB2-132S-4 |
Motor Power KW | 5.5 | 11.4 | 25 | 40 | 5.5 |
Motor Rev Rev/min | 1440 | 1460 | 1470 | 1470 | 1440 |
Motor Voltage V | 380/660 | 380/660V | 380/660V | 380/660V | 380/660V |
Di mention mmL×W×H | 1085×730×697 | 1085×730×697 | 1073×766×727 | 1448×1255×1260 | 1900×2350×1370 |
Weight KG | 400 | 400 | 578 | 1370 | 2800 |
Detailed Images
•Direct factory supplier ,Well and High Quality Control•Our products with world first-class quality and On-Time Delivery
•Competitive price with excellent quality
•A great variety of different models to meet customer requirements
•Exported to Southeast Asia, Africa, Europe and other regions
•A full-service system integrating manufacture, distribution, repair service and domestic & International trade
•Our service is as close as your phone
•Customer satisfaction is our highest pursuit
•Located in China's newest economic zone Qingdao- the most convenient port city to middle and south Asia and middle east countries
•Highly trained team members with overseas working experience
•The very strong and professional R & D Team
•Response quickly with effective information in 12 hours
•Provide timely professional technical support service
•Not only to sell but to solve customers' problems
•Considerate after-sale service
