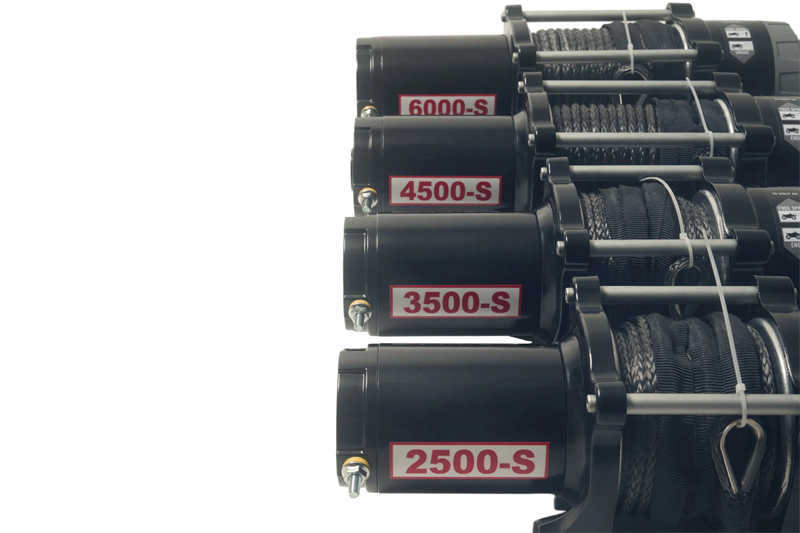

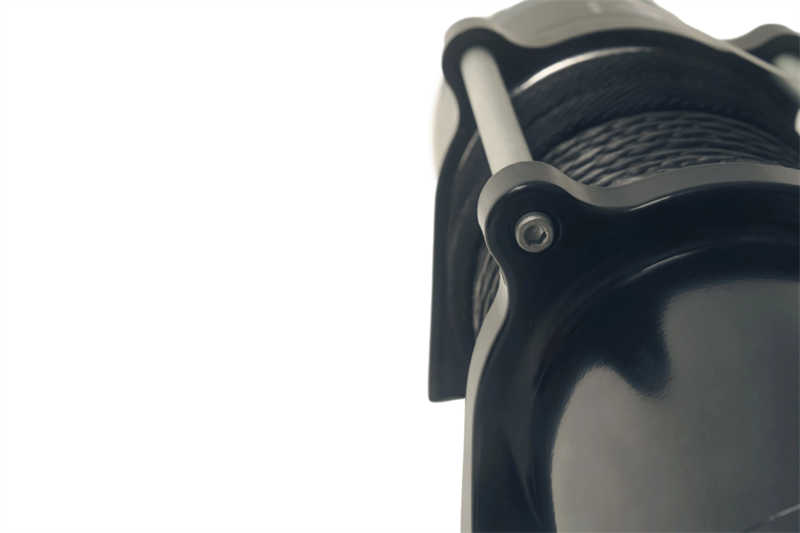

Synthetic or Steel Rope Electric Winch for ATV with 6000lbs Rated Line Pull
$90.00 10 set
Qingdao Shanghai
L/C T/T
New
Winch
CE, ISO9001
HB
General manufacturing,Metal production industry,Renewable energy industry
Product Description

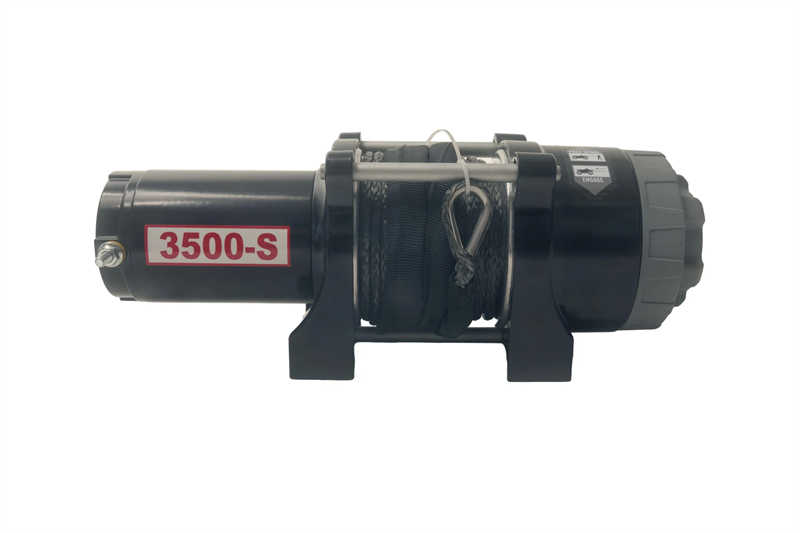

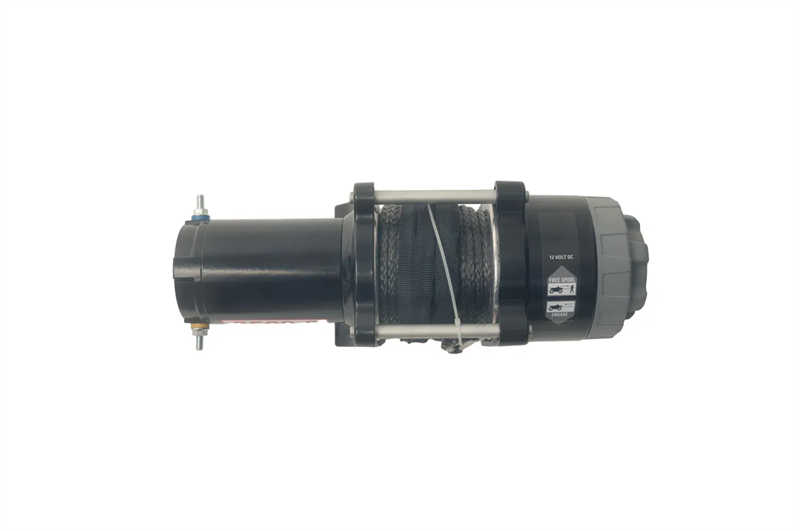

This 3,500 lbs 12V Electric Offroad Winch delivers plenty of power to assist in recovery, traversing rough terrain. This electric winch is reliable and safe addition to most off-loading adventures.
Rated line pulls: 3500 lbs.(1588 kg)
Gear reduction ratio: 136:1
Motor: Permanent magnet motor(Input Power)1.61 hp / 1.2kW (DC 12V)
Free Spooling Clutch:Turn
Braking action:Automatic in the drum
Fairlead:Hawse
Remote Control Cable:3.1m
Overall dimensions: 13.11" x 4.61" x 4.84" (333mm X 117.2 mm X123mm)
Drum size: Ø 2"x3.03" (Ø 50.8 mm x 77 mm)
Rope: Ø 3/16" x60'(Ø 4.8mm x 15.3 m)
Mounting bolt pattern :4.88"x 2.99"(124mm x 76mm)
12 DC Performance specs (First layer of drum)
| Line pull | Line speed | Motor | Pull by layer |
| lbs. (kg) | ft/min (m/min) | Current | Layer/Lbs. (kg) |
| 0 | 23.0 (7.0) | 21 amps | 1/3500 (1588) |
| 500 (227) | 19.7 (6.0) | 60 amps | 2/2963 (1344) |
| 1000 (454) | 17.7 (5.4) | 85 amps | 3/2583 (1172) |
| 1500 (680) | 15.7 (4.8) | 105 amps | 4/2289 (1038) |
| 2000 (907) | 15.1 (4.6) | 135 amps | 5/2055 (932) |
| 2500 (1134) | 14.1 (4.3) | 160 amps | |
| 3000 (1361) | 12.5 (3.8) | 180 amps | |
| 3500 (1588) | 11.2 (3.4) | 200 amps |
Multiple order qty:30
G.W/N.W:11.5/9.7kg(1PC/CTN)
Shipping Carton Size:46*32*18cm(1PC/CTN)
One 20 feet container can fit in 720 PCS winches.
Standard accessories as below:
