Low Headroom European Design Bridge Crane for Space-Constrained Facilities

Product Description

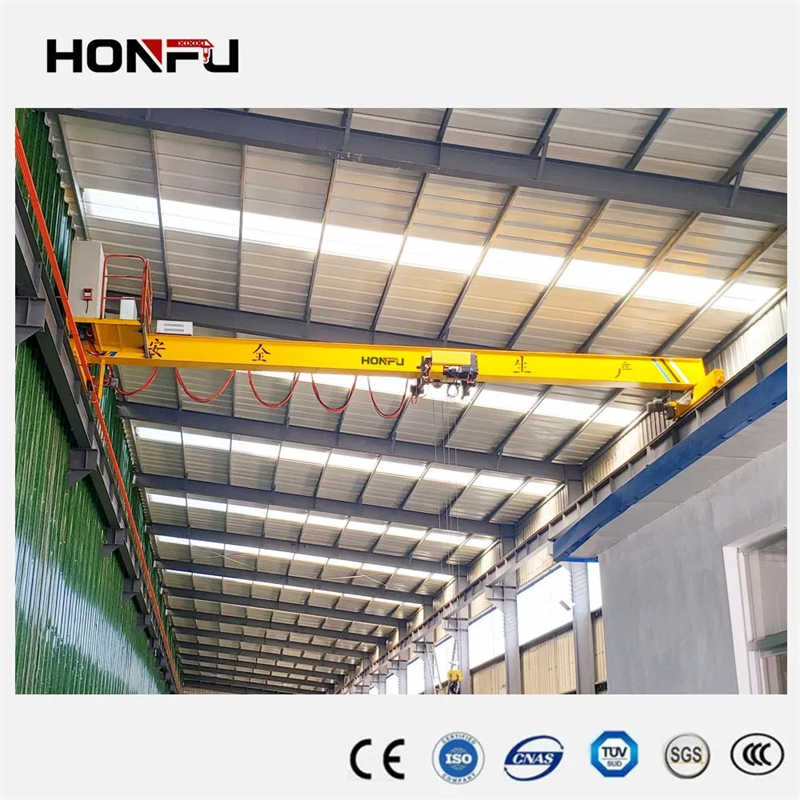

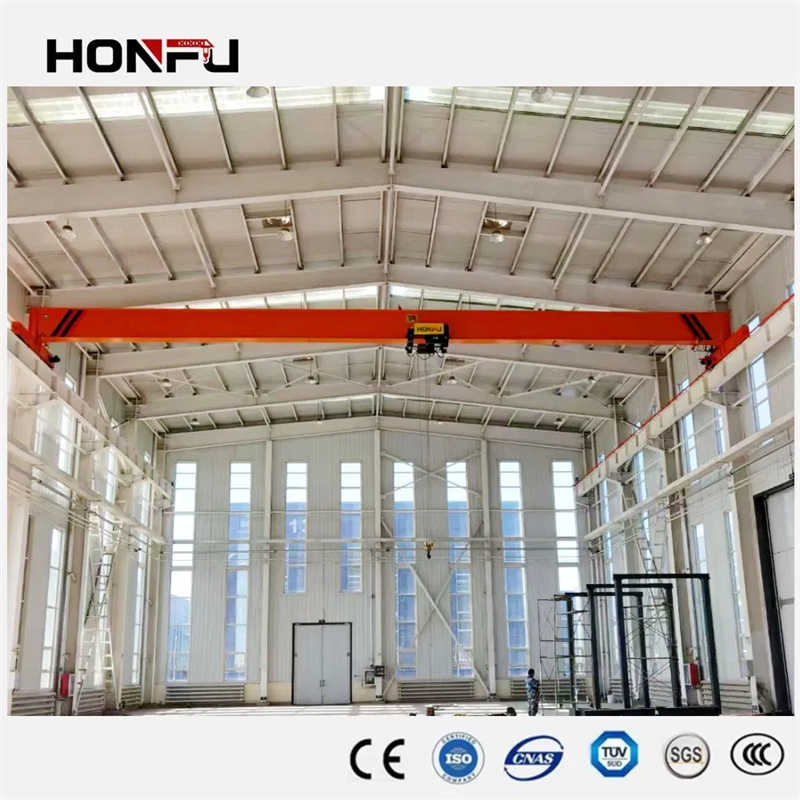

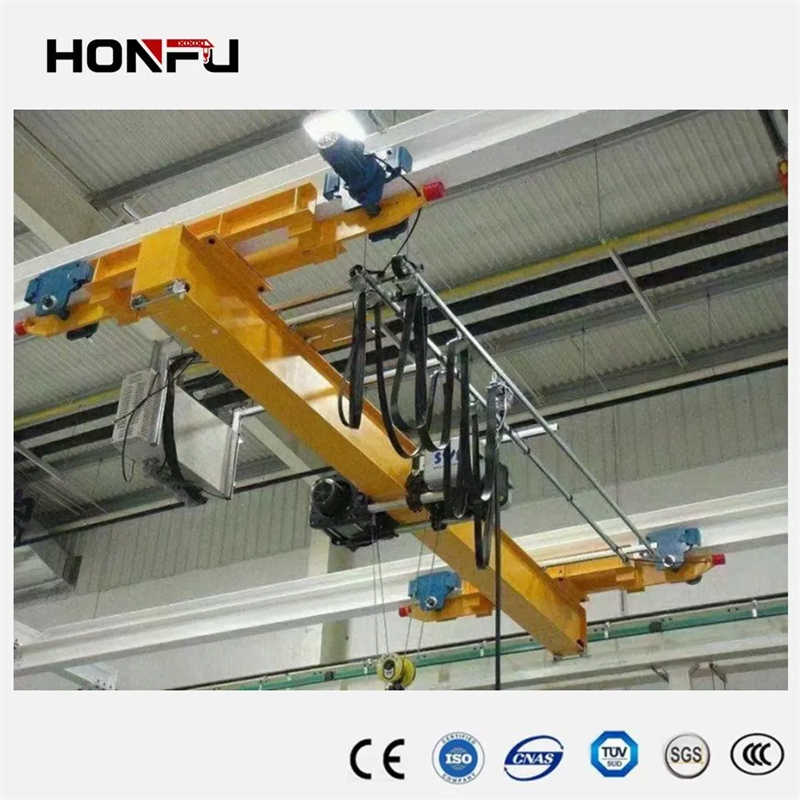

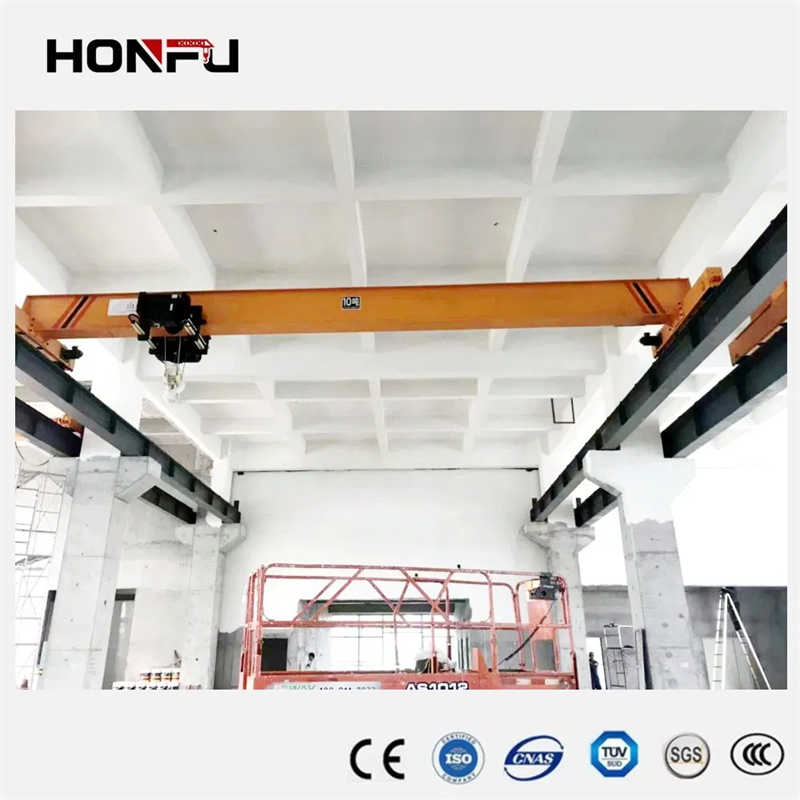

EUROPEAN TYPE OVERHEAD CRANE

The European Type overhead crane is designed based on international standard: FEM (Europe), DIN (Germany), ISO(International), equipped with many advantages such as: strong rigidity, light dead weight, low power, outstanding structure design etc.

The configurations are very advanced, such as Schneide r electrics, ABM/Nord / S EW triple gear motor (three in one: motor,gear box, brake), galvanized high strength wire rope, self-adjusted disk brake, hard tooth reducer, programmable lifting limit switch, and so on.

This type overhead crane is widely used in industrial manufacture, petroleum,workshop,materials stocks, warehouse,electronics etc and other materials handling application.

Main Features:
1.high reliability, safety, free maintenance rate;
 a) Work duty: FEM2M, M5
 b) Protection class: IP55
 c) Insulation class: F
 d) Continuing rate: 60% ( for the high class motor)
 e) Cooling rate: 30% than normal crane
 f) Over temperature protection: 170ºC
2.Compact design, small size, low self weight, low headroom
3.low noise
4.Power-saved. The total motor power is much lower than normal design.
Main Girder:
1. Main girder uses bias-rail box type structure, with optimized design and light dead weight.
2. Steel material. Q235B / Q345B.
3. The cover and web plate should get surface rust removal by roller-way conveyor blasting machine before welding;this blasting machine can perform blanking, sandblasting, painting and drying.
4. The welding work of main girder should be performed on work platform (welding assembly unit). In order to avoid distortion of main beam, we adopts U-shaped welding assembly unit to assure that vertical deflection degree between the top cover plate and joint edge of stiffened plate and web plate is no more than H/200, and also effectively reduce the partial wave of web plate.

Technical Parameters

Company Profile

COMPANY BRIEF INTRODUCTION:

We are a professional manufacturer of all kinds of lifting equipment. Our company is located in Yangliu Town, the lifting hometown of Yangliu, at the foot of Mount Tai which is the world-famous top five mountains, with a registered capital of 51.7 million yuan.

We are mainly engaged in designing, manufacturing, installation, transformation and maintenance of various general bridge cranes, gantry cranes, metallurgical cranes, explosion-proof electric hoists, wire rope electric hoists, European cranes and other products.

We have strong technical force. The professional technicians with college or technical secondary school education account for 80% of the total number of employees. The high quality and technical level of the employees effectively ensure the rationality of the product technical structure, the progressiveness of the processing technology, and the technical performance and reliability of the products.

We have a lifting machinery research institute, equipped with advanced computer-aided design system and lifting equipment laboratory. We mainly cooperate with Beijing Lifting Machinery Research Institute and Shandong University to focus on the research, development and design of new crane products. Among them, the European standard crane has mature technology and reliable quality, and our products are exported overseas. At the same time, based on the advanced design theory and manufacturing technology of cranes at home and abroad, the original crane products and equipment have been fully redesigned. The new products have reached the same quality as international famous brands. The technological innovation has reduced the manufacturing cost and increased the market share.

Since the establishment, the output value, profits and taxes of our company have increased significantly. Our products were sold well in more than 30 provinces and cities across the country, and have been exported to more than a dozen countries such as Brazil, Iran, Pakistan, Nigeria, Tanzania and other African countries, which have been highly praised by users at home and abroad.

Exhibition Pictures

Customer Site Pictures

Packing & Delivery

Certificates & Honors

1. How can you guarantee the quality?
We are one of the TOP 10 manufacturers in China. We have more than 10 years experiences in domestic and overseas market. Reputation is the foundation we depends on. We use high quality spare parts especially electric device to ensur customer's experience and set up longüime trust in us. All product take final inspection before shipment.

2. What's your main market?
Domestic Market(60.00%),Southeast Asia(15.00%),South Asia(6.00%).Northem Europe(5.00%),Mid East(5.00%), Westerm Europe(4.00%).Central America(3.00%),Africa(2.00%).

3. Is engineer commissioning service available?
Yes, it's avallable. Differenct project, ditferent solution. We need further discuss after order is /confirm/ied.

4. What is your sales terms and payment conditions?
Accepted Sales Terms: EXW, FOB,CFR,CIF.
Accepted Payment Currency USD. EUR.
Accepted Payment Type: T/T.L/C,D/P D/A,Credit Card.

5. Can the cranes be customized?
Yes,all of our products can be customized depend on customers' requirements.  Please give us the information as clear as you can, so we can give our best design to suit for your demands.For example Lifting  capacity, Spanlength, Lifting height.
