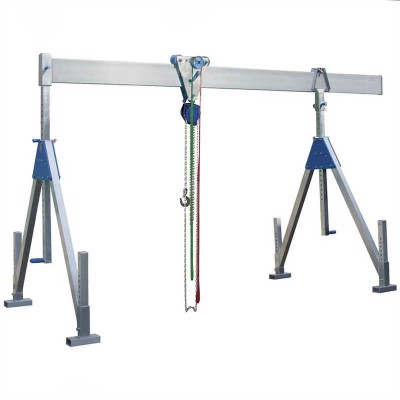

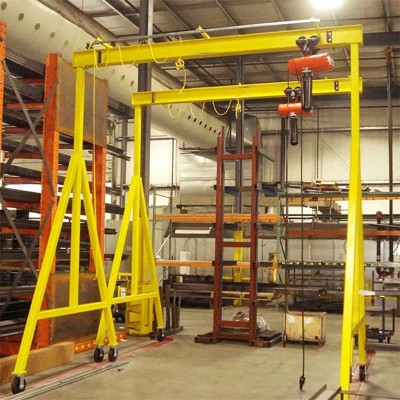

Aluminum Mobile Gantry Crane – Lightweight Yet High Load Capacity

Product Description

Product Description

 Quality Assurance Mini Electric 1000kg Portable Mobile Gantry Cranes is a type of crane that is designed to be easily transported from one location to another. It consists of a horizontal beam or "gantry" that is supported by legs or wheels and can be raised or lowered by a large electric motor. The gantry can also be moved horizontally along the length of the crane, allowing it to reach over long distances. The crane typically has a control cabin mounted on the gantry, which houses the controls for the crane's movement and lifting capabilities. The operator sits in the cabin and uses a joystick or other controls to move the crane and lift loads. Portable gantry cranes are commonly used in construction, manufacturing, and material handling industries for tasks such as lifting and moving heavy objects, loading and unloading trucks and railcars, and positioning materials and equipment. They are particularly useful in situations where a fixed crane is not feasible or practical, such as in remote locations or on job sites with limited space.

Features

Lightweight and Durable: models are ideal for easy transport, while steel options provide more strength for heavier loads.

Adjustable Height and Span: Telescoping legs enable height adjustment to accommodate different working environments or ceiling heights. The span of the crane can often be adjusted to fit the width of the load or workspace.

Quick Assembly and Disassembly: Designed for fast setup and takedown, making it convenient for temporary or mobile work sites. Can often be broken down into components for easy storage or transport.

Enhanced Safety Features: Equipped with advanced safety mechanisms, including overload protection, emergency stop functions, and anti-collision systems. These features ensure safe operation even in demanding environments.

Customizable Options: Available with options like motorized movement, hoists, or trolleys to cater to specific lifting needs.

Versatility: Suitable for a wide range of industrial applications, from heavy manufacturing to precise assembly tasks.

Mobility: Equipped with swivel casters or wheels, allowing it to be easily moved across flat surfaces.

Detailed Photos

Hoist

A lifting mechanism mounted on a trolley, used to raise or lower a load. Depending on the purpose of the crane, it can be a manual hoist, electric chain hoist or wire rope hoist.

Casters (Wheels)

Swivel or fixed wheels attached to the bottom of the legs for mobility. Typically made of steel, rubber, or polyurethane, depending on the operating environment.

Legs

A lifting mechanism mounted on a trolley, used to raise or lower a load. Depending on the purpose of the crane, it can be a manual hoist, electric chain hoist or wire rope hoist.

I-Beam (Horizontal Beam)

This is the horizontal beam spans between the two legs of the crane. The hoist and trolley system typically move along this beam to lift and transport loads.

Product Parameters

Technical Parameter

Application

       Workshops and Small Factories                  Construction Sites                         Warehouse Operations

Company Profile

Henan Huasui Heavy Industry Machinery Equipment Co., Ltd. was established in 1998 as a leading manufacturer of bridge construction lifting equipment. Our company has participated in numerous major road and bridge construction projects in China, where we have gained invaluable technical knowledge and experience. This has enabled us to develop a highly skilled engineering and installation service team. In response to market demand for general lifting equipment in the second decade of the 21st century, Huasui has established a brand-new factory and equipment. The company is committed to providing excellent products and one-stop service to more customers.

Through the integration of technology and optimization of manufacturing process, Huasui has gained a firm foothold in the manufacturing of overhead cranes, gantry cranes, wire rope electric hoists, straddle carriers and beam launcher in compliance with FEM standards.
