Huasui RMG type double gantry crane for Container lift with CE certification.

Product Description

Product Description

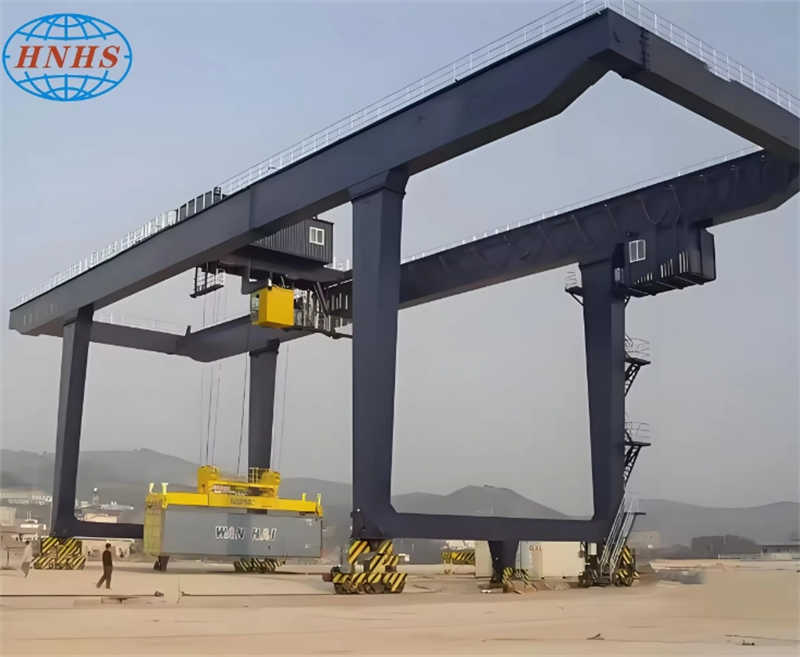

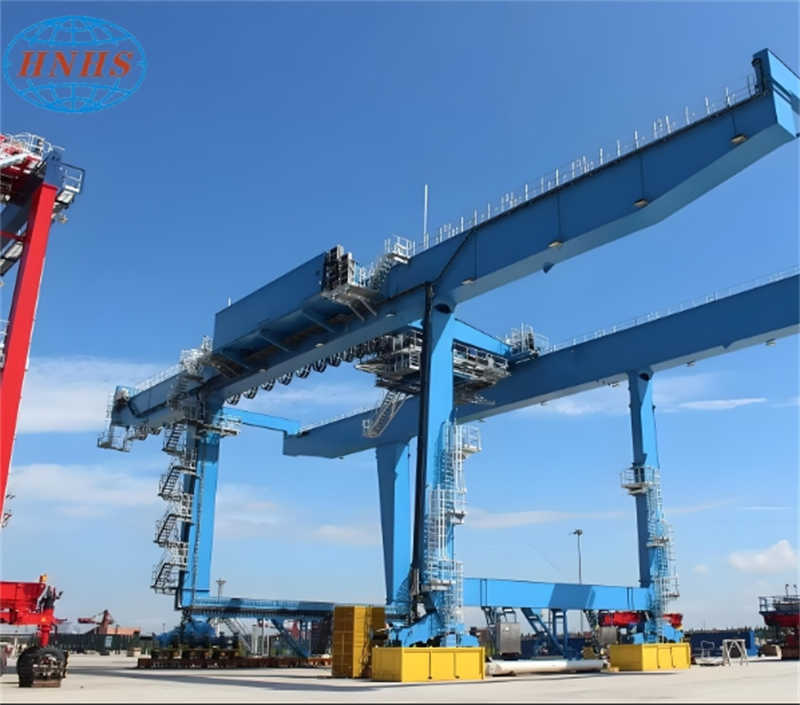

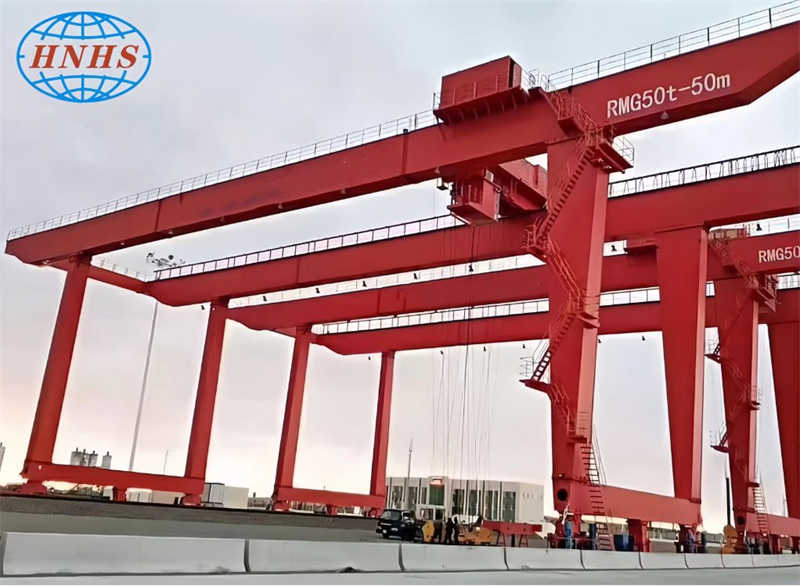

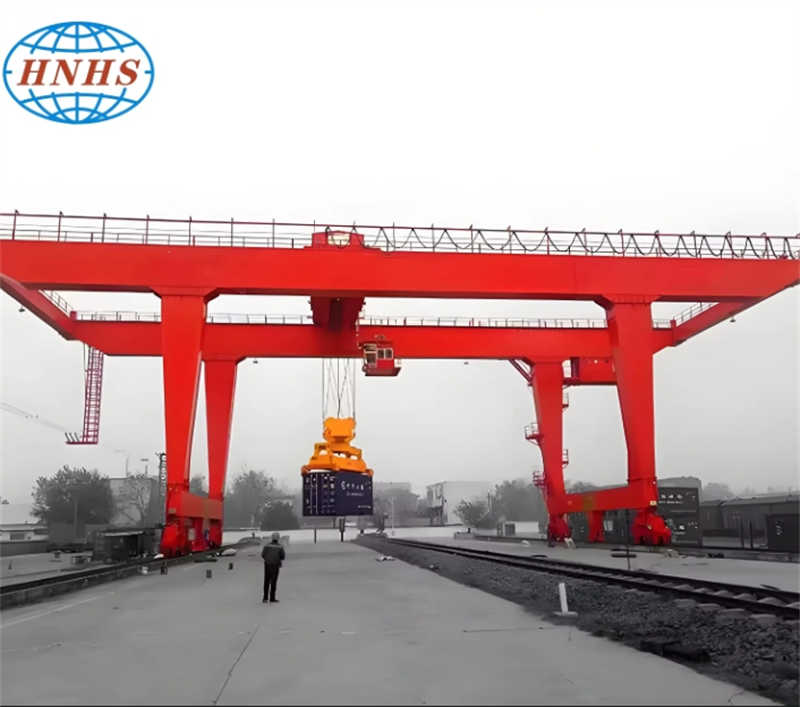

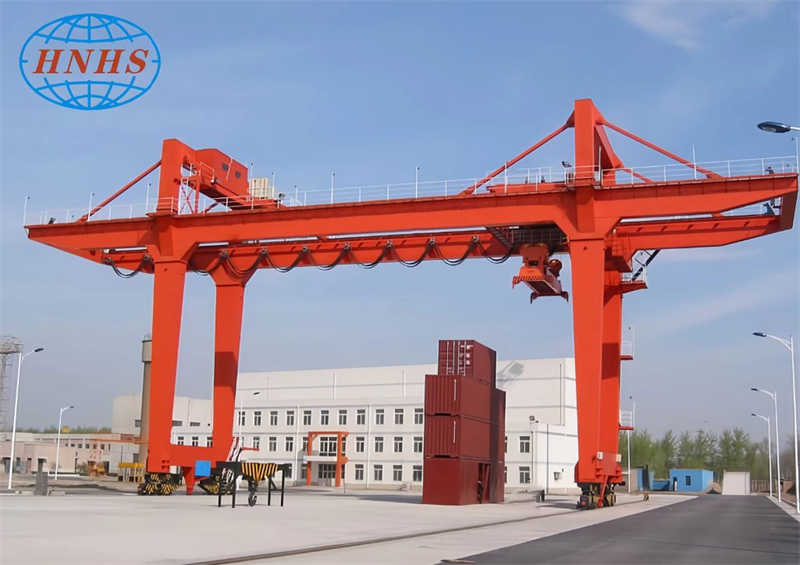

Container Gantry Cranes (RMG)

Rail type container gantry crane (RMG) is designed and manufactured in accordance with national and industry standards such as

GB/T3811 "Crane Design Specification" and GB/T14406 "General Gantry Cranes".

Different Type Of Container Gantry Crane


     RMG(Rail Mounted Gantry Crane)                RTG(Rubber Tyred Gantry crane)

U-shaped gantry cranes are widely used in open fields such as large-tonnage wharf heavy cargo and container berth terminal front
loading and unloading ships and cargo loading and unloading, transportation, and stacking operations in the front yard.

Advanced performance, high production efficiency, good maneuverability, wide range of applications and low sensitivity to ground inequality!

Product Parameters

Detailed Photos

Steel structure gantry frame

It is composed of main beams, support legs, connecting frames, connecting beams, trolley running rails, walking platforms,
railings, ladders and other auxiliary metal structures. The support legs adopts a set of rigid legs and a set of flexible legs.

Lifting trolley

It is composed of the trolley frame, the lifting mechanism, and the trolley running  mechanism.

The trolley main frame is the box-shaped welded structure, and it is equipped with an integrated trolley rain shed. The frame is also equipped with safety devices such as stoppers, rail clearers, buffers, and operating limits.

Trolley operating mechanism

lt is composed of three parts: the traveling support device, the driving device and the safety device. The design of the walking

mechanism should ensure that the wheel pressures of the wheels under the same support legs are equal. The trolley is an
articulated balanced beam structure to ensure uniform force on each running wheel.

Mobile driver's cab

It can be directly connected to the trolley to move together via a special rigid support, avoiding collisions with stacks and
spreaders.

Crane power supply and trolley feed mode

Crane power supply: high-voltage cable reel power supply
Trolley conductive: towline power supply

Safety protection device

Protection devices include short-circuit protection, over-current protection, loss of voltage protection, zero protection,ascending limit protection, travel limit protection, overload load limiter, emergency power-off protection, trolley sound and
light alarm, electrical interlock protection device,etc.

Spreader

  The spreader is determined according to the type of the container to be lifted, and the structure of the spreader requires easy

replacement. The hydraulic power station is located on the spreader.

company information

Huasui has 15 years of experience in crane and hoist design and manufacturing, 3 production factories covering an area of 168000 square meters, 10 production lines with annual production capacity 500 sets. It has more than 800 employees, including more than 20 technicians and more than 10% senior engineers. The factories have modern crane manufacturing and assembly equipment, and introduces European advanced management, process flow and quality control system to ensure safe, reliable and high quality cranes for customers, making customers' logistics operations easier and creating long-term value for customers.

Our Advantages

packaging and transportation

Factory picture

Certifications

FAQ

A: Can you provide custom service?

B: Yes! We can customize all kinds of cranes according to your requirements. You just need to tell us your demands.
A:Which industries do you service?

B: We service many industries including machinery, metallurgy, railway and so on. High quality products in different fields will play an important role.
A:Which areas do you service?

B: We have a huge market both at home and abroad. We have exported our cranes to many countries, especially European, Africa and so on.

A: How do you guarantee the quality?
B: We will constantly check the quality during the manufacturing process, and strictly test the equipment before shipment, and we will also send you a quality certificate.

A:What are the main products?
B: Our main products are overhead and gantry cranes. Different products have different models and application scenarios.
A:What international certifications has your company passed?

B: Our cranes has passed CE, lSO, GOST, SGS, TUV, BV, and so on.
