Overview

Product Description

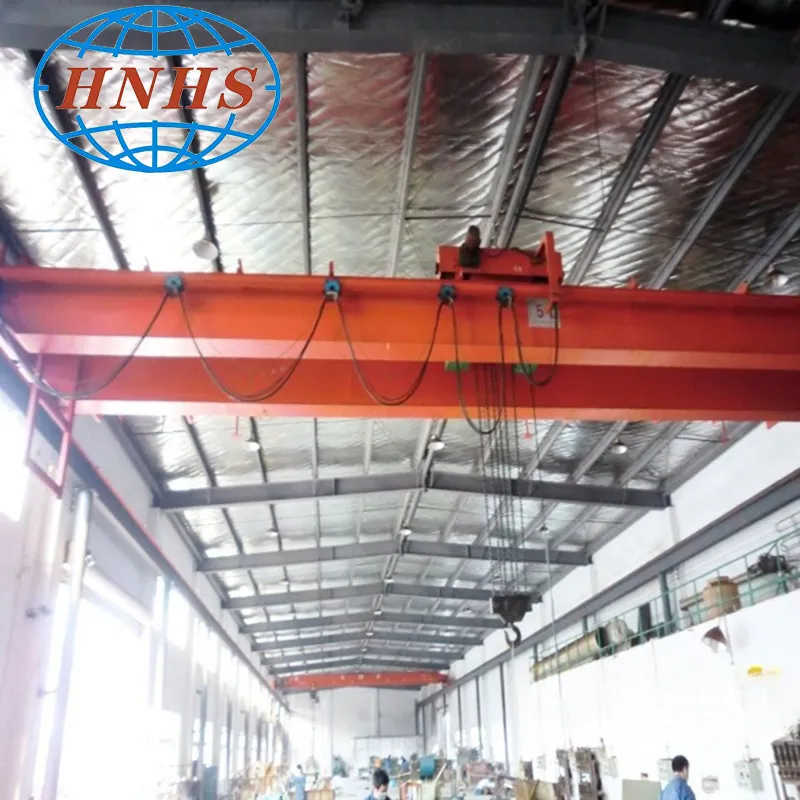

QZ double girder overhead crane with grab

* Used for loading and unloading of bulk materials in power plant, yard, workshop, and port, etc.
* The QZ type double girder overhead crane is mainly composed of the bridges, the grab trolley, the crane traveling mechanism,the cabin and electrical control system.
* The fetching device is a grab that can grab bulk materials.

* Type: QZ Grab bucket double girder overhead crane
* Lifting capacity: 10ton
* Span: 31.5m
* Lifting height: 18m
* Lifting speed: 29m/min
* Traveling speed: 89m/min (for the main crane), 45.6 m/min (for the trolley)
* Work Duty: A6
* Operating mode: Cabin control

Product Highlights

* Reasonable structure, strong bearing capacity
* Low noise, soft starting and stopping
* Safe and reliable operation
* Commodious cabin and open view
* Low cost maintenance, long working life
* Strong box type, welding by machine hand

Parameter List

The power supply of the double girder overhead crane adopts a three-phase four-wire (3P+PE) AC 380V, 50HZ. The power supply is introduced into the main power distribution cabinet of the crane by the sliding wire, and then power is distributed to the main,lighting, and auxiliary circuits. The crane is designed with all cables and wires concealed, with the cables for the large and small cars routed in galvanized wire troughs.

Detailed Photos

The Main Girder

The main girder is a box-shaped structure on the track. The section of the main girder is systematically analyzed and calculated using ANSYS finite element calculation method to ensure that it has sufficient strength, rigidity and overall stability.

End Carriages

The end carriages are the box-shaped structure, and the connection between the end carriages and the main girders is the rigid connection. In order to facilitate transportation, the end carriages are disconnected and connected by high-strength bolts.

company information

Huasui has 15 years of experience in crane and hoist design and manufacturing, 3 production factories covering an area of 168000 square meters, 10 production lines with annual production capacity 500 sets. It has more than 800 employees, including more than 20 technicians and more than 10% senior engineers. The factories have modern crane manufacturing and assembly equipment, and introduces European advanced management, process flow and quality control system to ensure safe, reliable and high quality cranes for customers, making customers' logistics operations easier and creating long-term value for customers.

Our Advantages

packaging and transportation

Factory picture

Certifications

FAQ

A: Can you provide custom service?

B: Yes! We can customize all kinds of cranes according to your requirements. You just need to tell us your demands.
A:Which industries do you service?

B: We service many industries including machinery, metallurgy, railway and so on. High quality products in different fields will play an important role.
A:Which areas do you service?

B: We have a huge market both at home and abroad. We have exported our cranes to many countries, especially European, Africa and so on.

A: How do you guarantee the quality?
B: We will constantly check the quality during the manufacturing process, and strictly test the equipment before shipment, and we will also send you a quality certificate.

A:What are the main products?
B: Our main products are overhead and gantry cranes. Different products have different models and application scenarios.
A:What international certifications has your company passed?

B: Our cranes has passed CE, lSO, GOST, SGS, TUV, BV, and so on
