Brief introduction

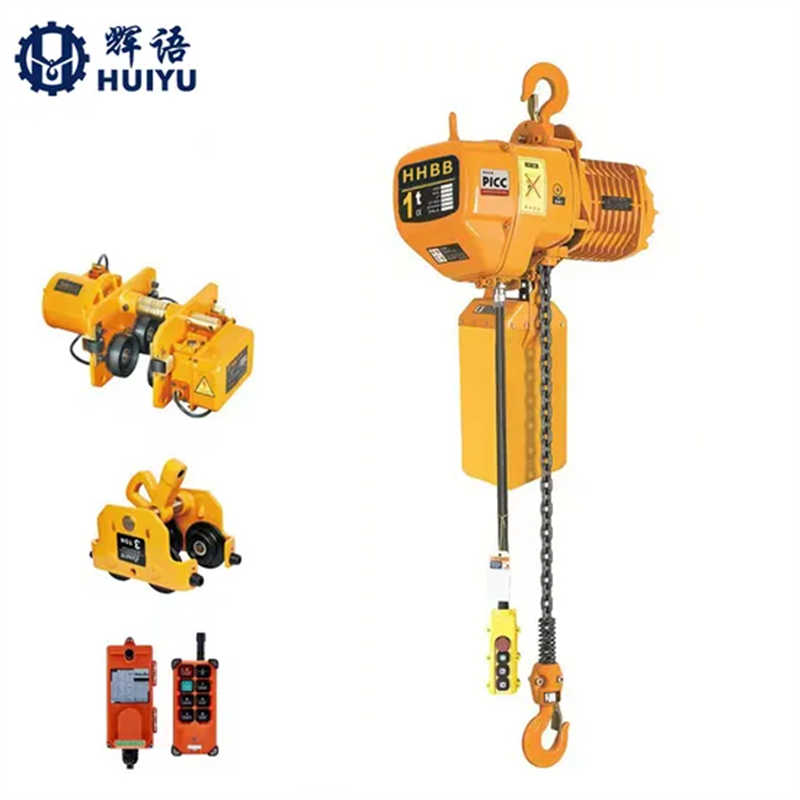

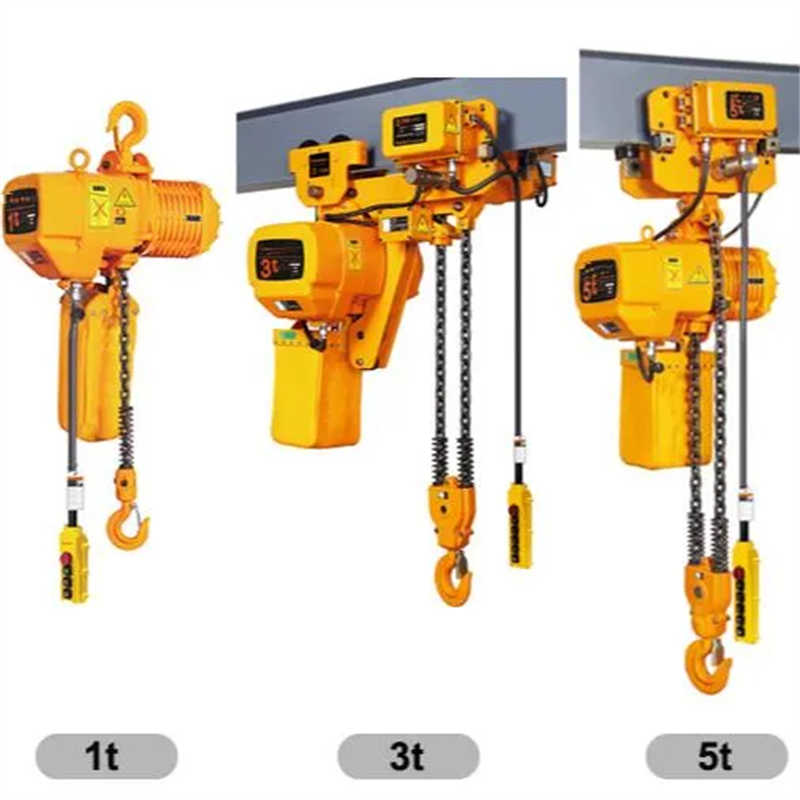

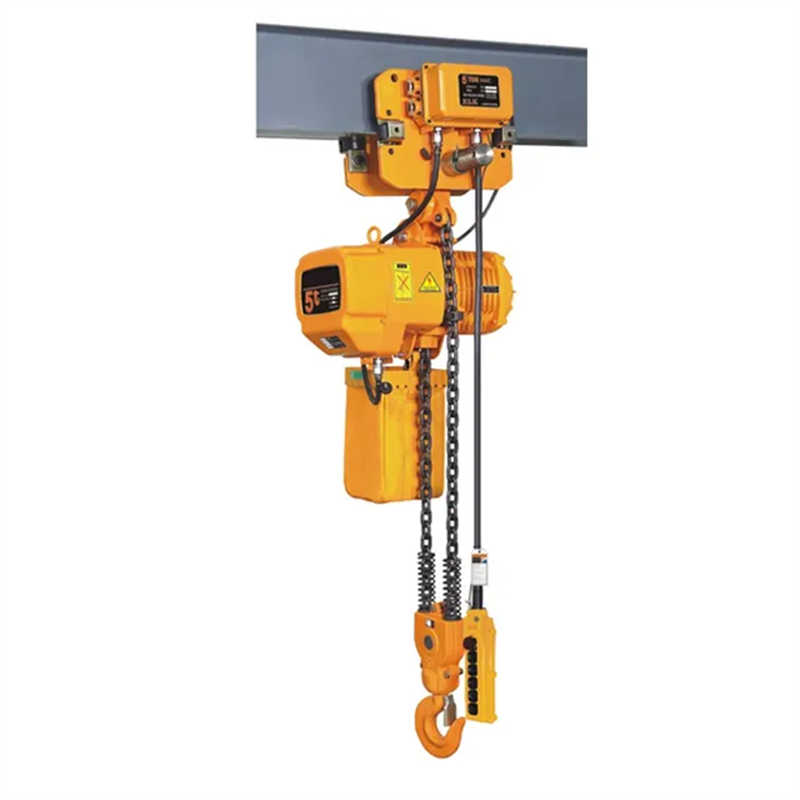

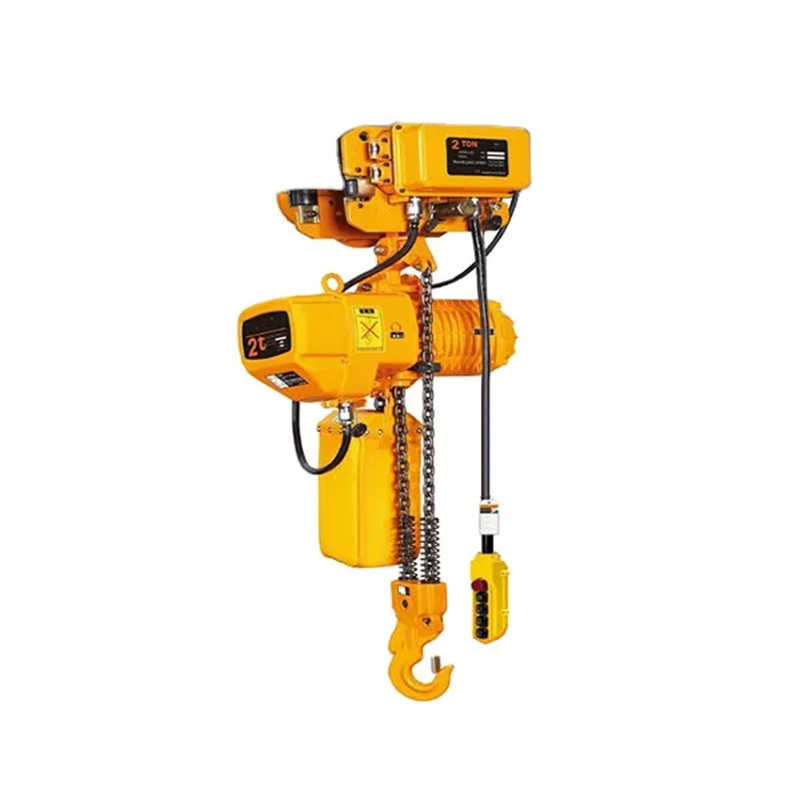

Electrical chain hoist is a kind of light and handyhoisting equipment. It is composed by motor, transmission mechanismand sprocket wheel. The appearance is elegant, strong and durable, all the internal gears are treated by high temperature quenching, which increases wear and toughness of the gears, using the most advanced technology, fine workmanship. Electrical chain hoist is of advanced performance and structure, smaller bulk, lighter weight, stronger strength. The chain hoist can hoist weight, load and unload goods, and maintain equipment conveniently.Advantages
1,Aluminum alloy shell , light but hard .
2,Accurate orientation,highly-efficient operation,improved logistics efficiency.
3,Safe and reliable,monitored operation,easy maintenance.
4,Modularized desigh,low maintenance cost,perfect spare parts and components services.
Model | Capacity TON | Lifting Height M | Lifting Speed M/MIN | Lifting motor | Drive motor | |||||||||
Power KW | Rotational Speed R/MIN | Ph ase | Voltage V | Frequency HZ/S | Power KW | Rotational Speed R/MIN | Running speed M/MIN | Ph ase | Voltage V | Frequency HZ/S | ||||
01-01 | 1 | 3/9 | 6.8 | 1.5 | 1440 | 3 | 380/220 | 50/60 | 0.4 | 1440 | 11/21 | 3 | 380/220 | 50/60 |
02-02 | 2 | 3/9 | 3.4 | 1.5 | 1440 | 3 | 380/220 | 50/60 | 0.4 | 1440 | 11/21 | 3 | 380/220 | 50/60 |
2.5-01 | 2.5 | 3/9 | 6.8 | 3.0 | 1440 | 3 | 380/220 | 50/60 | 0.75 | 1440 | 11/21 | 3 | 380/220 | 50/60 |
03-02 | 3 | 3/9 | 5.8 | 3.0 | 1440 | 3 | 380/220 | 50/60 | 0.75 | 1440 | 11/21 | 3 | 380/220 | 50/60 |
05-02 | 5 | 3/9 | 2.8 | 3.0 | 1440 | 3 | 380/220 | 50/60 | 0.75 | 1440 | 11/21 | 3 | 380/220 | 50/60 |
Packing and shippingFAQ
1.Can you customized products ?
Yes, because the working condition are different, all our products are customized depending on detail requirement! So if you give us more information about the lift capacity, span, lift height, power source and other specials, we will give you a very quick quote!
2.What's the information should I provide when inquiry?
The more information you provide, the accurate solution we can prepare for you!
The information such as the lift capacity, control mode, lift height, power source or other specials demand of you need .
4.What's the max lifting capacity of this electric hoist?
The max. Lifting capacity of electric chain hoist is 5 ton.
If this can't satisfy your working requirement.please contact us , We can suggest you choose other model.
5.The space of my workshop is limited, can the electric hoist ok for mine?
For low headroom workshop, we have the other kind of hoists. The detail dimension need consult our professional engineer.
6.Can your company provide other lift tools?
Yes, we can provide any kinds of lift tools such as electric chain hoist, hand chain hosit, electric winch or other special product as your requirement! These hoists with different modles and parameters.
