Low headroom single girder crane 2 ton 10m span 5m lift Chile
$5000.00 1 set
Qingdao Shanghai
L/C T/T
New
LD
CE, ISO9001:2000
HY
General manufacturing

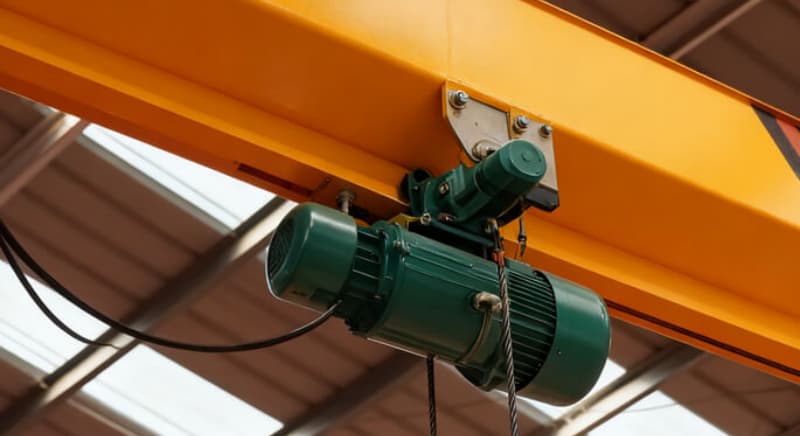

Single girder electric hoist overhead crane often consists of main beam, end beam, electric hoist, H track, electric part and control system. The hoist of single girder overhead crane often goes with CD, MD electric hoist or low headroom electric hoist, which comprises into different types of single girder cranes.
| Lifting Capacity (t) | Span (m) | Lifting Height (m) | Lifting Speed (m/min) | Hoist Traveling Speed (m/min) | Crane Traveling Speed (m/min) | Recommended Track |
|---|---|---|---|---|---|---|
| 1 | 7.5-31.5 | 6-12 | 0.8/5 | 2-20 | 3-30 | P24 |
| 2 | 6-12 | 0.8/5 | 2-20 | 3-30 | P24 | |
| 3.2 | 6-12 | 0.8/5 | 2-20 | 3-30 | P24 | |
| 5 | 6-12 | 0.8/5 | 2-20 | 3-30 | P24, P30 | |
| 10 | 6-12 | 0.8/5 | 2-20 | 3-30 | P30 | |
| 12.5 | 6-12 | 0.66/4 | 2-20 | 3-30 | P30 | |
| 16 | 9-12 | 0.66/4 | 2-20 | 3-30 | P43 | |
| 20 | 9-12 | 0.66/4 | 2-20 | 3-30 | P43 | |
| Work Duty | A3-A5 | |||||
| Power | 380V, 50Hz or Other | |||||
| Temperature of Working Environment | -20°C ~ +40°C | |||||
