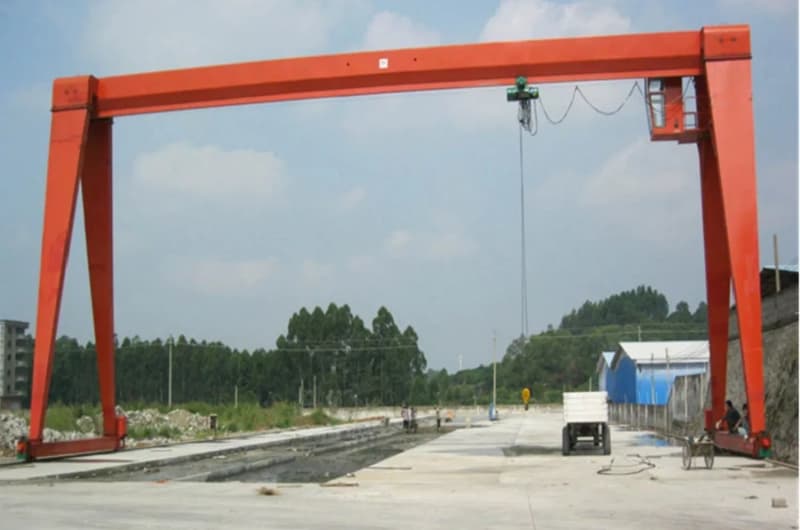

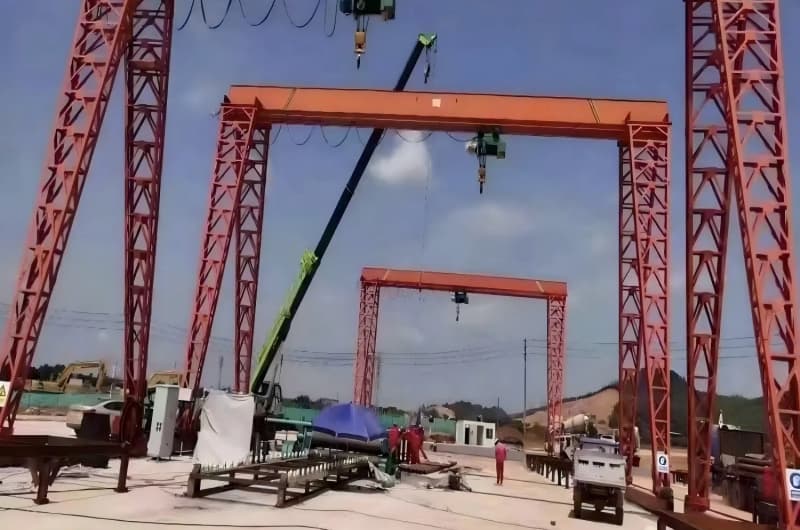

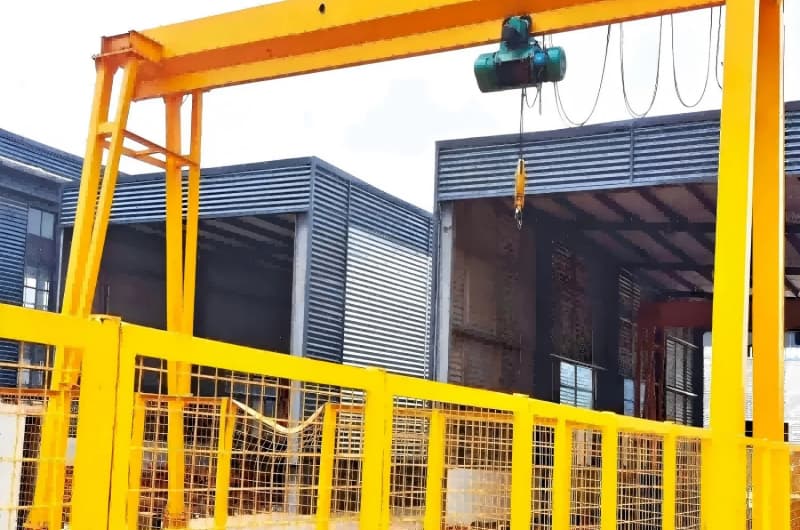

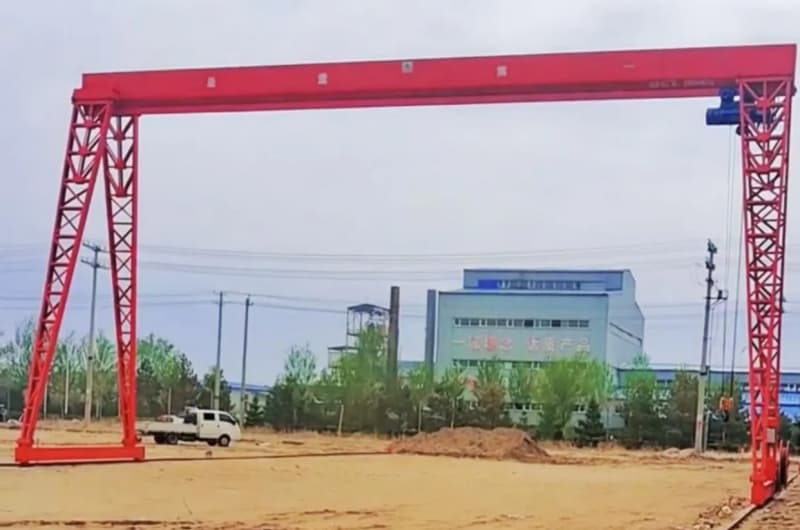

10 Ton Single Girder Gantry Crane for Vietnam with 20m Span and 9m Lift
$6000.00 1 set
Qingdao Shanghai
L/C T/T
New
MH
CE, ISO9001:2000
HY
General manufacturing
Single girder gantry crane is consisted with gantry frame, main girder, legs, slide sill, lifting mechanism, travelling mechanism, and electric box. Widely used in workshop, storage, port and hydroelectric power station and some other outdoor place.
| Item | Result |
| Lifting capacity | 3.2-32ton |
| Lifting height | 6 9m |
| Span | 12-30m |
| Working environment temperture | -20~40°C |
| Travelling speed | 20m/min |
| lifting speed | 8 0.8/8 7 0.7/7 3.5 3m/min |
| travelling speed | 20m/min |
| working system | A5 |
| power source | three-phase 380V 50HZ |
