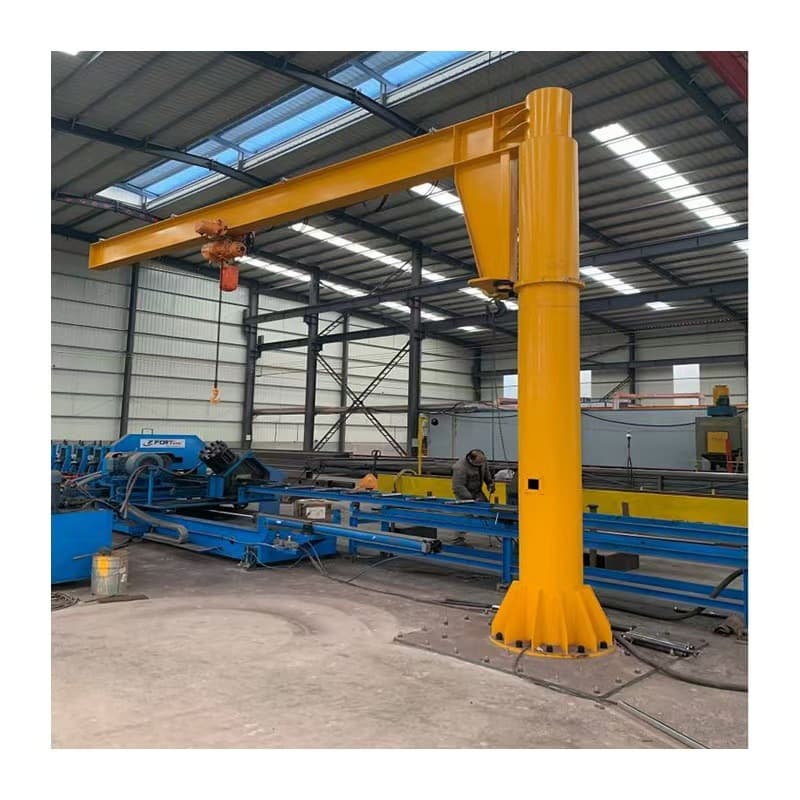

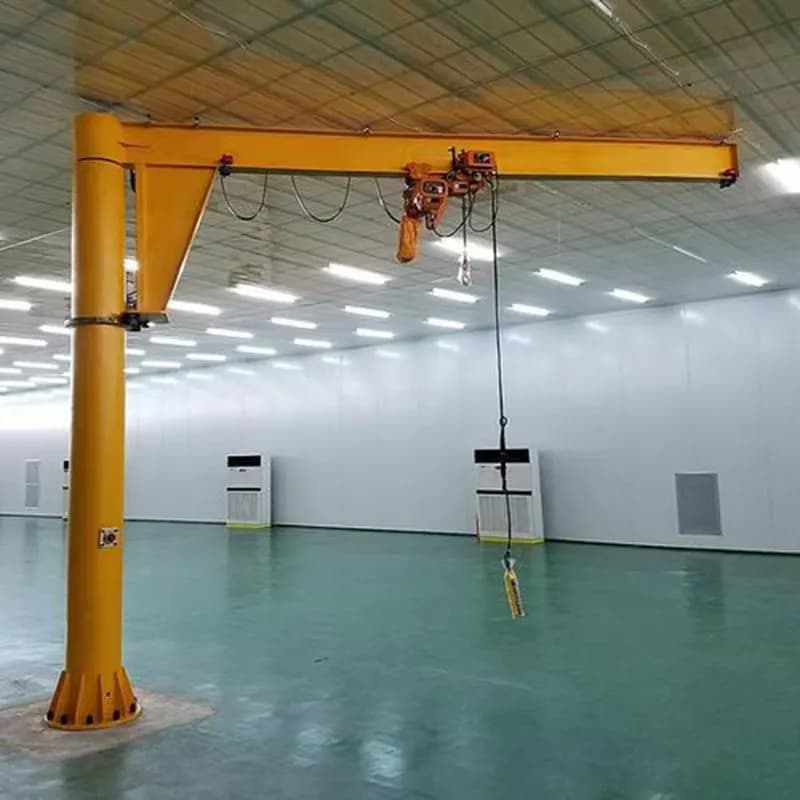

3 Ton Floor Mounted Electric Jib Crane for Uzbekistan Assembly Line

Floor mounted electric jib crane often consists of an upright column, a rotating device and electric hoist, and the column is firmly fixed in the concrete foundation. The electric hoist undergoes straight line operation on the cantilever, and rotation degree of floor mounted jib crane can be up to 360 degrees, which can greatly enlarge its operation scope. The cantilever adopts hollow type steel structure, and it has light weight, long lifting span, large lifting capacity and high durability.

Floor mounted electric jib crane adopts build-in travailing system and special engineering plastic bearing wheel, which has small friction, quick movement, small-sized structure and simple structure. Floor mounted electric jib crane is often find great application in steel plant manufacturing, railway, chemical industry, light industry production or maintenance situations, especially in short distance lifting operation and all kinds of frequent production lines.


1. Duty group: Class C (intermediate)
2. Lifting capacity: 0.5-16t
3. Valid radius: 4-5.5m
4. Slewing speed: 0.5-20 r/min
5. Hoisting speed: 8/0.8m/min
6.Circulate speed: 20 m/min
