Manual Lever Chain Hoist 1.5t Lever Block with Ce
$37.00 10 set
Qingdao Shanghai
L/C T/T
New
Vl
CE, ISO9001
HAIYAN
General manufacturing
Vt leverblock features as belows:
1. capacity from 250kg to 9ton .
2. lifting height 1.5meters or as customers' request .
3. hoist covers are made of high strength alloy steel , and impact-resistance, well safety the inside parts .
4. upper and lower hooks are made of high strength casted alloy steel and heat treated , which prevent the hooks breaking even when overloading , with safety latch .
5. Load chain : G80 high strength alloy steel .
6. overload safetyion is optional .
Specifications of VT lever block as belows:
| Modle | VL0.75 | VL1.5 | VL3 | VL6 | VL9 | |
| Capacity TONS | 0.75 | 1.5 | 3 | 6 | 9 | |
| Standard lift M | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | |
| Running test load KN | 11 | 22 | 44 | 73.5 | 110 | |
| Headroom(drawn close up) Hmin MM | 315 | 365 | 490 | 620 | 800 | |
| Effort required to lift max. load N | 134 | 196 | 324 | 343 | 357 | |
| No. of falls of load chain | 1 | 1 | 1 | 2 | 3 | |
| Load chain MM | 6×18 | 8×24 | 10×30 | 10×30 | 10×30 | |
| Length of lever handle MM | 288 | 418 | 418 | 418 | 418 | |
| Dimensions(mm) | A | 147 | 178 | 203 | 203 | 203 |
| B | 87 | 105 | 110 | 110 | 110 | |
| C | 126 | 146 | 193 | 235 | 337 | |
| E | 26 | 31 | 40 | 45 | 57 | |
| Net weight KG | 7 | 11 | 20 | 30 | 54 | |

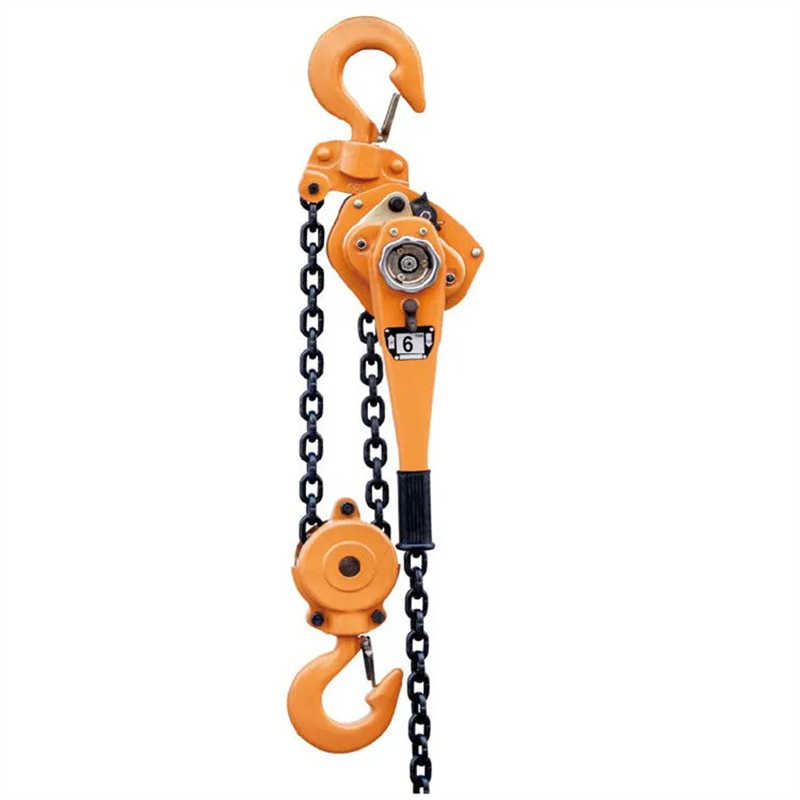

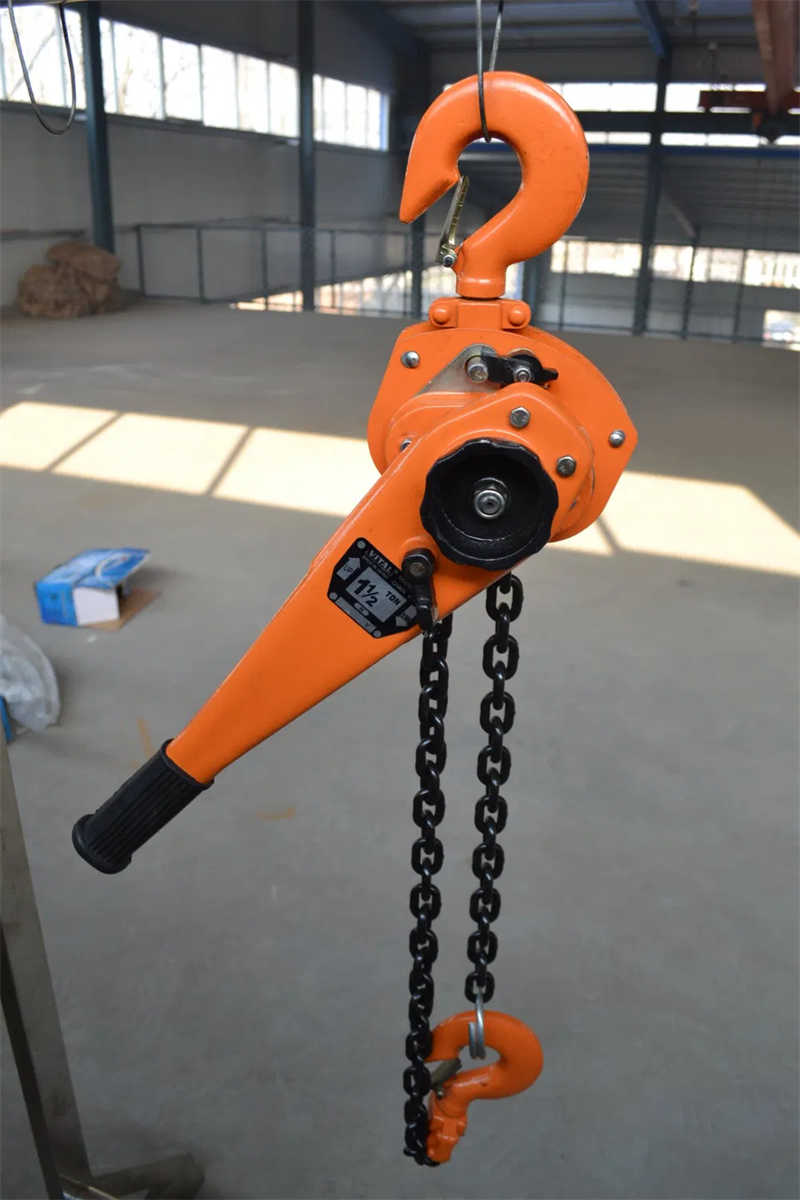

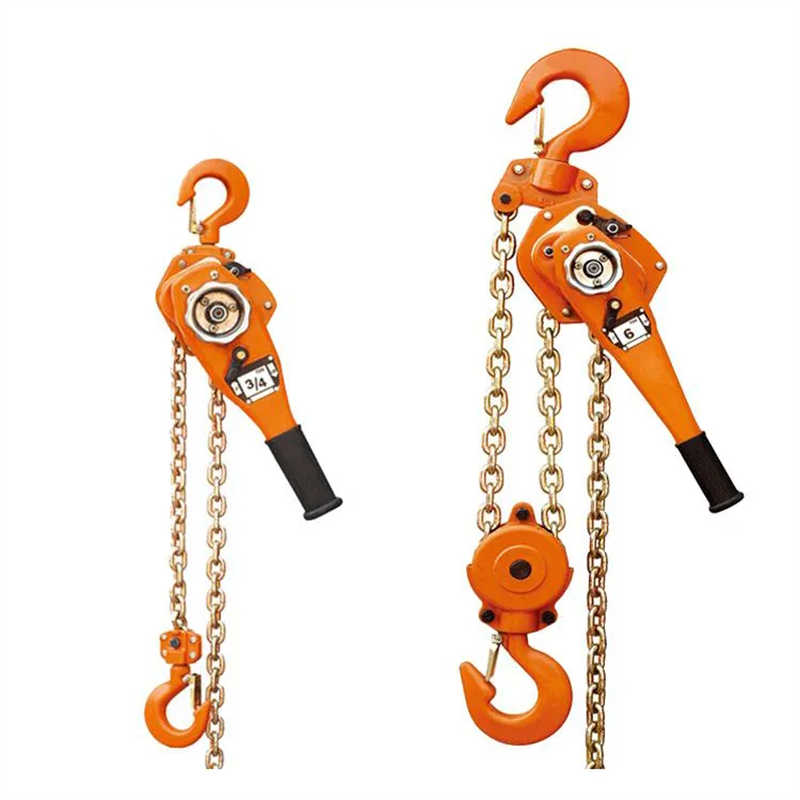

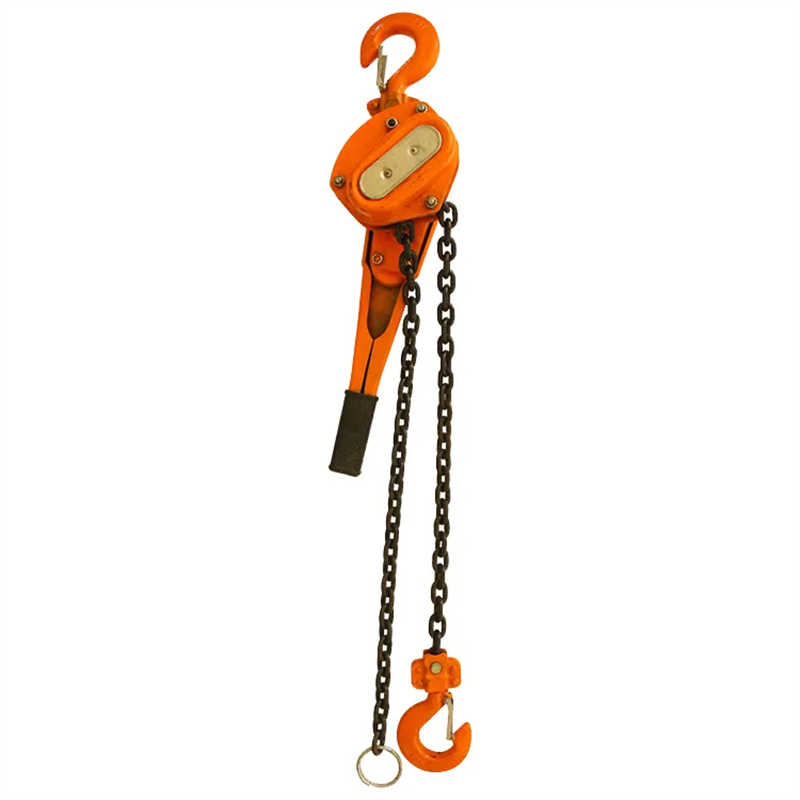

Vt lever block pics:
