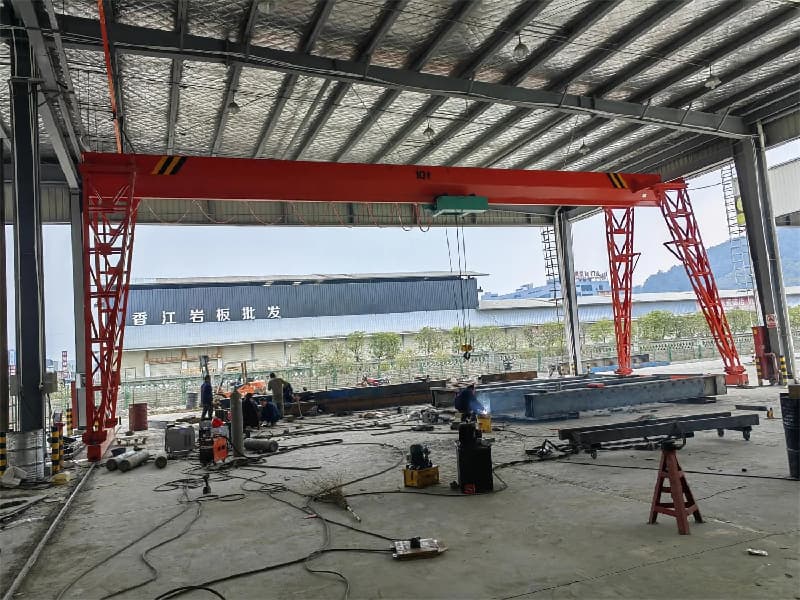

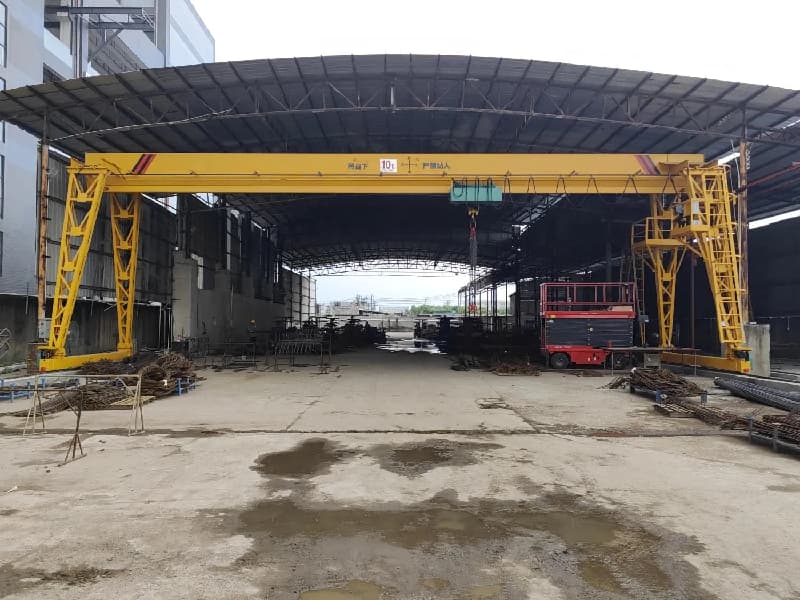

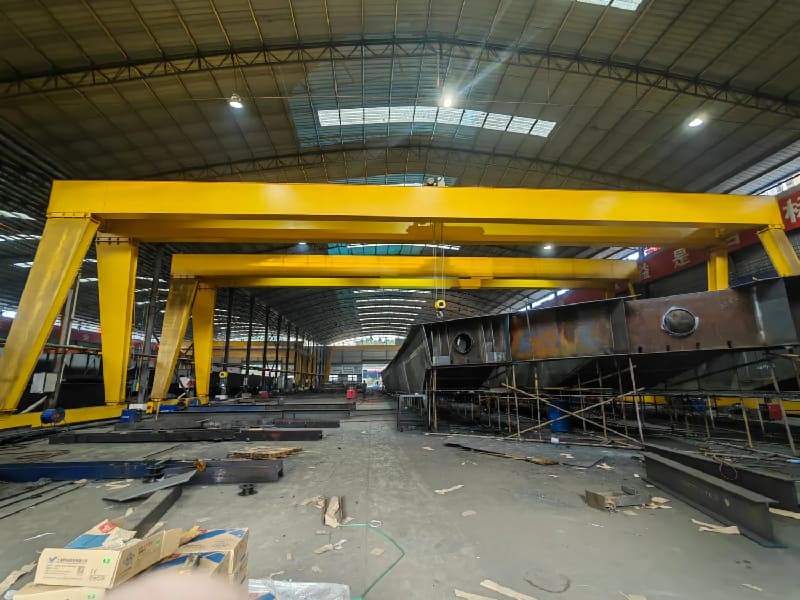

3 Ton Single Girder Gantry Crane Thailand Logistics Park
$9500.00 1 set
Qingdao Shanghai
L/C T/T
New
MH
CE, ISO9001:2000
JQ
General manufacturing
MATE-MH SINGLE GIRDER GANTRY CRANE(WITH General Electric HOIST)
MH series single-beam electric hoist gantry crane is designed for material handling. MH single-beam gantry crane is usually equipped with CD, MD wire rope electric hoist, and is a medium-light gantry crane with rail operation.
MH single-beam electric hoist gantry crane is mainly composed of gantry frame, i.e. main single beam, outrigger, bottom end beam, lifting mechanism, walking mechanism, and electrical control. Double cantilever, single cantilever, or no cantilever can be designed according to customer requirements and application environment.
MATE-MH SINGLE GIRDER GANTRY CRANE CLASSIFICATION
Truss structure type
Truss structure type single girder gantry crane is different from box type crane, the truss type single girder gantry is made of steel bars, while the latter is made of steel plates. Truss type gantry crane has many advantages, it is much lighter than box type gantry crane, strong wind resistance.
Box structure type
Box-type single-beam gantry crane usually adopts standard CD, MD electric hoist as lifting mechanism, and the electric hoist moves horizontally along the lower flange of the main beam I-beam. The main beam is made of high-quality steel plate, such as C-shaped steel, I-beam, etc.
Product Parameters
| Number | Item | Parameters |
| 1 | Span | 1-40m |
| 2 | Lifting capacity | 1-200 tons |
| 3 | Llifting height | 1-30m |
| 4 | Working level | A3-A7 |
| 5 | Crane running speed | 0-20 m/min |
| 6 | Lifting speed | 0-8 m/min |
| 7 | Certifications | CE,ISO |
| 8 | Control method | Wireless remote control, Cab control |
| 9 | Power suppply | 3P 380V 50HZ |
| 10 | Protection class | IP54 |
| 11 | Lifting mechanism | Electric Wire rope hoist |
| 12 | Model | MATE-MH |
Product advantages
1. Simple structure, the basic structural design of the gantry frame and single beam is relatively simple, easy to manufacture and install.
2. Small footprint, compared with other types of cranes, the single-beam gantry crane requires a smaller footprint and is suitable for a small working environment.
3. Strong flexibility, single-beam gantry cranes with different spans and lifting capacities can be customized according to actual use needs.
4. Simple maintenance, compact structure, few main components, easy for daily inspection and maintenance.
5. Low investment cost, low overall manufacturing and installation costs, and a high cost-effective lifting equipment.
6. Convenient to use, simple operation and control, easy for workers to master, and high efficiency.
7. Good safety, equipped with limit, anti-collision and other safety protection devices to ensure safe operation.
