15 Ton Double Speed Electric Chain Hoist - Precision Lifting
$890.00 1 set
Qingdao Shanghai
L/C T/T
New
HHBB
CE, ISO9001
JOGSOP
General manufacturing,Metal production industry,Renewable energy industry
Product Description

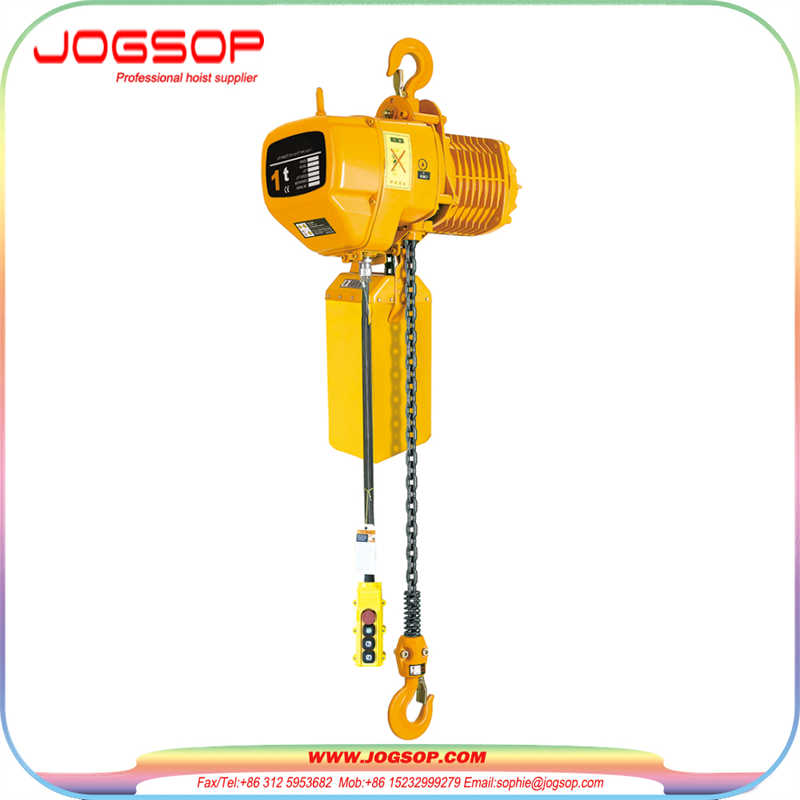

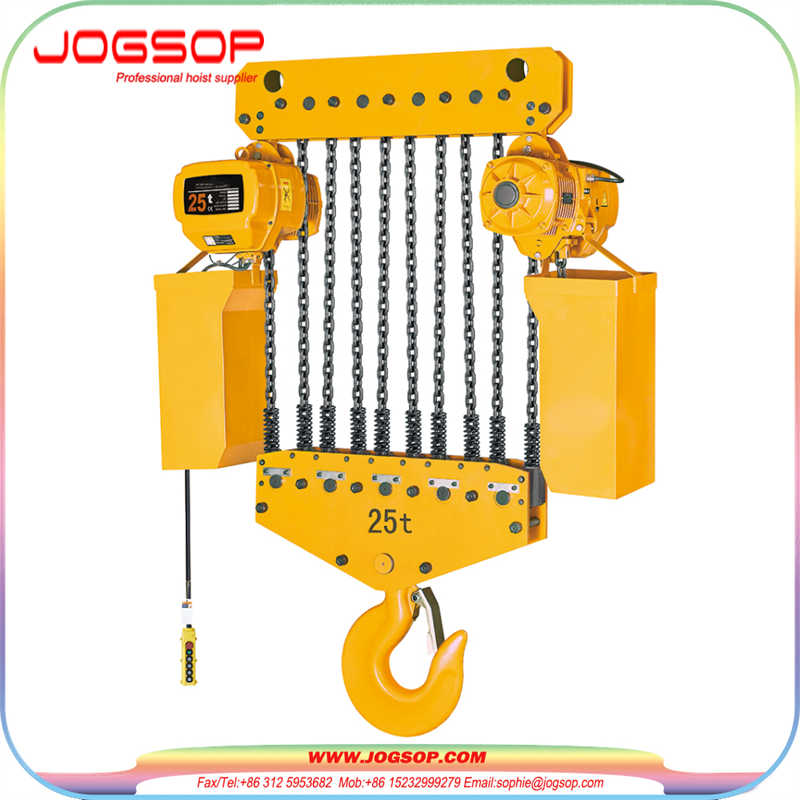

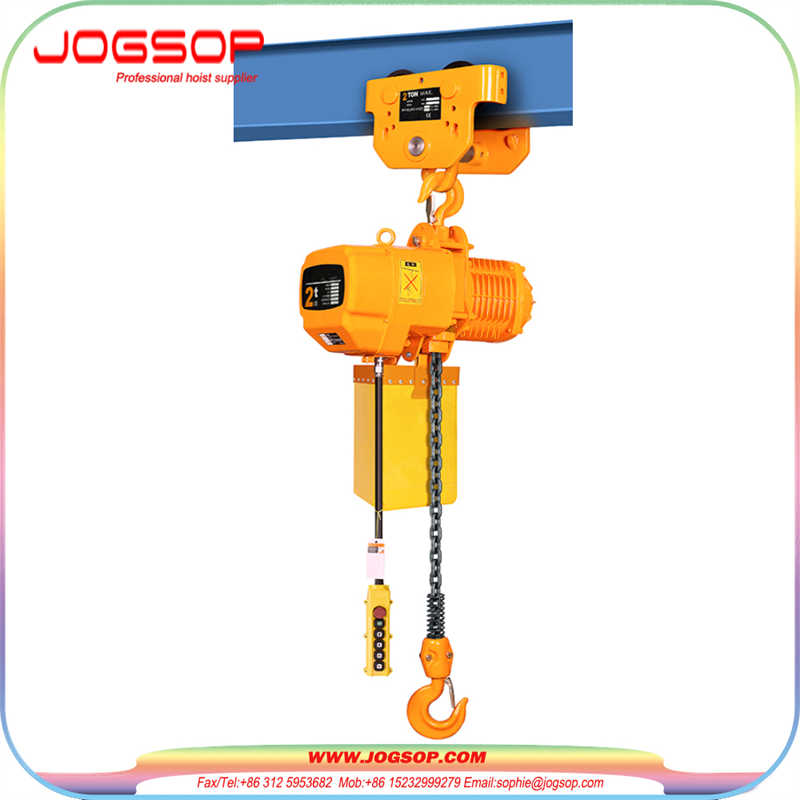

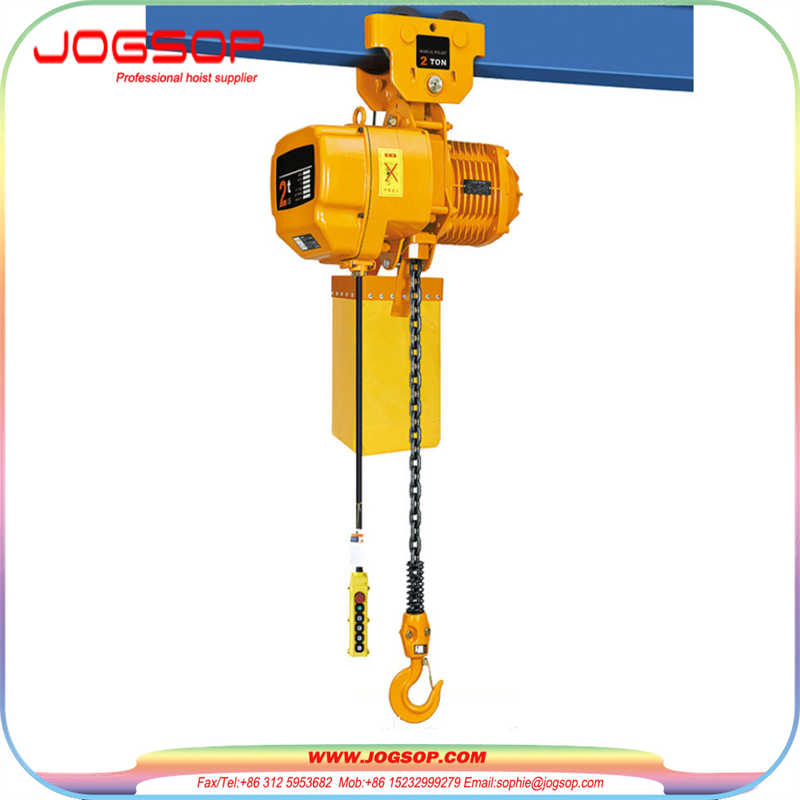

Hot Sale In 2017 ELECTRIC CHAIN HOIST
Capacity:0.5t,1t,2t,3t,5t,7.5t,10t,15t,25t,30t,35t.
Motor: Work class F insulation. Duty rating:45%.Aluminum alloy motor with light weight and good heat dissipation to allow up 30min
of continuous duty work at least.
Gear: All the gearing process by CNC Digital lathe with heat treating
Shelly:Made of light aluminum alloy shell.Light&hard. The cooling fin is especially designed to ensure quick heat dissipationwith the
rate up to 45% and continuous service. The integral enclosed structure is applicable to places like chemical plate andelectroplate factroy
Side magnetic braking device:The magnetic orce generator is the lastest design which is featured for generating magnetic force.
It allowsinstant brake cut off electric power asap.Keep the braking safety while loading is guaranteed
Limit switch :The limit switch automatically stop the hoist overlifting or overlowering
Chain: FEC JAPAN made G-80 super alloy steel chain.Heat treated to used in harsh environments .
Hook: Hot fored with perfect strength and tough with saftey latch on the top&bottom hook. Bottom hook swivels through 360°
Support frame:The loading support frame consists of two steel plates which is extremely sturdy
Transformer:24/36/48V transformer device forbid unexpected accidents such as electric leakage.
Electromagnetic contactor:It can use safely under high frequency
Phase protect device: It wonn't work when error wiring connecting by the end user to keep safe
Control button: IP 54 protection on electric hoist for dust and water proof protection.36/48V control
Feature:
1.Motor is featured with 30-min work rating and class F insulation.
2.Forging steel structure.It is up to the Japanese Industrial Standard BB8815-1997 IV and V class.
3.Double brake system -Electromagnetic brake and mechanical brake.
4.Chain wheel is made up of alloy steel and dealt with heat treatment.It has passed 29,200 times wear test.
5.The surface of chain is dealt with case carburization. It contains Si Ni Mo. The inside material is softened.
6.Screw gear is made up of alloy steel and dealt with heat treatment.
7.Overload limit protector can protect itself from overload and low-load.
8.When power wire is misconnected, the anti-phase protection relay can protect machine from damage.
9.24-48V low voltage control.
Specification:
| Model | HHBB | |||||||||||
| Capacity(Ton) | 0.5 | 1 | 1 | 1.5 | 2 | 2 | 2.5 | 3 | 3 | 3 | 5 | 7.5 |
| Lifting Speed(m/min) | 7.2 | 6.8 | 3.6 | 8.8 | 6.6 | 3.4 | 5.6 | 5.6 | 3.3 | 2.2 | 2.8 | 1.8 |
| Power(kw) | 1.1 | 1.5 | 1.1 | 3 | 3 | 1.5 | 3 | 3 | 3 | 1.5 | 3 | 3 |
| Rotating Speed(r/min) | 1440 r/min | |||||||||||
| Insulation Class | F | |||||||||||
| Running Speed(m/min) | 11m/min 21m/min | |||||||||||
| Voltage(v) | 3-Phase 380v 50hz | |||||||||||
| Control Voltage(v) | 24v/36v/48v | |||||||||||
| Chain Truns | 1 | 1 | 2 | 1 | 1 | 2 | 1 | 1 | 2 | 3 | 2 | 3 |
| Chain Dia | φ6.3 | φ7.1 | φ6.3 | φ10.0 | φ10.0 | φ7.1 | φ11.2 | φ11.2 | φ10.0 | φ7.1 | φ11.2 | φ11.2 |
| 1 Beam(mm) | 75-125 | 75-178 | 75-178 | 82-178 | 82-178 | 82-178 | 100-178 | 100-178 | 100-178 | 100-178 | 112-178 | 125-178 |
| 1 Beam Of Headroom(mm) | 82-125 | 82-153 | 82-153 | 100-153 | 100-153 | 100-153 | 112-178 | 112-178 | 112-178 | 112-178 | 125-178 | 125-178 |
Any interested please contact with us.
