CE Certified Hhbb Electric Chain Hoist | Dual Speed & IP54 Waterproof
$380.00 1 set
Qingdao Shanghai
L/C T/T
New
HHBB
CE, ISO9001
GSTOYO
General manufacturing,Metal production industry,Renewable energy industry
Product Description
1. Enclosure: The casing is light and sturdy. High heat dissipation. The fully sealed design is suitable
for use in environments with poor working conditions.
2. Reverse phase protection device: It is a special electrical device.
When the power supply wiring is wrong, the control circuit cannot work.
3. Limit switch: There is a limit switch device for lifting and lifting the heavy object, so that the motor
stops automatically to prevent the chain from exceeding and ensuring safety.
4. Low-voltage handle switch: The handle low-voltage control 36V device can prevent accidents
when the switch leaks during operation.
5 Brake device: The brake is braked by disc DC electromagnetic field, the braking torque is large,
stable, rapid and low noise.
6. Chain: 80 grade super heat-treated alloy steel chain makes the chain more tough and more
durable. It ensures safety during work.
7. The operation of the device: an electric car with a guide means so that bot
| Model HHBB | Wll (T) | Height (M) | Speed (M/Min) | Lift motor | Travelling speed | I-beam (mm) | |||||
| Power (Kw) | Phase | Volt (V) | Frequency (Hz) | Power (Kw) | Speed (M/Min) | Volt (v) | |||||
| 01-01 | 1 | 3 | 6.8/2.3 | 1.5 | 3 | 380 | 50 | 0.4 | 11/21 | 380 | 68-130 |
| 01-02 | 1 | 3 | 3.9/1.2 | 1.1 | 3 | 380 | 50 | 0.4 | 11/21 | 380 | 68-130 |
| 02-01 | 2 | 3 | 6.8/2.2 | 3.0 | 3 | 380 | 50 | 0.4 | 11/21 | 380 | 82-153 |
| 02-02 | 2 | 3 | 3.4/1.1 | 1.5 | 3 | 380 | 50 | 0.4 | 11/21 | 380 | 82-153 |
| 03-01 | 3 | 3 | 5.6/1.8 | 3.0 | 3 | 380 | 50 | 0.75 | 11/21 | 380 | 82-153 |
| 03-02 | 3 | 3 | 5.8/1.1 | 3.0 | 3 | 380 | 50 | 0.75 | 11/21 | 380 | 82-153 |
| 05-02 | 5 | 3 | 2.8/0.9 | 3.0 | 3 | 380 | 50 | 0.75 | 11/21 | 380 | 100-178 |

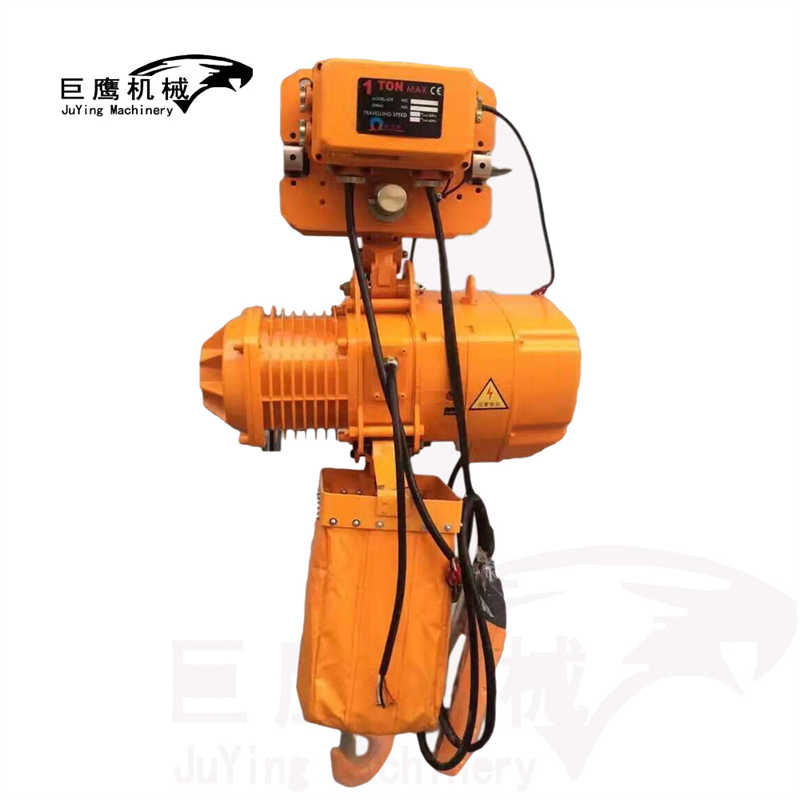

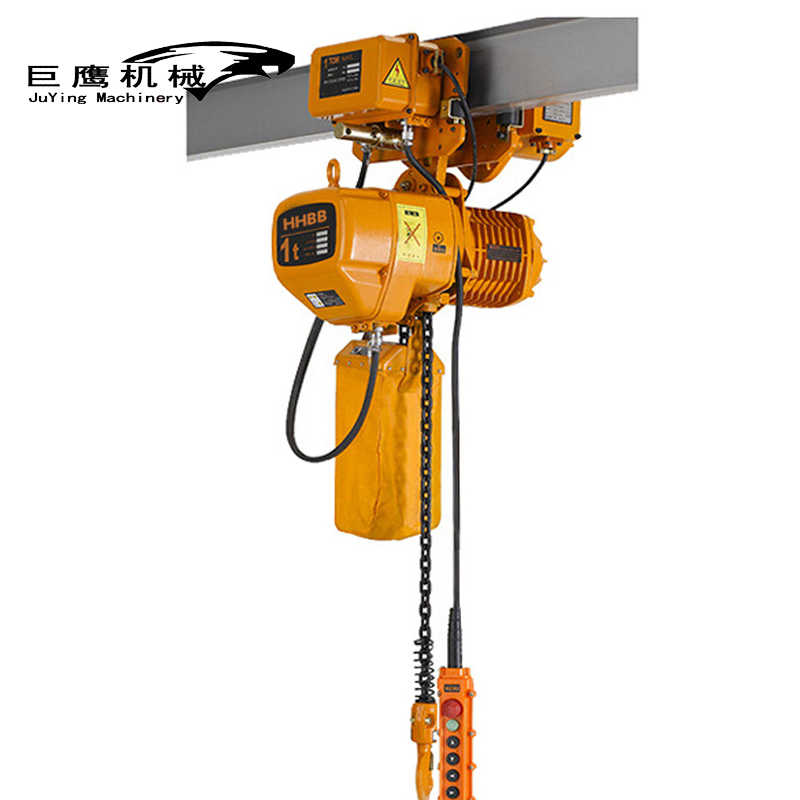

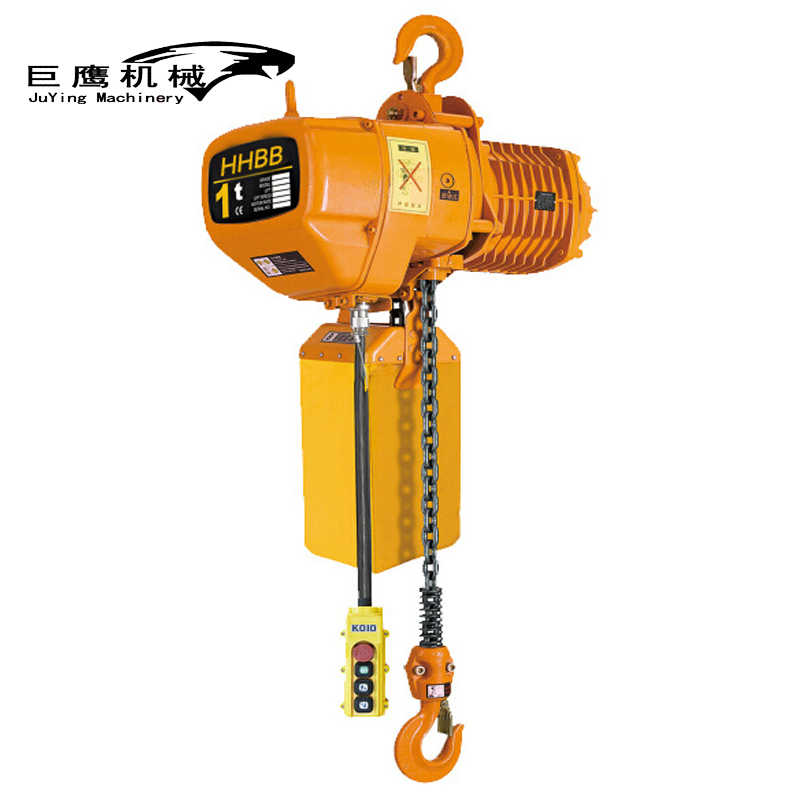

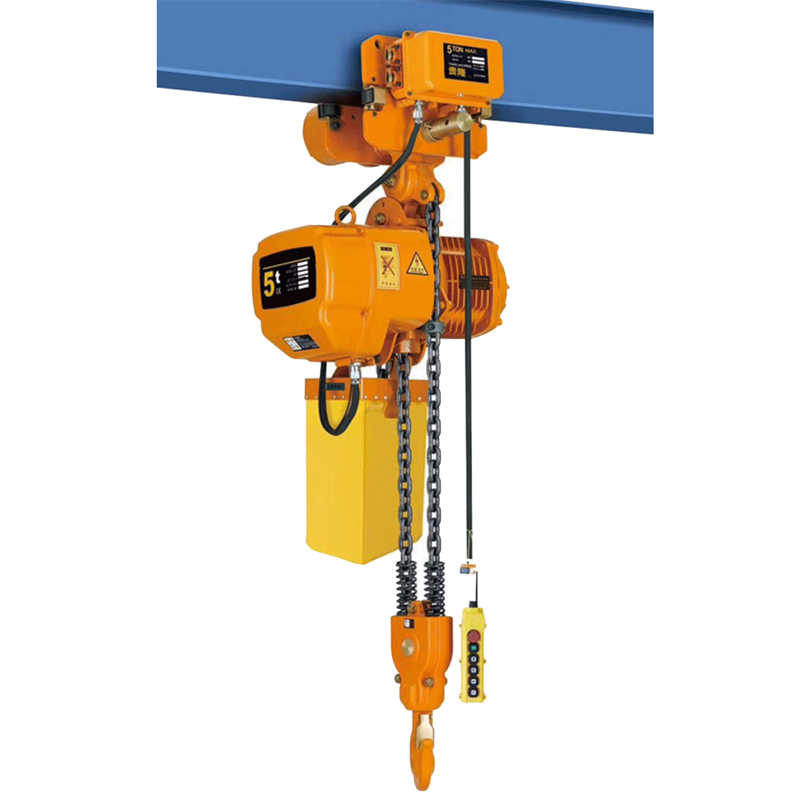

Product real show
