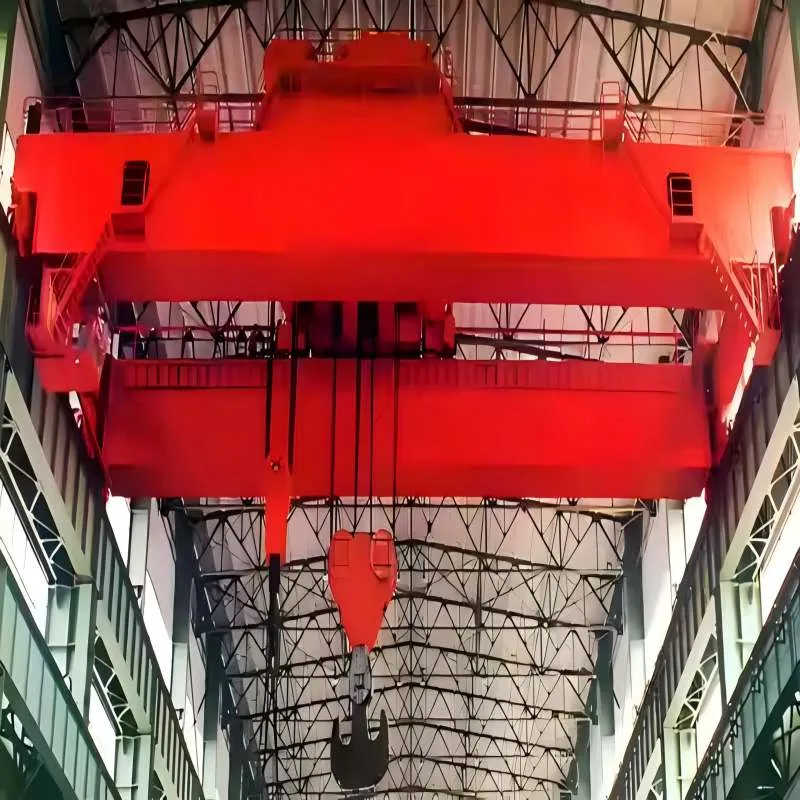

China Supplier QD Double Girder Crane – Heavy Duty Overhead Lifting Solution

Product Description

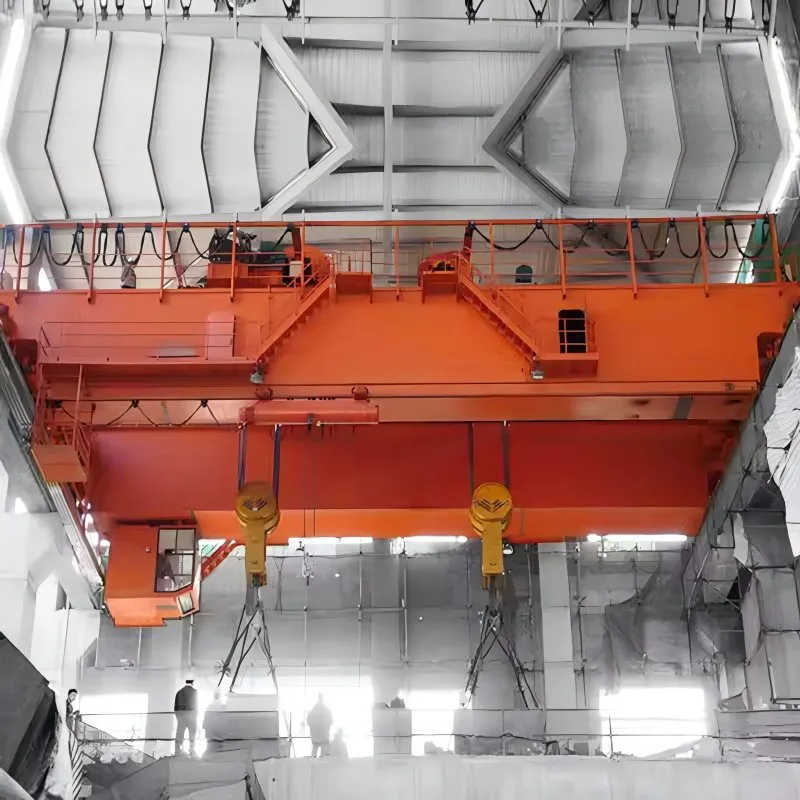

The QD-Type 5~50/10t Hook Bridge Crane is a powerful and adaptable overhead lifting solution meticulously engineered for demanding material handling applications in industrial settings such as workshops, warehouses, steel mills, and logistics hubs. Equipped with a dual-hoist configuration (5-50t main hook and 10t auxiliary hook), this crane offers an exceptional blend of high load capacity and precision control, making it the ideal choice for lifting, transporting, and positioning heavy loads with unparalleled efficiency and utmost safety.

1. The QD model overhead crane with hook is primarily designed for use within indoor workshops. It is categorized into two distinct working classes: A5 and A6, depending on the operational grade and load-up conditions.
2. The crane offers three distinct entry methods to the cabin platform: from the side, from the end, and from the top.
3. The cabin can be securely positioned at either the left or right end, providing flexibility to suit various operational setups.
4. For electrical conduction, the crane can utilize either a safe slide wire or angle iron, with the flexibility of placing it on the same side as the cab or on the opposite side, according to requirements.
5. All crane operations are executed entirely from within the cabin, ensuring comprehensive control.

Heavy-Duty Dual-Hook System
- Main Hook: The adjustable capacity ranging from 5t to 50t caters to substantial loads such as steel plates, machinery, and diverse industrial components.
- Auxiliary Hook: With a fixed 10t capacity, it accommodates supplementary tasks or lighter loads, providing enhanced operational flexibility and efficiency.

Robust Structural Design
- Double-Girder Bridge: Expertly constructed with high-strength steel and box-type main beams, it guarantees stability and durability even under heavy loads.
- Corrosion-Resistant Coating: Offers superior protection against harsh environmental conditions, including high humidity and pervasive industrial dust.

Precision Control & Safety
- Variable-Speed Motors: Ensure smooth hoisting (main hook: 1.8 m/min, auxiliary hook: 8.1 m/min) and travel speeds (crane: 48 m/min; trolley: 18 m/min) for precise and accurate load positioning.
- Safety Mechanisms: Features overload protection, emergency stop functionality, and limit switches to prevent over-travel, safeguarding both operators and equipment.

Flexible Configurations
- Customizable Span: Offers adjustability from 10.5m to 31.5m, seamlessly aligning with specific facility layouts and operational demands.
- Work Duty Classes: Available in A5 (medium duty) and A6 (heavy duty) to match the intensity and frequency of operations accurately.

User-Friendly Operation
- Driver Cabin Control: All operations are centralized within an ergonomically designed, enclosed cabin, enhancing safety and operator comfort.
- Optional Remote Control: Provides wireless operation capabilities, significantly enhancing flexibility in complex and dynamic environments.

Advantages

- High Adaptability: Features a customizable span, lifting height, and duty class, tailored to meet a wide array of operational needs seamlessly.
- Low Maintenance: Incorporates sealed bearings and standardized components to minimize downtime and reduce maintenance costs.
- Eco-Friendly Design: Equipped with energy-efficient motors and designed for minimal noise output, it is ideal for both indoor and outdoor applications.

Product Parameters
