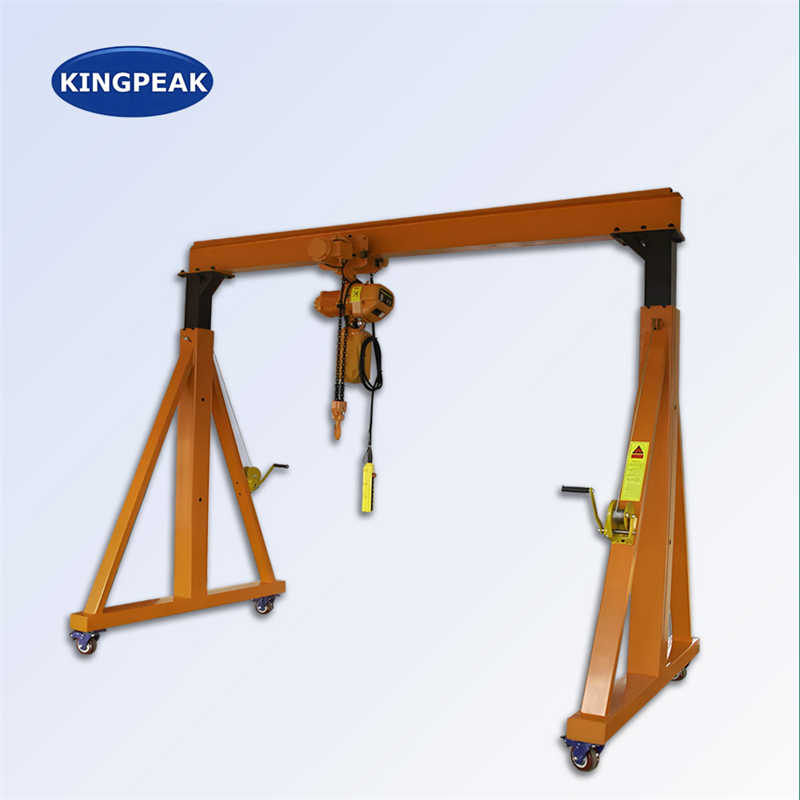

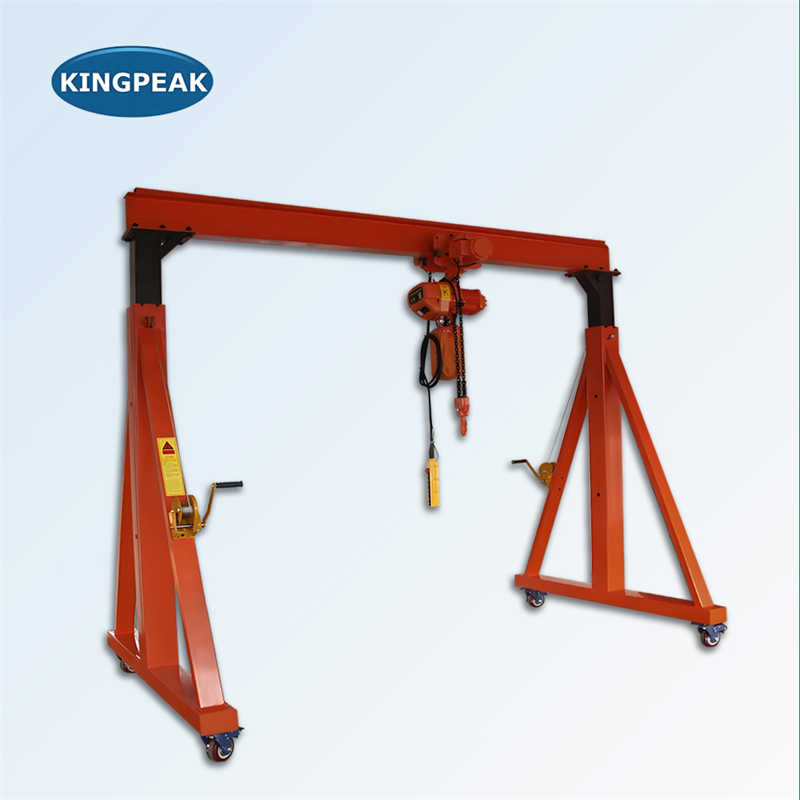

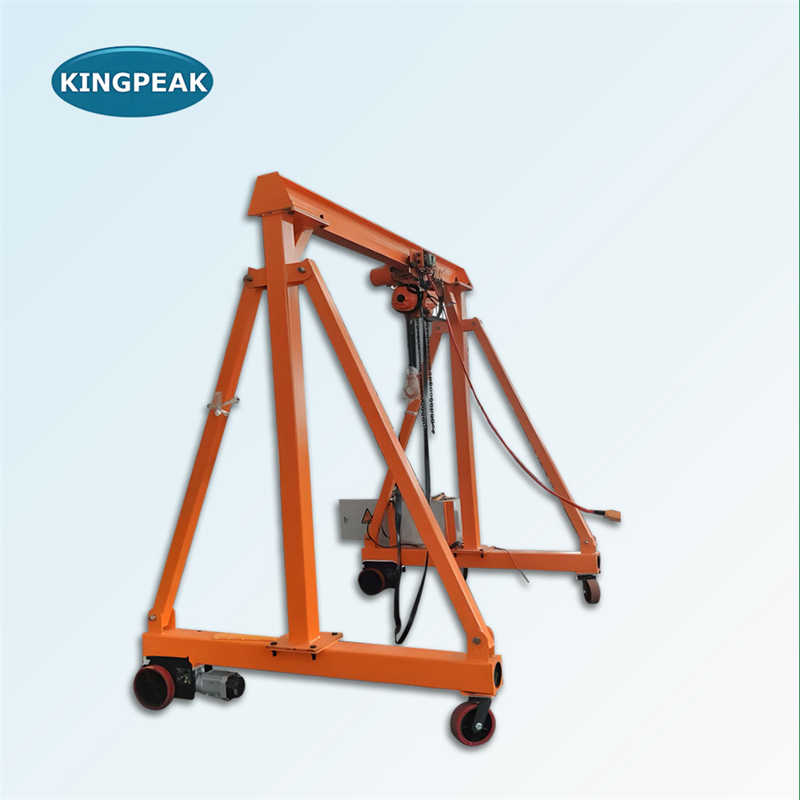

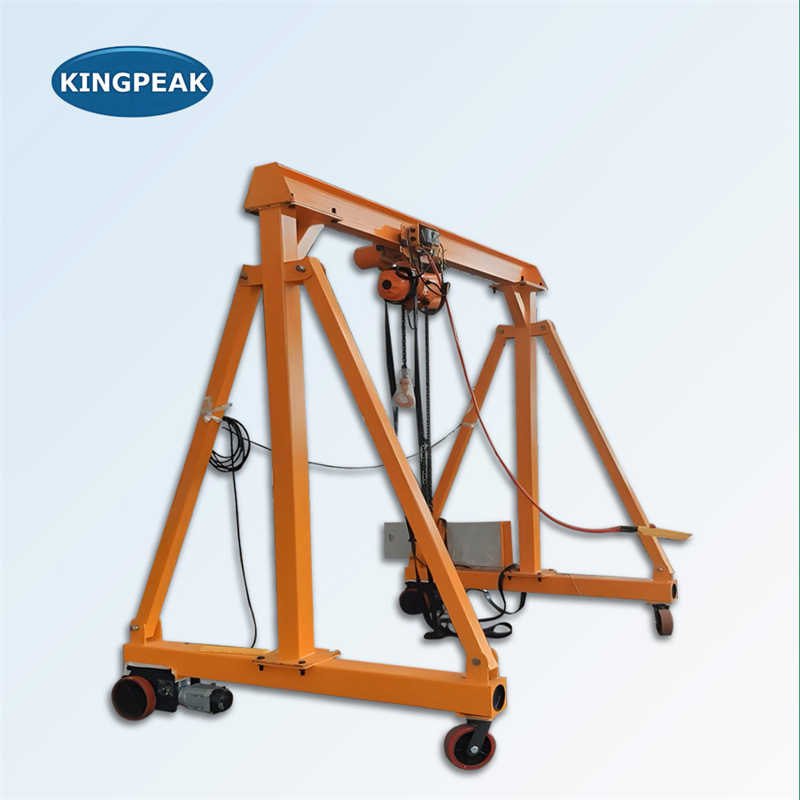

Steel Mobile Gantry Crane 5 Ton 10 Ton – Universal Freight Yard
$1800.00 1 set
Qingdao Shanghai
L/C T/T
New
Portable
CE, ISO9001
KINGPEAK
General manufacturing,Metal production industry,Renewable energy industry
| Technial parameters | |
| attribute | describe |
| Loading capacity | 0.25 ~ 20t |
| Lifting height | 3 ~ 10 m or customized |
| Lifting speed | Single speed: 3~ 8 m/min; or customized Variable frequency speed: 1 ~ 20 m/min; or customized |
| Span | 3~10 m |
| Lifting mechanism | Hoist trolley |
| Working class | A2 ~ A3 |
| Working temperature | -20~40ºC |
| Power supply | AC-3Phase-220//230380/400/415/440V-50/60Hz |
| Control voltage | DC-24 / 36V |
| Motor protection class | IP54 IP55 IP65 |
| Control way | Ground handle control(Push button),wireless remote control |
| Safety device | Buffer, current overload protection,overload device,power failure protection |
| Application area | Factory,workshop,warehouse,power station,logistic,etc. |
| Painting color | Yellow, red, copper or other |
Brief Introduction:
Portable mini gantry crane has single structure, safety and reliable, easy control, swivel flexible, large working space, low cost and other features.
It is widely suitable to workshop, ware house and others needed lifting work areas.
The mobile type gantry frames can move to many different working areas, it is much more flexible than other kinds of gantry frames or cranes.
Safe Devices:
Crane traveling limit switch.
Weight overload protection device.
Lifting height limit device.
Voltage lower protection function.
Phase sequence protection function.
Emergency stop function.
Rain cover for outside hoist, driving units, electrical cubicle.
Warning indicator: flashing lights and warning sound.
Wireless infra-detector for anti-collusion.
Packing and shipping:
1.Electric parts and electric hoist packed by high quality plywood crate,
2.Other parts packed by Woven bag.
3.Shipped by Conatiners or Bulk Ship
Product Description
Packaging & Shipping
Customer usage scenarios
Company Profile
FAQ
1. Q. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
2. Q: How do you make our business long-term and good relationship?A:We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
3. Q: Is custom size available?
A: Yes, we do custom products and projects.
4. Q: I would like to have my own design products and qty is not that big, is it ok?
A: Yes, we can go with your custom design, no matter small or big qty, however, pls Understand the cost will be different.
5. Q: I don't have drawing or picture available for the custom products, could you design it for me?
A:Yes, we can make the best suitable design for you but do need to know the details,
such as a) dimension b)Loading capacity c)Loading cargo type d)operation environment
