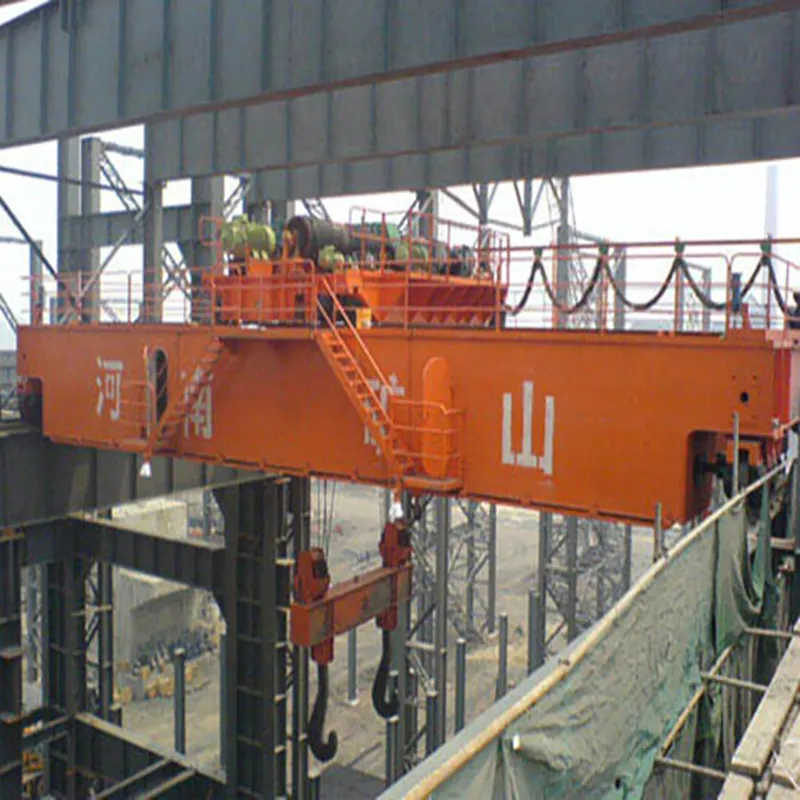

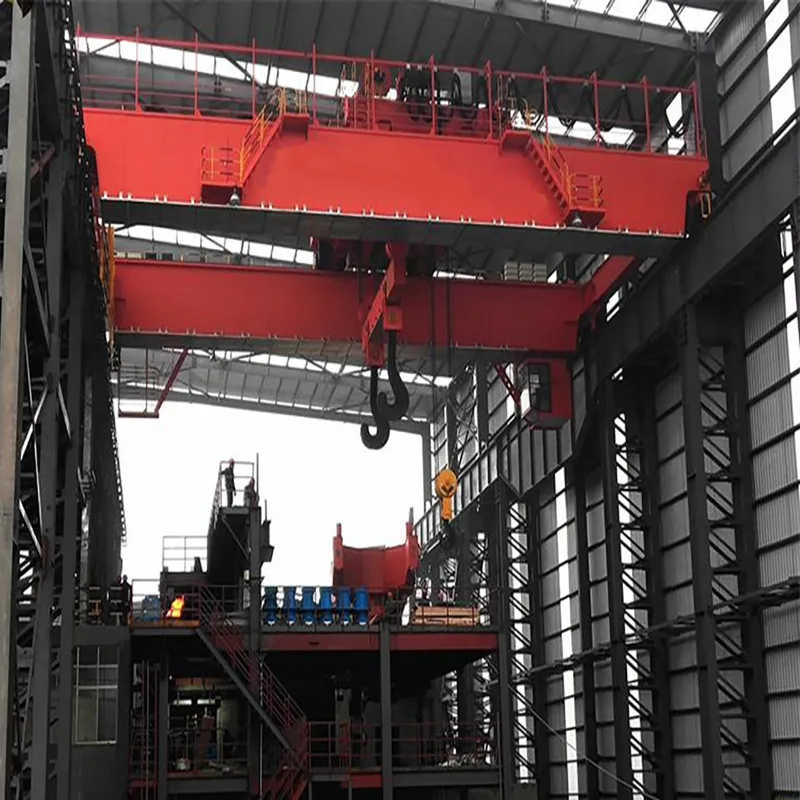

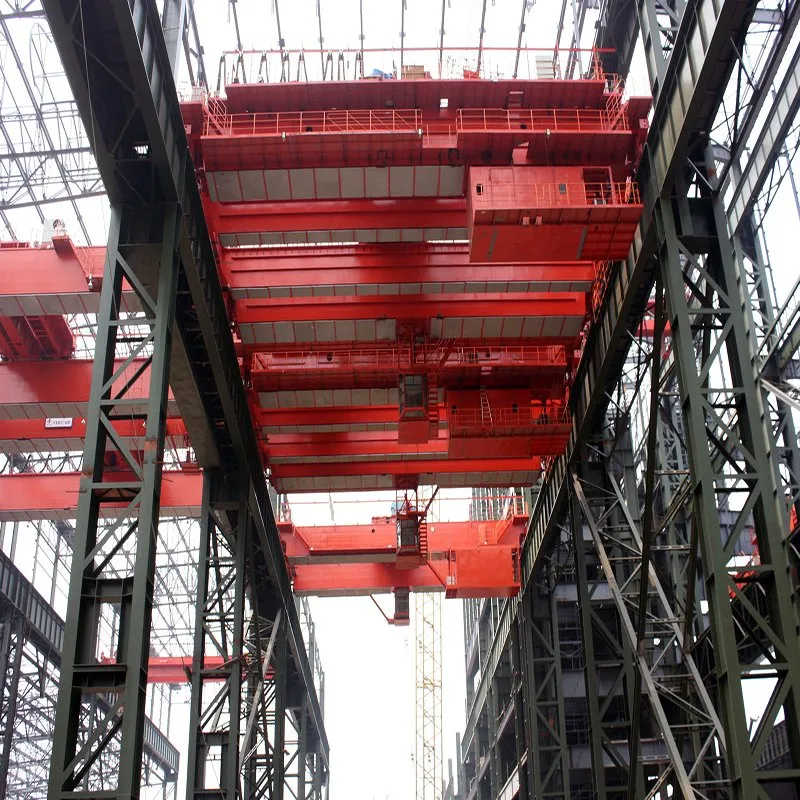

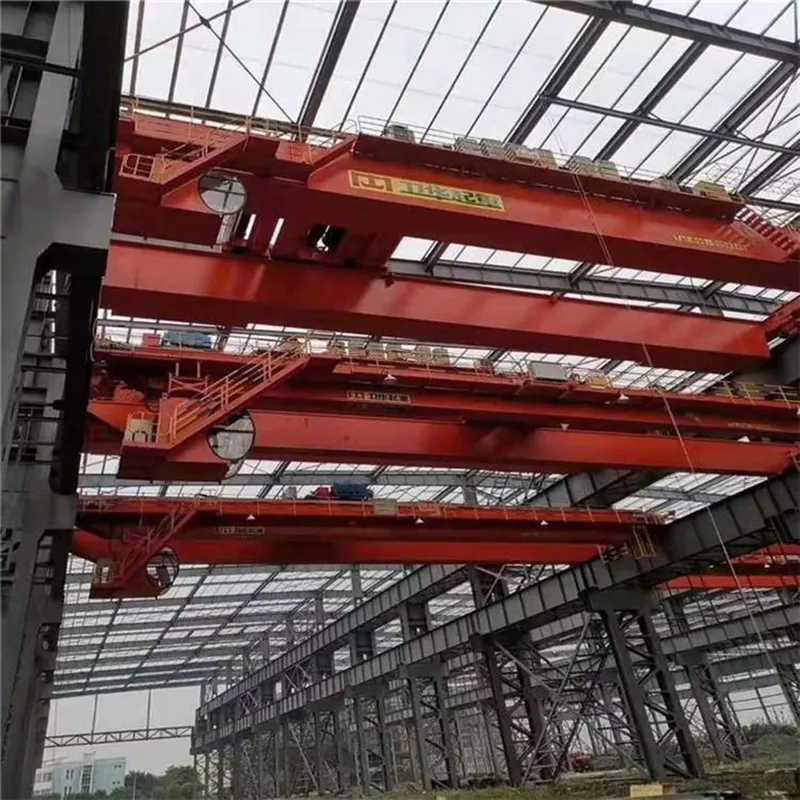

High Quality Yz Model Foundry Ladle Crane for Steel Plant High Quality Yz Model Foundry Ladle Crane for Steel Plant
High Quality Yz Model Foundry Ladle Crane for Steel Plant High Quality Yz Model Foundry Ladle Crane for Steel Plant
High Quality Yz Model Foundry Ladle Crane for Steel Plant High Quality Yz Model Foundry Ladle Crane for Steel Plant
High Quality Yz Model Foundry Ladle Crane for Steel Plant High Quality Yz Model Foundry Ladle Crane for Steel Plant
High Quality Yz Model Foundry Ladle Crane for Steel Plant High Quality Yz Model Foundry Ladle Crane for Steel Plant

High Quality Yz Model Foundry Ladle Crane for Steel Plant

$1000000.00
1 set
Qingdao Shanghai
New
YZ
CE, ISO9001
Henan Mine
General manufacturing,Metal production industry
Contact Supplier
Add to Wish List
200 t
30m
7.5-31.5m
380v/440v/customized
A5,A6,A7
Yellow,Customized
Henan Mine
YZ
中国
1 Years

Product Description

 High Technique 40 Ton Four-Beam Casting Bridge Crane

YZS Type Hook Overhead Crane For Lifting Molten metal

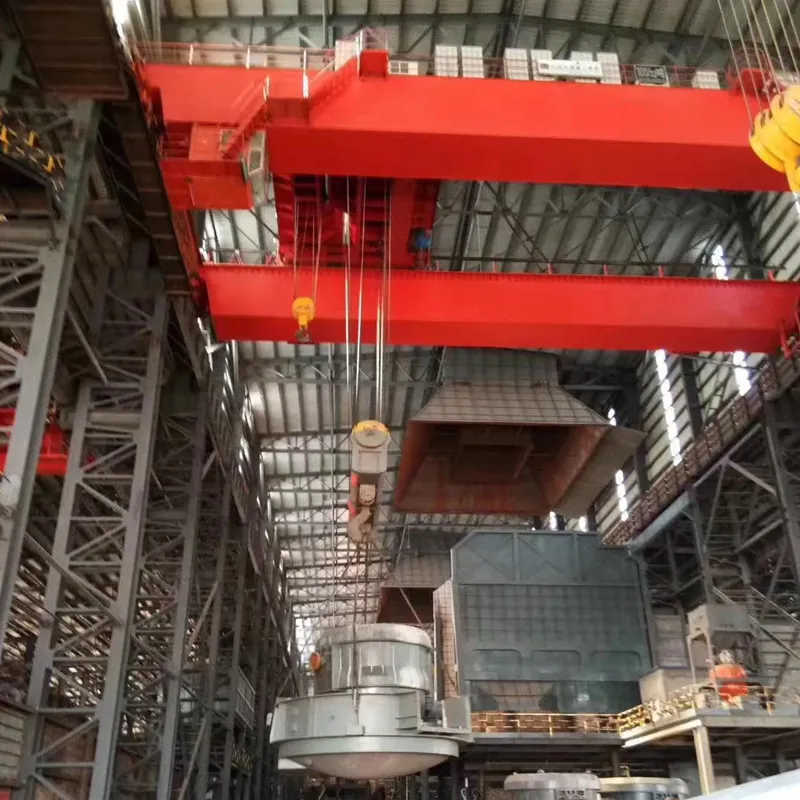

       Casting bridge cranes are the main handling equipment for smelting workshop of steel works They are used for conveying, pouring and hot metal charging of liquid metal in smelting process. YZS casting bridge crane, adopting main crab and auxiliary crab, and four-girder and four-rail structure, is composed of bridge main crab, auxiliary crab, connecting traverse, trolley traveling mechanism and electric part. The main crab runs at the rails outside the bridge, and the auxiliary crab runs at the rails inside the bridge. The main crab employs the connecting transverse as the load handling device to hoist steel ladle, and the auxiliary crab, employing the hook as the load handling device, runs across under the main crab to accomplish pouring of molten steel and steel slag, and other auxiliary hoisting in coordination with the main hook
       The trolley travelling mechanism and main electric equipment are installed in the girder. The girder' s electric panel room employs rock wool for heat insulation, and has an air cooler inside. To reduce heat radiation of molten steel to metal structural members, a thermal baffle is set along the span direction at the bottom of the girder.


Product Features

·The trolley travelling mechanism adopts four-corner drive.
·The crane is equipped with a special electronic scale, and there are display devices in the cab and on the bridge The main hoisting mechanism is furnished with an overspeed switch.

Safety System

1). Weight overload protection device.
2). Lifting limit switch and traveling limit switch.
3). Emergency stop system.
4). Zero voltage protection.
5). Phases protection device and so on
6). Top quality long time bearing polyurethane materials buffer.

Product Parameters

Lifting Capactiy(t)125/32140/32160/32180/50200/50225/65240/80280/80320/80
Working ClassA7A7A7A7A7A7A7A7A7
Span(m)19192728.52827222224.5
Main Hook Lifting Height(m)242225272632252928
Auxiliary Hook Lifting Height(m)262426292634272932



Drawing

High Technique 40 Ton Four-Beam Casting Bridge Crane


Main Products

High Technique 40 Ton Four-Beam Casting Bridge CraneHigh Technique 40 Ton Four-Beam Casting Bridge CraneHigh Technique 40 Ton Four-Beam Casting Bridge CraneHigh Technique 40 Ton Four-Beam Casting Bridge CraneHigh Technique 40 Ton Four-Beam Casting Bridge CraneHigh Technique 40 Ton Four-Beam Casting Bridge CraneHigh Technique 40 Ton Four-Beam Casting Bridge CraneHigh Technique 40 Ton Four-Beam Casting Bridge Crane

Certifications



High Technique 40 Ton Four-Beam Casting Bridge Crane
