 laitch > Supply > Reducer

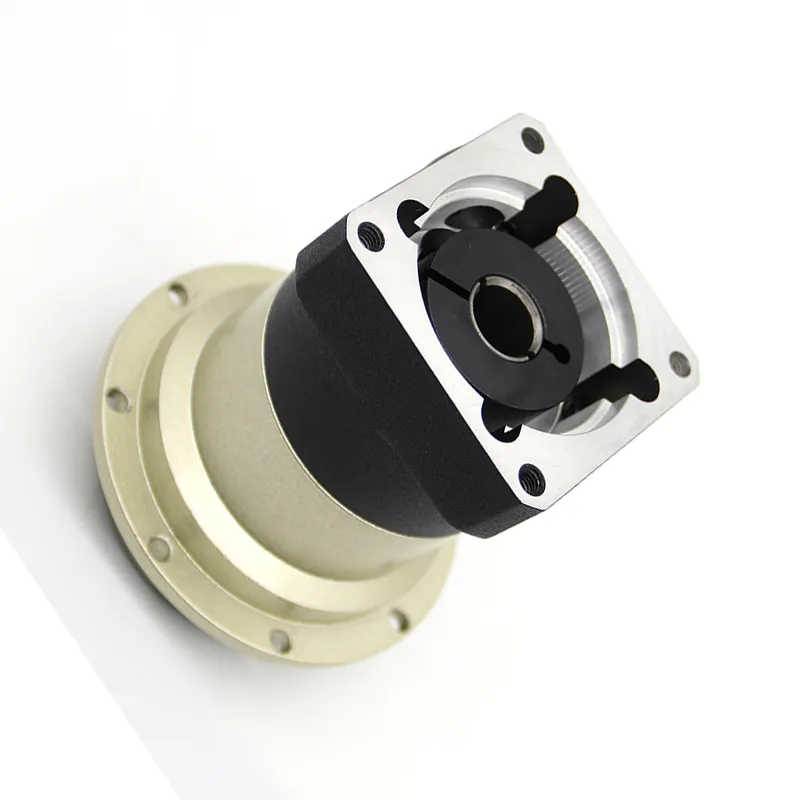

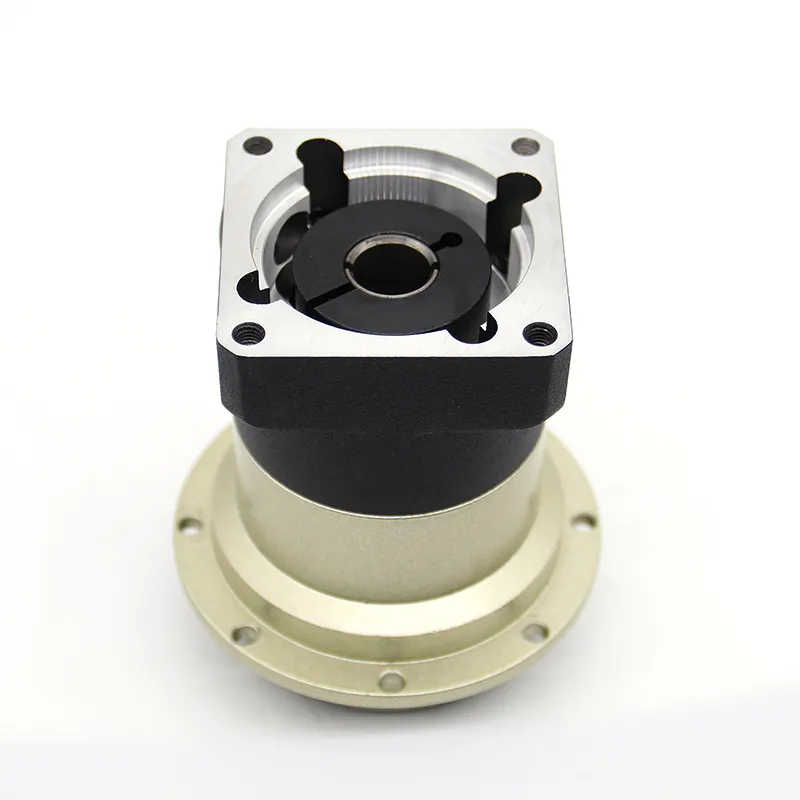

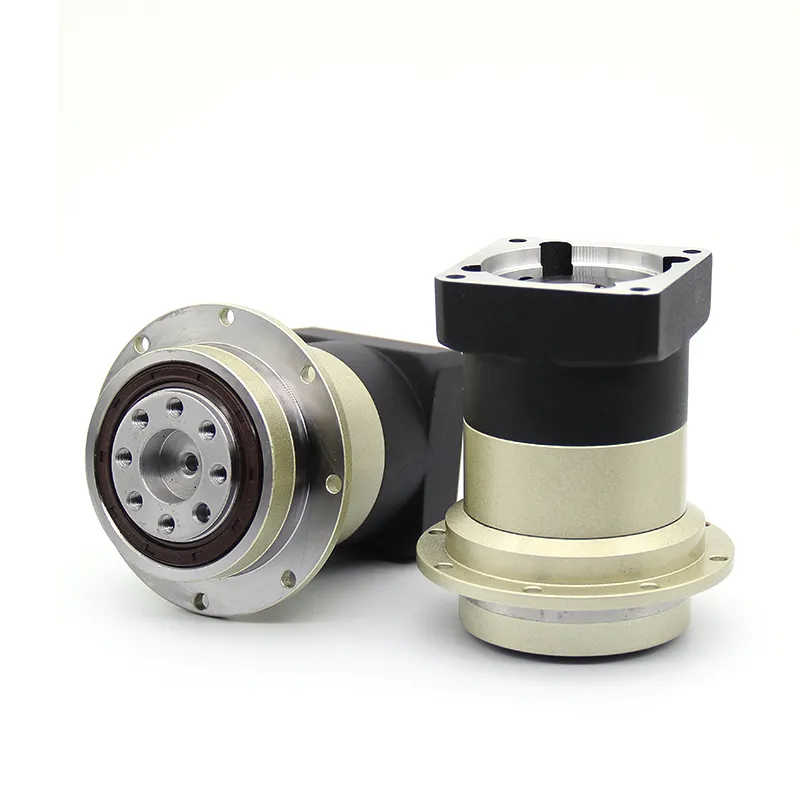

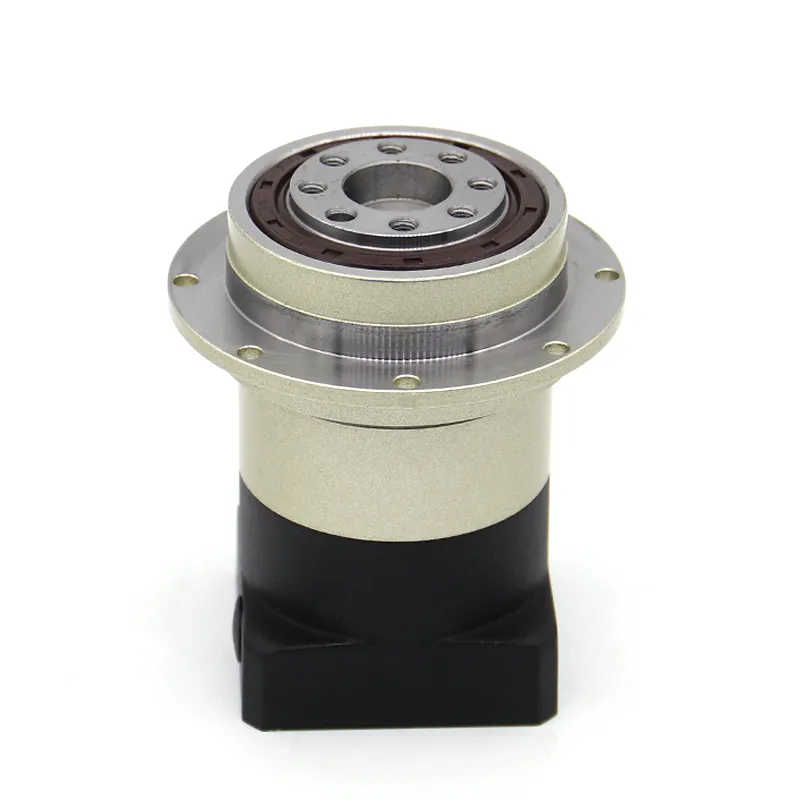

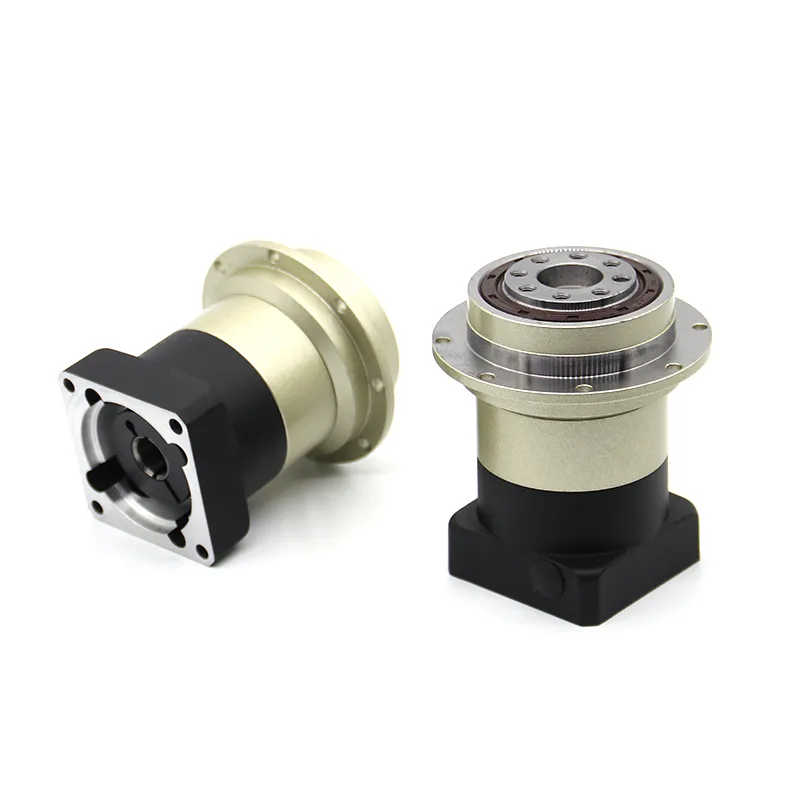

Resistant Transmission System Planetary Gearbox Reducer for CNC Machines Resistant Transmission System Planetary Gearbox Reducer for CNC Machines
Resistant Transmission System Planetary Gearbox Reducer for CNC Machines Resistant Transmission System Planetary Gearbox Reducer for CNC Machines
Resistant Transmission System Planetary Gearbox Reducer for CNC Machines Resistant Transmission System Planetary Gearbox Reducer for CNC Machines
Resistant Transmission System Planetary Gearbox Reducer for CNC Machines Resistant Transmission System Planetary Gearbox Reducer for CNC Machines
Resistant Transmission System Planetary Gearbox Reducer for CNC Machines Resistant Transmission System Planetary Gearbox Reducer for CNC Machines

Resistant Transmission System Planetary Gearbox Reducer for CNC Machines

$98.00
5 set
Qingdao Shanghai
L/C T/T
New
AD64
CE, ISO9001
Laitch
General manufacturing
Contact Supplier
Add to Wish List
t
M3-M5
Blue,Customized
Laitch
AD64
中国
1 Years

Product Description

Ab90 Customizable Heavy Duty High Torque Planetary Gearbox Reducer for Industrial Machinery

Product Parameters

AB series parameters


         Specification
Series		 Reduction ratio
 AB42
AB60
AB90
 AB115
AB142
 AB180
AB220
Rated output torqueN.m1 320   55 130 208 342 588 1140
4 19   50 140 290 542 1050 1700
5 22   60 160 330 650 1200 2000
7 19   50 140 300 550 1100 1800
10 17   40 100 230 450 900 1500
2 12 19   50 130 208 342 588 1140
15 20   55 140 208 342 588 1140
20 19   50 140 290 542 1050 1700
25 22   60 160 330 650 1200 2000
30 19   50 140 208 342 588 1140
35 22   60 160 330 650 1200 2000
40 19   50 140 290 542 1050 1700
50 22   60 160 330 650 1200 2000
70 19   50 140 300 550 1100 1800
100 17   40 100 230 450 900 1500
Max oulputN.m1,23~1003 times Rated output torque
Rated input speedrpm1,23~1005000 5000 4000 4000 3000 3000 2000
Max inpul speedrpm1,23~10010000 10000 8000 8000 6000 6000   4000
Super precisionarcmin1 3~10\\≤1≤1≤1≤1  ≤1
2 12~100\\≤3≤3≤3≤3  ≤3
Super precision back lasharcmin1 3~10≤3≤3≤3≤3≤3≤3  ≤3
2   12~100≤5≤5≤5≤5≤5≤5  ≤5
The standard back lasharcmin1   3~10≤5≤5≤5≤5≤5≤5  ≤5
2   12~100≤7≤7≤7≤7≤7≤7  ≤7
Torsioal stiffhessN.m/arcmin12  3~10037 14 25 50 145 225
Max radal loadN12  3~100780 1530 3250 6700 9400 14500 50000
Max axial loadN12  3~100390 760 1625 3350 4700 7250 25000
Sevice lifehr1.2   3~10020000
Efficiency%1   3~10≥97
2   12~100≥94
Operating temperatureºC1,2  3~100-20~90
Lubrication method
1,2  3~100Lubrication for
Protection level
1,2  3~100life IP65
Installalion mode
1,2  3~100Any
NoisedB(A)1,2  3~100≤56≤60≤62≤65≤67≤69≤72

Detailed Photos

Ab90 Customizable Heavy Duty High Torque Planetary Gearbox Reducer for Industrial Machinery

Application

Ab90 Customizable Heavy Duty High Torque Planetary Gearbox Reducer for Industrial MachineryAb90 Customizable Heavy Duty High Torque Planetary Gearbox Reducer for Industrial Machinery

Company Profile

Ab90 Customizable Heavy Duty High Torque Planetary Gearbox Reducer for Industrial MachineryAb90 Customizable Heavy Duty High Torque Planetary Gearbox Reducer for Industrial MachineryAb90 Customizable Heavy Duty High Torque Planetary Gearbox Reducer for Industrial MachineryAb90 Customizable Heavy Duty High Torque Planetary Gearbox Reducer for Industrial Machinery

Certifications

Ab90 Customizable Heavy Duty High Torque Planetary Gearbox Reducer for Industrial MachineryAb90 Customizable Heavy Duty High Torque Planetary Gearbox Reducer for Industrial MachineryAb90 Customizable Heavy Duty High Torque Planetary Gearbox Reducer for Industrial Machinery

FAQ

1. Are you a factory?

Yes, we are a source factory and provide customization services to meet your specific needs.

2. How can I customize a product?

You can contact us and provide your requirements along with any drawings. Our team will recommend the most suitable product for you or customize it based on your specifications.

3. What is the delivery time?

Peak period: Approximately 30 days

Non-peak period: Around 10-15 days

4. What is the warranty period?

The service life of our products is approximately 20,000 hours.

5. What payment methods do you accept?

We support L/C, T/T, D/P, D/A, Western Union, Paypal.
The payment terms are:

30% deposit before production

70% balance before shipping
