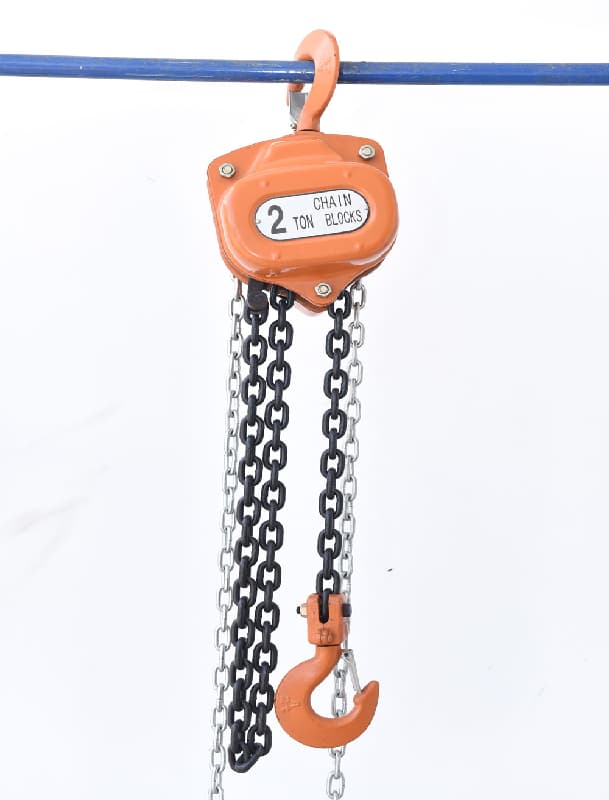

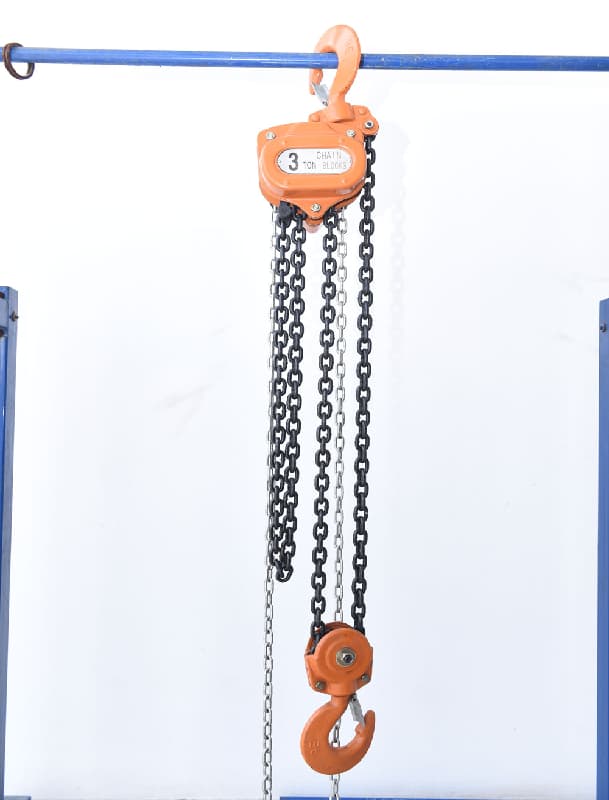

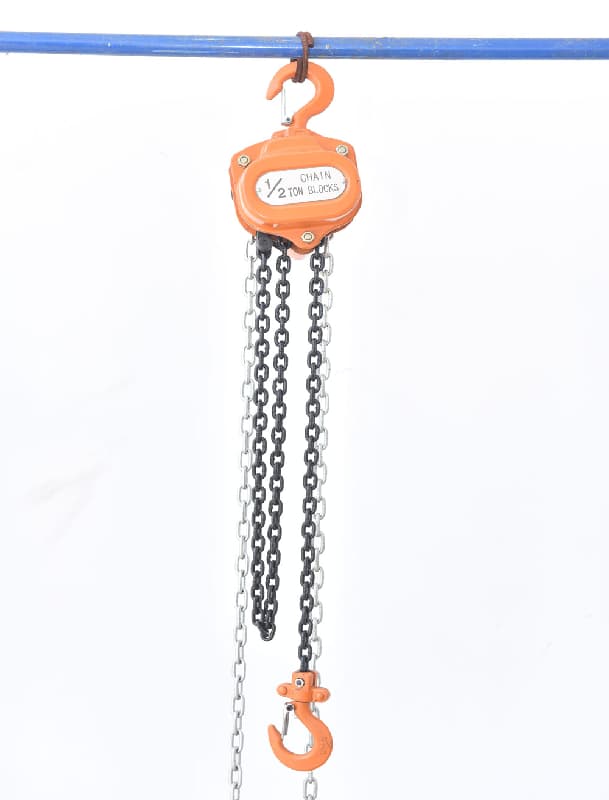

5 Ton High Capacity Hand Chain Block for Machinery Installation and Repair
$45.00 10 set
Qingdao Shanghai
L/C T/T
New
HSZ
CE, ISO9001:2000
LFT or OEM
General manufacturing
Wholesaler 3 Ton 5 Ton HSZ Chain Pulley Block
Product Description
HSZ type chain hoist is widely used manual hoisting machinery which is easy to use and carry.it can used in
factory,mine,agriculture,electricity,construction site,wharf and dock.it can also be used in installing of
machinery,lifting,loading and unloading in warehouse,especially suitable to be used in the open air and the
place without power source.
we manufacturer the products in accordance with national standard,use the symmetry arrayed two-stage gear driven structure .It is design reasonable,dainty material,advanced structure,beautiful appearance,
small volume,light weight,big component strength,high toughness,safety and durability.The product has been
selling well both at home and abroad.It can compete with well known brand all over the world
Features of the HSZ chain block 2Ton
1.compact size ,light weight and durable life.
2.High efficiency and small pulling effort at full load.
3.Reliable,safe in operation and low maintenance.
4.Very low headroom allows optimal use of available space.
Product Parameters
| HSZ Chain Block Specifications | ||||||||
| Model | HS0.5 | HS1 | HS1.5 | HS2 | HS3 | HS5 | HS10 | |
| Capacity(T) | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 | |
| Standard lift(M) | 2.5 | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | |
| Running test load(T) | 0.75 | 1.5 | 2.25 | 3 | 4.5 | 6.25 | 12.5 | |
| Headroom(drawn close up)H(MM) | 240 | 270 | 347 | 380 | 470 | 600 | 700 | |
| Load chain | Columns | 1 | 1 | 1 | 2 | 2 | 2 | 4 |
| Dia(mm) | 6 | 6 | 8 | 6 | 8 | 10 | 10 | |
| Effort required to lift max load(N) | 221 | 304 | 343 | 314 | 343 | 381 | 392 | |
| Extra weight per meter of extra lift(KG) | 1.7 | 1.7 | 2.3 | 2.5 | 3.7 | 5.3 | 9 | |
