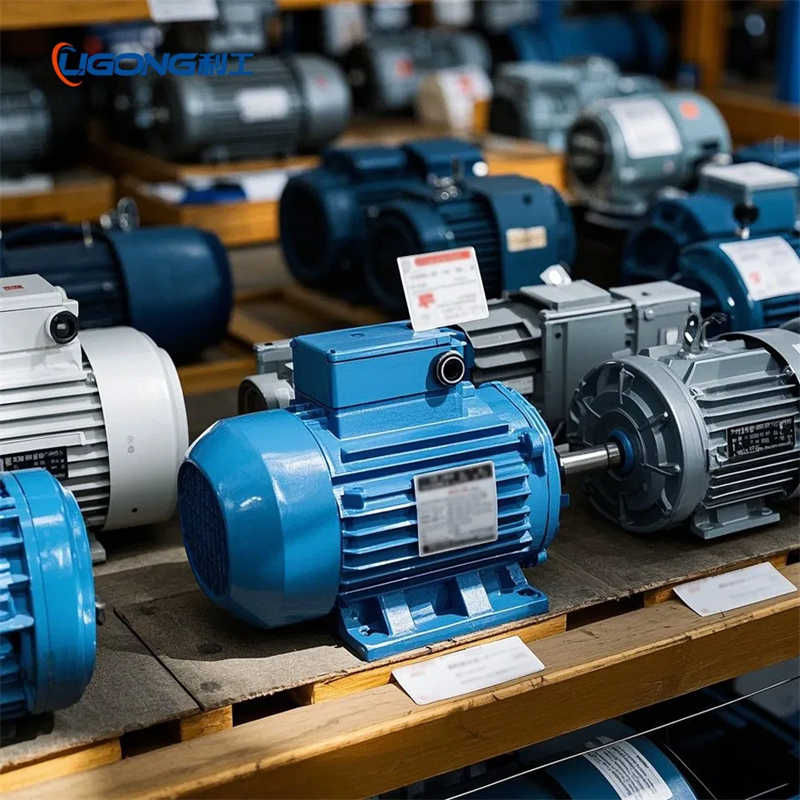

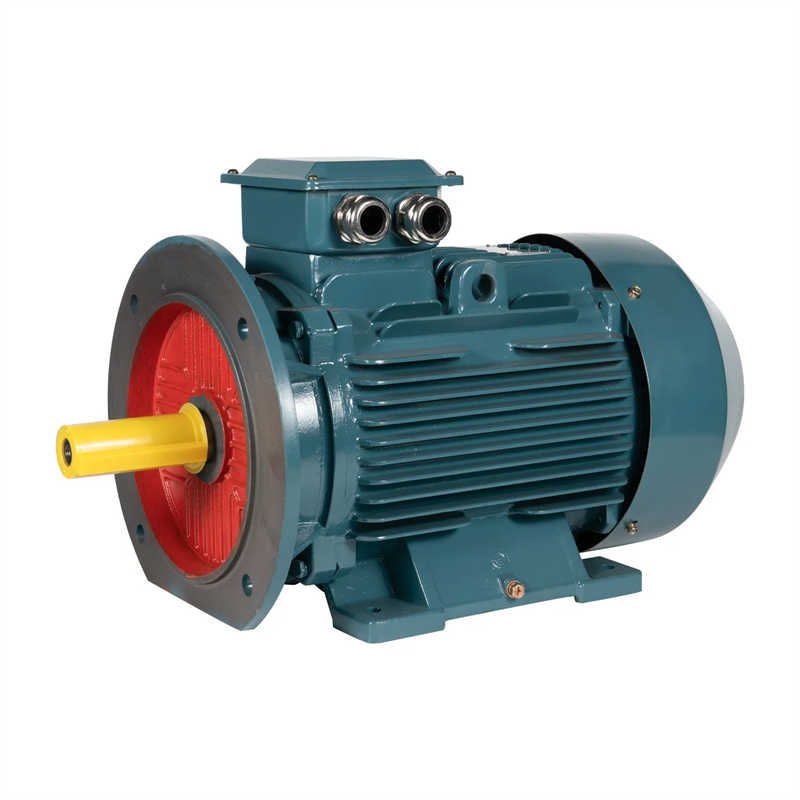

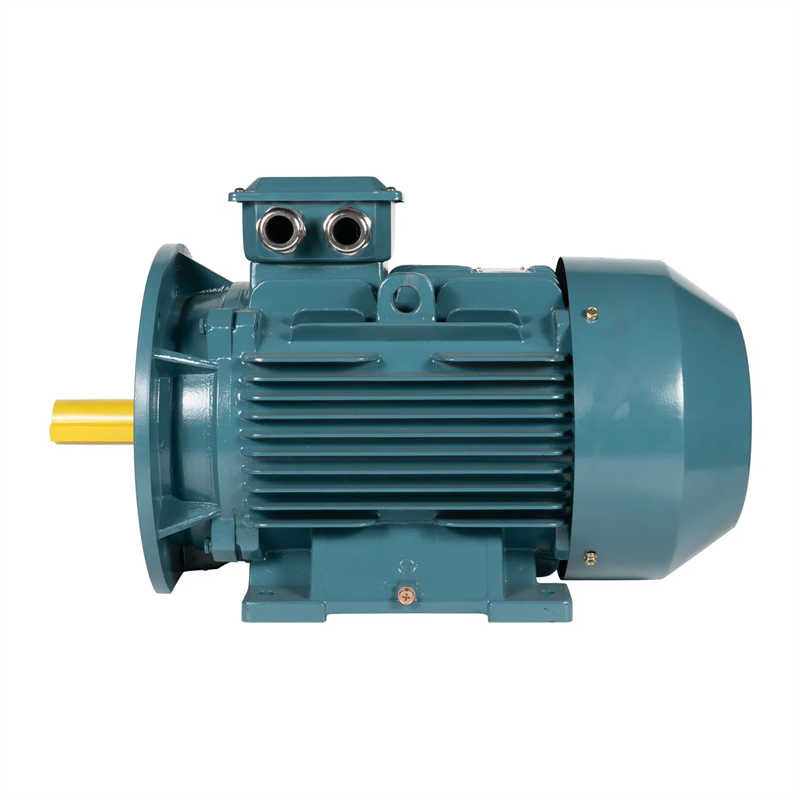

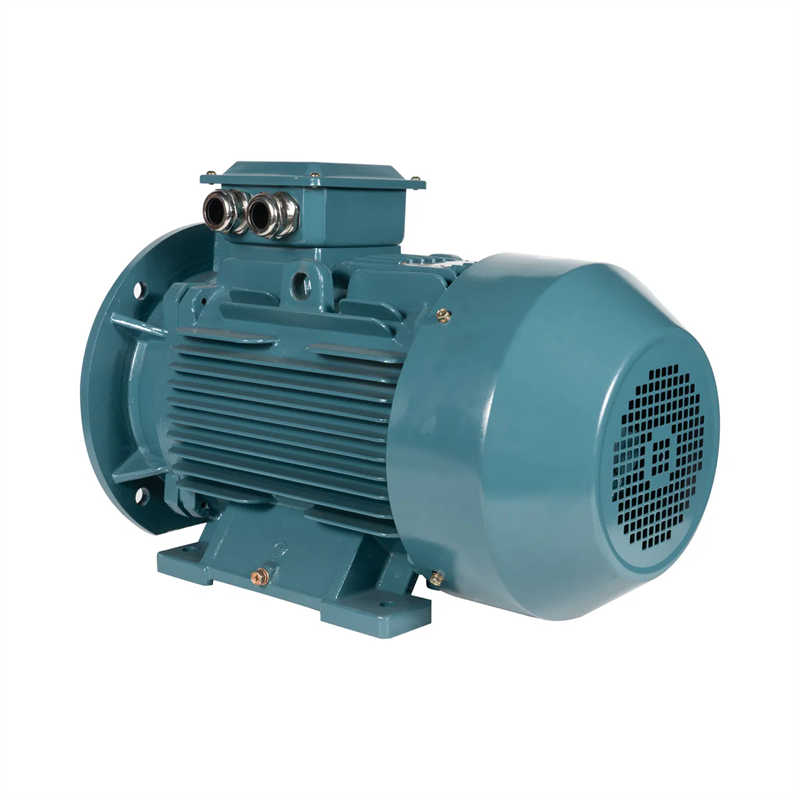

Three Phase AC Induction Motor 100HP 125HP Ye4/Ie4 Ye5/Ie5 for Water Pump
$100.00 10 set
Qingdao Shanghai
L/C T/T
New
YE3
CE, ISO9001
Hacchuang
General manufacturing
Product Description
Three Phase AC Induction Motor 100HP 125HP YE4/IE4 YE5/IE5 For Water Pump
| Efficiency Class | IE4 / IE5 |
| frame | H80-H450 |
| Output | 0.18kW-315kW |
| Speed | 3000RPM; 1500RPM; 1000RPM; 750RPM; 600RPM |
| Pole | 2-Pole; 4-Pole; 6-Pole; 8-Pole; 10-Pole |
| Rated Voltage | 380V or Customized |
| Rated Frequency | 50Hz or Customized |
| Mounting Type | B3; B5; B35; B34; B14; V1 |
| Shell Material | Iron or Aluminum |
| Protection Level | IP55 |
| Cooling Method | IC411 |
| Insulation Class | F |
| Operation Mode | S1 (continous duty) |
| Altitude | op to 1000 meters |
| Ambient Temperature | -15ºC ~ +40ºC |
Tips: To ensure we provide the most accurate information, please kindly share the detailed specifications of your product.
(Specification required: Rated Voltage, Rated Frequency, Output, Speed, Mounting Type,Terminal Box Position )
FAQ
1. What is your product range?
A: Diversified motors: Y, YE(IE), YB, YCT, YF, YC serises etc,
Peripheral: fan, water pump, etc.
2. Do you offer customization services?
A: Bespoke drawing, parameter support, custom packaging and appearance also available.
3. Can the price be reduced?
A: Better quality at the most competitive price-up to you.
4. What is your lead time?
A: In-stock items: same-day delivery;
Large production:15 days;
Custom production: around 45 days
5. What shipping terms do you accept?
A: EXW,FOB...DDP
6. What are the advantages of your after-sales service?
A: One-year warranty, parts delivery, online guidance or on-site engineer visits.
