MD1 Industrial Hoist Equipment Robust Construction for Harsh Environments

Product Description

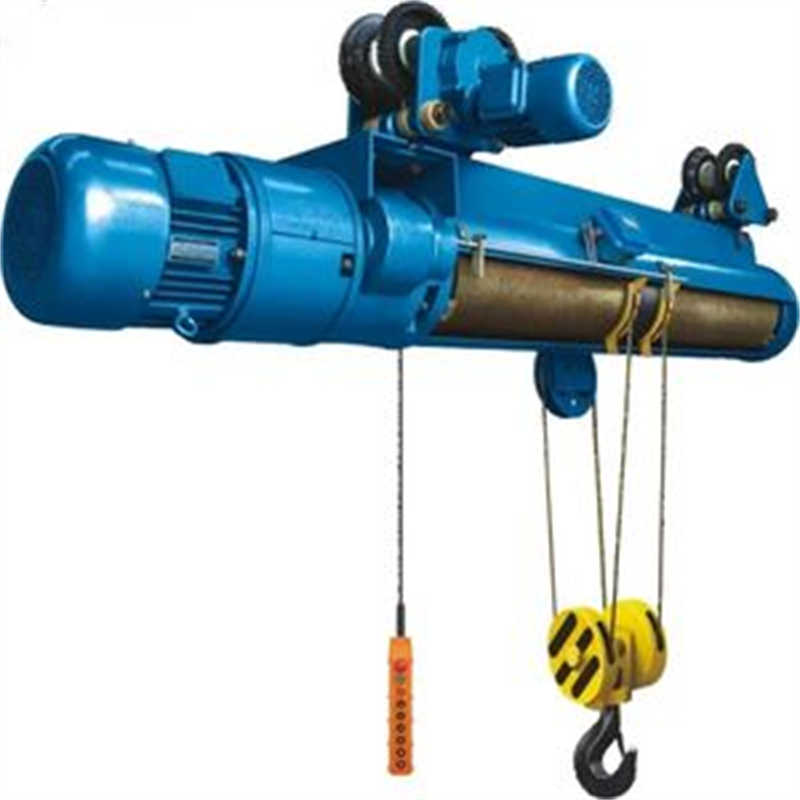

Model CD1 Electric Wire rope Hoist has only one normal speed, which can satisfy normal application. Model MD1 Electric Wire rope Hoist provides two speeds: Normal speed and low speed. At a low speed, it can do precise loading and unloading, mounding of sand box, maintenance of machine tools, etc.

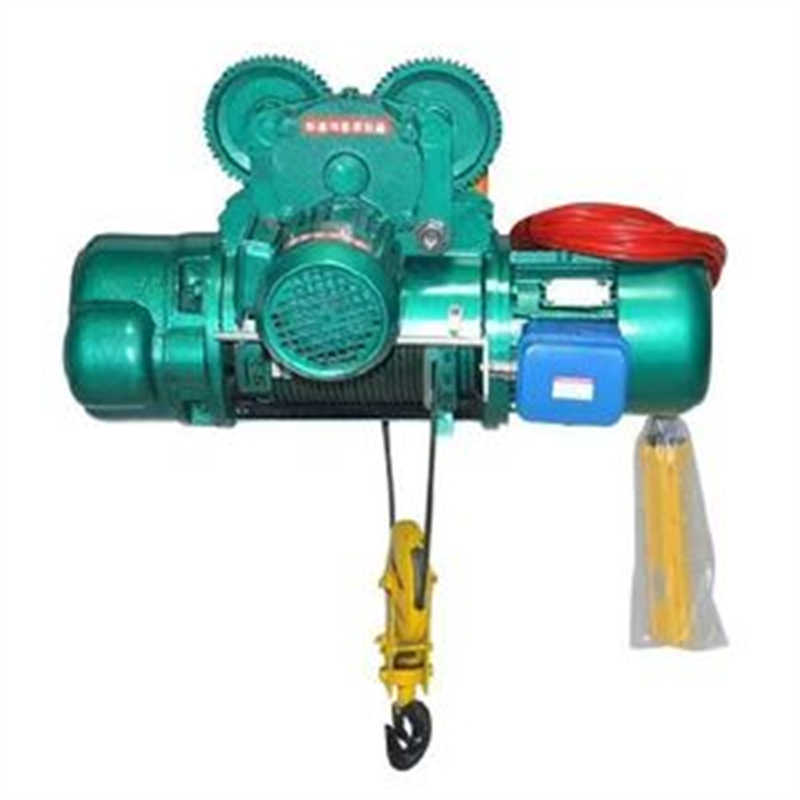

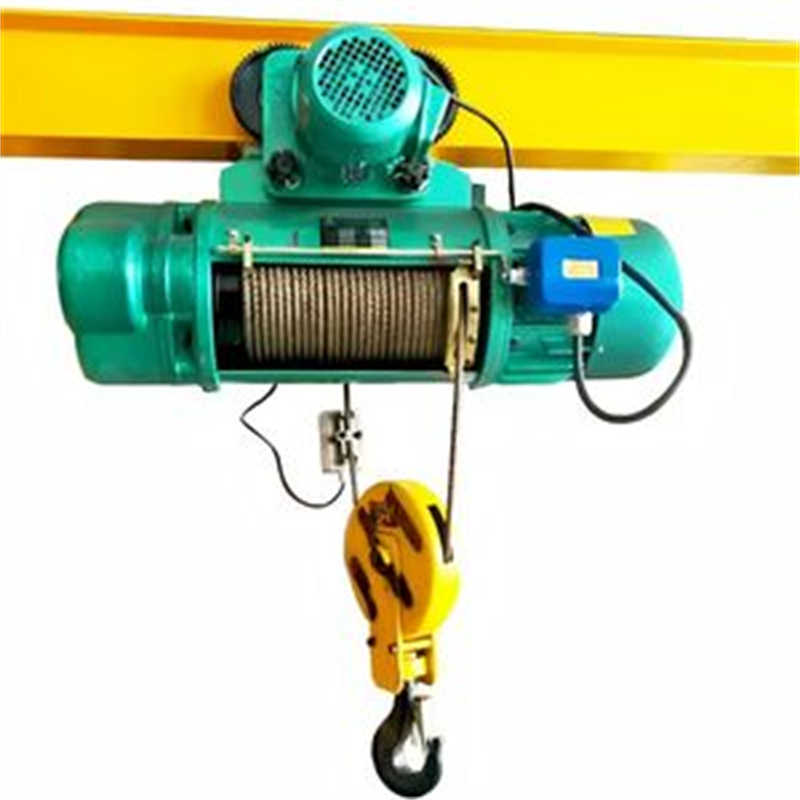

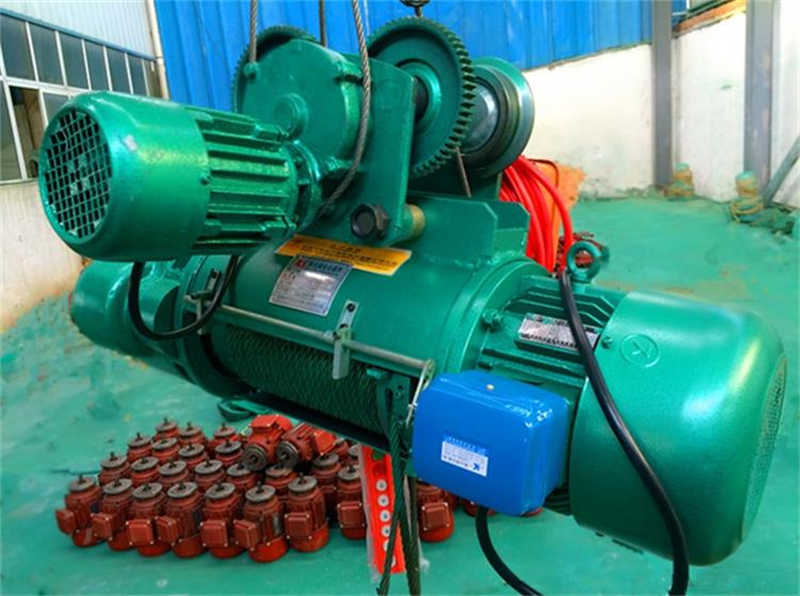

CD1 electrical hoist

1. CD wire rope electric hoist is light and small crane machinery, which can be fixed on single or double girder, bridge crane, portal crane and hanger crane. It is often used in factories, mines, docks, ports, storage houses, workshops etc., which is the necessary machinery to raise labor productivity and improve working conditions
.
2. CD wire rope electric hoist can be widely used in hoist heavy objects or installed on the straight or curve I-steel beam of Single-girder Cranes. They can also be used together with Electric Hoist Double-beam, gantry crane and slewing cranes. All the above has made the electric hoists common in industrial and ore enterprises, railway, wharfs and warehouses.

Difference:

The lifting speed of CD1 type is general speed, it can satisfy the requirements of general use; The lifting speed of MD1 type has two lifting speed: General speed and slow speed. When worked in slow speed, it can satisfy the requirement of precision loading and unloading, examine and repair machine tool etc precision work. Therefore, the useful scope of MD1 is wider than CD1 type
Safety
1. Brake and clutch ensure the safety under any circumstance, no slip under load
2. IP55 of hoist frame and brake ensures the optimal corrosion resistance under harsh environment.
3. Up and down limit switch ensures the safe operation of the hook on the top and bottom position.
4. Low voltage contactor ensures the safe and reliable operation
Features
1. Special drive composition method,
2. Reducer use planetary speed-down drive,
3. Unique column rotor-taper breaking wheel motor with low yawp,
4. Advanced guide rope technology,
5. High precision and super mechanical spin limiter,
6. High quality control electric component with low malfunction.
