5 Ton Capacity LDA Type Overhead Traveling Crane - Warehouse Use - $8,900 5 Ton Capacity LDA Type Overhead Traveling Crane - Warehouse Use - $8,900
5 Ton Capacity LDA Type Overhead Traveling Crane - Warehouse Use - $8,900 5 Ton Capacity LDA Type Overhead Traveling Crane - Warehouse Use - $8,900
5 Ton Capacity LDA Type Overhead Traveling Crane - Warehouse Use - $8,900 5 Ton Capacity LDA Type Overhead Traveling Crane - Warehouse Use - $8,900
5 Ton Capacity LDA Type Overhead Traveling Crane - Warehouse Use - $8,900 5 Ton Capacity LDA Type Overhead Traveling Crane - Warehouse Use - $8,900
5 Ton Capacity LDA Type Overhead Traveling Crane - Warehouse Use - $8,900 5 Ton Capacity LDA Type Overhead Traveling Crane - Warehouse Use - $8,900

5 Ton Capacity LDA Type Overhead Traveling Crane - Warehouse Use - $8,900

$8900.00
1 set
Qingdao Shanghai
L/C T/T
New
LDA
CE, ISO9001
Lvrui
General manufacturing,Metal production industry,Renewable energy industry
Contact Supplier
Add to Wish List
20 t
30m
7.5-31.5m
380v/440v/customized
A3,A4,A5
Yellow,Customized
Lvrui
LDA
中国
1 Years

LDA single-beam bridge crane

The LDA electric single-beam bridge crane consists of a main beam, end beam, electric hoist and operating mechanism welded from steel plates and I-beams. The electric hoist runs along the lower edge of the main beam I-beam to complete the lifting operation of the goods. It is characterized by light structure, easy installation and maintenance, and is widely used in factories, warehouses and material yards to transport goods in various occasions. It is prohibited to use in environments with flammable, explosive or corrosive media. Working level A3-A5. The operating modes of the LDA electric single-beam bridge crane include three forms: ground handle operation, wireless remote control operation and cab operation. The driver's cab is available in open and closed types. The main beam operation of the LDA electric single-beam bridge crane adopts a separate drive form with a conical electric brake and an open gear transmission. The running motor can choose a soft start motor or variable frequency speed regulation according to user requirements. The crane starts smoothly and has high operating safety.

Lda Type 1 Ton 5 Ton 10 Ton Overhead Mo<em></em>norail System Single Girder Bridge Crane

Lda Type 1 Ton 5 Ton 10 Ton Overhead Mo<em></em>norail System Single Girder Bridge Crane

Product Parameters

Lda Type 1 Ton 5 Ton 10 Ton Overhead Mo<em></em>norail System Single Girder Bridge Crane

Take 16 tons technical parameters as an example

crane travelling mechanismWorking speed20(Ground)
speed radio58.78
motortypeYED90L-4YED80-4YED90L-4
power2×1.54×0.84×1.5
rotational speed7.5≤S≤1414<S≤19.519.5<S≤31.5
Lifting Machanism(electric hoist)&electric hoisttravelling mechanismmodel ofelectric hoistCD ModelMD Model
Lifting speed3.53.5/0.35
Hoisting height9,12,18,24,30
Travelling speed20
motorcone squirrel-cage model
Working classA3
electric current380V 50Hz three-phase
wheel diameter270
width of track51~70mm

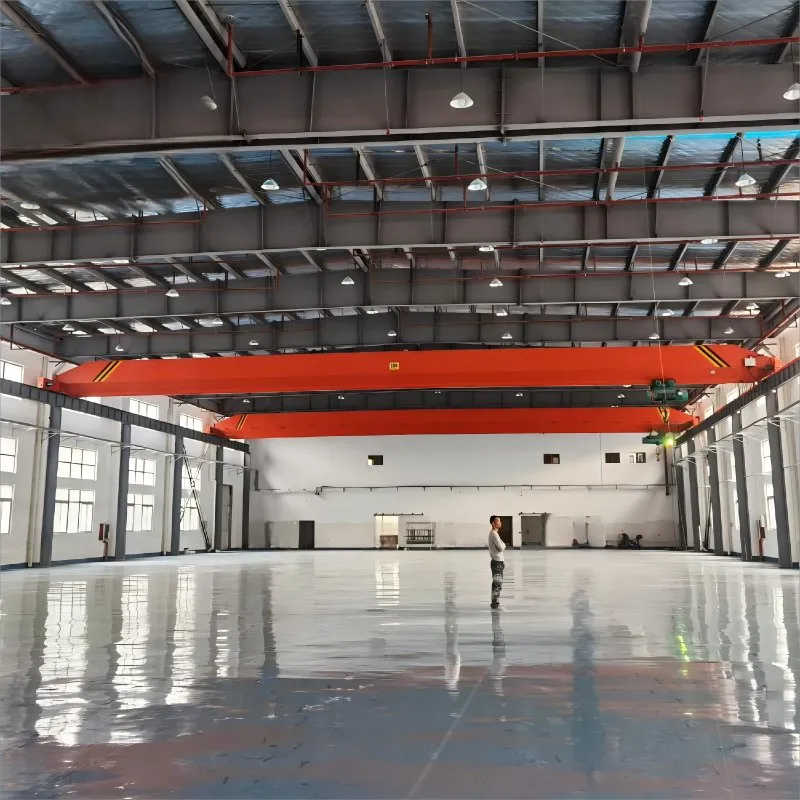

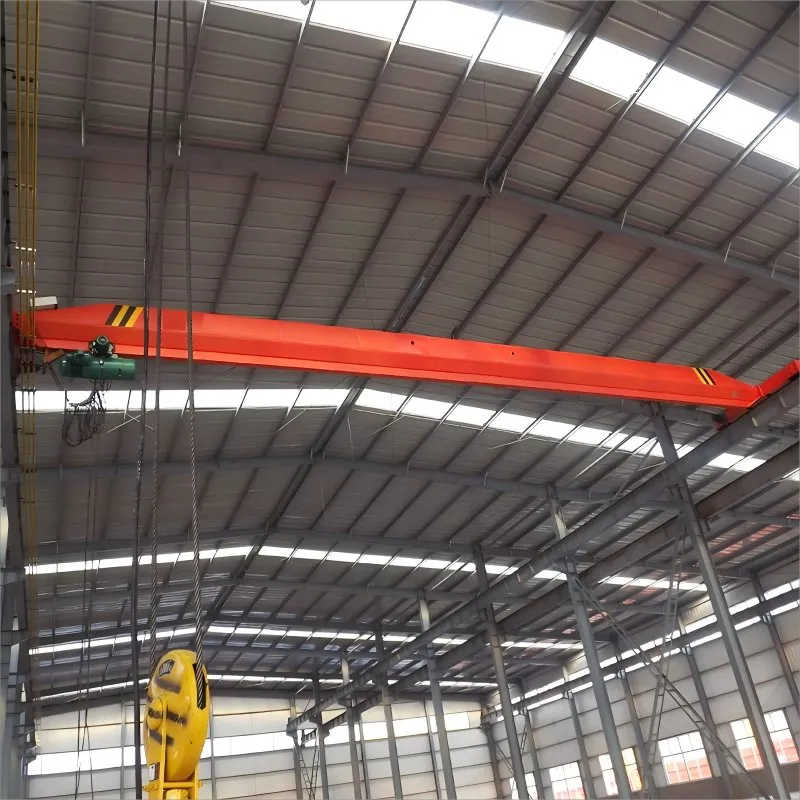

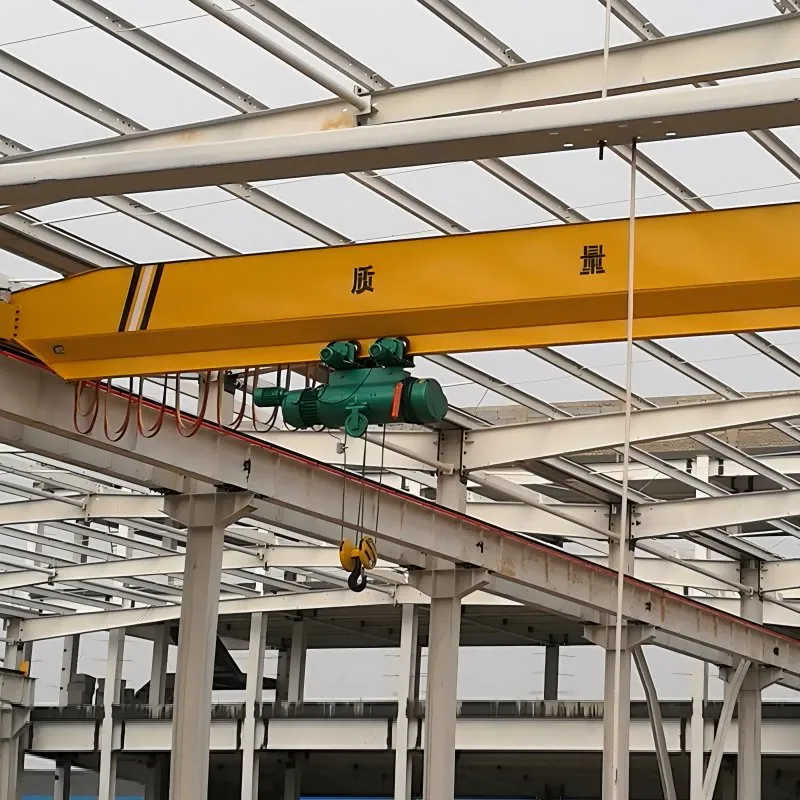

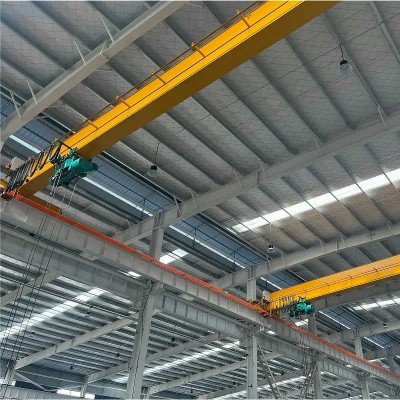

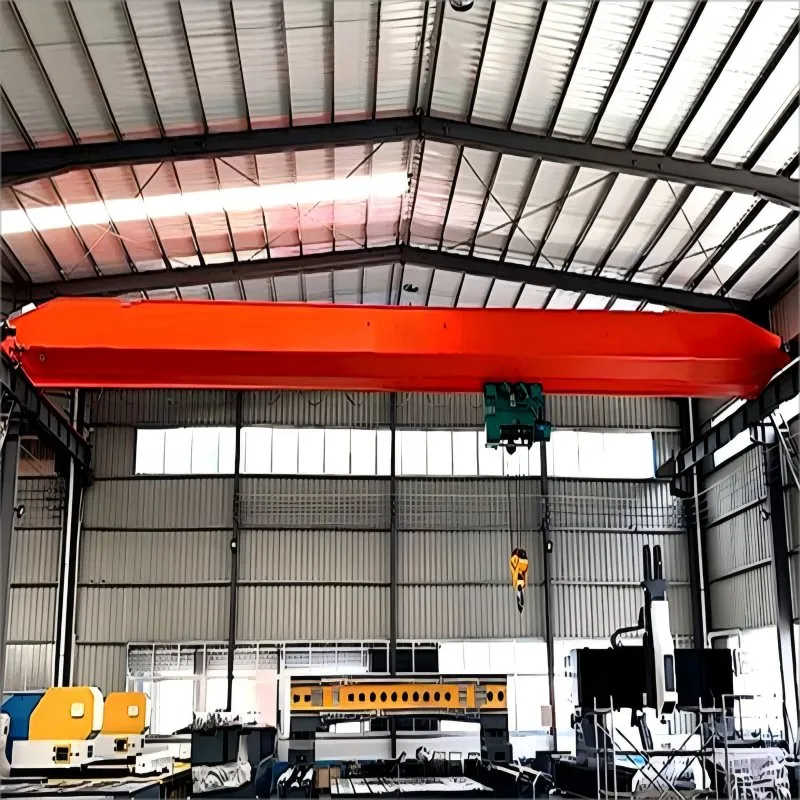

Detailed Photos

Lda Type 1 Ton 5 Ton 10 Ton Overhead Mo<em></em>norail System Single Girder Bridge Crane

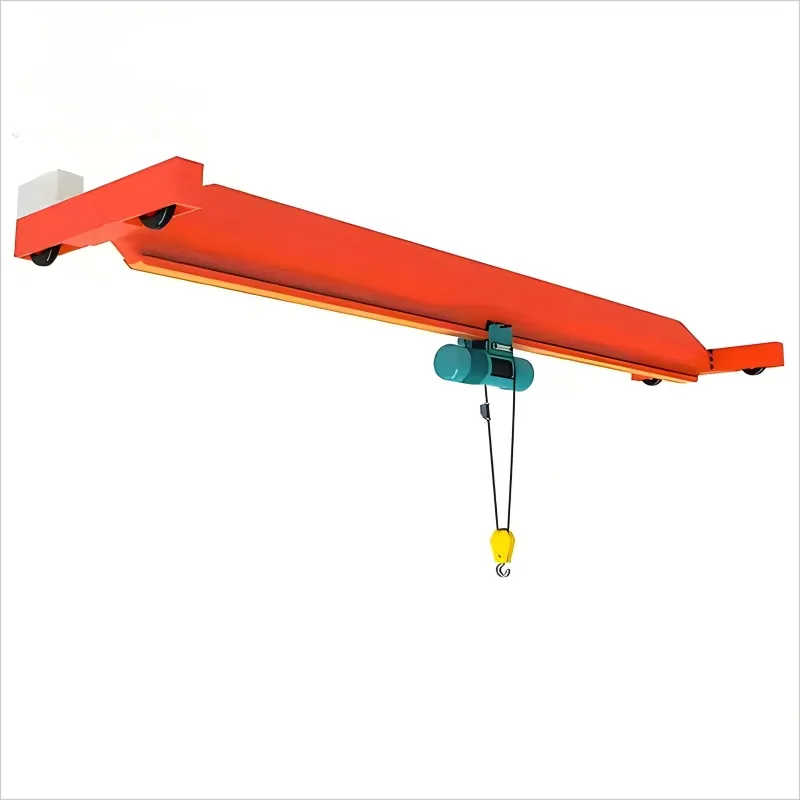

1. Structure: hoist, single beam, end beam, electric control system, low height, small size, light weight, small pressure wheel;
2. Operation mode: cable operation, wireless remote control;
3. The advanced design concept makes the crane have outstanding distribution and performance, while minimizing the running interval of the hook to the greatest extent, effectively improving the space utilization rate, and also allowing customers to reduce the investment cost of the factory.
4. The high-performance braking system with dustproof device can be automatically adjusted, and the safe service life exceeds 1000000 times.

Lda Type 1 Ton 5 Ton 10 Ton Overhead Mo<em></em>norail System Single Girder Bridge Crane

Lda Type 1 Ton 5 Ton 10 Ton Overhead Mo<em></em>norail System Single Girder Bridge Crane

Lda Type 1 Ton 5 Ton 10 Ton Overhead Mo<em></em>norail System Single Girder Bridge Crane

Lda Type 1 Ton 5 Ton 10 Ton Overhead Mo<em></em>norail System Single Girder Bridge Crane
