5t Double Girder Overhead Crane 20mx8m Pakistan Bus Bar Powered IP55
$17600.00 1 set
Qingdao Shanghai
L/C T/T
New
QD
CE, ISO9001:2000
Magicart
General manufacturing,Metal production industry,Renewable energy industry,Paper and wood industry
Main Features:
Load Capacity: 3~800t, custimized
Span: 5~110m, customized
Lifting Height: 5~110m, customized
Class: Standard A5 or A3, A4, A6, A7, A8
Powered via bus bar system
Application:
Workshop, Concrete plant, all Factories
For assembly, loading, unloading area etc
Workshop Indoor or Outdoor design

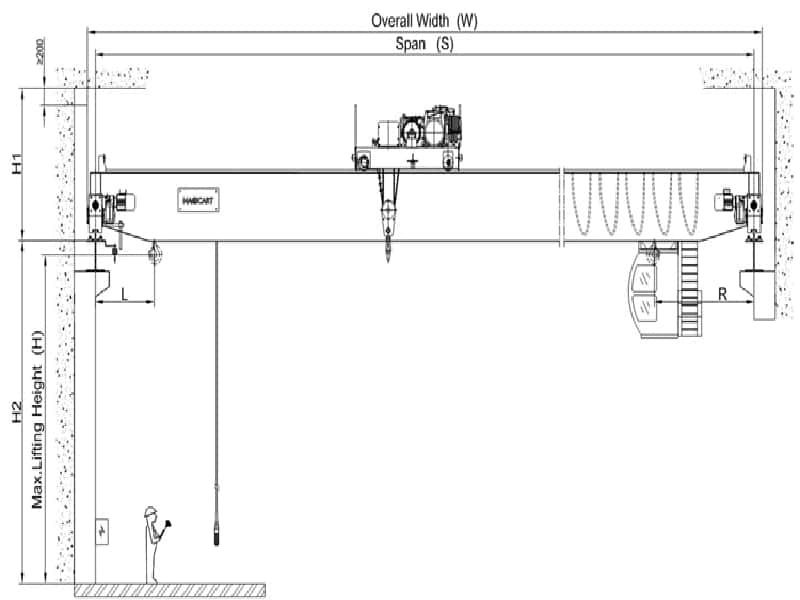

Product Drawing
Data Sheet
| Load Capacity (ton) | Span /Rail Gauge(m) | Max. Lifting height(m) | Girders Quantity |
| 1 | 5~35 | 5~25 | Single or double |
| 3 | 5~35 | 5~25 | Single or double |
| 5 | 5~35 | 5~25 | Single or double |
| 10 | 5~35 | 5~25 | Single or double |
| 12.5 | 5~35 | 5~25 | Single or double |
| 15 | 5~35 | 5~25 | double |
| 16 | 10~50 | 5~25 | double |
| 20 | 10~50 | 5~35 | double |
| 25 | 10~50 | 5~35 | double |
| 32 | 10~50 | 5~35 | double |
| Oct-50 | 10~50 | 5~35 | double |
| 70 | 10~50 | 5~35 | double |
| 100 | 10~50 | 5~35 | double |
| 120 | 10~50 | 5~35 | double |
| 150 | 10~50 | 5~35 | double |
| 200 | 15~50 | 10~35 | double |
| 250 | 15~50 | 10~35 | double |
| 300 | 15~50 | 10~35 | double |
| 350 | 15~50 | 10~35 | double |
| 400~800 | 15~50 | 10~35 | double |
| Customizable | Customizable | Customizable | Customizable |
| Power Supply: 380~460V, 50/60HZ, 3 Phase | |||
| Single girder design: 1~12.5 ton | |||
| Double girder design: 5 to 800 ton | |||
| FEM class: A3, A5 as standard, A6/A7/ A8 as customized options | |||
Features
Minimum IP55 for electrical enclosure.
Electronic overload protection c/w warning horn.
Noise level below 85 dB(A) at full load.
Thermal protection for pole-changing and 3 PTC thermistors for inverter drive.
Crane rake with asbestos-free lining which activates automatically in case of power failure.
Composed with Girder frame, Crane travel device, and the trolley with lifting and moving device.
Two speed control via pole changing for the hoisting motion, inverter control and smooth and precise operation.
