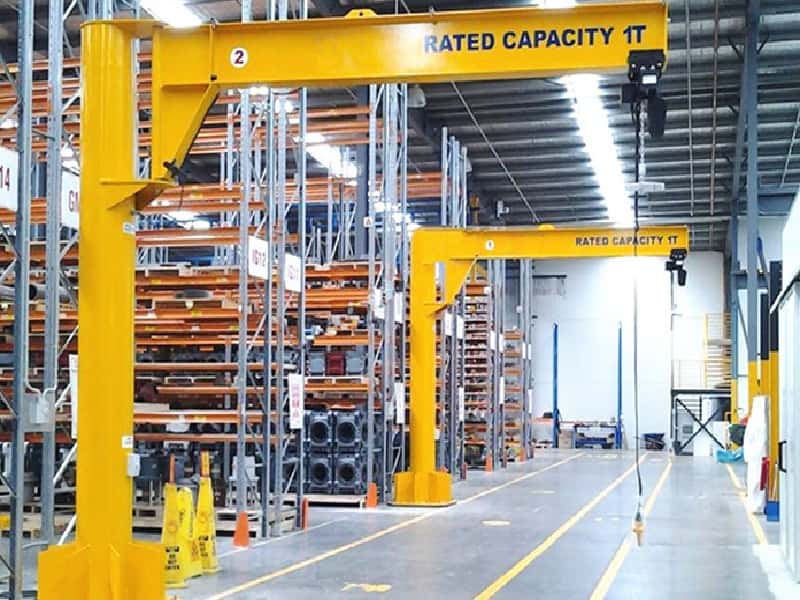

1t Floor Mounted Jib Crane 3mx8m Tanzania Cement Factory 360° A3
$3500.00 1 set
Qingdao Shanghai
L/C T/T
New
BZ
CE, ISO9001:2000
Magicart
General manufacturing,Metal production industry
Main Features:
Lifting Capacity: 1~12t or more
Lifting Height: 2~10m, customized
Outreach: 2.5~12m, customized
Class: European design A5/2m, option A3
Slew degree from 0 to 360°/270°/180°
Application:
Workshop, Concrete plant, all Factories
For assembly, loading, unloading area etc
Workshop Indoor or Outdoor design
Product Drawing
Data Sheet
| Load Capacity (ton) | Outreach (m) | Max. Lifting height (m) | Duty Class |
| 1 | 3~6 | 3~8 | A3 or A5 |
| 2 | 5~35 | 3~25 | A3 or A5 |
| 3 | 5~35 | 3~25 | A3 or A5 |
| 5 | 5~35 | 3~25 | A3 or A5 |
| 8 | 5~35 | 3~25 | A3 or A5 |
| 10 | 5~35 | 3~25 | A3 or A5 |
| 12 | 5~35 | 3~25 | A3 or A5 |
| Customizable | Customizable | Customizable | Customizable |
| Power Supply: 380~460V, 50/60HZ, 3 Phase | |||
| FEM class: A3, A5 as standard | |||
Features
The crane is mounted on the floor and is not supported by any building.
Altitude of crane installation site is less than 2000m.
Pipe with ample strength is made into post.
Crane jib swivels on antifriction bearings.
Slewing motion is available in both manual as well as motorized variety.
Jib construction can be under braced or over braced.
Wide base plate at the bottom of jib makes the loads pressures distributed evenly on foundation.
Manual chain hoist, geared trolley, electrical chain hoist, motorized trolley and other lifting units are available.
Radio remote control are available for remote crane operation.
It is mainly consisted of up-pillar, down pillar, main beam bar, electric hoist, rotating mechanism and electric system, etc.
It can lift and transport materials in semi circles or full circles around their support structures to provide material.
