M3 Hoist Compatible Electric Wire Rope Hoist, 2ton-16ton Capacity, For Africa
$500.00 1 set
Qingdao Shanghai
L/C T/T
New
CD1/MD1
CE, ISO9001
Major
General manufacturing
Products Description

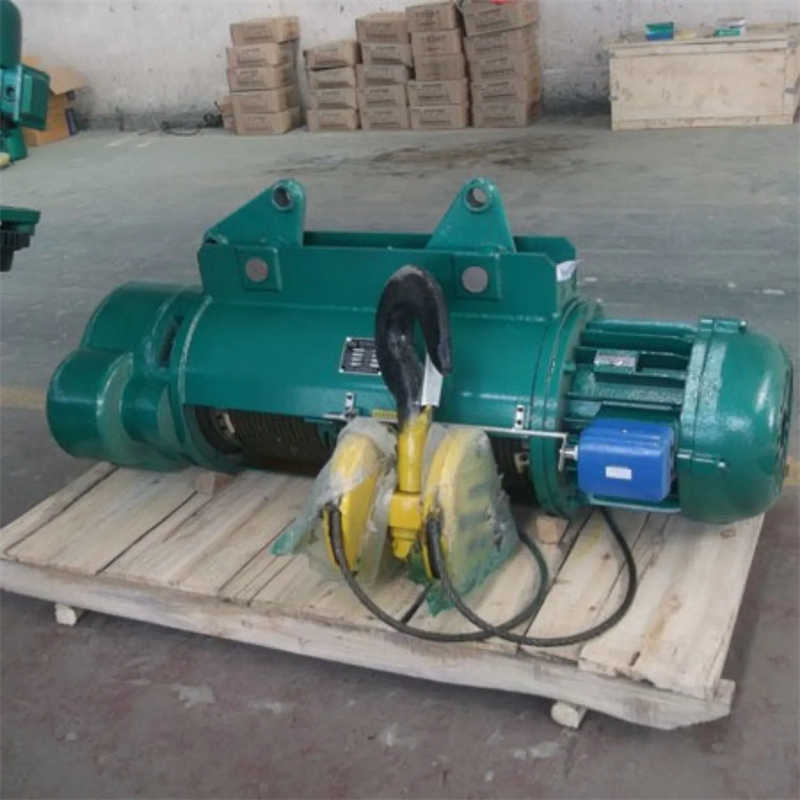

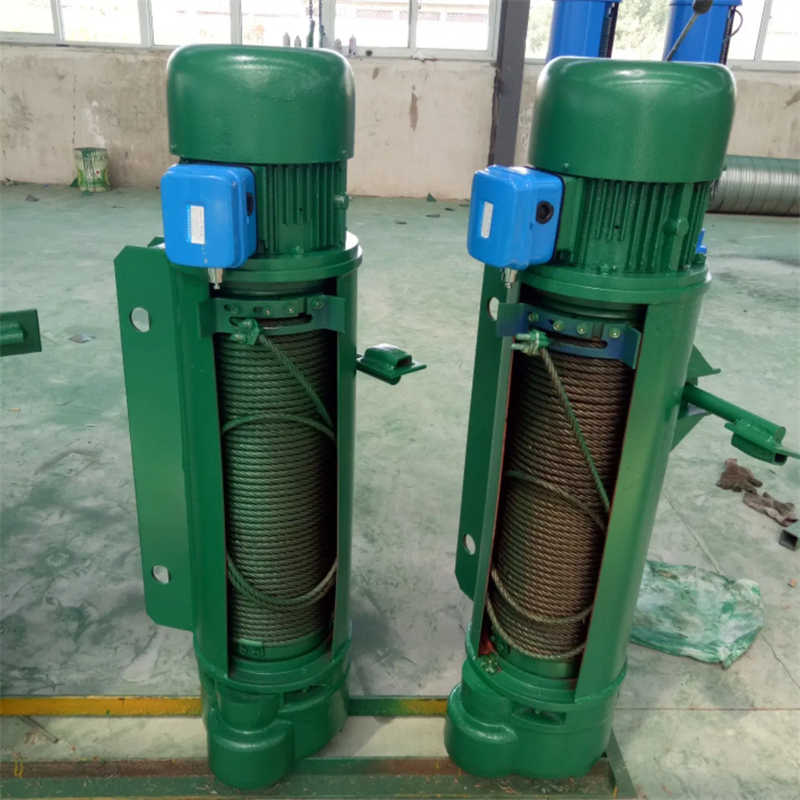

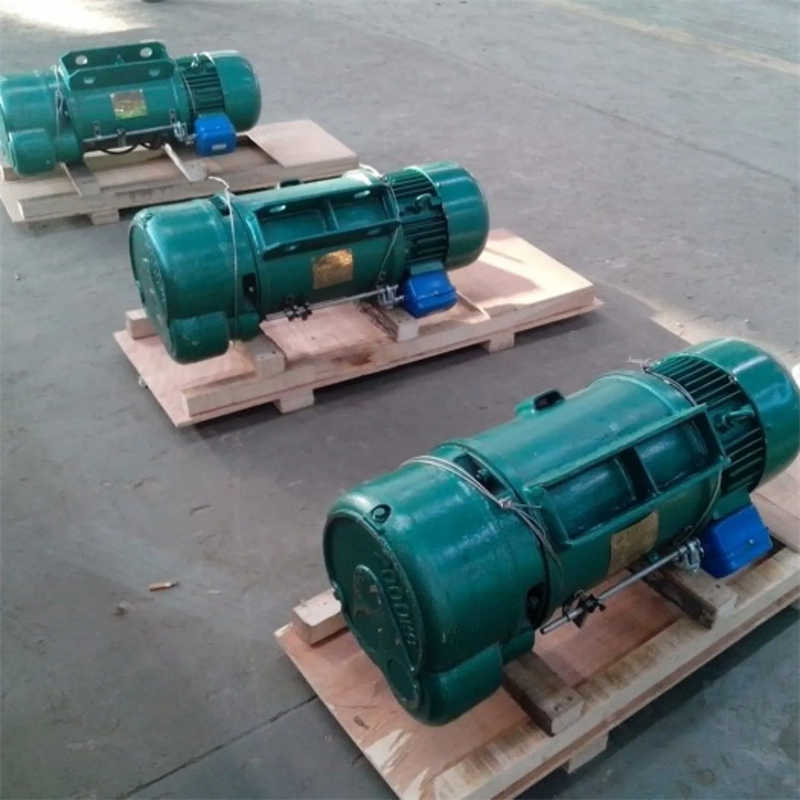

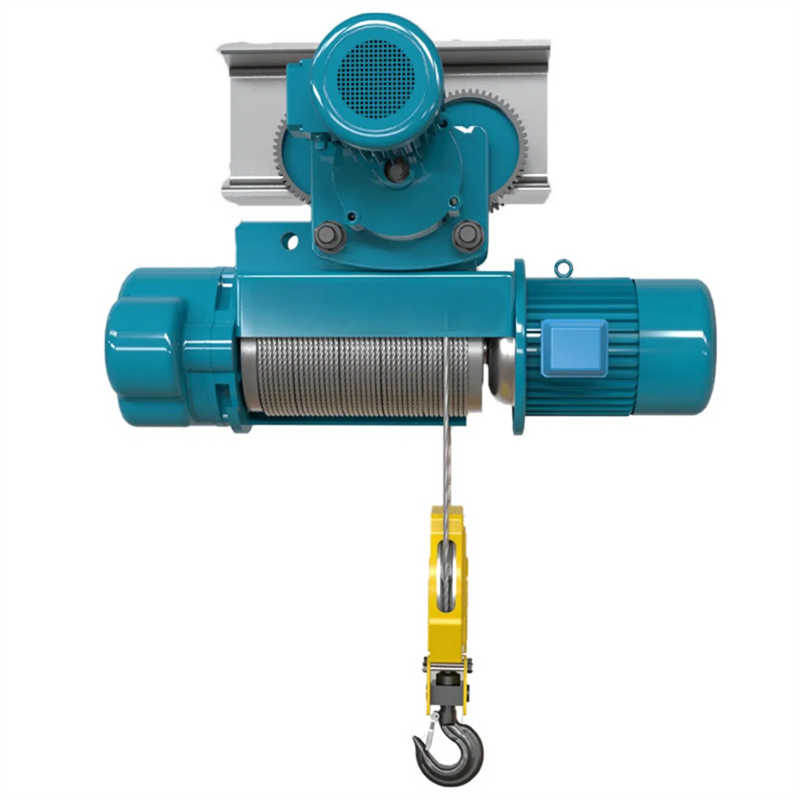

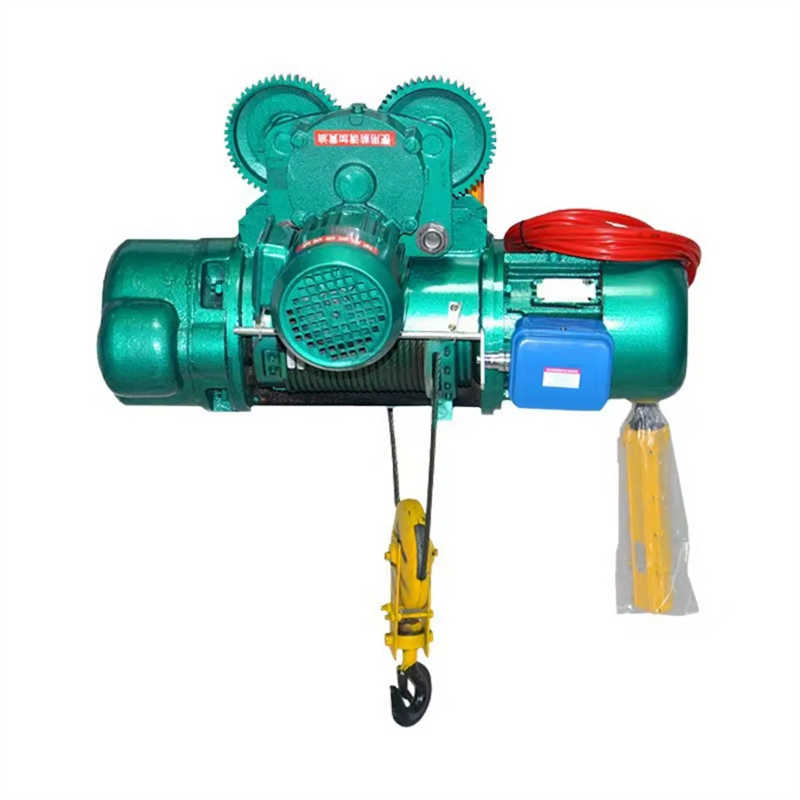

CD, MD Type Electric Wire Rope Hoist 1.Model CD, MD wire rope electric hoist is a small size lifting equipment, which can be mounted on the single beam crane, Double Girder, gantry crane and arm cranes. 2.Model CD electric hoist has only one normal speed, which can satisfy normal application. 3.Model MD electric hoist provide two speeds: normal speed and low speed. At a low speed, it can do precise loading and unloading, mounding of sand box,maintenance of machine tools, etc. 4.It is widely used in factory, mines, harbour, warehouse, cargo storage areas and shops, essential in raising working efficiency and improving working conditions.
Item | CD, MD Type Electric Wire Rope Hoist |
Loading capacity | 0.25~20t |
Hoisting height | 3~30m |
Lifting speed | 8(8/0.8)m/min, 7(7/0.7)m/min, 3.5(3.5/0.35)m/min, 4m/min |
Travel speed | 20m/min, 30m/min |
Working system | Intermediate FC=25% |
Power supply | 380V 50Hz 3Ph or custom made |
CD Type | MD Type | |||
Lifting Capacity
| 0.25-20T | 0.25-20T | ||
Hoisting Height | 3-30M | 3-30M | ||
Travel Speed
| 20/30 (m/min) | 20/30 (m/min) | ||
Hoisting Speed
| 8M/Min | 0.8/8 (m/min) | ||
Advantages of Vohoboo Wire Rope Hoist:
• CE approved.
• Lightweight robust construction.
• Low effort to lift maximum load.
• Fully forged hooks.
• High grade alloy load chain.
• Durable baked enamel paint protection.
• Overload protection device available upon request.
• Excellent after-sale serve, market agent support and protection.
• Excellent quality, top in China, always the leader.
• Sample order and trail order are acceptable.
Paint link
After the assembly of electric hoist, the production workers and quality inspection personnel at the same time on the product power and load test, the performance indicators to meet the requirements, into the paint link, otherwise need to rework.
Electric hoist with single beam bridge crane
Electric hoist can be used with bridge electric single beam, which can realize four directions of operation, east, west, north and south, as well as up and down lifting goods.
Electric hoist with small gantry crane
Small tonnage electric hoist can be used with small gantry crane, more flexible lifting goods and can be used indoors and outdoors.
Electric hoist with Jib crane
Electric hoist can be used with jib crane to improve work efficiency, more concentrated and fast lifting or handling of goods.
