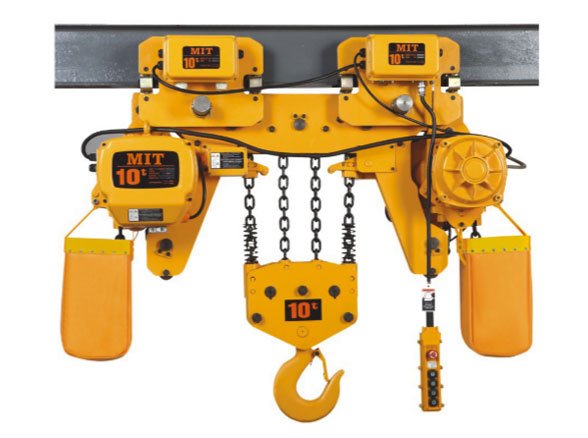

LH Type Low-headroom Electric Hoist 10ton Lifting Height 12m

$4980.00

Min. Order: 1 set

Port: Qingdao Shanghai

Payment Terms: L/C T/T

Transport Package:

Conditions: New

Model: LH

Certifications: CE, ISO9001:2000

Brand: MIT

Application: General manufacturing

Max. Lifting Capacity: 20 t

Max. Lifting Height: 20m

Span:

Voltage: 220-460V 3 Phase or on Request

Working Duty: M3-M5

Color: Customized

Brand/Trademark: MIT

Model: LH

Origin: 中国

Warranty: 1 year

Model No.	Capacity (Ton)	Classification FEM/ISO	Duty Rating (ED)	Lifting Speed (m/min)	Hoist Motor (Kw)	Traveling Speed (m/min)	Trolley Motor (kw)	Beam Flange (mm)	Load Chain Dimension (mm)	Load Chain Falls
MHT10LH-04	10	1Am/M4	30%	2.7	3.0x2	10 or 20	0.75	110-180	11.2	4

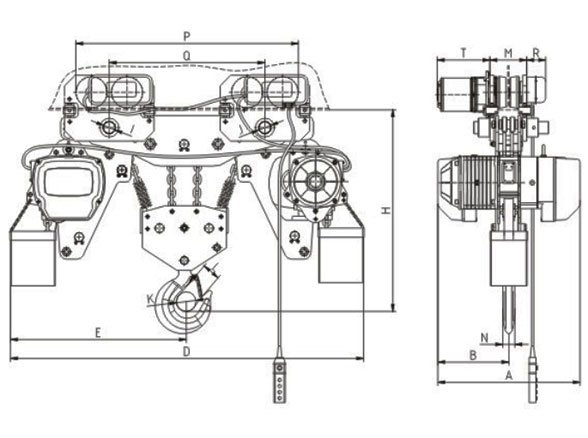

Technical Parameters (Size Specification)
Model No. Capacity
(Ton) Unit(mm)

H A B D E I J K L M Q P T R N
MHT10LH-04 10 880 630 315 1640 820 Φ54 Φ54 Φ90 65 77 613 926 231 142 50

Model No.	Capacity (Ton)	Unit(mm)
MHT10LH-04	10	880	630	315	1640	820	Φ54	Φ54	Φ90	65	77	613	926	231	142	50
