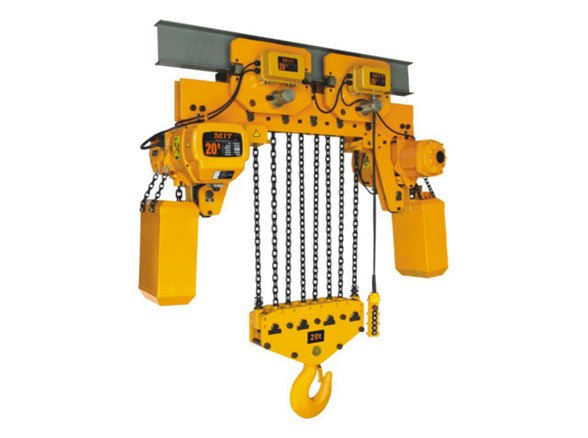

LH Type Low-headroom Electric Hoist 20ton Lifting Height 12m

$6850.00

Min. Order: 1 set

Port: Qingdao Shanghai

Payment Terms: L/C T/T

Transport Package:

Conditions: New

Model: LH

Certifications: CE, ISO9001:2000

Brand: MIT

Application: General manufacturing

Max. Lifting Capacity: 20 t

Max. Lifting Height: 20m

Span:

Voltage: 220-460V 3 Phase or on Request

Working Duty: M3-M5

Color: Customized

Brand/Trademark: MIT

Model: LH

Origin: 中国

Warranty: 1 year

Model No.	Capacity (Ton)	Classification FEM/ISO	Duty Rating (ED)	Lifting Speed (m/min)	Hoist Motor (Kw)	Traveling Speed (m/min)	Trolley Motor (kw)	Beam Flange (mm)	Load Chain Dimension (mm)	Load Chain Falls
MHT20LH-08	20	1Am/M4	30%	1.3	3.0x2	10 or 20	0.75x2	130-180	11.2	8

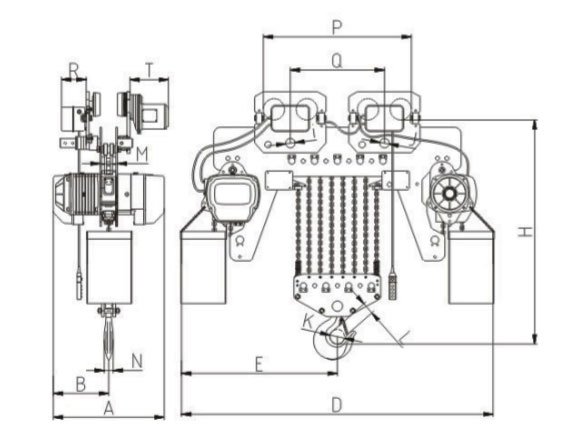

Technical Parameters (Size Specification)
Model No. Capacity
(Ton) Unit(mm)

H A B D E I J K L M Q P T R N
MHT20LH-08 20 1080 630 315 1905 975 Φ70 Φ70 Φ110 80 80 600 960 231 142 85

Model No.	Capacity (Ton)	Unit(mm)
MHT20LH-08	20	1080	630	315	1905	975	Φ70	Φ70	Φ110	80	80	600	960	231	142	85
